Page 1

10-25/64 [264.00]

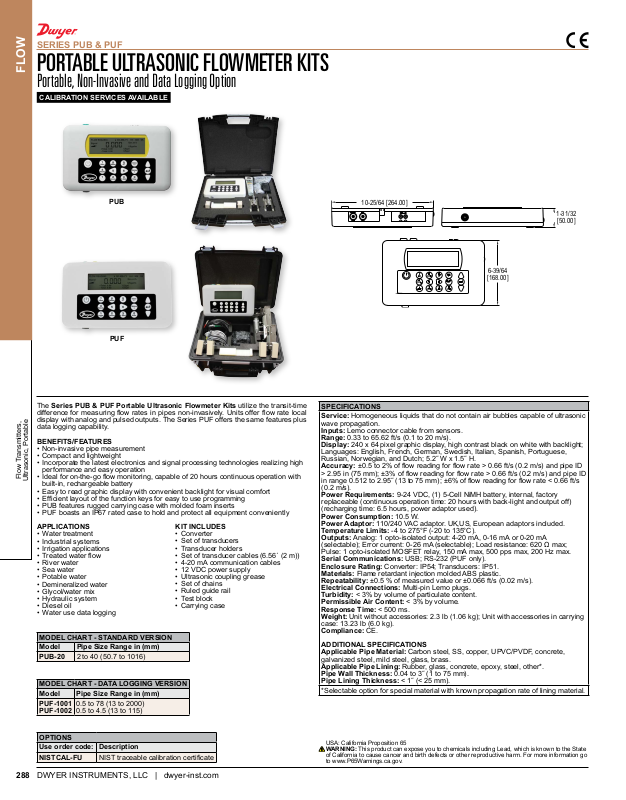

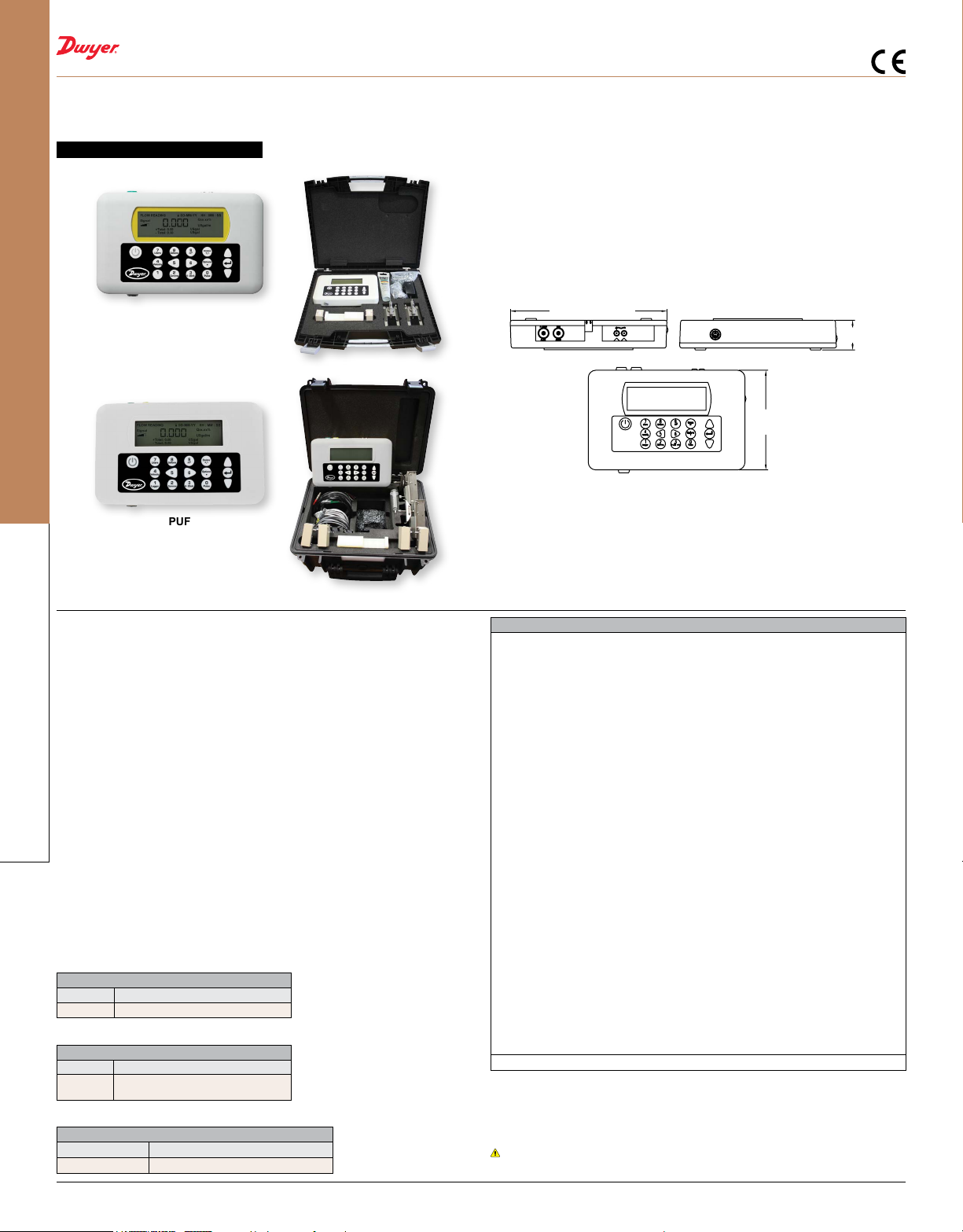

SERIES PUB & PUF

PORTABLE ULTRASONIC FLOWMETER KITS

FLOW

Portable, Non-Invasive and Data Logging Option

CALIBRATION SERVICES AVAILABLE

PUB

PUF

6-39/64 [168.00]

1-31/32

[50.00]

The Series PUB & PUF Portable Ultrasonic Flowmeter Kits utilize the transit-time difference for measuring ow rates in pipes non-invasively. Units offer ow rate local

display with analog and pulsed outputs. The Series PUF offers the same features plus data logging capability.

BENEFITS/FEATURES

• Non-invasive pipe measurement

• Compact and lightweight

• Incorporate the latest electronics and signal processing technologies realizing high

performance and easy operation

• Ideal for on-the-go ow monitoring, capable of 20 hours continuous operation with

Flow Transmitters,

Ultrasonic, Portable

built-in, rechargeable battery

• Easy to read graphic display with convenient backlight for visual comfort

• Efcient layout of the function keys for easy to use programming

• PUB features rugged carrying case with molded foam inserts

• PUF boasts an IP67 rated case to hold and protect all equipment conveniently

APPLICATIONS

• Water treatment

• Industrial systems

• Irrigation applications

• Treated water ow

• River water

• Sea water

• Potable water

• Demineralized water

• Glycol/water mix

• Hydraulic system

• Diesel oil

• Water use data logging

MODEL CHART - STANDARD VERSION Model Pipe Size Range in (mm) PUB-20 2 to 40 (50.7 to 1016)

MODEL CHART - DATA LOGGING VERSION Model Pipe Size Range in (mm) PUF-1001

PUF-1002

0.5 to 78 (13 to 2000)

0.5 to 4.5 (13 to 115)

KIT INCLUDES

• Converter

• Set of transducers

• Transducer holders

• Set of transducer cables (6.56´ (2 m))

• 4-20 mA communication cables

• 12 VDC power supply

• Ultrasonic coupling grease

• Set of chains

• Ruled guide rail

• Test block

• Carrying case

SPECIFICATIONS Service: Homogeneous liquids that do not contain air bubbles capable of ultrasonic

wave propagation.

Inputs: Lemo connector cable from sensors. Range: 0.33 to 65.62 ft/s (0.1 to 20 m/s). Display: 240 x 64 pixel graphic display, high contrast black on white with backlight;

Languages: English, French, German, Swedish, Italian, Spanish, Portuguese,

Russian, Norwegian, and Dutch; 5.2˝ W x 1.5˝ H. Accuracy: ±0.5 to 2% of ow reading for ow rate > 0.66 ft/s (0.2 m/s) and pipe ID > 2.95 in (75 mm); ±3% of ow reading for ow rate > 0.66 ft/s (0.2 m/s) and pipe ID in range 0.512 to 2.95˝ (13 to 75 mm); ±6% of ow reading for ow rate < 0.66 ft/s

(0.2 m/s).

Power Requirements: 9-24 VDC, (1) 5-Cell NiMH battery, internal, factory

replaceable (continuous operation time: 20 hours with back-light and output off) (recharging time: 6.5 hours, power adaptor used).

Power Consumption: 10.5 W. Power Adaptor: 110/240 VAC adaptor. UK,US, European adaptors included. Temperature Limits: -4 to 275°F (-20 to 135°C). Outputs: Analog: 1 opto-isolated output: 4-20 mA, 0-16 mA or 0-20 mA

(selectable); Error current: 0-26 mA (selectable); Load resistance: 620 Ω max; Pulse: 1 opto-isolated MOSFET relay, 150 mA max, 500 pps max, 200 Hz max.

Serial Communications: USB; RS-232 (PUF only). Enclosure Rating: Converter: IP54; Transducers: IP51. Materials: Flame retardant injection molded ABS plastic. Repeatability: ±0.5 % of measured value or ±0.066 ft/s (0.02 m/s). Electrical Connections: Multi-pin Lemo plugs. Turbidity: < 3% by volume of particulate content. Permissible Air Content: < 3% by volume. Response Time: < 500 ms. Weight: Unit without accessories: 2.3 lb (1.06 kg); Unit with accessories in carrying

case: 13.23 lb (6.0 kg).

Compliance: CE.

ADDITIONAL SPECIFICATIONS Applicable Pipe Material: Carbon steel, SS, copper, UPVC/PVDF, concrete,

galvanized steel, mild steel, glass, brass.

Applicable Pipe Lining: Rubber, glass, concrete, epoxy, steel, other*. Pipe Wall Thickness: 0.04 to 3˝ (1 to 75 mm). Pipe Lining Thickness: < 1˝ (< 25 mm).

*Selectable option for special material with known propagation rate of lining material.

OPTIONS Use order code: Description NISTCAL-FU NIST traceable calibration certicate
