Series
SOLENOID
VALVE
Cu
HOLE
T
IN OUT
A
E
D
C
B
ØH

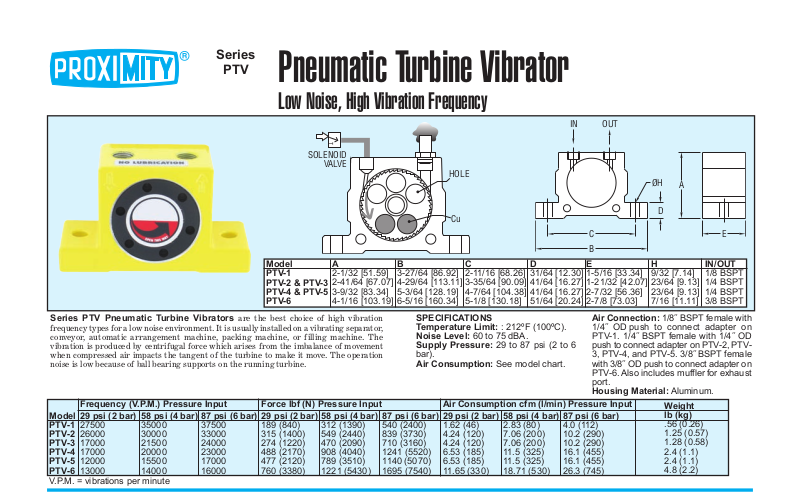

PTV
Pneumatic Turbine Vibrator
Low Noise, High Vibration Frequency
Model
PTV-1
PTV-2 & PTV-3
PTV-4 & PTV-5
PTV-6
Series PTV Pneumatic Turbine Vibrators are the best choice of high vibration
frequency types for a low noise environment. It is usually installed on a vibrating separator,
conveyor, automatic arrangement machine, packing machine, or filling machine. The
vibration is produced by centrifugal force which arises from the imbalance of movement
when compressed air impacts the tangent of the turbine to make it move. The operation
noise is low because of ball bearing supports on the running turbine.
Frequency (V.P.M.) Pressure Input
Model
29 psi (2 bar)
PTV-1
27500
PTV-2
26000
PTV-3
17000
PTV-4
17000
PTV-5
12000
PTV-6
13000
V.P.M. = vibrations per minute
58 psi (4 bar)
35000
30000
21500
20000
15500
14000
87 psi (6 bar)
37500
33000
24000
23000
17000
16000
Force lbf (N) Pressure Input Air Consumption cfm (l/min) Pressure Input
29 psi (2 bar)
189 (840)
315 (1400)
274 (1220)
488 (2170)
477 (2120)
760 (3380)
A
2-1/32 [51.59]
2-41/64 [67.07]
3-9/32 [83.34]
4-1/16 [103.19]
58 psi (4 bar)
312 (1390)
549 (2440)
470 (2090)
908 (4040)
789 (3510)
1221 (5430)
B
3-27/64 [86.92]
4-29/64 [113.11]
5-3/64 [128.19]
6-5/16 [160.34]
SPECIFICATIONS
Temperature Limit: : 212ºF (100ºC).
Noise Level: 60 to 75 dBA.
Supply Pressure: 29 to 87 psi (2 to 6
bar).
Air Consumption: See model chart.
87 psi (6 bar)
540 (2400)
839 (3730)
710 (3160)
1241 (5520)
1140 (5070)
1695 (7540)
C
2-11/16 [68.26]
3-35/64 [90.09]
4-7/64 [104.38]
5-1/8 [130.18]
29 psi (2 bar)
1.62 (46)
4.24 (120)
4.24 (120)
6.53 (185)
6.53 (185)
11.65 (330)
D
31/64 [12.30]
41/64 [16.27]
41/64 [16.27]
51/64 [20.24]
58 psi (4 bar)
2.83 (80)
7.06 (200)
7.06 (200)
11.5 (325)
11.5 (325)
18.71 (530)
E
1-5/16 [33.34]
1-21/32 [42.07]
2-7/32 [56.36]
2-7/8 [73.03]
Air Connection: 1/8˝ BSPT female with
1/4˝ OD push to connect adapter on
PTV-1. 1/4˝ BSPT female with 1/4˝ OD
push to connect adapter on PTV-2, PTV3, PTV-4, and PTV-5. 3/8˝ BSPT female
with 3/8˝ OD push to connect adapter on
PTV-6. Also includes muffler for exhaust
port.
Housing Material: Aluminum.
87 psi (6 bar)
4.0 (112)
10.2 (290)
10.2 (290)
16.1 (455)
16.1 (455)
26.3 (745)
H
9/32 [7.14]
23/64 [9.13]
23/64 [9.13]
7/16 [11.11]
Weight
lb (kg)
.56 (0.26)
1.25 (0.57)
1.28 (0.58)
2.4 (1.1)
2.4 (1.1)
4.8 (2.2)
IN/OUT
1/8 BSPT
1/4 BSPT
1/4 BSPT
3/8 BSPT
