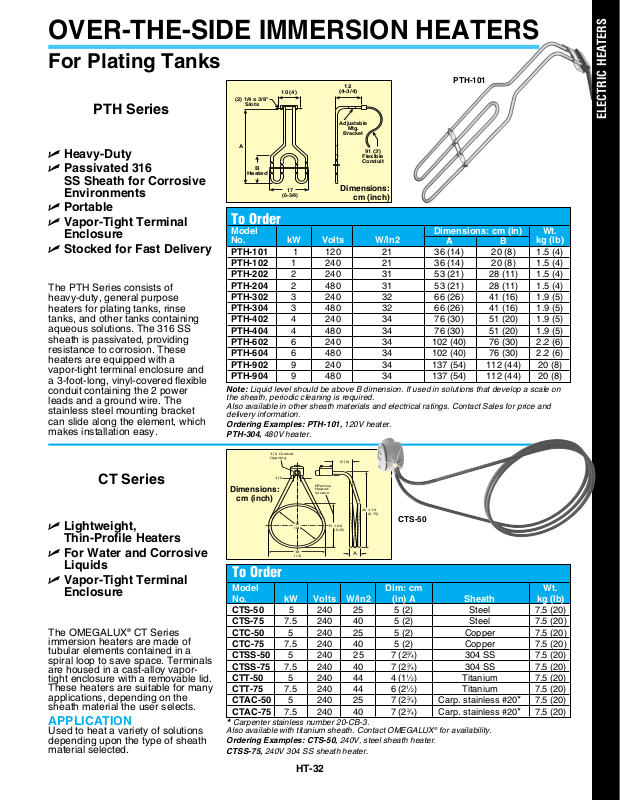

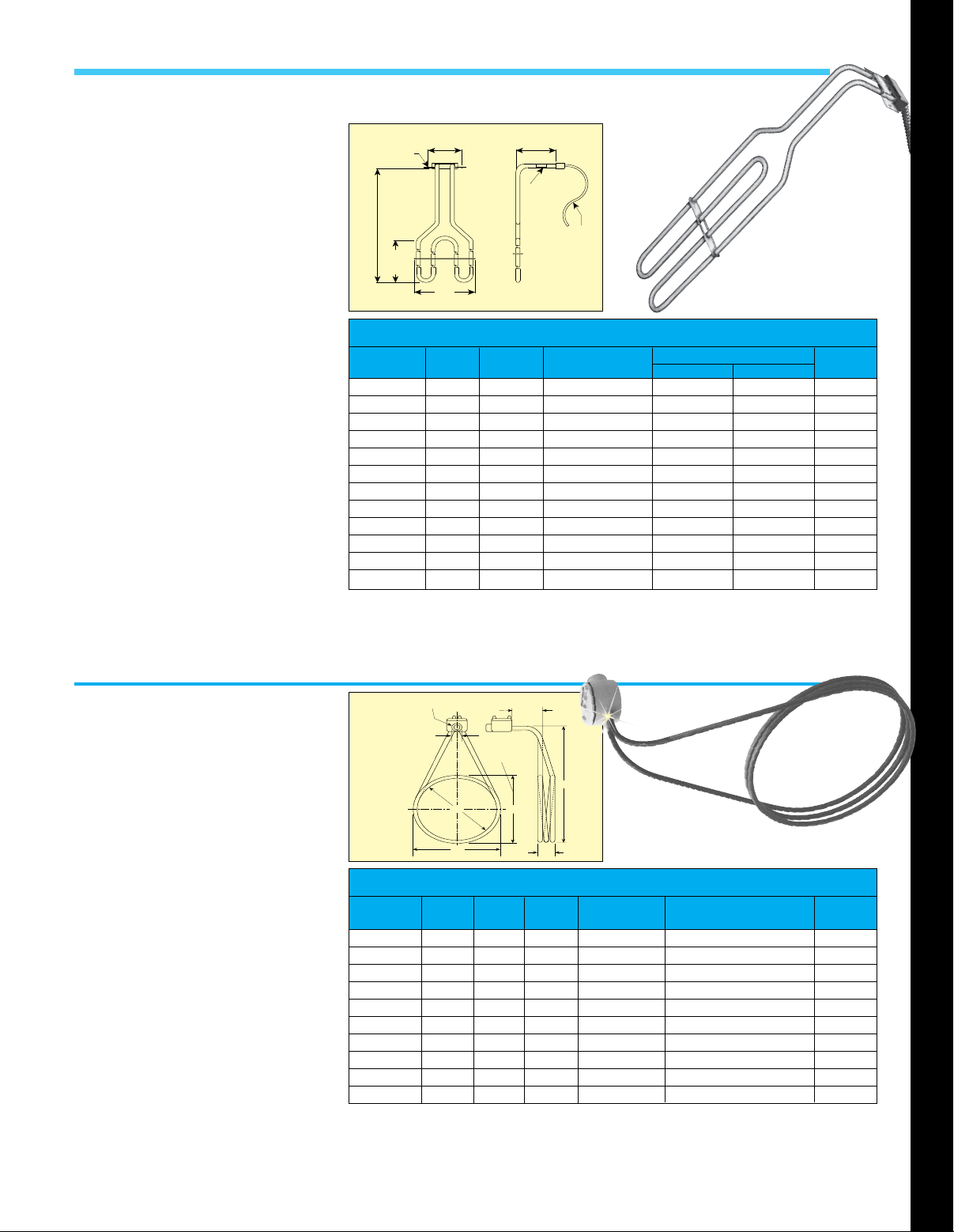

OVER-THE-SIDE IMMERSION HEATERS
26 ± 1.9
(0.75)
36
(14)
38
(15)
15 ±
0.6
(0.25)
3 (1)
15 (6)
Effective
Heated
Section
A
3 (1) Conduit
Opening
TYPES CTS, CTC, CTSS, CTLC, CT AC
10 (4)
(2) 1/4 x 3/8"
Slots
12
(4-3/4)
Adjustable
Mtg.
Bracket
91 (3')
Flexible
Conduit
A
B
Heated
17
(6-3/4)
For Plating Tanks
PTH-101
PTH Series
U Heavy-Duty
U Passivated 316
SS Sheath for Corrosive
Environments
U Portable
U Vapor-Tight Terminal
Enclosure
U Stocked for Fast Delivery
The PTH Series consists of
heavy-duty, general purpose
heaters for plating tanks, rinse
tanks, and other tanks containing
aqueous solutions. The 316 SS
sheath is passivated, providing
resistance to corrosion. These
heaters are equipped with a
vapor-tight terminal enclosure and
a 3-foot-long, vinyl-covered flexible
conduit containing the 2 power
leads and a ground wire. The
stainless steel mounting bracket
can slide along the element, which
makes installation easy.
Dimensions:
cm (inch)
To Order
Model Dimensions: cm (in) Wt.
No. kW Volts W/in2
A B
PTH-101 1 120 21 36 (14) 20 (8) 1.5 (4)
PTH-102 1 240 21 36 (14) 20 (8) 1.5 (4)
PTH-202 2 240 31 53 (21) 28 (11) 1.5 (4)
PTH-204 2 480 31 53 (21) 28 (11) 1.5 (4)
PTH-302 3 240 32 66 (26) 41 (16) 1.9 (5)
PTH-304 3 480 32 66 (26) 41 (16) 1.9 (5)
PTH-402 4 240 34 76 (30) 51 (20) 1.9 (5)
PTH-404 4 480 34 76 (30) 51 (20) 1.9 (5)
PTH-602 6 240 34 102 (40) 76 (30) 2.2 (6)
PTH-604 6 480 34 102 (40) 76 (30) 2.2 (6)
PTH-902 9 240 34 137 (54) 112 (44) 20 (8)
PTH-904 9 480 34 137 (54) 112 (44) 20 (8)
Note: Liquid level should be above B dimension. If used in solutions that develop a scale on
the sheath, periodic cleaning is required.
Also available in other sheath materials and electrical ratings. Contact Sales for price and
delivery information.
Ordering Examples: PTH-101, 120V heater.
PTH-304, 480V heater.
kg (lb)
ELECTRIC HEATERS
CT Series
U Lightweight,
Thin-Profile Heaters
U For Water and Corrosive
Liquids
U Vapor-Tight Terminal
Enclosure
The OMEGALUX® CT Series
immersion heaters are made of
tubular elements contained in a
spiral loop to save space. Terminals
are housed in a cast-alloy vaportight enclosure with a removable lid.
These heaters are suitable for many
applications, depending on the
sheath material the user selects.
APPLICATION
Used to heat a variety of solutions
depending upon the type of sheath
material selected.
Dimensions:
cm (inch)
CTS-50
To Order
Model Dim: cm Wt.
No. kW Volts W/in2 (in) A Sheath kg (lb)
CTS-50 5 240 25 5 (2) Steel 7.5 (20)
CTS-75 7.5 240 40 5 (2) Steel 7.5 (20)
CTC-50 5 240 25 5 (2) Copper 7.5 (20)
CTC-75 7.5 240 40 5 (2) Copper 7.5 (20)
CTSS-50 5 240 25 7 (2
CTSS-75 7.5 240 40 7 (2
CTT-50 5 240 44 4 (1
CTT-75 7.5 240 44 6 (2
CTAC-50 5 240 25 7 (2
CTAC-75 7.5 240 40 7 (2
Carpenter stainless number 20-CB-3.
*
Also available with titanium sheath. Contact OMEGALUX® for availability.
Ordering Examples: CTS-50, 240V, steel sheath heater.
CTSS-75, 240V 304 SS sheath heater.
HT-32
3
⁄4) 304 SS 7.5 (20)
3
⁄4) 304 SS 7.5 (20)
1
⁄2) Titanium 7.5 (20)
1
⁄2) Titanium 7.5 (20)
3
⁄4) Carp. stainless #20* 7.5 (20)
3
⁄4) Carp. stainless #20* 7.5 (20)
