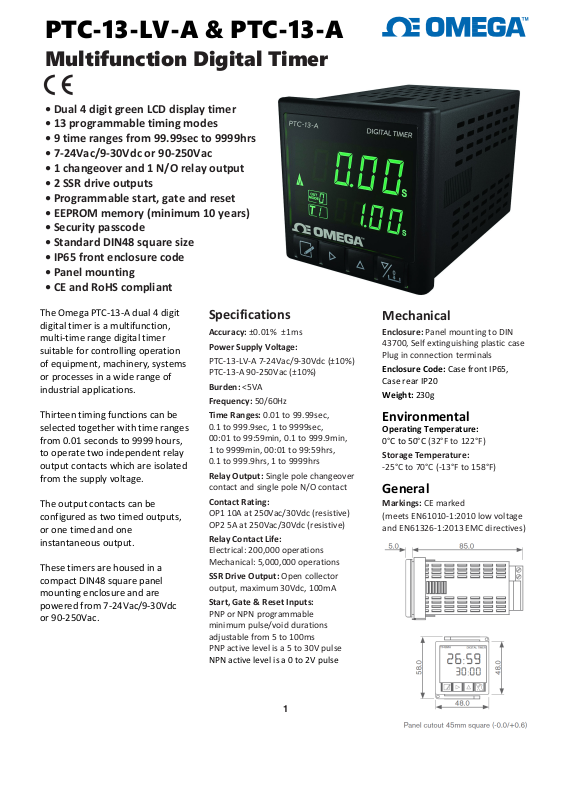

PTC-13-LV-A & PTC-13-A
Multifunction Digital Timer
• Dual 4 digit green LCD display timer
• 13 programmable timing modes
• 9 time ranges from 99.99sec to 9999hrs
• 7-24Vac/9-30Vdc or 90-250Vac
• 1 changeover and 1 N/O relay output
• 2 SSR drive outputs
• Programmable start, gate and reset
• EEPROM memory (minimum 10 years)
• Security passcode
• Standard DIN48 square size
• IP65 front enclosure code
• Panel mounting
• CE and RoHS compliant

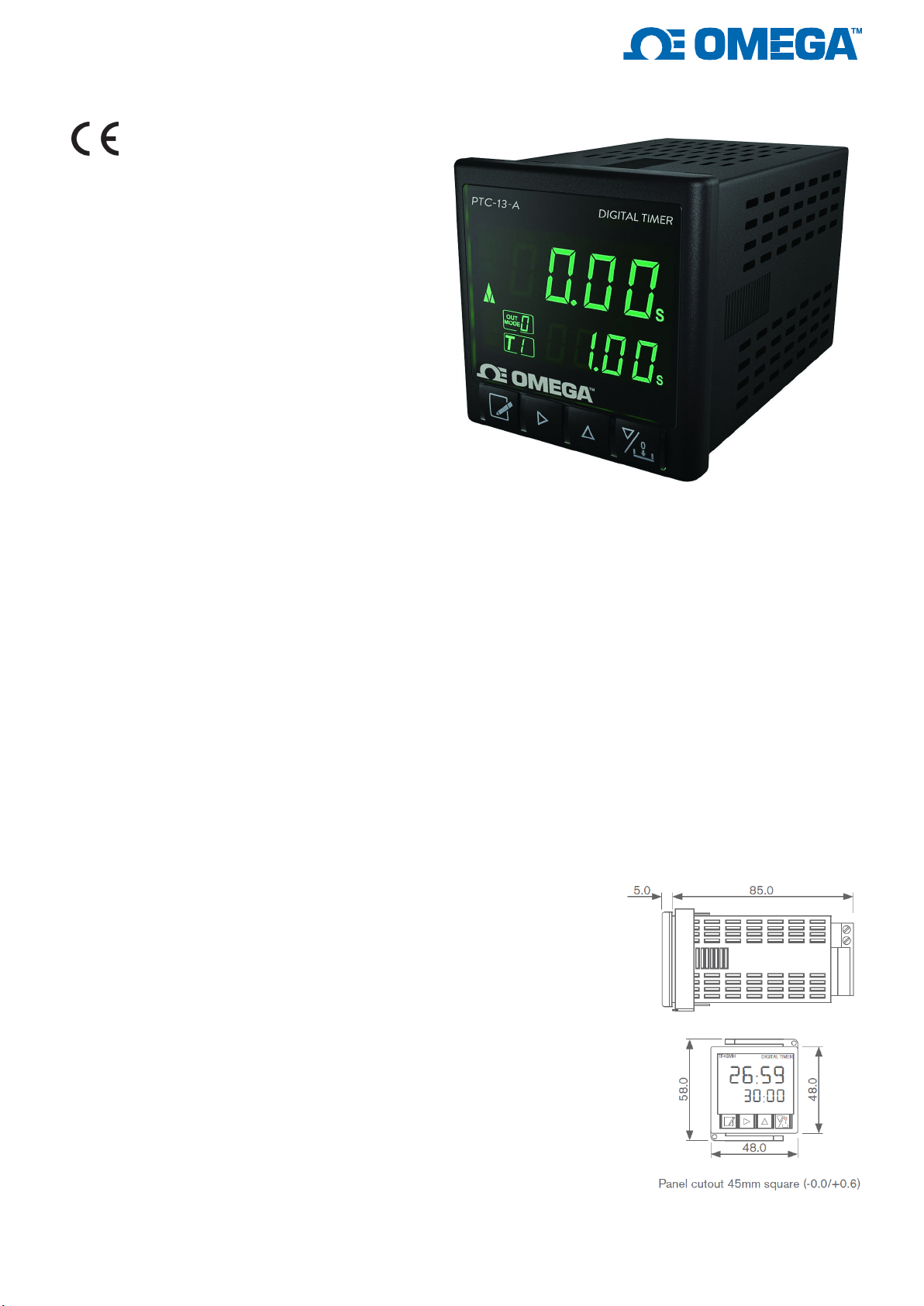

The Omega PTC-13-A dual 4 digit
digital timer is a multifunction,
multi-time range digital timer
suitable for controlling operation
of equipment, machinery, systems
or processes in a wide range of
industrial applications.
Thirteen timing functions can be
selected together with time ranges
from 0.01 seconds to 9999 hours,
to operate two independent relay
output contacts which are isolated
from the supply voltage.
The output contacts can be
configured as two timed outputs,
or one timed and one
instantaneous output.
These timers are housed in a
compact DIN48 square panel
mounting enclosure and are
powered from 7-24Vac/9-30Vdc
or 90-250Vac.
Specifications
Accuracy: ±0.01% ±1ms
Power Supply Voltage:
PTC-13-LV-A 7-24Vac/9-30Vdc (±10%)
PTC-13-A 90-250Vac (±10%)
Burden: <5VA
Frequency: 50/60Hz
Time Ranges: 0.01 to 99.99sec,
0.1 to 999.9sec, 1 to 9999sec,
00:01 to 99:59min, 0.1 to 999.9min,
1 to 9999min, 00:01 to 99:59hrs,
0.1 to 999.9hrs, 1 to 9999hrs
Relay Output: Single pole changeover
contact and single pole N/O contact
Contact Rating:
OP1 10A at 250Vac/30Vdc (resistive)
OP2 5A at 250Vac/30Vdc (resistive)
Relay Contact Life:
Electrical: 200,000 operations
Mechanical: 5,000,000 operations
SSR Drive Output: Open collector
output, maximum 30Vdc, 100mA
Start, Gate & Reset Inputs:
PNP or NPN programmable
minimum pulse/void durations
adjustable from 5 to 100ms
PNP active level is a 5 to 30V pulse
NPN active level is a 0 to 2V pulse
Mechanical
Enclosure: Panel mounting to DIN
43700, Self extinguishing plastic case
Plug in connection terminals
Enclosure Code: Case front IP65,
Case rear IP20
Weight: 230g
Environmental
Operating Temperature:
0°C to 50°C (32°F to 122°F)
Storage Temperature:
-25°C to 70°C (-13°F to 158°F)
General
Markings: CE marked
(meets EN61010-1:2010 low voltage
and EN61326-1:2013 EMC directives)
1

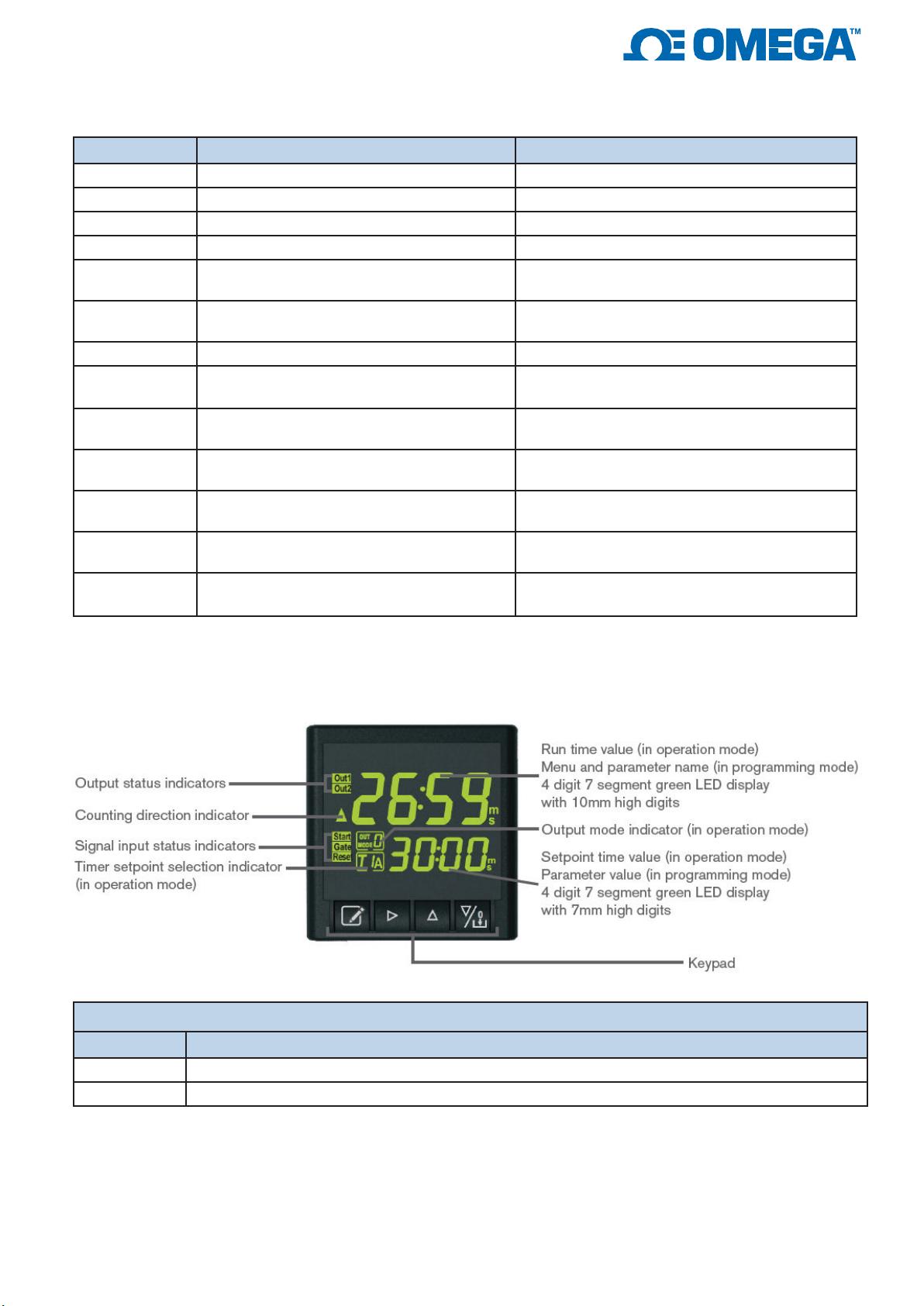

Page 2
Timing Modes
Timing Mode
Mode 0 Delay on Energise, Interval or Delayed Pulse Close to Start, Reset when Start Opens
Mode 1 Delay on Energise, Interval or Delayed Pulse Pulse to Start
Mode 2 Delay on Energise, Interval or Delayed Pulse Close to Start, Restarts when Start Opens
Mode 3 Delay on Energise, Interval or Delayed Pulse Open to Start, Close Start to Reset
Mode 4 Delayed Cycle or Immediate Cycle
Mode 5 Delayed Cycle or Immediate Cycle
Mode 6 Delay on Energise, Interval or Delayed Pulse Count only with Start Closed
Mode 7 Delay on Energise, Interval or Delayed Pulse Count only with Start Closed,
Mode 8 Delayed Cycle or Immediate Cycle
Mode 9 Delayed Cycle or Immediate Cycle
Mode A Delayed Cycle or Immediate Cycle
Mode b Double Output Delayed Cycle or Immediate Cycle
Mode C Delay on Energise, Interval or Delayed Pulse Count only with Start Closed,
Timing Function Description Start / Reset / Restart / Count
Pulse to Start
with Equal On and Off Time
Close to Start, Reset when Start Opens
with Equal On and Off Time
Restarts when Start Closed again
Pulse to Start
with Single Cycle and Equal On and Off Time
Pulse to Start
with Variable On and Off Times
Close to Start, Reset when Start Opens
with Variable On and Off Times
Pulse to Start
with Variable On and Off Times
Restarts when Start Opens
Front Panel Display Functions
To Order
P/N Description
PTC-13-LV-A Dual Digital Timer 7-24Vac/9-30Vdc
PTC-13-A Dual Digital Timer 90-250Vac
