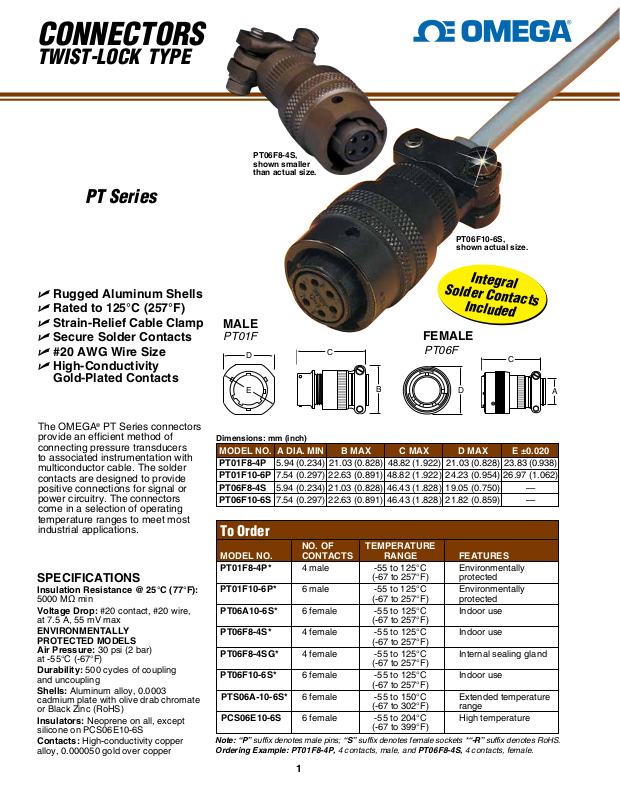

CONNECTORS
TWIST-LOCK TYPE
PT Series

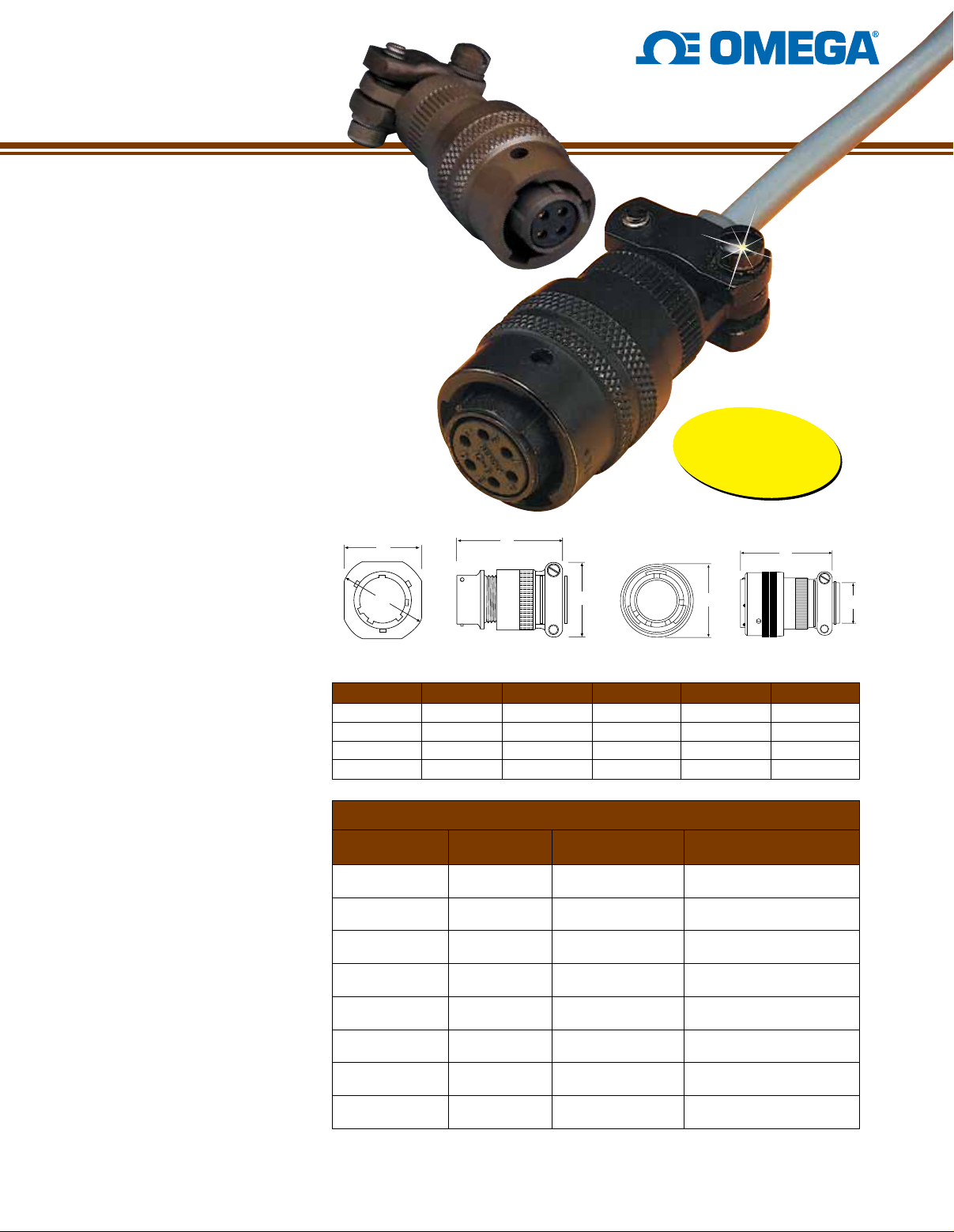

PT06F8-4S,
shown smaller
than actual size.
PT06F10-6S,
shown actual size.
U Rugged Aluminum Shells
U Rated to 125°C (257°F)
U Strain-Relief Cable Clamp
U Secure Solder Contacts
U #20 AWG Wire Size
U High-Conductivity
Gold-Plated Contacts
The OMEGA® PT Series connectors
provide an efficient method of
connecting pressure transducers
to associated instrumentation with
multiconductor cable. The solder
contacts are designed to provide
positive connections for signal or
power circuitry. The connectors
come in a selection of operating
temperature ranges to meet most
industrial applications.
SPECIFICATIONS
Insulation Resistance @ 25°C (77°F):
5000 MΩ min
Voltage Drop: #20 contact, #20 wire,
at 7.5 A, 55 mV max
ENVIRONMENTALLY
PROTECTED MODELS
Air Pressure: 30 psi (2 bar)
at -55°C (-67°F)
Durability: 500 cycles of coupling
and uncoupling
Shells: Aluminum alloy, 0.0003
cadmium plate with olive drab chromate
or Black Zinc (RoHS)
Insulators: Neoprene on all, except
silicone on PCS06E10-6S
Contacts: High-conductivity copper
alloy, 0.000050 gold over copper
Integral
Solder Contacts
Included
MALE
PT01F
C
D
CDE
E
B
Dimensions: mm (inch)
MODEL NO. A DIA. MIN B MAX C MAX D MAX E ±0.020
PT01F8-4P 5.94 (0.234) 21.03 (0.828) 48.82 (1.922) 21.03 (0.828) 23.83 (0.938)
PT01F10-6P 7.54 (0.297) 22.63 (0.891) 48.82 (1.922) 24.23 (0.954) 26.97 (1.062)
PT06F8-4S 5.94 (0.234) 21.03 (0.828) 46.43 (1.828) 19.05 (0.750) —
PT06F10-6S 7.54 (0.297) 22.63 (0.891) 46.43 (1.828) 21.82 (0.859) —
To Order
MODEL NO. CONTACTS RANGE FEATURES
PT01F8-4P* 4 male -55 to 125°C Environmentally
PT01F10-6P* 6 male -55 to 125°C Environmentally
PT06A10-6S* 6 female -55 to 125°C Indoor use
PT06F8-4S* 4 female -55 to 125°C Indoor use
PT06F8-4SG* 4 female -55 to 125°C Internal sealing gland
PT06F10-6S* 6 female -55 to 125°C Indoor use
PTS06A-10-6S*
PCS06E10-6S
Note: “P” suffix denotes male pins; “S” suffix denotes female sockets *“-R” suffix denotes RoHS.
Ordering Example: PT01F8-4P, 4 contacts, male, and PT06F8-4S, 4 contacts, female.
C
B
B
NO. OF TEMPERATURE
(-67 to 257°F) protected
(-67 to 257°F) protected
(-67 to 257°F)
(-67 to 257°F)
(-67 to 257°F)
(-67 to 257°F)
6 female -55 to 150°C Extended temperature
6 female -55 to 204°C High temperature
(-67 to 302°F) range
(-67 to 399°F)
FEMALE
PT06F
D
D
C
C
A
A
