Compact Pressure Switches
PSW9 series
Page 2
12
Page 3
NOTES
TABLE OF CONTENTS
1 Intended Applications .............................................................. ........................... ........... 1
2 Safety Instructions ......................................................................................................... 1
3 Standards ......... ............................... ................................ ................................ ................ 2
4 Transportation and Storage .......................................................................................... 3
5 Installation/Commissioning .......................................... ............................................ ,4,5
6 Maintenance/Cleaning .............................................. ..................................................... 6
7 Technical Data ................................................................................................................ 7
8 Operation ................................................... .......................................................... ........... 8
9 Ordering Code ............................................................................................................... 9
10
Notes .......................................................... .......................................................... .... 10,11
11 Warranty / Disclaimer .................................................................................................. 12
Mechanical Pressure Switch PSW9 Series
11
i
Page 4
1 Intended Applications
The pressure switches are specifically applied for monitoring and controlling of operations using
maximum and minimum pressures. A limit switch triggers an electrical signal when minimum or
maximum pressure is reached.
DANGER
The switch may only be used in the specified fields of application (see nameplate).
The temperature has to be within the specified ranges, the pressure values and the electrical
rating must not exceed the values specified.
Observe also the applicable national safety instructions for assembly, commissioning and
operation of the switch.
The switch is not designed to be used as the only safety relevant element in pressurized systems
according to DGR 97/23/EC.
2 Safety Instructions
The safety instructions are intended to protect the user from dangerous situations and/or material
damage.
In the operating instructions the seriousness of the potential risk is designated by the following
signal words:
DANGER
( Blank Page )
Refers to imminent danger to humans.
Non-observance may result in fatal injuries.
WARNING
Refers to a recognizable danger.
Non-observance may result in fatal injuries, and destroy the equipment or plant parts.
CAUTION
Refers to a danger.
Non-observance may result in light injuries and material damage to the equipment and/or to the
plant.
1
10
Page 5
Ordering code with technical information
PSW9- A B 10 D V
OMEGA NUMBER CODING SYSTEM
SEAL MATERIAL
V
VITON (FKM)
B
BUNA N (NBR)
ELEC TRICAL C O NNE CTION
DIN EN 175301-803(DIN 43650) SIZE A, 5-8mm CABLE, WITH FEMALE
D
CONNECTOR
SILVER CONTACTS
10
A 10-50 3620 250 4350 300
220-2680
B 20-200 3620 250 4350 300
510-5220
C 40-400 7250 500 8700 600
ADJUSTABLE RANGE
DECREASI NG
90-630
INCREASING
BAR
6-44
15-185 290-2900
35-360
PSIPSI
145-725
580-5800
LIMIT SW I TCH
PRESSURE RANGES
MAX.
HYSTERESI S
AT FU LL
RANGE
BAR PSI BAR PSI BAR
MAX %
10%
MAX.
OPERATING
PRESSURE
PRESSURE
PROOF
G 1/4" FEMALE, (DIN ISO 228-1)
(220-2900 psi range)[15-200 Bar] with Viton Material
2
1/4" NPT FEMALE
A
7/16-20 UNF SAE 4 O-RING BOSS
E
Example: PSW9-AB10DV : Pressure Switch with ¼ NPT Female, Pressure Range
PROCESS CONNECTION
9
3
Refers to important information essential to the user.
4 Standards
The standards applied during development, manufacture and configuration are listed in the CE
conformity and manufacturer's declaration.
5 Transport/Storage
Severe shock and vibrations should be avoided during transport. Storage should be dry and
clean.
IMPORTANT
Disposal
The equipment must be disposed correctly in accordance with the local regulations for
electric/electronic equipment.
The equipment must not be disposed of with the household trash
CAUTION
2
Page 6
A
A
6 Installation/Commissioning
DANGER
Only install or uninstall the switch when de-energized (electrically and hydraulically/pneumatically).
Pressure connection and electrical connection must be carried out by trained or instructed
personnel according to relevant standards.
The switch must only be installed in systems where the maximum operation pressure P
exceeded (see the name plate).
WARNING
Pressure peaks and p ressure shocks exceeding the maximum operating pressure are
inadmissible.
The maximum operating pressure is the upper final value of the adjustable range or, if specified,
the pressure indicated as maximum operating pressure (see Fig. 8 or the nameplate). Exceeding
the max. Operating pressure affects the performance and the life span of the product and may
damage it.
Pressure switches must be mounted vibrationless.
WARNING
Check the switch regularly to ensure it functions properly
If the switch does not work properly, stop operation immediately!
IMPORTANT
The standard G1/4” female thread can be mounted directly on the pipe connection. The mounting
with a screw-wrench (SW30 (width across flats 1.18”) (only on the thread block (see Fig. 7).
Torque: max. 30 Nm (22 ft- lb)
IMPORTANT
All pressure switches are 100% tested before they leave the factory. Factory proof pressure is
stated on the typed nameplate (see Fig.8).
max
is not
Electrical Ratings Silver Contacts
Silver contacts Inductive load Resistive load
250 V AC 2.5 A 10.0 A
24 V DC 1.0
Minimum load values: 20 mA at 24 V DC
6.0
Fig. 9: Electrical rating s
IMPORTANT
We recommend using a fuse of the maximum current rating from the table above according to the load
switched.
Operating life time
Normal expected service life (expressed in the number of cycles over the full adjustment range) is
approximately 1 million for the pressure switch. This may be extended to 2.5 million cycles
maximum if only a part of the adjustment range is used (about 20%).
Switch sensor life may also be effected negatively by:
• Media not compatible with the wetted materials.
• Rapid pressure changes in the system, or in case of diaphragm switches >30 cycles/minute,
in case of piston switches >60 cycles/minute.
• System cycling pressure exceeding the top of the adjustable range.
The proof pressure may not be exceeded; otherwise the switch may be damaged. Careful selection
of the pressure range can have a posit ive effect on the service life of the switch .
Contact Protection
The micro switches used are normally suitable for both direct and alternating current operation.
Inductive, capacitive and lamp loads may, however, considerably reduce the life expectancy of a
micro switch and, under extreme circumstances, even damage the contacts.
Depending on the application spark suppression and current limiting is recommended (see figures 1
to 4).
3
8
Page 7
7 Technical Data
See data sheet

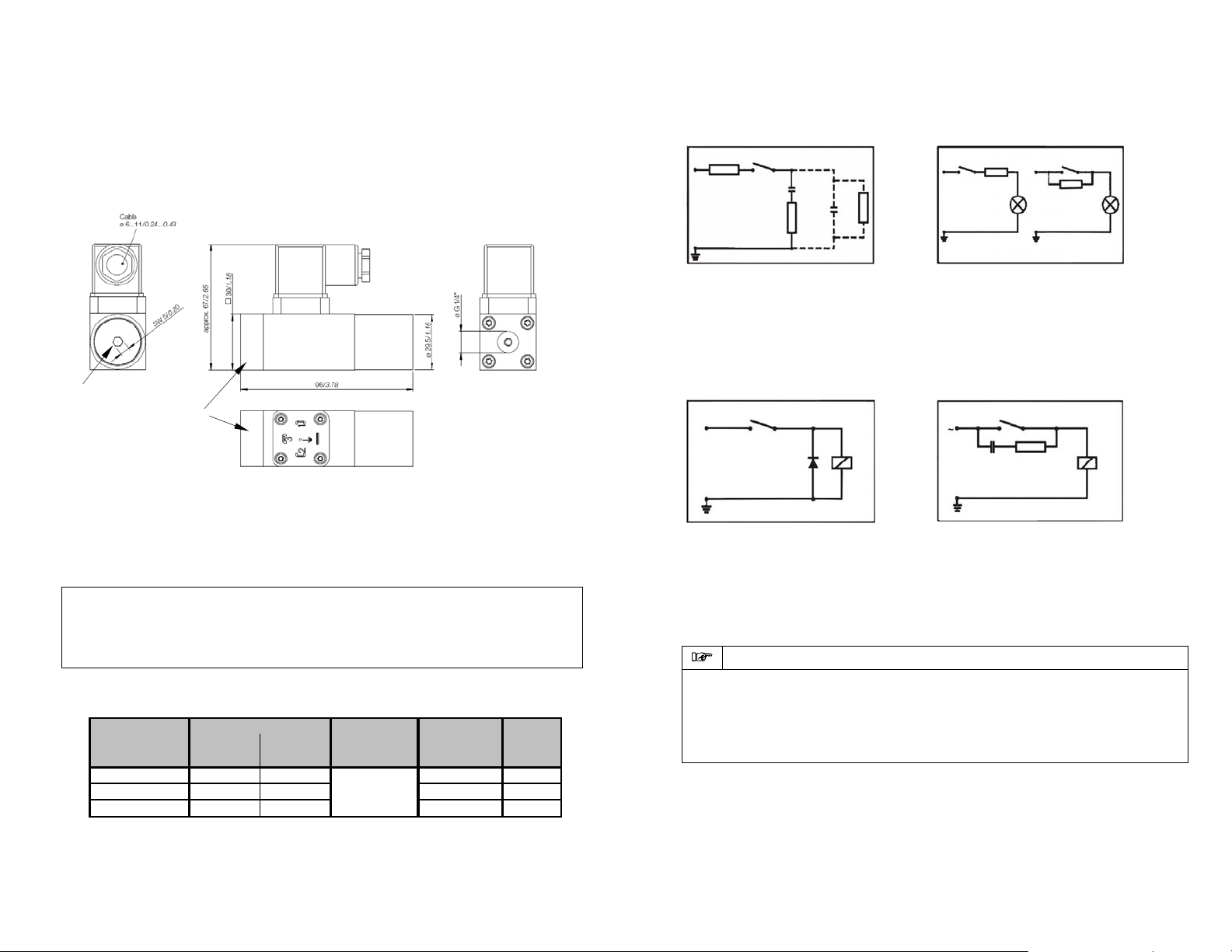

Dimensions
in mm (inch)
Fig. 1: Protection in case of
Adjustment Screw
Thread block SW30 (1.18“)
Fig. 7: Compact pressure switch PSW9 Series
U
=
Fig. 3: Protection in case of
The thread block can be mounted directly on the pipe connection. Use an open-wrench (SW30
(width across flats 1.18”) only on the thread block (see Fig. 7).
The electrical mating connector may include in the delivery if proper option is selected.
Torque on the thread block: max. 30 Nm (22 ft lb(f))
Code Hysteresis Max. operat. Proof
Adjustment ranges
Pressure range falling rising end of range pressure pressure
psi psi psi max. % psi psi
A 90 - 630 145 - 725 3620 4350
B 220 - 2680 290 - 2900 3620 4350
C 510 - 5220 580 - 5800 7250 8700
10%
Fig. 8: Compact pr e ssu re switch PSW9 Ser i es
7
Set point adjustment
Factory-Provided: pressure switch point setting
For pressure switches that have been factory set the setting will be printed on the nameplate
Warranty is not applicable for any changes that may occur due to transportation or installation.
For critical applications we recommend the setting is checked and re-set if necessary after
installation and wiring of the pressure switch.
In pressure switches, a displacement of the pressure sensing element (piston) occurs with a
change in pressure. Following the displacement of the pressure sensing element operates a
microswitch.
Upon delivery of the product, the set points are likely to be found in the middle of the adjustable
range. On request, factory-set points may be set at our factory. In this event, the set point will be
indicated on the nameplate, i = increasing, d = decreasing.
capacitive loads R1:
Protection against starting
current rushes R2,R3:
Protection against high
discharge currents
MS
Diode
Load
continuous current and
inductive load by recovery
diode
IMPORTANT
MS
R
MS
R
Fig. 2: Lamp load provided with
resistance in parallel or
series connection to
switch of condensators
MS
U
c
R
Load
Fig. 4: Protection in case of
alternating current and
inductive load by RC-link
4
Page 8
The set point is adjusted by turning the captive adjustment screw (see Fig. 7).
¾ Allow pressure switch to reach the desired switch pressure.
¾ Turn adjustment screw clockwise or counter-clockwise to activate the micro switch
IMPORTANT
Please consult the wiring diagram for the contact status at atmospheric pressure (see).
Precise adjustment of set point to actuate on increasing pressure
¾ 1. Lower system pressure to 0 psi.
¾ 2. Increase pressure slowly and check if micro switch is actuated at desired switch pressure.
¾ 3. If necessary, readjust by turning the adjustment screw
¾ Repeat prec eding steps (1. to 3.) until microswitch operates at desired switch pressure.
Precise adjustment of set point to actuate on decreasing pressure
¾ 4. Increase pressure up to a point clearly above the desired switch pressure (at least, switch
pressure plus max. hysteresis; not above max. operating pressure).
¾ 5. Lower pressure slowly and check if micro switch is actuated at desired switch pressure.
¾ 6. If necessary, readjust by turning the adjustment screw
¾ Repeat prec eding steps (4. to 6.) until microswitch operates at desired switch pressure.

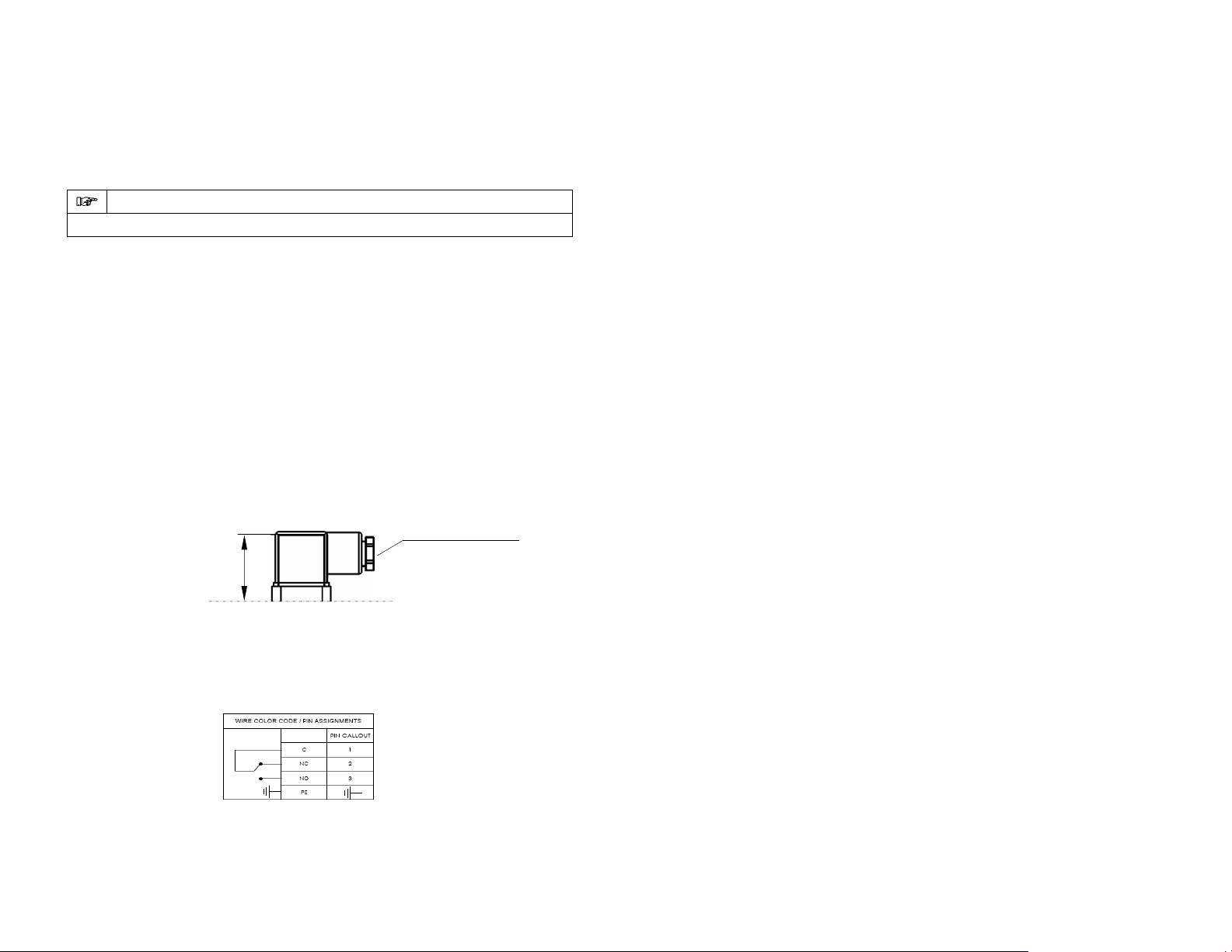

Electrical connections
, dimensions in mm (inch)
Cable ø 6...8 (0.23...0.31)
8 Maintenance/Cleaning
Maintenance
The pressure switch is maintenance free. Checking the set points lies within the discretion of the
user. The usual preventive maintenance work in accordance with the PED guidelines must always
be carried out.
Please note that small set point drifts may occur during the initial use of the switch (run-in period).
Larger or continuing set point drifts during the normal use of the switch may indicate that the
measuring system is not used correctly within the specified limits, exceeding the design criteria or
is worn-out. This might lead to metal fatigue of the measuring system and it therefore should be
replaced before an ultimate rupture of the metal might take place. Please consult OMEGA for
guidelines.
37 (1.46)
Housing top edge
Fig. 5: Standard Mating Connector
Wiring code (contact status at atmospheric pressure)
FFI
Fig. 6: Pin Call-Outs
5
6
