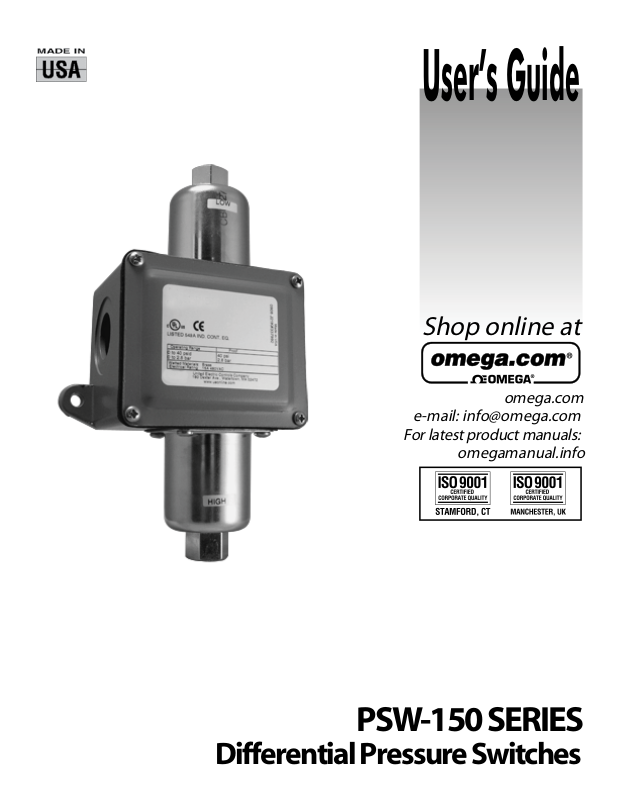

Omega PSW-150 User guide

Page 1
User’s Guide
Shop online at
omega.com
For latest product manuals:
omegamanual.info

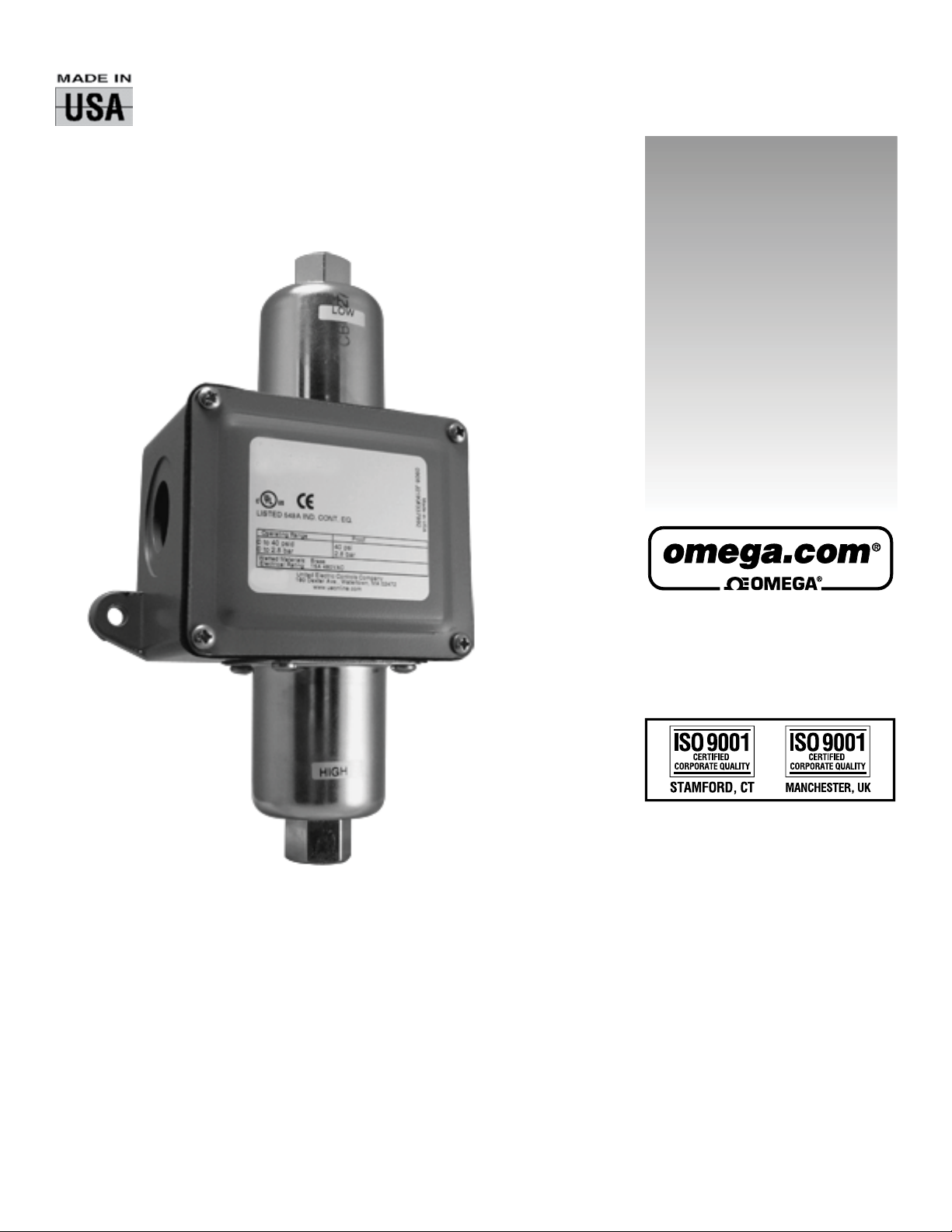

PSW-150 SERIES
Differential Pressure Switches
Page 2
OMEGAnet®Online Service Internet e-mail
egulations that apply. OMEGA is constantly pursuing certification of its products to the European Ne
Servicing North America:
U.S.A.: One Omega Drive, P.O. Box 4047
ISO 9001 Certified
Canada:
Stamford, CT 06907-0047 TEL: (203) 359-1660 FAX: (203) 359-7700 e-mail: [email protected]
976 Bergar Laval (Quebec) H7L 5A1, Canada TEL: (514) 856-6928 FAX: (514) 856-6886 e-mail: [email protected]
For immediate technical or application assistance:
U.S.A. and Canada: Sales Service: 1-800-826-6342/1-800-TC-OMEGA
Customer Service: 1-800-622-2378/1-800-622-BEST Engineering Service: 1-800-872-9436/1-800-USA-WHEN
Mexico: En Espan˜ol: (001) 203-359-7803
e-mail: [email protected] FAX: (001) 203-359-7807 [email protected]
®
®
®
Servicing Europe:
Czech Republic: Frystatska 184, 733 01 Karviná, Czech Republic
TEL: +420 (0)59 6311899 FAX: +420 (0)59 6311114
Toll Free: 0800-1-66342 e-mail: [email protected]
Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
TEL: +49 (0)7056 9398-0 FAX: +49 (0)7056 9398-29 Toll Free in Germany: 0800 639 7678 e-mail: [email protected]
United Kingdom: One Omega Drive, River Bend Technology Centre
ISO 9001 Certified Northbank, Irlam, Manchester
M44 5BD United Kingdom TEL: +44 (0)161 777 6611 FAX: +44 (0)161 777 6622 Toll Free in United Kingdom: 0800-488-488 e-mail: [email protected]
It is the policy of OMEGA Engineering, Inc. to comply with all worldwide safety and EMC/EMI r Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, human applications.
w
Page 3
PSW-150 Series Differential Pressure Switches
Part Numbers: PSW-151
PSW-152
PSW-153
PSW-154
PSW-155
Please read all instructional literature carefully and thoroughly before starting.
GENERAL
BEFORE INSTALLING, CHECK THE SENSOR MODEL SELECTED FOR COMPATIBILITY TO THE PROCESS MEDIA IN CONTACT WITH THE SENSOR AND WETTED PARTS.
The PSW-150 Differential Pressure Switch utilizes opposing metal bellows to detect pressure differences between two pressure sources. When the pressure at the high port exceeds the pressure at the low port by a pre-determined amount (set point), the mechanism operates a single snap-action electrical switch. Control set point may be adjusted by turning the internal adjustment hex screw (see Part II - Adjustments).
DIFFERENTIAL PROOF PRESSURE* LIMITS STATED IN THE LITERA TURE AND ON NAMEPLATE MUST NEVER BE EXCEEDED, EVEN BY
SURGES IN THE SYSTEM. OCCASIONAL OPERATION OF UNIT UP TO DIFFERENTIAL PROOF PRESSURE IS ACCEPTABLE (E.G., START-UP, TESTING). CONTINUOUS OPERATION SHOULD NOT EXCEED THE DESIGNATED MAX WORKING PRESSURE.**
*Differential Proof Pressure The maximum differential pressure to which a pressure sensor may be occasionally subjected, which causes no permanent damage (e.g., star t-up, testing). The unit may require calibration.
**Working Pressure The pressure range within which two opposing sensors can be safely operated and still maintain set point adjustability.
THESE PRODUCTS DO NOT HAVE ANY FIELD REPLACEABLE PARTS.
WIRING
DISCONNECT ALL SUPPLY CIRCUITS BEFORE WIRING UNIT. WIRE UNITS ACCORDING TO NATIONAL AND LOCAL ELECTRICAL CODES. MAXIMUM RECOMMENDED WIRE SIZE IS 14 AWG.
ELECTRICAL RATINGS STATED IN LITERATURE AND ON NAMEPLATES MUST NOT BE EXCEEDED; OVERLOAD ON A SWITCH CAN CAUSE FAILURE ON THE FIRST CYCLE.
Remove the four (4) screws retaining the cover and gasket. Remove cover. Connect conduit to the enclosure using a conduit fitting that is suitable for your installation. Wire directly to the switch terminals in accordance with local and national electrical codes. Bring the wires up to the terminals from the rear of the enclosure to prevent interference with the mechanism.
Part II - Adjustments
Tools Needed
- 5/16" open end wrench
For set point adjustment and re-calibration, connect the "High" pressure por t to a calibrated pressure source.
Set point adjustment is achieved by varying the gap between the mechanical actuator and the plunger on the electrical switch
To raise the differential pressure setting, turn the 5/16" hex head screw left (clockwise).
Part I - Installation
Tools Needed
- Adjustable wrenches (2)
- Phillips head screwdrive
MOUNTING
INSTALL UNIT WHERE SHOCK, VIBRATION AND TEMPERATURE
FLUCTUATIONS ARE MINIMAL. MOUNT UNIT SO THAT MOISTURE
IS PREVENTED FROM ENTERING THE ENCLOSURE. DO NOT MOUNT UNIT IN AMBIENT TEMPERATURES EXCEEDING PUBLISHED LIMITS.
Surface mount in any position via two mounting ears. Never turn this unit by grasping enclosure. Always hold a wrench on the bellows housing (or fitting) when connecting pressure joints.
To lower the differential pressure setting, turn the 5/16" hex head screw right (counter-clockwise).
r
Page 4

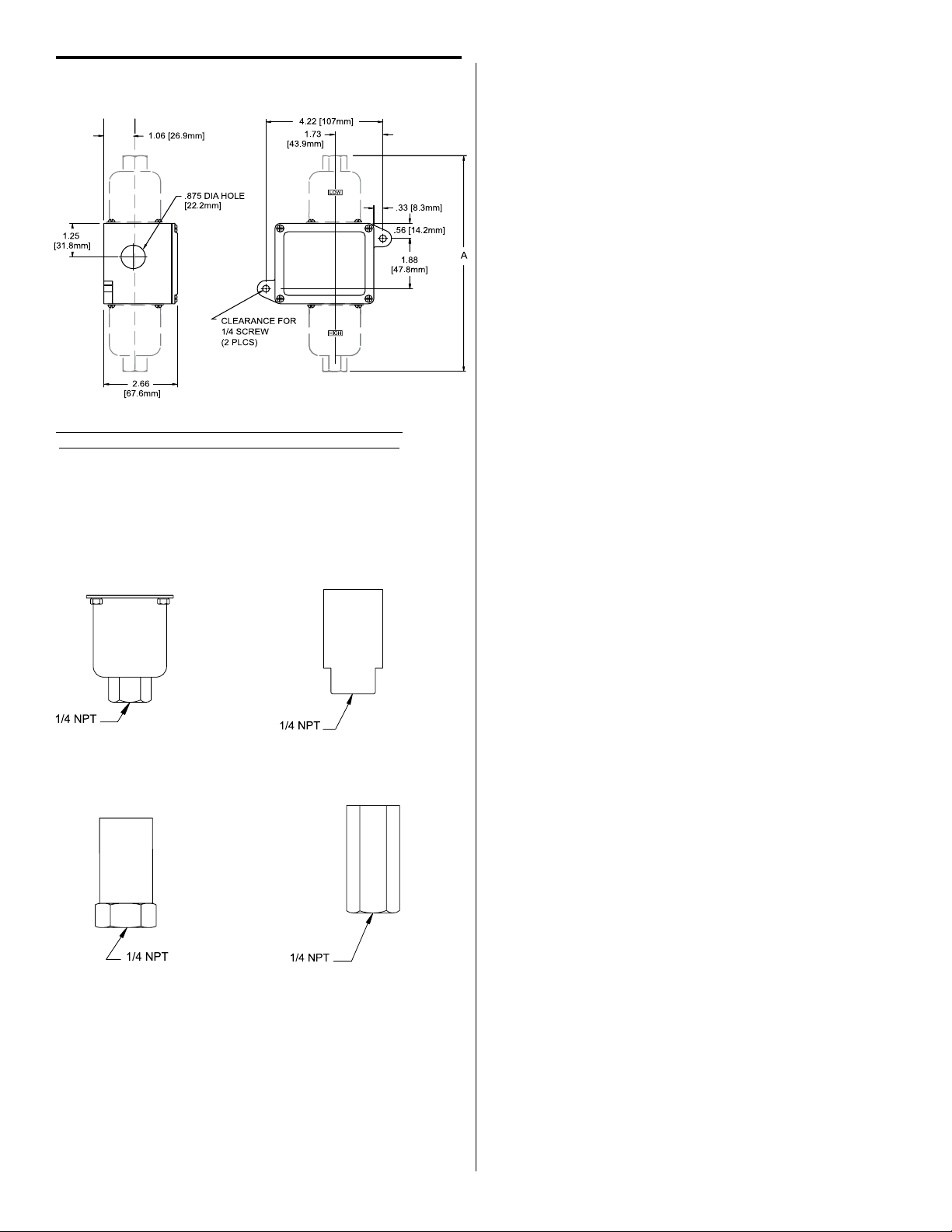

Dimensions
Dimension A
Models Inches mm NPT
151, 153 8.06 204.7 1/4 152 6.53 165.9 1/4 154 6.88 174.8 1/4 155 6.50 165.1 1/4
Models 151, 153
Model 154
Model 152
Model 155
