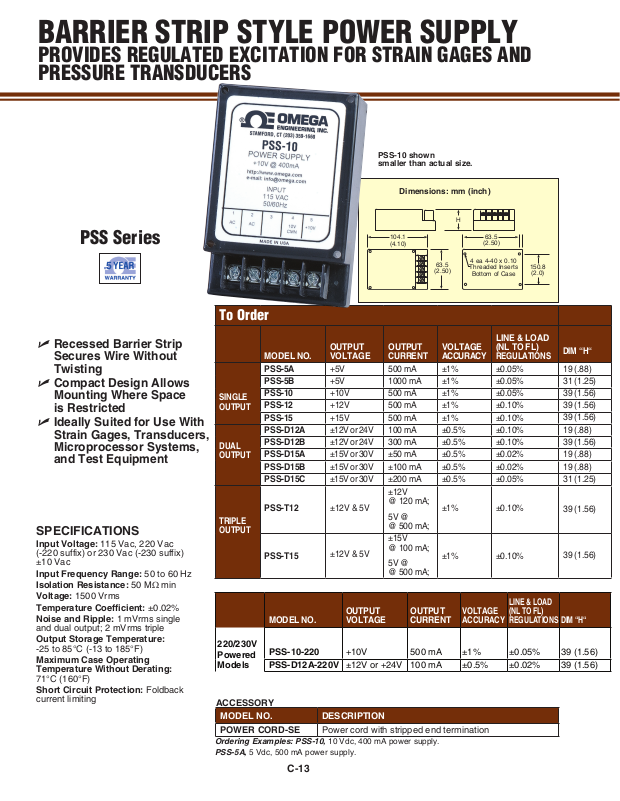

BARRIER STRIP STYLE POWER SUPPLY
PROVIDES REGULATED EXCITATION FOR STRAIN GAGES AND
PRESSURE TRANSDUCERS
PSS-10 shown
smaller than actual size.
Dimensions: mm (inch)
H
PSS Series
To Order
104.1
(4.10)
63.5
(2.50)
63.5
(2.50)
4 ea 4-40 x 0.10
Threaded Inserts
Bottom of Case
150.8
(2.0)
U Recessed Barrier Strip
Secures Wire Without
Twisting
U Compact Design Allows
Mounting Where Space
is Restricted
U Ideally Suited for Use With
Strain Gages, Transducers,
Microprocessor Systems,
and Test Equipment
SPECIFICATIONS
Input Voltage: 115 Vac, 220 Vac
(-220 suffix) or 230 Vac (-230 suffix)
±10 Vac
Input Frequency Range: 50 to 60 Hz
Isolation Resistance: 50 MΩ min
Voltage: 1500 Vrms
Temperature Coefficient: ±0.02%
Noise and Ripple: 1 mVrms single
and dual output; 2 mVrms triple
Output Storage Temperature:
-25 to 85°C (-13 to 185°F)
Maximum Case Operating
Temperature Without Derating:
71°C (160°F)
Short Circuit Protection: Foldback
current limiting
MODEL NO.
PSS-5A
PSS-5B
SINGLE
OUTPUT
DUAL
OUTPUT
TRIPLE
OUTPUT
220/230V
Powered
Models
ACCESSORY
MODEL NO. DESCRIPTION
POWER CORD-SE
Ordering Examples: PSS-10, 10 Vdc, 400 mA power supply.
PSS-5A, 5 Vdc, 500 mA power supply.
PSS-10
PSS-12
PSS-15
PSS-D12A
PSS-D12B
PSS-D15A
PSS-D15B
PSS-D15C
PSS-T12
PSS-T15
MODEL NO.
PSS-10-220 +10V 500 mA ±1% ±0.05% 39 (1.56)
PSS-D12A-220V ±12V or +24V 100 mA ±0.5% ±0.02% 39 (1.56)
OUTPUT
VOLTAGE
+5V 500 mA ±1% ±0.05% 19 (.88)
+5V 1000 mA ±1% ±0.05% 31 (1.25)
+10V 500 mA ±1% ±0.05% 39 (1.56)
+12V 500 mA ±1% ±0.10% 39 (1.56)
+15V 500 mA ±1% ±0.10%
±12V or 24V 100 mA ±0.5% ±0.10% 19 (.88)
±12V or 24V 300 mA ±0.5% ±0.10% 39 (1.56)
±15V or 30V ±50 mA ±0.5% ±0.02% 19 (.88)
±15V or 30V ±100 mA ±0.5% ±0.02% 19 (.88)
±15V or 30V ±200 mA ±0.5% ±0.05% 31 (1.25)
±12V & 5V
±12V & 5V
OUTPUT
VOLTAGE
Power cord with stripped end termination
OUTPUT
CURRENT
±12V
@ 120 mA;
5V @
@ 500 mA;
±15V
@ 100 mA;
5V @
@ 500 mA;
OUTPUT
CURRENT
C-13
VOLTAGE
ACCURACY
±1% ±0.10%
±1% ±0.10%
VOLTAGE
ACCURACY
LINE & LOAD
(NL TO FL)
REGULATIONS
LINE & LOAD
(NL TO FL)
REGULATIONS DIM “H“
DIM “H“
39 (1.56)
39 (1.56)
39 (1.56)
