Series
SOLENOID
VALVE
T
ROLLER
RING
PRV
Pneumatic Roller Vibrator
Prevent Material Jams
LEVEL
Bin Vibrators/
A
Model
2-1/32 [51.59]
PRV-1
2-41/64 [67.07]
PRV-2
3-9/32 [83.34]
PRV-3
4-1/16 [103.19]
PRV-4

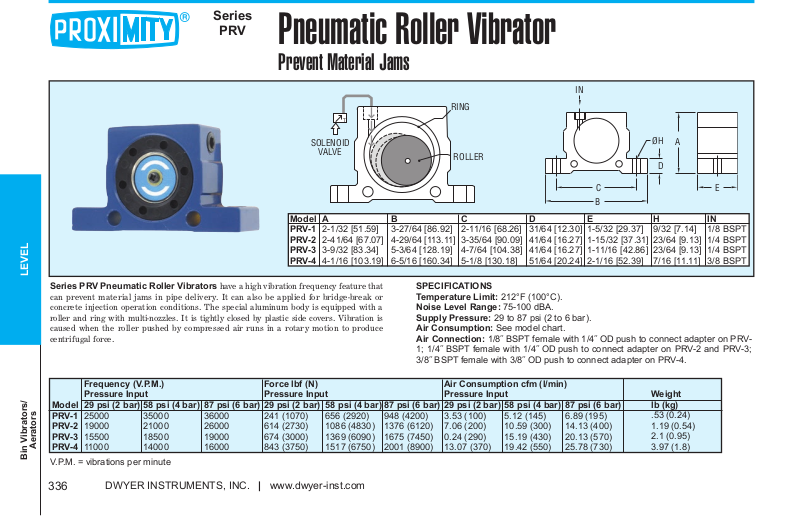

Series PRV Pneumatic Roller Vibrators have a high vibration frequency feature that
can prevent mater ial jams in pipe delivery. It can also be applied for bridge-break or
concrete injection operation conditions. The special aluminum body is equipped with a
roller and ring with multi-nozzles. It is tightly closed by plastic side covers. Vibration is
caused when the roller pushed by compressed air runs in a rotary motion to produce
centrifugal force.
Frequency (V.P.M.)
Aerators
Pressure Input
Model
29 psi (2 bar)
PRV-1
25000
PRV-2
19000
PRV-3
15500
PRV-4
11000
V.P.M. = vibrations per minute
336
DWYER INSTRUMENTS, INC. | www.dwyer-inst.com
58 psi (4 bar)
35000
21000
18500
14000
87 psi (6 bar)
36000
26000
19000
16000
Force lbf (N)
Pressure Input
29 psi (2 bar)
241 (1070)
614 (2730)
674 (3000)
843 (3750)
58 psi (4 bar)
656 (2920)
1086 (4830)
1369 (6090)
1517 (6750)
B
3-27/64 [86.92]
4-29/64 [113.11]
5-3/64 [128.19]
6-5/16 [160.34]
SPECIFICATIONS
Temperature Limit: 212°F (100°C).
Noise Level Range: 75-100 dBA.
Supply Pressure: 29 to 87 psi (2 to 6 bar).
Air Consumption: See model chart.
Air Connection: 1/8˝ BSPT female with 1/4˝ OD push to connect adapter on PRV-
1; 1/4˝ BSPT female with 1/4˝ OD push to connect adapter on PRV-2 and PRV-3;
3/8˝ BSPT female with 3/8˝ OD push to connect adapter on PRV-4.
87 psi (6 bar)
948 (4200)
1376 (6120)
1675 (7450)
2001 (8900)
C
2-11/16 [68.26]
3-35/64 [90.09]
4-7/64 [104.38]
5-1/8 [130.18]
Air Consumption cfm (l/min)
Pressure Input
29 psi (2 bar)
3.53 (100)
7.06 (200)
0.24 (290)
13.07 (370)
D
31/64 [12.30]
41/64 [16.27]
41/64 [16.27]
51/64 [20.24]
58 psi (4 bar)
5.12 (145)
10.59 (300)
15.19 (430)
19.42 (550)
E
1-5/32 [29.37]
1-15/32 [37.31]
1-11/16 [42.86]
2-1/16 [52.39]
87 psi (6 bar)
6.89 (195)
14.13 (400)
20.13 (570)
25.78 (730)
H
9/32 [7.14]
23/64 [9.13]
23/64 [9.13]
7/16 [11.11]
Weight
lb (kg)
.53 (0.24)
1.19 (0.54)
2.1 (0.95)
3.97 (1.8)
IN
1/8 BSPT
1/4 BSPT
1/4 BSPT
3/8 BSPT
