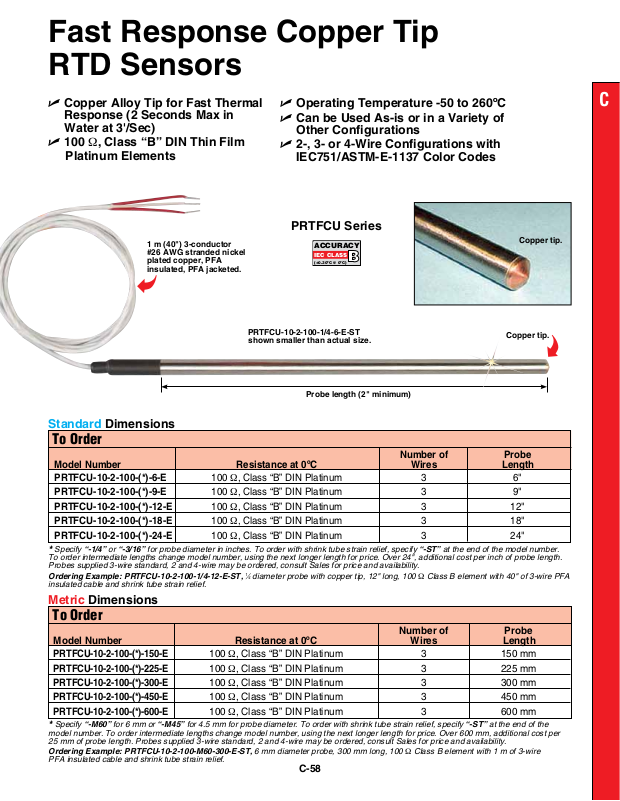

Fast Response Copper Tip
RTD Sensors
U Copper Alloy Tip for Fast Thermal
Response (2 Seconds Max in
Water at 3'/Sec)
U 100 Ω, Class “B” DIN Thin Film
Platinum Elements
1 m (40") 3-conductor
#26 AWG stranded nickel
plated copper, PFA
insulated, PFA jacketed.

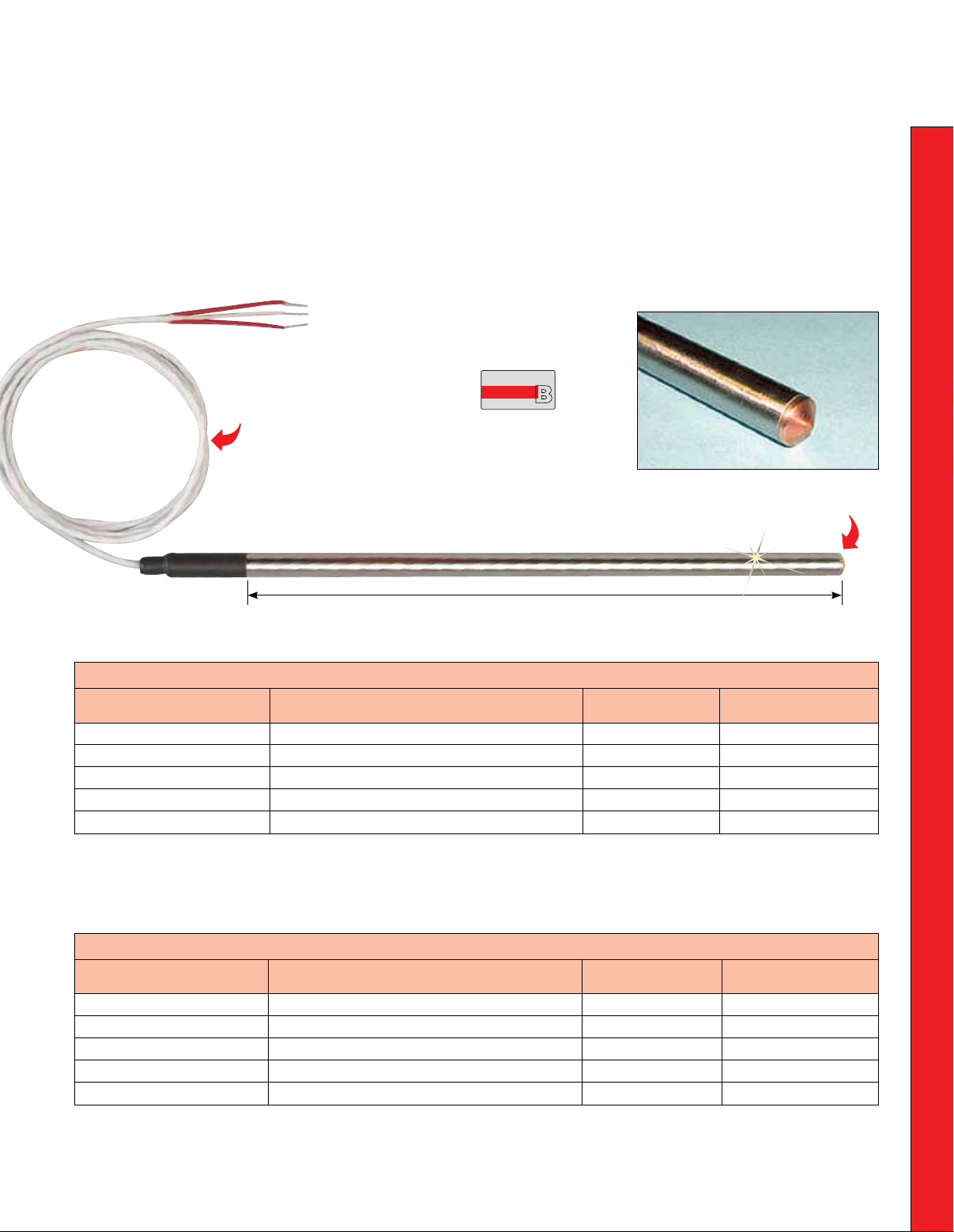

PRTFCU-10-2-100-1/4-6-E-ST
shown smaller than actual size.
U Operating Temperature -50 to 260ºC
U Can be Used As-is or in a Variety of
Other Configurations
U 2-, 3- or 4-Wire Configurations with
IEC751/ASTM-E-1137 Color Codes
PRTFCU Series
ACCURACY
IEC CLASS
(±0.30ºC @ 0ºC)
Probe length (2" minimum)
B
C
Copper tip.
Copper tip.
Standard Dimensions
To Order
Model Number Resistance at 0ºC Wires
PRTFCU-10-2-100-(*)-6-E 100 Ω, Class “B” DIN Platinum 3 6"
PRTFCU-10-2-100-(*)-9-E 100 Ω, Class “B” DIN Platinum 3 9"
PRTFCU-10-2-100-(*)-12-E 100 Ω, Class “B” DIN Platinum 3 12"
PRTFCU-10-2-100-(*)-18-E 100 Ω, Class “B” DIN Platinum 3 18"
PRTFCU-10-2-100-(*)-24-E 100 Ω, Class “B” DIN Platinum 3 24"
Specify “-1/4” or “-3/16” for probe diameter in inches. To order with shrink tube strain relief, specify “-ST” at the end of the model number.
*
To order intermediate lengths change model number, using the next longer length for price. Over 24", additional cost per inch of probe length.
Probes supplied 3-wire standard, 2 and 4-wire may be ordered, consult Sales for price and availability.
Ordering Example: PRTFCU-10-2-100-1/4-12-E-ST, 1⁄4 diameter probe with copper tip, 12" long, 100 Ω Class B element with 40" of 3-wire PFA
insulated cable and shrink tube strain relief.
Metric Dimensions
Number of Probe
Length
To Order
Model Number Resistance at 0ºC Wires
PRTFCU-10-2-100-(*)-150-E
PRTFCU-10-2-100-(*)-225-E
PRTFCU-10-2-100-(*)-300-E
PRTFCU-10-2-100-(*)-450-E
PRTFCU-10-2-100-(*)-600-E
Specify “-M60” for 6 mm or “-M45” for 4.5 mm for probe diameter. To order with shrink tube strain relief, specify “-ST” at the end of the
*
model number. To order intermediate lengths change model number, using the next longer length for price. Over 600 mm, additional cost per
25 mm of probe length. Probes supplied 3-wire standard, 2 and 4-wire may be ordered, consult Sales for price and availability.
Ordering Example: PRTFCU-10-2-100-M60-300-E-ST, 6 mm diameter probe, 300 mm long, 100 Ω Class B element with 1 m of 3-wire
PFA insulated cable and shrink tube strain relief.
100 Ω, Class “B” DIN Platinum 3 150 mm
100 Ω, Class “B” DIN Platinum 3 225 mm
100 Ω, Class “B” DIN Platinum 3 300 mm
100 Ω, Class “B” DIN Platinum 3 450 mm
100 Ω, Class “B” DIN Platinum 3 600 mm
C-58
