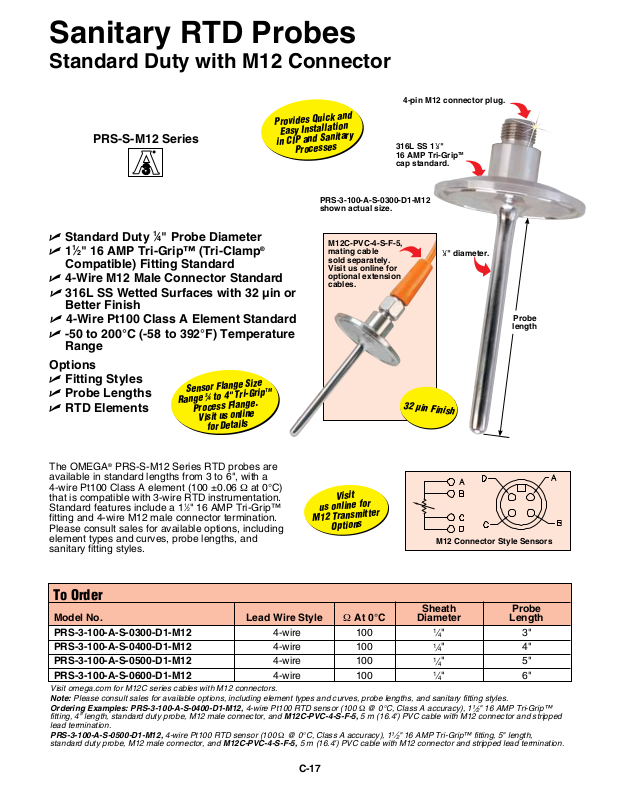

Sanitary RTD Probes
Standard Duty with M12 Connector
Provides Quick and
PRS-S-M12 Series
®
Easy Installation
in CIP and Sanitary
Processes
PRS-3-100-A-S-0300-D1-M12
shown actual size.
4-pin M12 connector plug.
316L SS 11⁄2"
16 AMP Tri-GripTM
cap standard.
U Standard Duty 1⁄4" Probe Diameter
U 11⁄2" 16 AMP Tri-Grip™ (Tri-Clamp®
Compatible) Fitting Standard
U 4-Wire M12 Male Connector Standard
U 316L SS Wetted Surfaces with 32 µin or
Better Finish
U 4-Wire Pt100 Class A Element Standard
U -50 to 200°C (-58 to 392°F) Temperature
Range
Options
U Fitting Styles
Sensor Flange Size
U Probe Lengths
U RTD Elements
3
to 4" Tri-Grip
4
⁄
Range
Process Flange.
Visit us online
for Details
The OMEGA® PRS-S-M12 Series RTD probes are
available in standard lengths from 3 to 6", with a
4-wire Pt100 Class A element (100 ±0.06 Ω at 0°C)
that is compatible with 3-wire RTD instrumentation.
Standard features include a 11⁄2" 16 AMP Tri-Grip™
fitting and 4-wire M12 male connector termination.
Please consult sales for available options, including
element types and curves, probe lengths, and
sanitary fitting styles.
TM
M12C-PVC-4-S-F-5,
mating cable
sold separately.
Visit us online for
optional extension
cables.
Visit
us online for
M12 Transmitter
Options
1
⁄4" diameter.
32 µin Finish
M12 Connector Style Sensors
Probe
length
To Order
Model No. Lead Wire Style Ω At 0°C Diameter Length
PRS-3-100-A-S-0300-D1-M12 4-wire 100
PRS-3-100-A-S-0400-D1-M12 4-wire 100
PRS-3-100-A-S-0500-D1-M12 4-wire 100
PRS-3-100-A-S-0600-D1-M12 4-wire 100
Visit omega.com for M12C series cables with M12 connectors.
Note: Please consult sales for available options, including element types and curves, probe lengths, and sanitary fitting styles.
Ordering Examples: PRS-3-100-A-S-0400-D1-M12, 4-wire Pt100 RTD sensor (100 Ω @ 0°C, Class A accuracy), 1
fitting, 4" length, standard duty probe, M12 male connector, and M12C-PVC-4-S-F-5, 5 m (16.4') PVC cable with M12 connector and stripped
lead termination.
PRS-3-100-A-S-0500-D1-M12, 4-wire Pt100 RTD sensor (100 Ω @ 0°C, Class A accuracy), 1
standard duty probe, M12 male connector, and M12C-PVC-4-S-F-5, 5 m (16.4') PVC cable with M12 connector and stripped lead termination.
C-17
Sheath Probe
1
" 3"
⁄
4
1
" 4"
⁄
4
1
" 5"
⁄
4
1
" 6"
⁄
4
1
" 16 AMP Tri-Grip™
⁄
2
1
" 16 AMP Tri-Grip™ fitting, 5" length,
⁄
2
Page 2

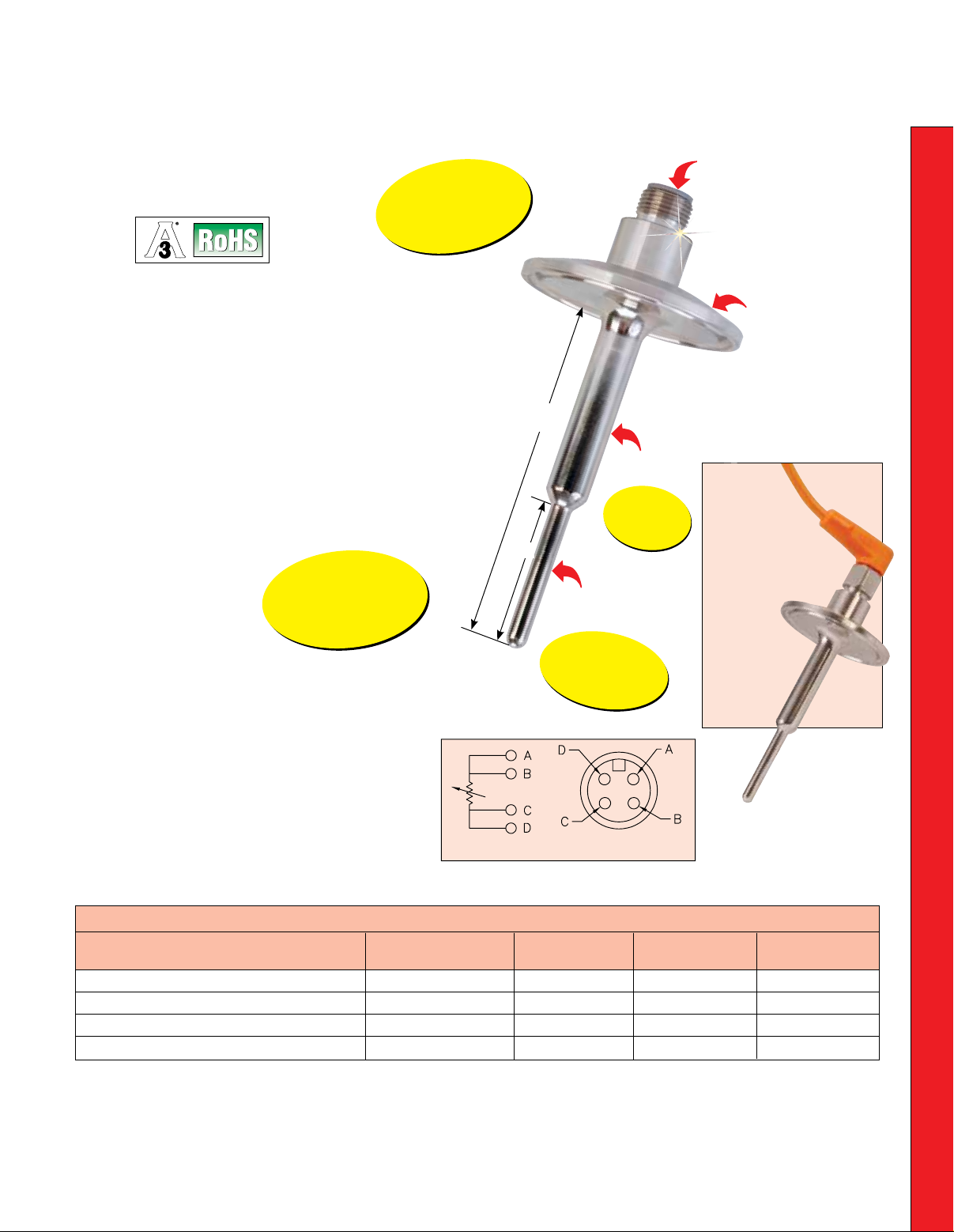

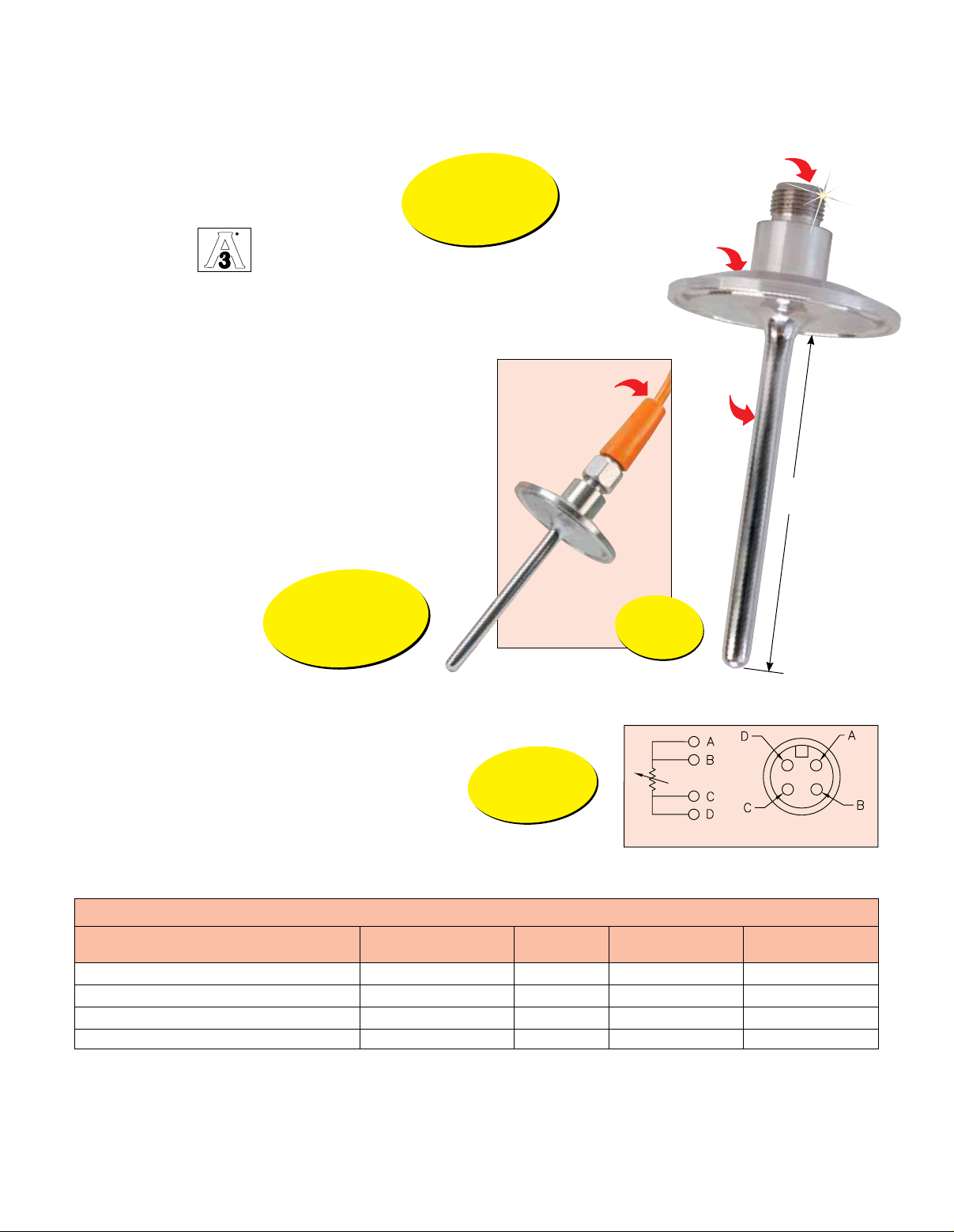

Sanitary RTD Probes
Heavy-Duty with M12 Connector
PRS-H-M12 Series
®
Provides Quick and
Easy Installation
in CIP and Sanitary
Processes
U Heavy Duty Probe Design with Stepped
Probe Stem for Additional Strength
U 11⁄2" 16 AMP Tri-Grip™ (Tri-Clamp®
Compatible) Fitting Standard
U 4-Wire M12 Male Connector Standard
U 316L SS Wetted Surfaces with 32 µin
or Better Finish
U 4-Wire Pt100 Class A Element Standard
U -50 to 200°C (-58 to 392°F)
Temperature Range
Options
U Fitting Styles
U Probe Lengths
U RTD Elements
Sensor Flange Size
3
to 4" Tri-Grip
4
⁄
Range
Process Flange.
Visit us online
for Details
The OMEGA® PRS-H-M12 Series RTD probes
are available in standard lengths from 3 to 6",
with a 4-wire Pt100 Class A element
(100 ±0.06 Ω at 0°C) that is compatible with
3-wire RTD instrumentation. These heavy-duty
probes have a 3⁄8" diameter, which steps down to
a 3⁄16" diameter at the probe tip, for fast response
and additional strength. Standard features
include a 11⁄2" 16 AMP Tri-Grip™ fitting and
4-wire M12 male connector termination. Please
consult sales for available options, including
element types and curves, probe lengths, and
sanitary fitting styles.
TM
Probe
length
3
⁄
8
" diameter.
32 µin Finish
11⁄4"
3
⁄
16
" diameter.
Visit
omega.com for
M12 Transmitter
Options
M12 Connector Style Sensors
4-pin M12 connector plug.
316L SS 1
16 AMP Tri-Grip
cap standard.
PRS-3-100-A-H-0300-D1-M12
shown actual size.
M12C-PVC-4-S-F-5,
mating cable sold
separately.
Visit us online for
optional extension
cables.
1
⁄
2
"
TM
C
To Order
Sheath Probe
Model No. Lead Wire Style Ω at 0°C Diameter Length
PRS-3-100-A-H-0300-D1-M12 4-wire 100
PRS-3-100-A-H-0400-D1-M12 4-wire 100
PRS-3-100-A-H-0500-D1-M12 4-wire 100
PRS-3-100-A-H-0600-D1-M12 4-wire 100
Visit omega.com for M12C series cables with M12 connectors.
Note: Please consult sales for available options, including element types and curves, probe lengths, and sanitary fitting styles.
Ordering Examples: PRS-3-100-A-H-0400-D1-M12, 4-wire Pt100 RTD sensor (100 Ω @ 0°C, Class A accuracy), 1
fitting, 4" length, heavy-duty probe, M12 male connector, and M12C-PVC-4-S-F-5, 5 m (16.4') PVC cable with M12 connector and stripped lead
termination.
PRS-3-100-A-H-0300-D1-M12, 4-wire Pt100 RTD sensor (100 Ω @ 0°C, Class A accuracy), 1
heavy-duty probe, M12 male connector.
1
" 16 AMP Tri-Grip™ fitting, 3" length,
⁄
2
C-18
3
" 3"
⁄
8
3
" 4"
⁄
8
3
" 5"
⁄
8
3
" 6"
⁄
8
1
" 16 AMP Tri-Grip™
⁄
2
