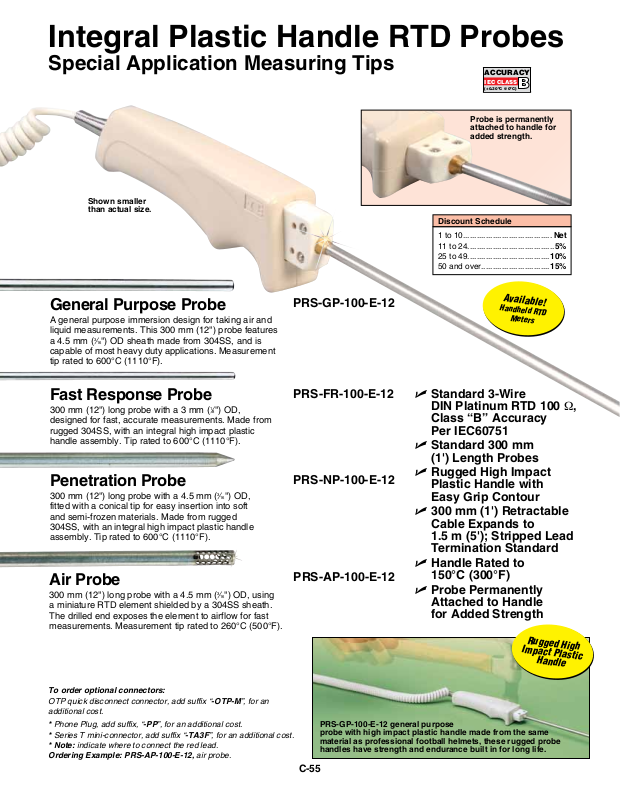

Integral Plastic Handle RTD Probes
Special Application Measuring Tips
Shown smaller
than actual size.
General Purpose Probe
A general purpose immersion design for taking air and
liquid measurements. This 300 mm (12") probe features
a 4.5 mm (
capable of most heavy duty applications. Measurement
tip rated to 600°C (1110°F).
3
⁄16") OD sheath made from 304SS, and is
PRS-GP-100-E-12
ACCURACY
IEC CLASS
(±0.30ºC @ 0ºC)
Probe is permanently
attached to handle for
added strength.
Discount Schedule
1 to 10....................................... Net
11 to 24......................................5%
25 to 49....................................10%
50 and over..............................15%
B
Available!
Handheld RTD
Meters
Fast Response Probe
300 mm (12") long probe with a 3 mm (1⁄8") OD,
designed for fast, accurate measurements. Made from
rugged 304SS, with an integral high impact plastic
handle assembly. Tip rated to 600°C (1110°F).
Penetration Probe
300 mm (12") long probe with a 4.5 mm (3⁄16") OD,
fitted with a conical tip for easy insertion into soft
and semi-frozen materials. Made from rugged
304SS, with an integral high impact plastic handle
assembly. Tip rated to 600°C (1110°F).
Air Probe
300 mm (12") long probe with a 4.5 mm (3⁄16") OD, using
a miniature RTD element shielded by a 304SS sheath.
The drilled end exposes the element to airflow for fast
measurements. Measurement tip rated to 260°C (500°F).
To order optional connectors:
OTP quick disconnect connector, add suffix “-OTP-M”, for an
additional cost.
* Phone Plug, add suffix, “-PP”, for an additional cost.
* Series T mini-connector, add suffix “-TA3F”, for an additional cost.
* Note: indicate where to connect the red lead.
Ordering Example: PRS-AP-100-E-12, air probe.
PRS-FR-100-E-12
U Standard 3-Wire
DIN Platinum RTD 100 Ω,
Class “B” Accuracy
Per IEC60751
U Standard 300 mm
(1') Length Probes
U Rugged High Impact
PRS-NP-100-E-12
Plastic Handle with
Easy Grip Contour
U 300 mm (1') Retractable
Cable Expands to
1.5 m (5'); Stripped Lead
Termination Standard
U Handle Rated to
PRS-AP-100-E-12
150°C (300°F)
U Probe Permanently
Attached to Handle
for Added Strength
PRS-GP-100-E-12 general purpose
probe with high impact plastic handle made from the same
material as professional football helmets, these rugged probe
handles have strength and endurance built in for long life.
C-55
Rugged High
Impact Plastic
Handle
