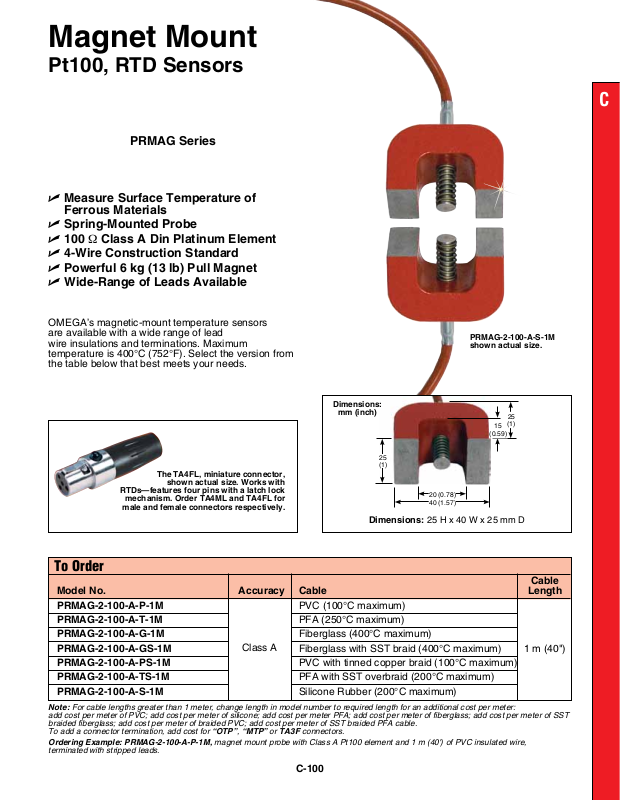

Magnet Mount
Pt100, RTD Sensors
PRMAG Series
U Measure Surface Temperature of
Ferrous Materials
U Spring-Mounted Probe
U 100 Ω Class A Din Platinum Element
U 4-Wire Construction Standard
U Powerful 6 kg (13 lb) Pull Magnet
U Wide-Range of Leads Available
OMEGA’s magnetic-mount temperature sensors
are available with a wide range of lead
wire insulations and terminations. Maximum
temperature is 400°C (752°F). Select the version from
the table below that best meets your needs.
C

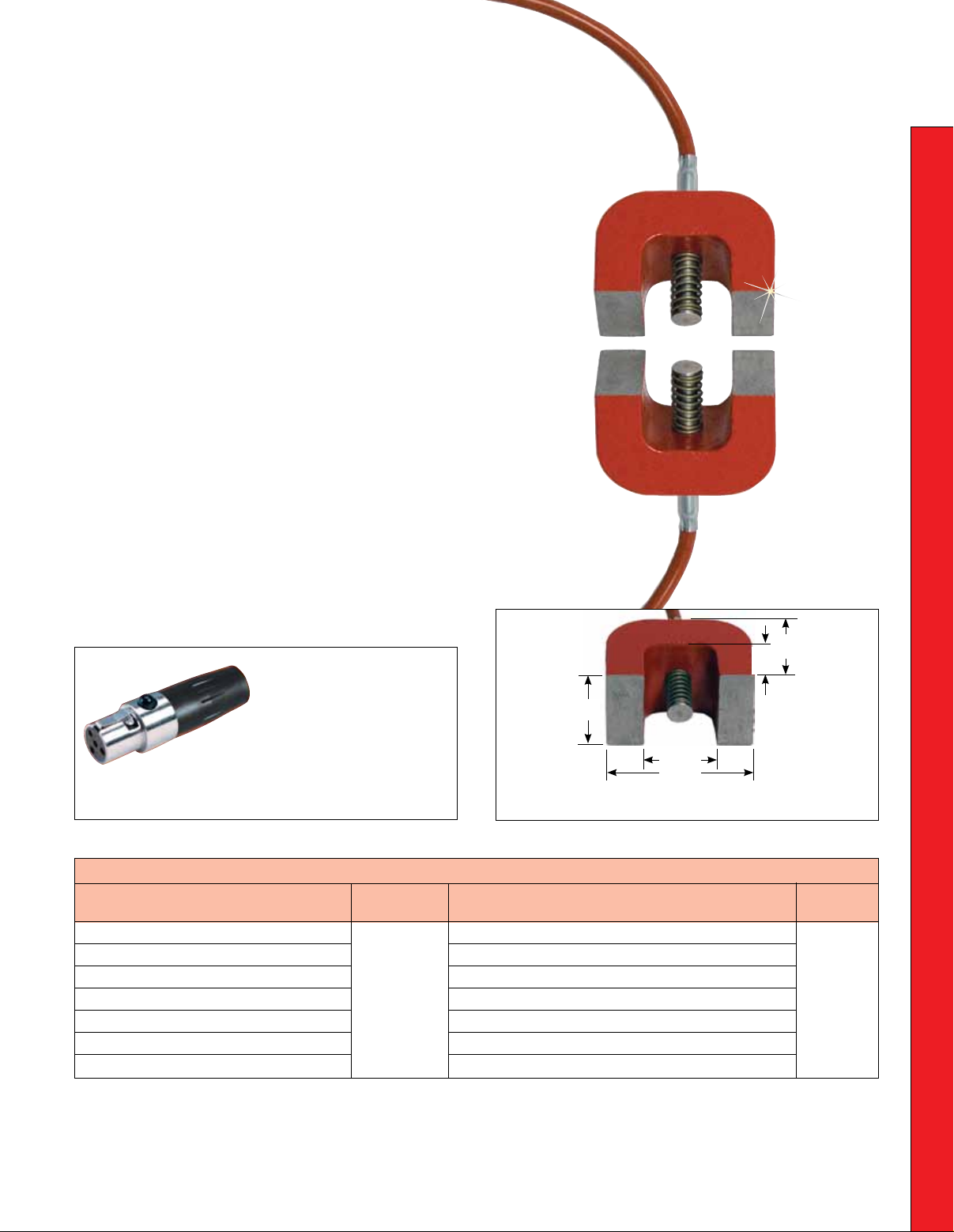

PRMAG-2-100-A-S-1M
shown actual size.
Dimensions:
mm (inch)
25
The TA4FL, miniature connector,
RTDs—features four pins with a latch lock
mechanism. Order TA4ML and TA4FL for
male and female connectors respectively.
To Order
Cable
Model No. Accuracy Cable Length
PRMAG-2-100-A-P-1M PVC (100°C maximum)
PRMAG-2-100-A-T-1M PFA (250°C maximum)
PRMAG-2-100-A-G-1M Fiberglass (400°C maximum)
PRMAG-2-100-A-GS-1M Fiberglass with SST braid (400°C maximum) 1 m (40")
PRMAG-2-100-A-PS-1M PVC with tinned copper braid (100°C maximum)
PRMAG-2-100-A-TS-1M PFA with SST overbraid (200°C maximum)
PRMAG-2-100-A-S-1M Silicone Rubber (200°C maximum)
Note: For cable lengths greater than 1 meter, change length in model number to required length for an additional cost per meter:
add cost per meter of PVC; add cost per meter of silicone; add cost per meter PFA; add cost per meter of fiberglass; add cost per meter of SST
braided fiberglass; add cost per meter of braided PVC; add cost per meter of SST braided PFA cable.
To add a connector termination, add cost for “OTP”, “MTP” or TA3F connectors.
Ordering Example: PRMAG-2-100-A-P-1M, magnet mount probe with Class A Pt100 element and 1 m (40') of PVC insulated wire,
terminated with stripped leads.
shown actual size. Works with
Class A
(1)
20 (0.78)
40 (1.57)
Dimensions: 25 H x 40 W x 25 mm D
15
(0.59)
25
(1)
C-100
