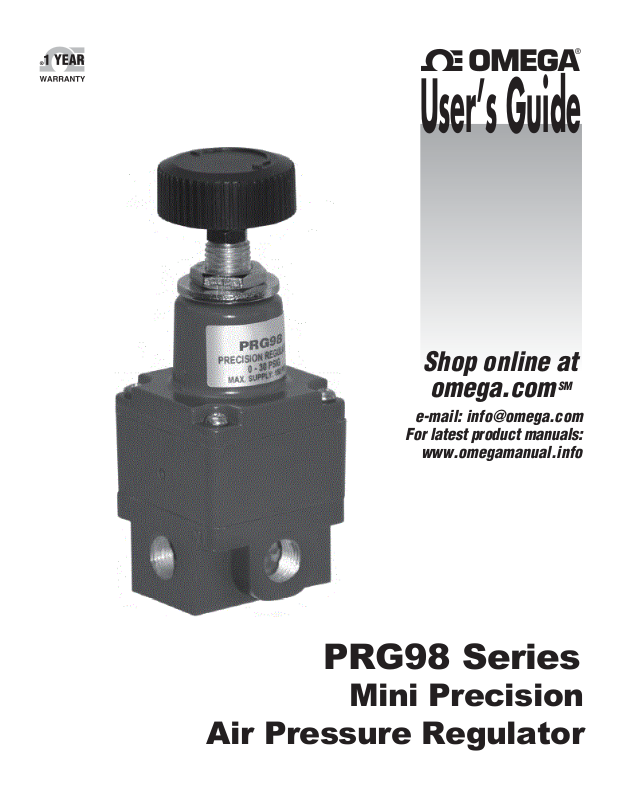

User’s Guide
Shop online at
omega.com
e-mail: [email protected]
For latest product manuals:
www.omegamanual.info
SM
PRG98 Series
Mini Precision
Air Pressure Regulator
Page 2
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3
r
Miniature Precision
Maintenance Instructions
1. INSTALLATION
SPECIFICATIONS
MATERIALS OF CONSTRUCTION
PRG98 Series
Air Pressure Regulator
I
The PRG98 Series miniature precision air pressure regulator is designed to provide the highest level of regulation accuracy and
repeatability available to control equipment in a lightweight, compact housing. The PRG98 is ideal for applications that require
exact pressure control and substantial flow capacity under variable operating conditions and limited space.
Outputs 0.7 - 30 psig 0.05 - 2 BAR
Flow Capacity 14 scfm (396 Nl/min)
Exhaust Capacity 7 scfm (199 Nl/min)
Sensitivity 0.25 in. (6.4mm) water
Supply Pressure max. 150 psig (10 BAR)
Supply Pressure Sensitivity 0.5 psig (0.034 BAR) for a 100 psig (6.9 BAR) change
Air Consumption
Repeatability + 0.3% of span
Approximate Size (inches) 1.38 x 1.38 x 3.88
Approximate Size (mm) 35.1 x 35.1 x 98.5
Temperature Limits 00F to 1600F (-180 C to 710C)
Weight 0.35 lb (0.16 kg)
Port Size NPT/BSP 1.8” (In, Out, Gauge (2))
1.4 - 60 psig 0.1 - 4 BAR
1.4 - 120 psig 0.1 - 8 BAR
6.0 scfh (170 Nl/min) maximum at 150 psig (10 BAR) supply
Housing Diecast aluminum alloy, chromate and epoxy paint
Elastomers Nitrile
Trim Zinc-plated steel
Additional Materials Brass, aluminum, stainless steel, zinc-plated steel
1.1 Pre-Installation Requirements
1.1.1 These products are intended for use with industrial compressed air systems only.
CAUTION
1.1.2 Clean all pipe lines to remove dirt and scale prior to installation.
NOTE
CAUTION
1.1.3 A filter (40 micron or less is recommended) should be installed ahead of the regulator to prevent foreign matter in the air line f
1.2 Panel Mounting
1.2.1 Install regulator in air line; body is fitted with a 1/8” NPT/BSP for inlet and outlet connections. The regulator can be
mounted in any position without affecting its operation. Apply a small amount of compound to the male threads only.
1.2.2 Inlet and outlet connections are labeled and should be tightly secured. Make sure all connections are right and that the
exhaust vents in the bottom and side of the regulator are not blocked.
1.2.3 For panel mounting, the panel mounting nut should be tightened with a torque of 60 in. lbs.
Contact factory prior to use with other gases.
Failures attributable to contamination are not covered by the warranty.
This instrument vents to atmosphere. The use of supply gas other than air may create a hazardous
environment
.
Repeated cycling of supply pressure may cause increased leakage and premature product failure.
CAUTION
Page 4

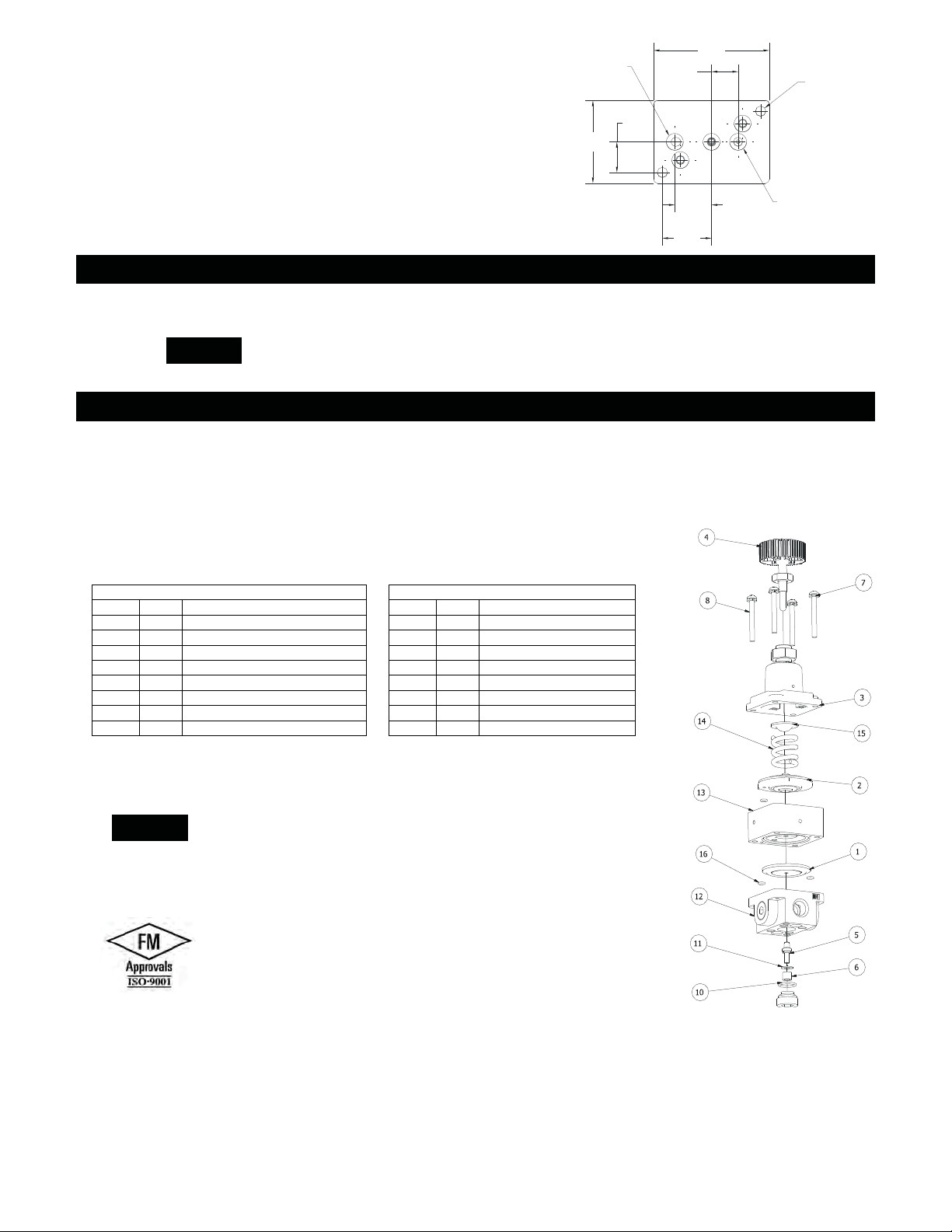

1.3 Manifold Mounting
3. MAINTENANCE AND REPAIRS
1.3.1 Install supplied O-rings into IN port and OUT port counterbores
before mounting to manifold.
1.3.2 Venting will occur through center hole of mounting plate;
Prevent obstruction for proper venting.
1.42
[36.1]
INPORT
.52
[13.3]
.46
[11.6]
1.98
[50.2]
Ø.18
[Ø4.5]
THRU (2) PLACES
.63
[15.9]
.84
[21.3]
2
OUTPORT
2.1 Operation
2.1.1 Turn on the supply pressure slowly and then turn the adjusting knob until the desired output pressure is reached.
NOTE
Since this instrument utilizes an air bleed servo-control action, a slight sound of escaping air may
be heard in the area of the housing. This is normal and is required for the precise control which
this regulator offers.
3.1 Repairs
3.1.1 In the event of unit failure, the PRG98 can be returned to the factory through point of purchase for repair during the
warranty period.
3.1.2 All units returned for repair must be authorized prior to receipt at the factory. Contact a representative at the point of
purchase to receive a Return Authorization Number.
3.1.3 Repair kits for the PRG98 are available. Repair Kit P/N: 449-871-105
ITEM QTY DESCRIPTION
Parts List
1 1* LOWER DIAPHRAGM ASS’Y
2 1* SIGNAL DIAPHRAGM ASS’Y
3 1 BONNET ASSEMBLY
4 1 KNOB ASSEMBLY
5 1* PINTLE
6 1* RUBBER SLEEVE
7 4 LOCK WASHER
8 4 4-40-UNC BUILD SCREW
*INCLUDED IN REPAIR KIT
ITEM QTY DESCRIPTION
9 1 BOTTOM PLUG
10 1* BODY O-RING
11 1 PINTLE WASHER
12 1 BODY
13 1 HOUSING
14 1 SPRING
15 1 SPRING GUIDE
16 3* O-RING, SMALL
Parts List
*INCLUDED IN REPAIR KIT
These products are intended for use in industrial compressed-air
WARNING
systems only. Do not use these products where pressures and
temperatures can exceed those listed under Specifications.
Before using these products with fluids other than air, for nonindustrial applications, life-support systems, or other applications
not within published specifications, consult ControlAir, Inc.
