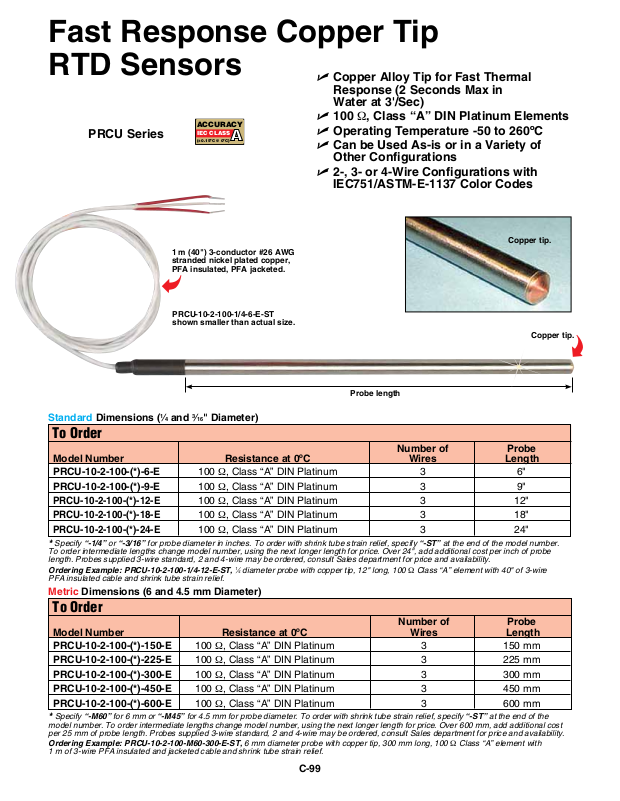

Fast Response Copper Tip
RTD Sensors
ACCURACY
PRCU Series
IEC CLASS
(±0.15ºC @ 0ºC)
1 m (40") 3-conductor #26 AWG
stranded nickel plated copper,
PFA insulated, PFA jacketed.

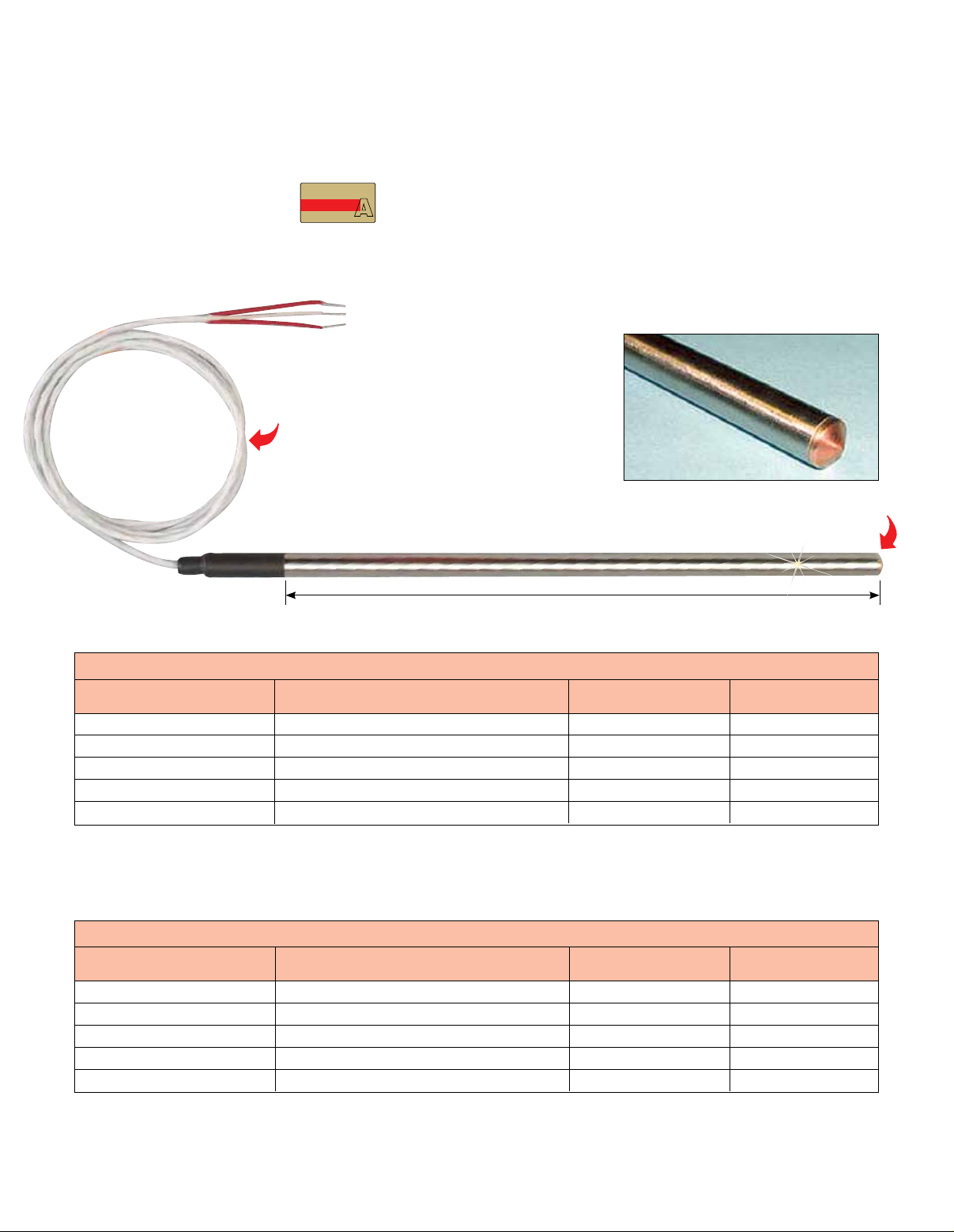

PRCU-10-2-100-1/4-6-E-ST
shown smaller than actual size.
A
U Copper Alloy Tip for Fast Thermal
Response (2 Seconds Max in
Water at 3'/Sec)
U 100 Ω, Class “A” DIN Platinum Elements
U Operating Temperature -50 to 260ºC
U Can be Used As-is or in a Variety of
Other Configurations
U 2-, 3- or 4-Wire Configurations with
IEC751/ASTM-E-1137 Color Codes
Copper tip.
Copper tip.
Probe length
Standard Dimensions (1⁄4 and 3⁄16" Diameter)
To Order
Model Number Resistance at 0ºC Wires
PRCU-10-2-100-(*)-6-E 100 Ω, Class “A” DIN Platinum 3 6"
PRCU-10-2-100-(*)-9-E 100 Ω, Class “A” DIN Platinum 3 9"
PRCU-10-2-100-(*)-12-E
PRCU-10-2-100-(*)-18-E
PRCU-10-2-100-(*)-24-E
Specify “-1/4” or “-3/16” for probe diameter in inches. To order with shrink tube strain relief, specify “-ST” at the end of the model number.
*
To order intermediate lengths change model number, using the next longer length for price. Over 24", add additional cost per inch of probe
length. Probes supplied 3-wire standard, 2 and 4-wire may be ordered, consult Sales department for price and availability.
Ordering Example: PRCU-10-2-100-1/4-12-E-ST, 1⁄4 diameter probe with copper tip, 12" long, 100 Ω Class “A” element with 40" of 3-wire
PFA insulated cable and shrink tube strain relief.
Metric Dimensions (6 and 4.5 mm Diameter)
100 Ω, Class “A” DIN Platinum 3 12"
100 Ω, Class “A” DIN Platinum 3 18"
100 Ω, Class “A” DIN Platinum 3 24"
Number of Probe
Length
To Order
Number of Probe
Model Number Resistance at 0ºC Wires
PRCU-10-2-100-(*)-150-E 100 Ω, Class “A” DIN Platinum 3 150 mm
PRCU-10-2-100-(*)-225-E 100 Ω, Class “A” DIN Platinum 3 225 mm
PRCU-10-2-100-(*)-300-E 100 Ω, Class “A” DIN Platinum 3 300 mm
PRCU-10-2-100-(*)-450-E 100 Ω, Class “A” DIN Platinum 3 450 mm
PRCU-10-2-100-(*)-600-E 100 Ω, Class “A” DIN Platinum 3 600 mm
Specify “-M60” for 6 mm or “-M45” for 4.5 mm for probe diameter. To order with shrink tube strain relief, specify “-ST” at the end of the
*
model number. To order intermediate lengths change model number, using the next longer length for price. Over 600 mm, add additional cost
per 25 mm of probe length. Probes supplied 3-wire standard, 2 and 4-wire may be ordered, consult Sales department for price and availability.
Ordering Example: PRCU-10-2-100-M60-300-E-ST, 6 mm diameter probe with copper tip, 300 mm long, 100 Ω Class “A” element with
1 m of 3-wire PFA insulated and jacketed cable and shrink tube strain relief.
C-99
