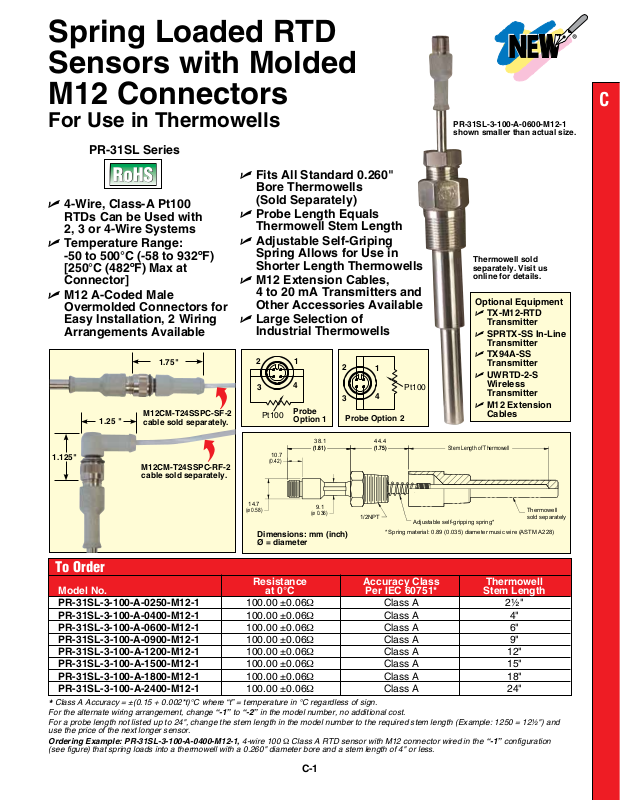

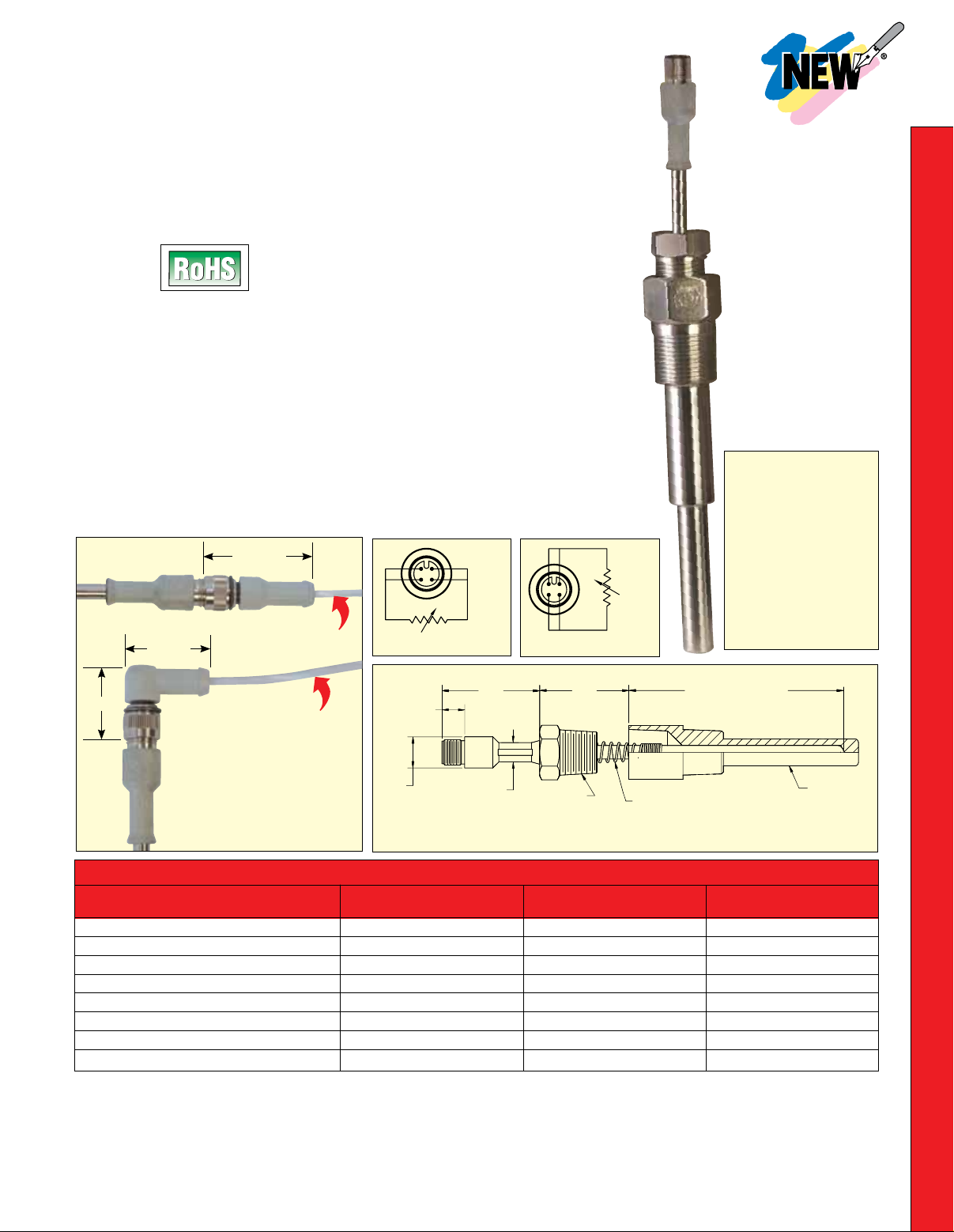

Spring Loaded RTD
Pt100
Pt100/
Pt1000
Pt100/
Pt1000
Sensors with Molded
M12 Connectors
For Use in Thermowells
PR-31SL Series
U Fits All Standard 0.260"
Bore Thermowells
U 4-Wire, Class-A Pt100
RTDs Can be Used with
2, 3 or 4-Wire Systems
U Temperature Range:
-50 to 500°C (-58 to 932ºF)
[250°C (482ºF) Max at
Connector]
U M12 A-Coded Male
Overmolded Connectors for
Easy Installation, 2 Wiring
Arrangements Available
1.75"
1.25 "
M12CM-T24SSPC-SF-2
cable sold separately.
(Sold Separately)
U Probe Length Equals
Thermowell Stem Length
U Adjustable Self-Griping
Spring Allows for Use in
Shorter Length Thermowells
U M12 Extension Cables,
4 to 20 mA Transmitters and
Other Accessories Available
U Large Selection of
Industrial Thermowells
2 1
3
4
Probe
Option 1
2
3
1
4
Probe Option 2
Pt100
PR-31SL-3-100-A-0600-M12-1
shown smaller than actual size.
Thermowell sold
separately. Visit us
online for details.
Optional Equipment
U TX-M12-RTD
Transmitter
U SPRTX-SS In-Line
Transmitter
U TX94A-SS
Transmitter
U
UWRTD-2-S
Wireless
Transmitter
U M12 Extension
Cables
C
1.125"
M12CM-T24SSPC-RF-2
cable sold separately.
Dimensions: mm (inch)
Ø = diameter
To Order
Resistance Accuracy Class Thermowell
Model No. at 0°C Per IEC 60751* Stem Length
PR-31SL-3-100-A-0250-M12-1 100.00 ±0.06Ω Class A 2½"
PR-31SL-3-100-A-0400-M12-1 100.00 ±0.06Ω Class A 4"
PR-31SL-3-100-A-0600-M12-1 100.00 ±0.06Ω Class A 6"
PR-31SL-3-100-A-0900-M12-1 100.00 ±0.06Ω Class A 9"
PR-31SL-3-100-A-1200-M12-1 100.00 ±0.06Ω Class A 12"
PR-31SL-3-100-A-1500-M12-1 100.00 ±0.06Ω Class A 15"
PR-31SL-3-100-A-1800-M12-1 100.00 ±0.06Ω Class A 18"
PR-31SL-3-100-A-2400-M12-1 100.00 ±0.06Ω Class A 24"
Class A Accuracy = ±(0.15 + 0.002*t)°C where “t” = temperature in °C regardless of sign.
*
For the alternate wiring arrangement, change “-1” to “-2” in the model number, no additional cost.
For a probe length not listed up to 24", change the stem length in the model number to the required stem length (Example: 1250 = 12½") and
use the price of the next longer sensor.
Ordering Example: PR-31SL-3-100-A-0400-M12-1, 4-wire 100 Ω Class A RTD sensor with M12 connector wired in the “-1” configuration
(see figure) that spring loads into a thermowell with a 0.260" diameter bore and a stem length of 4" or less.
