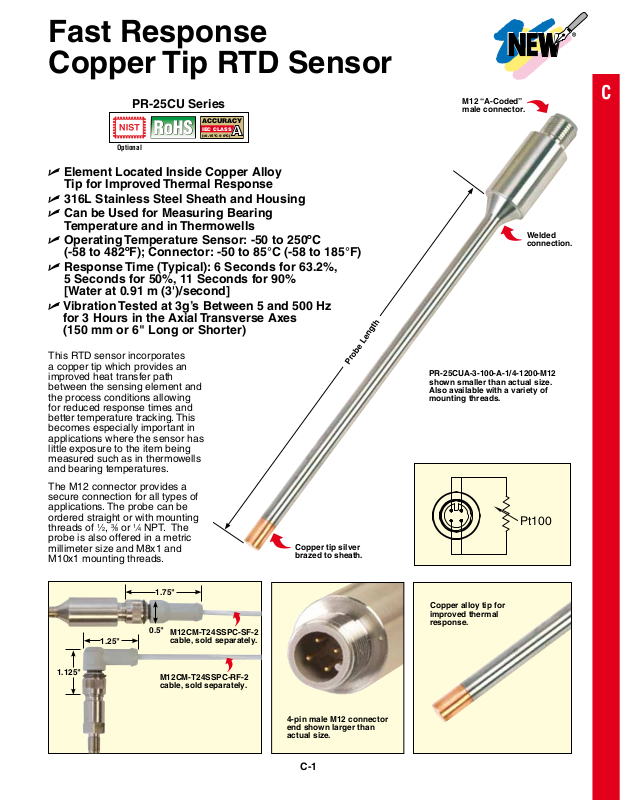

Page 1
Fast Response
Pt100/
Pt1000
Copper Tip RTD Sensor
PR-25CU Series
ACCURACY
IEC CLASS
A
(±0.15ºC @ 0ºC)
Optional
U Element Located Inside Copper Alloy
Tip for Improved Thermal Response
U 316L Stainless Steel Sheath and Housing
U Can be Used for Measuring Bearing
Temperature and in Thermowells
U Operating Temperature Sensor: -50 to 250ºC
(-58 to 482ºF); Connector: -50 to 85°C (-58 to 185°F)
U Response Time (Typical): 6 Seconds for 63.2%,
5 Seconds for 50%, 11 Seconds for 90%
[Water at 0.91 m (3')/second]
U Vibration Tested at 3g’s Between 5 and 500 Hz
for 3 Hours in the Axial Transverse Axes
(150 mm or 6" Long or Shorter)
This RTD sensor incorporates
a copper tip which provides an
improved heat transfer path
between the sensing element and
the process conditions allowing
for reduced response times and
better temperature tracking. This
becomes especially important in
applications where the sensor has
little exposure to the item being
measured such as in thermowells
and bearing temperatures.
The M12 connector provides a
secure connection for all types of
applications. The probe can be
ordered straight or with mounting
threads of
probe is also offered in a metric
millimeter size and M8x1 and
M10x1 mounting threads.
1
⁄2, 3⁄8 or 1⁄4 NPT. The
Copper tip silver
brazed to sheath.
Probe Length
M12 “A-Coded”
male connector.
Welded
connection.

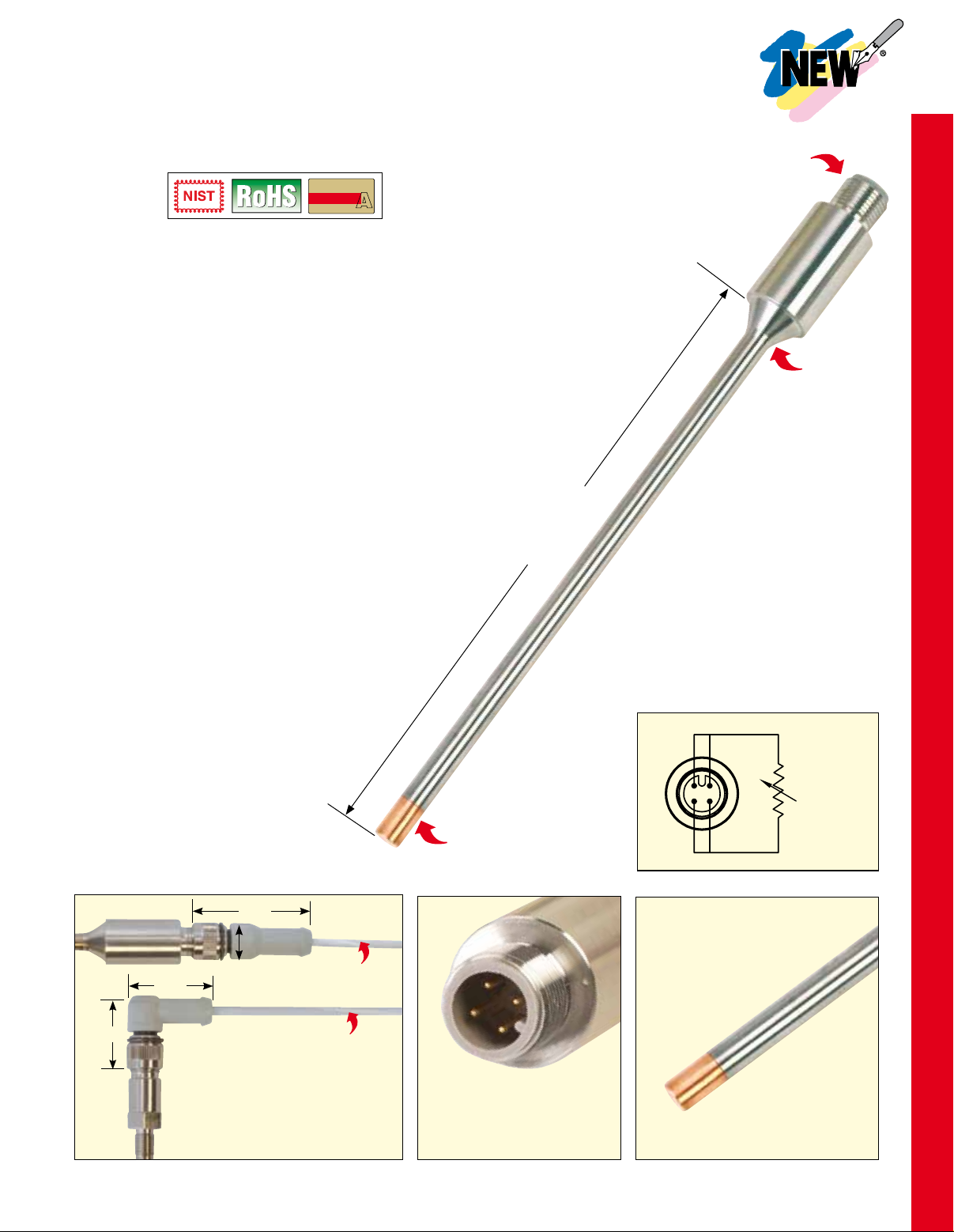

PR-25CUA-3-100-A-1/4-1200-M12
shown smaller than actual size.
Also available with a variety of
mounting threads.
Pt100
C
1.125"
1.25"
1.75"
0.5"
M12CM-T24SSPC-SF-2
cable, sold separately.
M12CM-T24SSPC-RF-2
cable, sold separately.
Copper alloy tip for
improved thermal
response.
4-pin male M12 connector
end shown larger than
actual size.
C-1
Page 2
Probe Length
G1/4 BSPP
16 mm Hex
15
(0.59)
40.3
(1.59)
Probe
Length
9.65 (0.38)
35.3
(1.39)
13.4
(0.53)
Probe
Length
G1/2 BSPP
27 mm Hex
47.7
(1.88)
18.5
(0.73)
Probe Length
G1/4 BSPP
16 mm Hex
15
(0.59)
40.3
(1.59)
Probe Length
G1/4 BSPP
16 mm Hex
15
(0.59)
40.3
(1.59)
Probe
Diameter Typical
Probe
Length
M12X1 Typical
1/4-18 NPT
M8X1 Thread
35.3
(1.39)
13.4
(0.53)
9/16" Hex
1/2" Hex
Probe Length
10.1
(0.40)
29.9
(1.18)
Probe Length
38.8
(1.53)
Ø16.7
(0.66)
Ø1/4"
Probe
Length
G1/2 BSPP
27 mm Hex
47.7
(1.88)
18.5
(0.73)
Probe Length
G1/4 BSPP
16 mm Hex
15
(0.59)
40.3
(1.59)
Probe
Length
1/4-18 NPT
35.3
(1.39)
13.4
(0.53)
9/16" Hex
Probe Length
G1/4 BSPP
16 mm Hex
15
(0.59)
40.3
(1.59)
Probe
Length
Probe
Diameter Typical
Probe
Length
M12X1 Typical
Probe Length
1/2-14 NPT
1/4-18 NPT
M8X1 Thread
M10X1 Thread
46.2
(1.82)
Ty pical
10.6
(0.42)
Ty pical
18.2
(0.72)
7/8" Hex
35.3
(1.39)
13.4
(0.53)
9/16" Hex
1/2" Hex
1/2" Hex
Probe Length
10.1
(0.40)
10.1
(0.40)
29.9
(1.18)
29.9
(1.18)
Probe Length
38.8
(1.53)
Ø16.7
(0.66)
Ø1/4"
Probe
Length
G1/2 BSPP
27 mm Hex
47.7
(1.88)
18.5
(0.73)
Probe Length
G1/4 BSPP
16 mm Hex
15
(0.59)
40.3
(1.59)
Probe
Length
1/4-18 NPT
M8X1 Thread
35.3
(1.39)
13.4
(0.53)
9/16" Hex
1/2" Hex
Probe Length
10.1
(0.40)
29.9
(1.18)
Probe Length
G1/4 BSPP
16 mm Hex
15
(0.59)
40.3
(1.59)
Typical
Copper
Plug
PR-25CUB
Probe Length
Probe
Diameter Typical
Ø1/4"
1
⁄2 NPT Mounting Thread
Probe
Length
PR-25CUA
46.2
(1.82)
Ty pical
18.2
(0.72)
10.6
(0.42)
Ty pical
38.8
(1.53)
Ø16.7
(0.66)
M12X1 Typical
PR-25CUD 1⁄4 NPT Mounting Thread
Probe
Length
13.4
(0.53)
1/4-18 NPT
35.3
(1.39)
PR-25CUE M8x1 Mounting Thread
Probe Length
10.1
(0.40)
29.9
(1.18)
9/16" Hex
PR-25CUC
Probe
Length
1/2-14 NPT
3
⁄8 NPT Mounting Thread
15.2
(0.60)
3/8-18 NPT
38.8
(1.53)
7/8" Hex
11/16" Hex

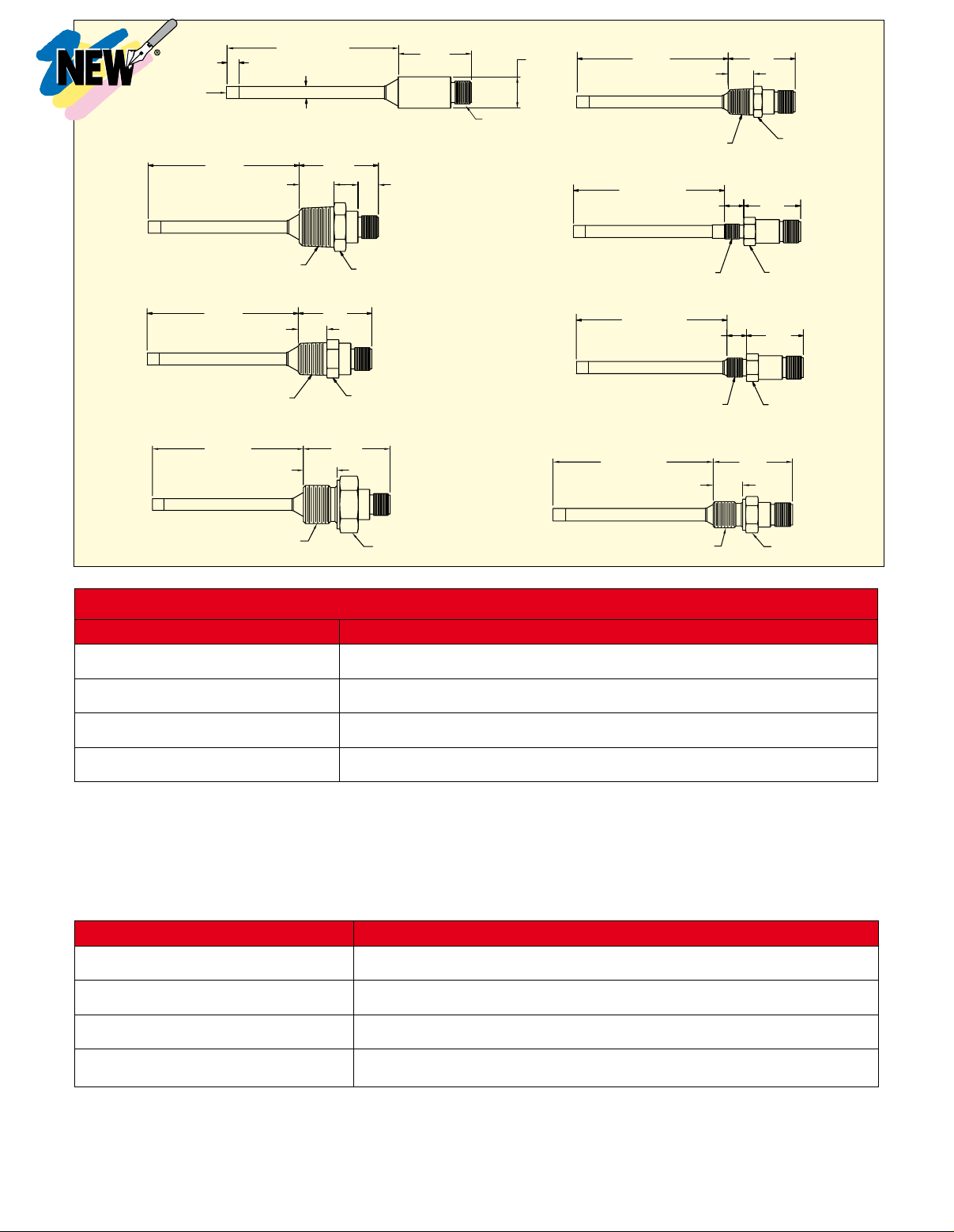

Dimensions:
mm (inch)
Ø = diameter
M8X1 Thread
1/2" Hex
PR-25CUF M10x1 Mounting Thread
Probe Length
M10X1 Thread
10.1
(0.40)
29.9
(1.18)
1/2" Hex
PR-25CUG
Probe
Length
G1/2 BSPP
18.5
(0.73)
47.7
(1.88)
27 mm Hex
PR-25CUH
Probe Length
G1/4 BSPP
15
(0.59)
40.3
(1.59)
16 mm Hex
Standard
To Order
Model No. Description
PR-25CUA-3-100-A-1/4-0600-M12
PR-25CUB-3-100-A-1/4-0600-M12
PR-25CUC-3-100-A-1/4-0600-M12
PR-25CUD-3-100-A-1/4-0600-M12
For lengths other than 6", change “-0600” in model number to required length and add additional cost per inch greater than 6",
(example: 18" = 1800).
For 1000 Ω RTD elements change “-100” to “-1000” in model number.
For Class B Element, change the “-A” to “-B”.
For 3⁄16" probe diameters, change “-1/4” in model number to “-3/16”, no additional cost.
Ordering Examples: PR-25CUA-3-100-A-1/4-0600-M12, 1⁄4" diameter probe, 6" long with Pt100, Class A element, straight sheath with M12
male connector.
PR-25CUB-3-100-A-1/4-0600-M12, straight sheath with 1⁄2 NPT mounting, Class A, 100 Ω, 1⁄4" diameter, 6" long, M12 male connector.
Metric
Model No. Description
PR-25CUE-3-100-A-M6-M150-M12
PR-25CUF-3-100-A-M6-M150-M12
PR-25CUG-3-100-A-M6-M150-M12
PR-25CUH-3-100-A-M6-M150-M12
For lengths other than 150 mm, change “-M150” in model number to required length and add additional cost per inch greater than 150 mm.
For 4.5 mm diameters, change “-M6” in model number to “-M4.5”, no additional cost.
Ordering Examples: PR-25CUE-3-100-A-M6-M150-M12, straight sheath with M8x1 mounting thread, Class A, 100 Ω, 6 mm diameter,
150 mm long, M12 male connector.
PR-25CUE-3-100-A-M4.5-M150-M12, straight sheath with M8x1 mounting thread, Class A, 100 Ω, 4.5 mm diameter, 150 mm long,
M12 male connector.
Straight sheath, Class A, 100 Ω, 1⁄4" diameter, 6" long,
M12 male connector
Straight sheath with 1⁄2 NPT mounting, Class A, 100 Ω, 1⁄4" diameter,
6" long, M12 male connector
Straight sheath with 3⁄8 NPT mounting, Class A, 100 Ω, 1⁄4" diameter,
6" long, M12 male connector
Straight sheath with 1⁄4 NPT mounting, Class A, 100 Ω, 1⁄4" diameter,
6" long, M12 male connector
Straight sheath with M8x1 mounting thread, Class A, 100 Ω,
6 mm diameter, 150 mm long, M12 male connector
Straight sheath with M10x1 mounting thread, Class A, 100 Ω,
6 mm diameter, 150 mm long, M12 male connector
Straight sheath with G
1
⁄2 mounting thread, Class A, 100 Ω,
6 mm diameter, 150 mm long, M12 male connector
Straight sheath with G
6 mm diameter, 150 mm long, M12 male connector
1
⁄4 mounting thread, Class A, 100 Ω,
C-2
