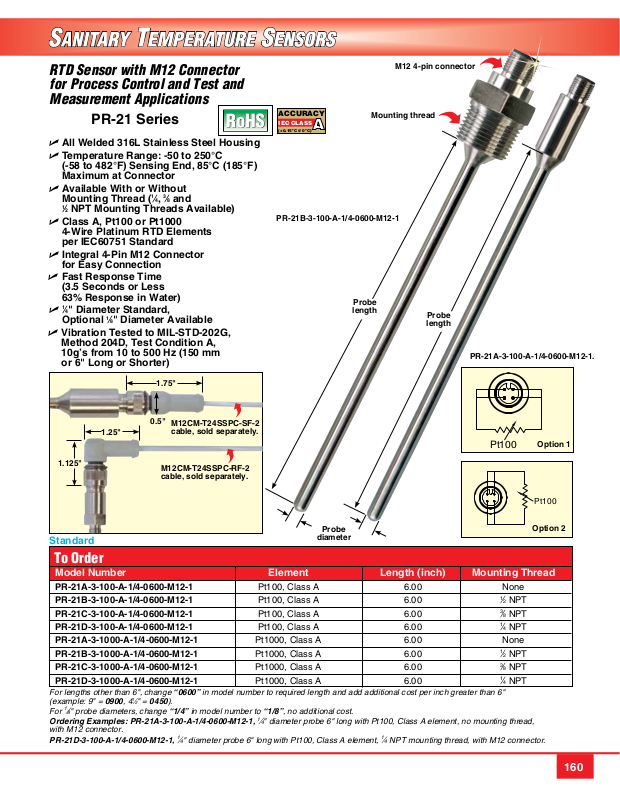

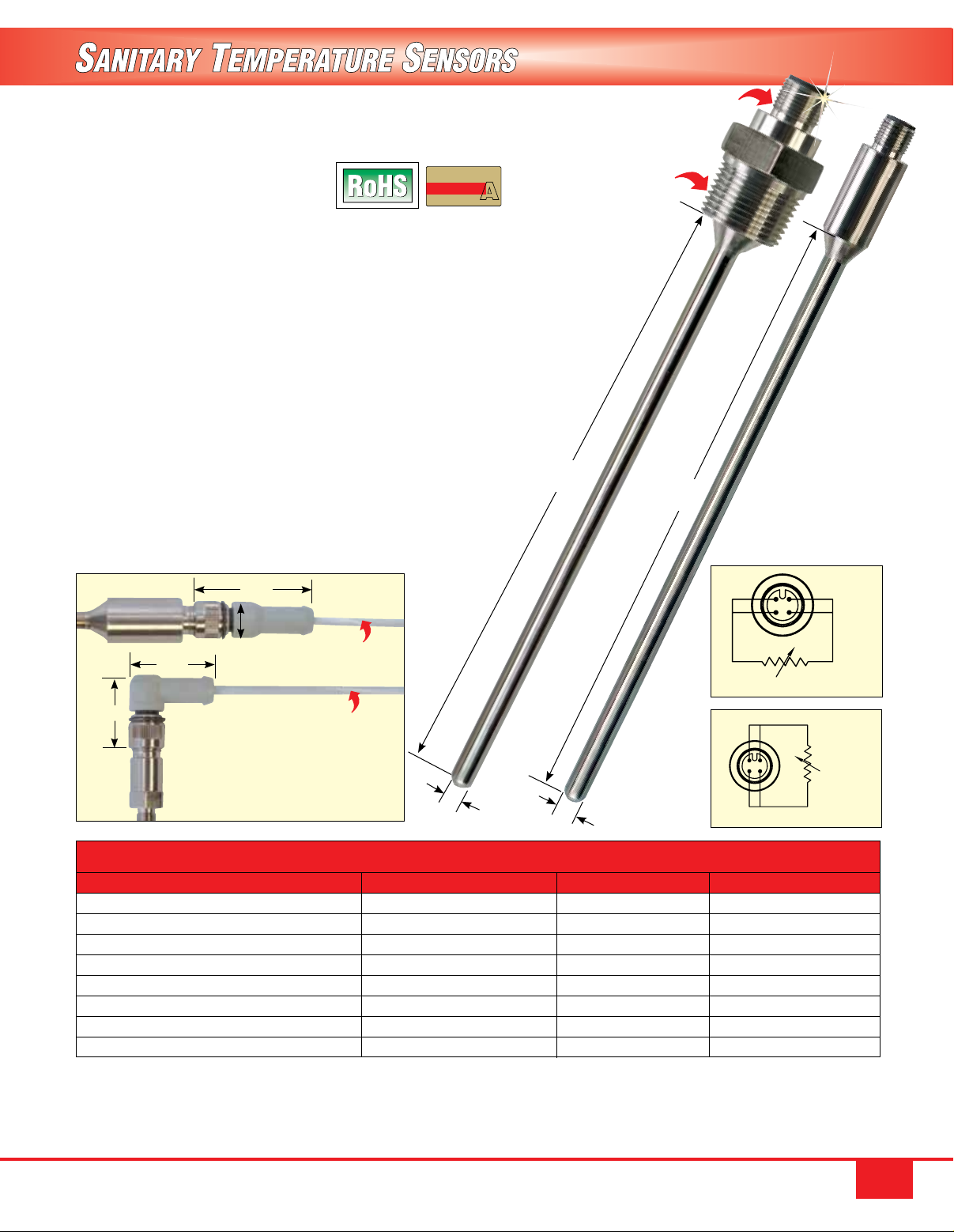

Page 1
RTD Sensor with M12 Connector
Pt100/
Pt1000
Pt100
Pt100/
Pt1000
for Process Control and Test and
Measurement Applications
PR-21 Series
U All Welded 316L Stainless Steel Housing
U Temperature Range: -50 to 250°C
(-58 to 482°F) Sensing End, 85°C (185°F)
Maximum at Connector
U Available With or Without
Mounting Thread (
1
⁄2 NPT Mounting Threads Available)
U Class A, Pt100 or Pt1000
4-Wire Platinum RTD Elements
per IEC60751 Standard
U Integral 4-Pin M12 Connector
for Easy Connection
U Fast Response Time
(3.5 Seconds or Less
63% Response in Water)
1
⁄4" Diameter Standard,
U
Optional 1⁄8" Diameter Available
U Vibration Tested to MIL-STD-202G,
Method 204D, Test Condition A,
10g’s from 10 to 500 Hz (150 mm
or 6" Long or Shorter)
1
⁄4, 3⁄8 and
ACCURACY
IEC CLASS
(±0.15ºC @ 0ºC)
PR-21B-3-100-A-1/4-0600-M12-1
A
Mounting thread
Probe
length
M12 4-pin connector
Probe
length
PR-21A-3-100-A-1/4-0600-M12-1.
1.75"
0.5"
M12CM-T24SSPC-SF-2
1.25"
1.125"
Standard
cable, sold separately.
M12CM-T24SSPC-RF-2
cable, sold separately.
Probe
diameter
Option 1
Pt100
Option 2
To Order
Model Number Element Length (inch) Mounting Thread
PR-21A-3-100-A-1/4-0600-M12-1 Pt100, Class A 6.00 None
PR-21B-3-100-A-1/4-0600-M12-1 Pt100, Class A 6.00
PR-21C-3-100-A-1/4-0600-M12-1 Pt100, Class A 6.00
PR-21D-3-100-A-1/4-0600-M12-1 Pt100, Class A 6.00
PR-21A-3-1000-A-1/4-0600-M12-1 Pt1000, Class A 6.00 None
PR-21B-3-1000-A-1/4-0600-M12-1 Pt1000, Class A 6.00
PR-21C-3-1000-A-1/4-0600-M12-1 Pt1000, Class A 6.00
PR-21D-3-1000-A-1/4-0600-M12-1 Pt1000, Class A 6.00
For lengths other than 6", change “0600” in model number to required length and add additional cost per inch greater than 6"
(example: 9" = 0900, 41⁄2" = 0450).
For
Ordering Examples: PR-21A-3-100-A-1/4-0600-M12-1,
with M12 connector.
PR-21D-3-100-A-1/4-0600-M12-1,
1
⁄8" probe diameters, change “1/4” in model number to “1/8”, no additional cost.
1
⁄4" diameter probe 6" long with Pt100, Class A element, 1⁄4 NPT mounting thread, with M12 connector.
1
⁄4" diameter probe 6" long with Pt100, Class A element, no mounting thread,
1
⁄2 NPT
3
⁄8 NPT
1
⁄4 NPT
1
⁄2 NPT
3
⁄8 NPT
1
⁄4 NPT
160

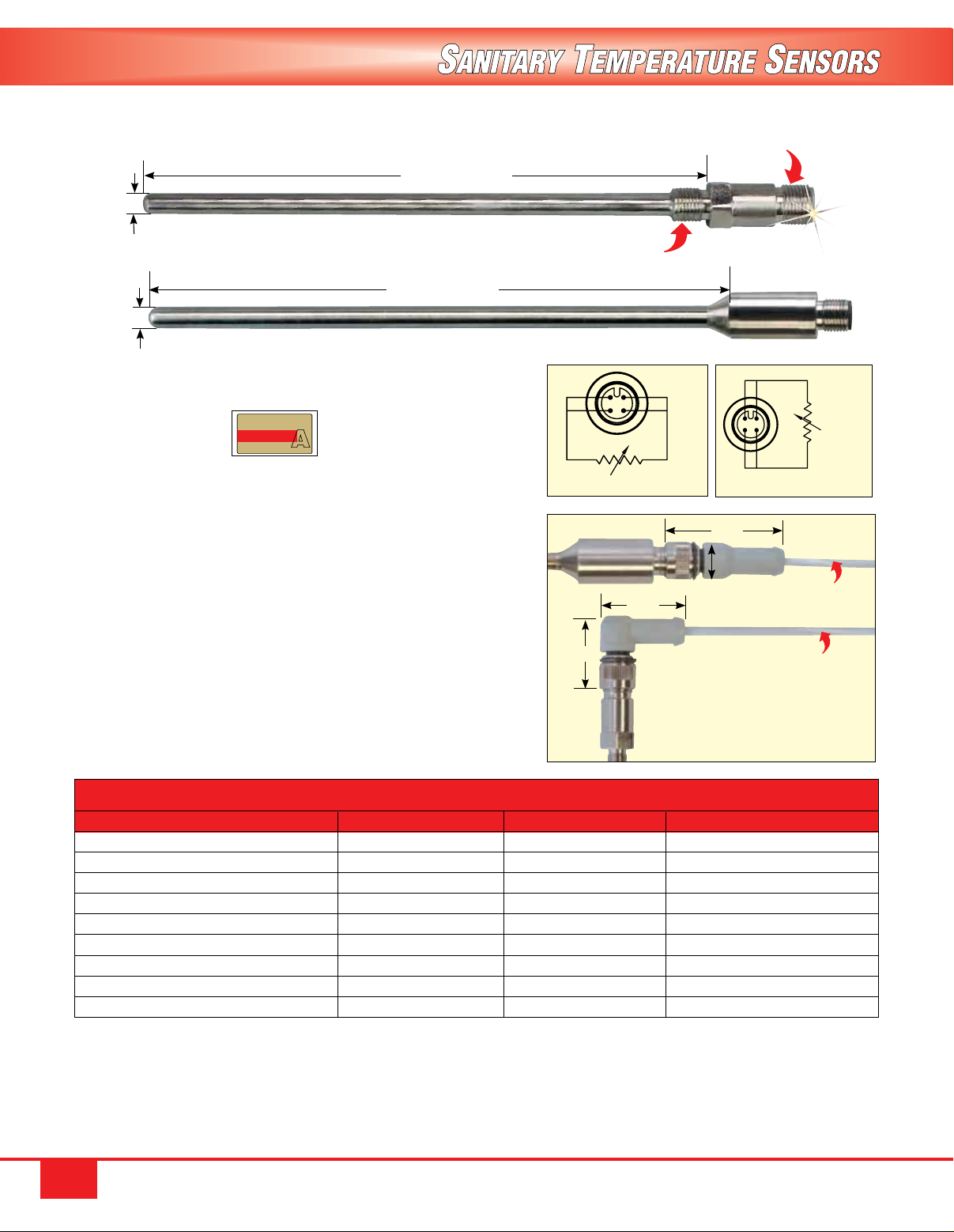

Page 2
RTD Sensor with M12 Connector for Process Control
Pt100/
Pt1000
Pt100
Pt100/
Pt1000
and Test and Measurement Applications
Probe length
M12 4-pin connector
Probe
diameter
PR-21E-3-100-A-M6-0160-M12-1
Probe length
PR-21A-3-100-A-M6-0160-M12-1
PR-21 Series
ACCURACY
IEC CLASS
(±0.15ºC @ 0ºC)
U All Welded 316L Stainless Steel Housing
U Temperature Range: -50 to 250°C (-58 to 482°F) Sensing
End, 85°C (185°F) Maximum at Connector
U Available With or Without a Mounting Thread, M8x1 and
M10x1 Mounting Threads Available
U Class A, Pt100 or Pt1000 4-Wire Platinum RTD Elements
per IEC60751 Standard
U Integral 4-Pin M12 Connector for Easy Connection
U Fast Response Time (3.5 Seconds or Less 63%
Response in Water)
U 6 mm Diameter Standard (3 mm Dia Available)
U Vibration Tested to MIL-STD-202G, Method 204D,
Test Condition A, 10g’s from 10 to 500 Hz (150 mm
or 6" Long or Shorter)
A
M8X1 mounting thread
1.25"
1.125"
Pt100
Option 1 Option 2
1.75"
0.5"
M12CM-T24SSPC-SF-2
cable, sold separately.
M12CM-T24SSPC-RF-2
cable, sold separately.
Metric
To Order
Model Number Element Length (mm) Mounting Thread
PR-21A-3-100-A-M6-0160-M12-1 Pt100, Class A 160 None
PR-21A-3-100-A-M6-0260-M12-1 Pt100, Class A 260 None
PR-21A-3-100-A-M6-0360-M12-1 Pt100, Class A 360 None
PR-21E-3-100-A-M6-0160-M12-1 Pt100, Class A 160 M8x1
PR-21E-3-100-A-M6-0260-M12-1 Pt100, Class A 260 M8x1
PR-21E-3-100-A-M6-0360-M12-1 Pt100, Class A 360 M8x1
PR-21F-3-100-A-M6-0160-M12-1 Pt100, Class A 160 M10x1
PR-21F-3-100-A-M6-0260-M12-1 Pt100, Class A 260 M10x1
PR-21F-3-100-A-M6-0360-M12-1 Pt100, Class A 360 M10x1
For 1000 Ω, Class A elements, change “100” to “1000” in model number, no additional price.
For lengths longer than 360 mm, change “0360” in model number to required length in mm and additional cost per 25 mm to price
(example: 500 mm = 0500, 425 mm = 0425).
For 3 mm probe diameters, change “M6” in model number to “M3” for 3 mm, no additional cost.
Ordering Examples: PR-21A-3-100-A-M6-0260-M12-1 6 mm diameter probe, 260 mm long with Pt100, Class A element, no mounting thread,
with M12 connector.
PR-21F-3-100-A-M6-0160-M12-1 6 mm diameter probe, 160 mm long with Pt100, Class A element, M10x1 mounting thread, with M12 connector.
161
