PR-19-Series
Process Temperature
-
200 to 600°C
Accuracy
Class A from
-
100 to 450°C
Nominal Resistance and
100 Ω a
nd 1000 Ω at
0°C standard;
Process Connection
1/2” NPT
1/2” NPT 1/2” NPT
Dimensions
Diameters: 1/8, 3/16 and
1/4
inch.
Ingress Protec
tion IP67 IP67 IP67 Response time T90 (s)
1/8”
2.4 sec
1/8”
2.8 sec
1/8”
9 sec
Vibration
IEC 60068
-2-
6; 5 to 2000 Hz sweep rate, one active per
minute;
Shock
IEC 60068
-2-
27; 50g/11ms (15 probes tested together) Duration: 1 day
________________________________________________________________________

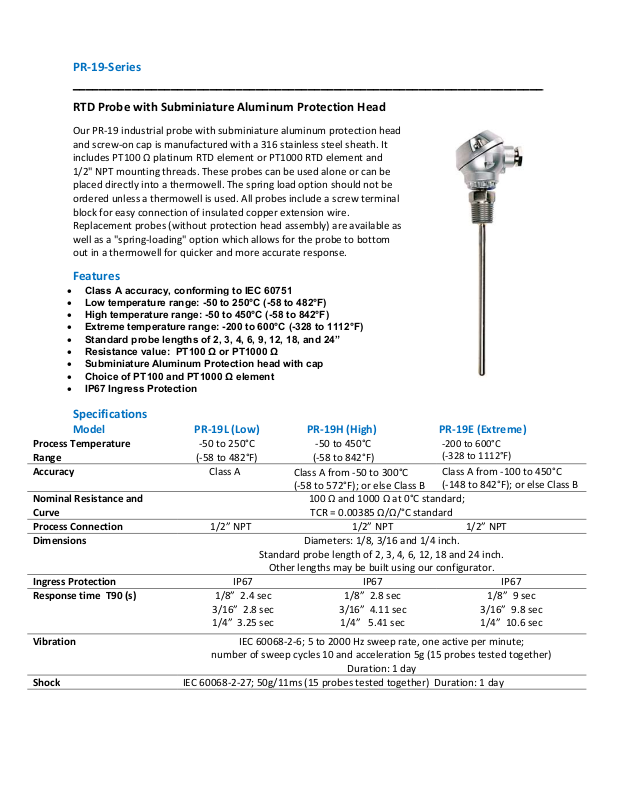

RTD Probe with Subminiature Aluminum Protection Head
Our PR-19 industrial probe with subminiature aluminum protection head
and screw-on cap is manufactured with a 316 stainless steel sheath. It
includes PT100 Ω platinum RTD element or PT1000 RTD element and
1/2" NPT mounting threads. These probes can be used alone or can be
placed directly into a thermowell. The spring load option should not be
ordered unless a thermowell is used. All probes include a screw terminal
block for easy connection of insulated copper extension wire.
Replacement probes (without protection head assembly) are available as
well as a "spring-loading" option which allows for the probe to bottom
out in a thermowell for quicker and more accurate response.
Features
Class A accuracy, conforming to IEC 60751
Low temperature range: -50 to 250°C (-58 to 482°F)
High temperature range: -50 to 450°C (-58 to 842°F)
Extreme temperature range: -200 to 600°C (-328 to 1112°F)
Standard probe lengths of 2, 3, 4, 6, 9, 12, 18, and 24”
Resistance value: PT100 Ω or PT1000 Ω
Subminiature Aluminum Protection head with cap
Choice of PT100 and PT1000 Ω element
IP67 Ingress Protection
Range
Curve
Specifications
Model PR-19L (Low) PR-19H (High) PR-19E (Extreme)
-50 to 250°C
(-58 to 482°F)
Class A
Standard probe length of 2, 3, 4, 6, 12, 18 and 24 inch.
Other lengths may be built using our configurator.
3/16” 2.8 sec
1/4” 3.25 sec
number of sweep cycles 10 and acceleration 5g (15 probes tested together)
-50 to 450°C
(-58 to 842°F)
Class A from -50 to 300°C
(-58 to 572°F); or else Class B
TCR = 0.00385 Ω/Ω/°C standard
3/16” 4.11 sec
1/4” 5.41 sec
Duration: 1 day
(-328 to 1112°F)
(-148 to 842°F); or else Class B
3/16” 9.8 sec
1/4” 10.6 sec
