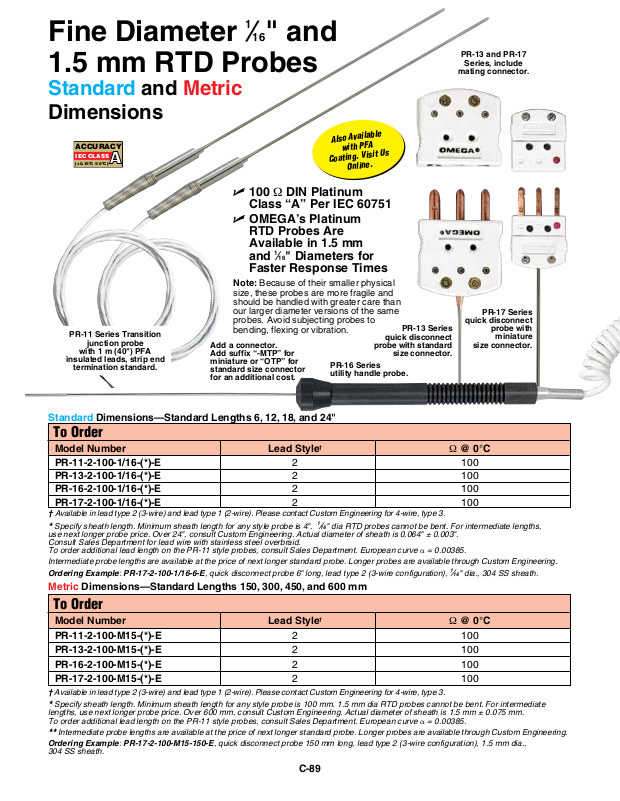

Page 1
Fine Diameter 1⁄16" and
1.5 mm RTD Probes
Standard and Metric
Dimensions
PR-13 and PR-17
Series, include
mating connector.
ACCURACY
IEC CLASS
(±0.15ºC @ 0ºC)
A
Also Available
with PFA
Coating. Visit Us
Online.
U 100 Ω DIN Platinum
Class “A” Per IEC 60751
U OMEGA’s Platinum
RTD Probes Are
Available in 1.5 mm
and 1⁄16" Diameters for
Faster Response Times
Note: Because of their smaller physical
size, these probes are more fragile and
should be handled with greater care than

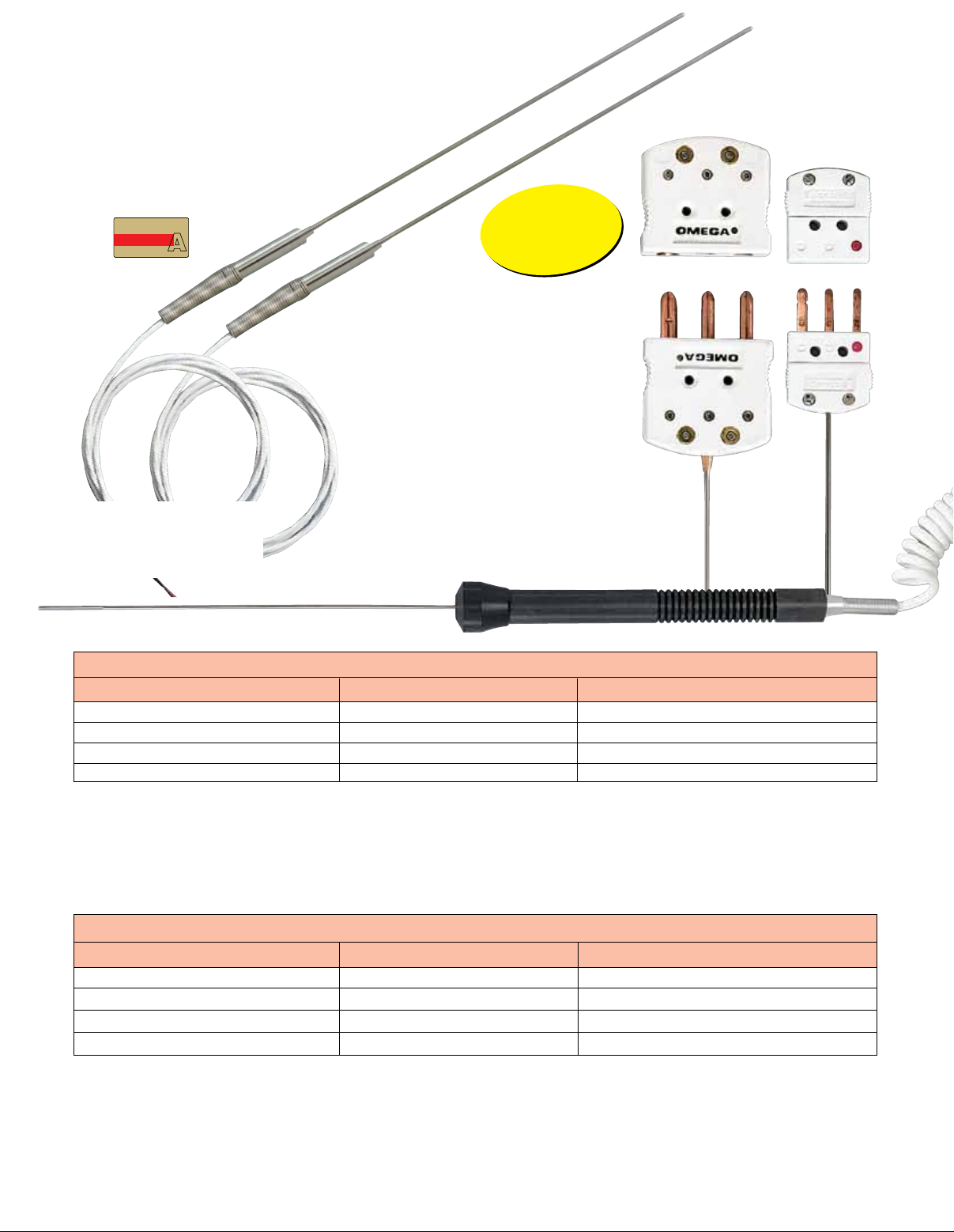

PR-11 Series Transition
junction probe
with 1 m (40") PFA
insulated leads, strip end
termination standard.
our larger diameter versions of the same
probes. Avoid subjecting probes to
bending, flexing or vibration.
Add a connector.
Add suffix “-MTP” for
miniature or “OTP” for
standard size connector
for an additional cost.
PR-16 Series
utility handle probe.
PR-13 Series
quick disconnect
probe with standard
size connector.
PR-17 Series
quick disconnect
probe with
miniature
size connector.
Standard Dimensions —Standard Lengths 6, 12, 18, and 24"
To Order
Model Number Lead Style† Ω @ 0°C
PR-11-2-100-1/16-(*)-E 2 100
PR-13-2-100-1/16-(*)-E 2 100
PR-16-2-100-1/16-(*)-E 2 100
PR-17-2-100-1/16-(*)-E 2 100
† Available in lead type 2 (3-wire) and lead type 1 (2-wire). Please contact Custom Engineering for 4-wire, type 3.
Specify sheath length. Minimum sheath length for any style probe is 4".
*
use next longer probe price. Over 24", consult Custom Engineering. Actual diameter of sheath is 0.064" ± 0.003".
Consult Sales Department for lead wire with stainless steel overbraid.
To order additional lead length on the PR-11 style probes, consult Sales Department. European curve a = 0.00385.
Intermediate probe lengths are available at the price of next longer standard probe. Longer probes are available through Custom Engineering.
Ordering Example: PR-17-2-100-1/16-6-E, quick disconnect probe 6" long, lead type 2 (3-wire configuration),
Metric Dimensions—Standard Lengths 150, 300, 450, and 600 mm
1
⁄16" dia RTD probes cannot be bent. For intermediate lengths,
1
⁄16" dia., 304 SS sheath.
To Order
Model Number Lead Style† Ω @ 0°C
PR-11-2-100-M15-(*)-E 2 100
PR-13-2-100-M15-(*)-E 2 100
PR-16-2-100-M15-(*)-E 2 100
PR-17-2-100-M15-(*)-E 2 100
† Available in lead type 2 (3-wire) and lead type 1 (2-wire). Please contact Custom Engineering for 4-wire, type 3.
Specify sheath length. Minimum sheath length for any style probe is 100 mm. 1.5 mm dia RTD probes cannot be bent. For intermediate
*
lengths, use next longer probe price. Over 600 mm, consult Custom Engineering. Actual diameter of sheath is 1.5 mm ± 0.075 mm.
To order additional lead length on the PR-11 style probes, consult Sales Department. European curve a = 0.00385.
Intermediate probe lengths are available at the price of next longer standard probe. Longer probes are available through Custom Engineering.
**
Ordering Example: PR-17-2-100-M15-150-E, quick disconnect probe 150 mm long, lead type 2 (3-wire configuration), 1.5 mm dia.,
304 SS sheath.
C-89
