PR-16-Series
Specifications
Model
Process
Temperature
Range
(-148 to 842°F);
or
else Class B
Curve
TCR = 0.00385 Ω/Ω/°C
standard
Wire
Length
1
foot (expandable
to 5
feet)
Wire
Material
TPE (coiled)
TPE (coiled)
TPE (coiled)

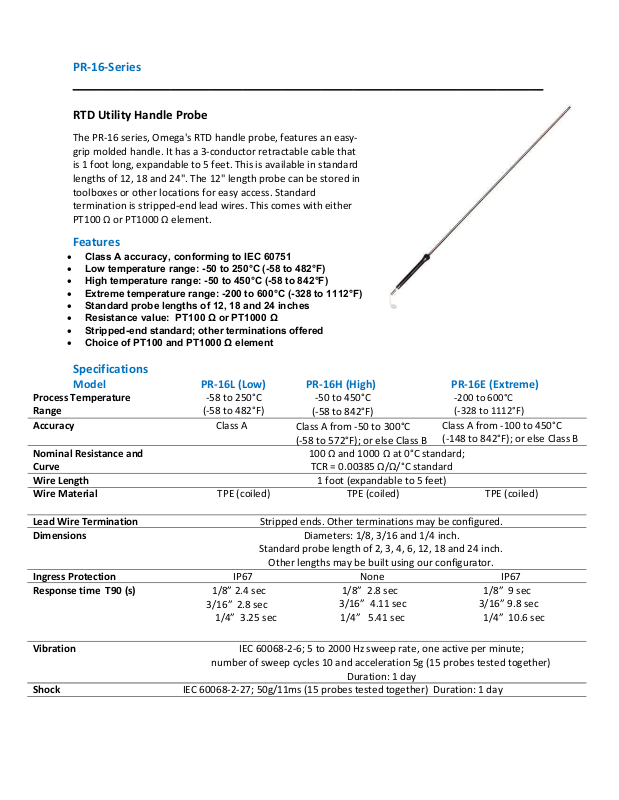

RTD Utility Handle Probe
The PR-16 series, Omega's RTD handle probe, features an easygrip molded handle. It has a 3-conductor retractable cable that
is 1 foot long, expandable to 5 feet. This is available in standard
lengths of 12, 18 and 24". The 12" length probe can be stored in
toolboxes or other locations for easy access. Standard
termination is stripped-end lead wires. This comes with either
PT100 Ω or PT1000 Ω element.
Features
Class A accuracy, conforming to IEC 60751
Low temperature range: -50 to 250°C (-58 to 482°F)
High temperature range: -50 to 450°C (-58 to 842°F)
Extreme temperature range: -200 to 600°C (-328 to 1112°F)
Standard probe lengths of 12, 18 and 24 inches
Resistance value: PT100 Ω or PT1000 Ω
Stripped-end standard; other terminations offered
Choice of PT100 and PT1000 Ω element
PR-16L (Low) PR-16H (High) PR-16E (Extreme)
-58 to 250°C -50 to 450°C
(-58 to 482°F)
Accuracy Class A Class A from -100 to 450°C
(-58 to 842°F)
Class A from -50 to 300°C
(-58 to 572°F); or else Class B
Nominal Resistance and 100 Ω and 1000 Ω at 0°C standard;
Lead Wire Termination Stripped ends. Other terminations may be configured.
Dimensions Diameters: 1/8, 3/16 and 1/4 inch.
Standard probe length of 2, 3, 4, 6, 12, 18 and 24 inch.
Other lengths may be built using our configurator.
Ingress Protection IP67 None IP67
Response time T90 (s) 1/8” 2.4 sec
3/16” 2.8 sec
1/4” 3.25 sec
1/8” 2.8 sec
3/16” 4.11 sec
1/4” 5.41 sec
Vibration IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;
number of sweep cycles 10 and acceleration 5g (15 probes tested together)
Duration: 1 day
Shock IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
-200 to 600°C
(-328 to 1112°F)
1/8” 9 sec
3/16” 9.8 sec
1/4” 10.6 sec
