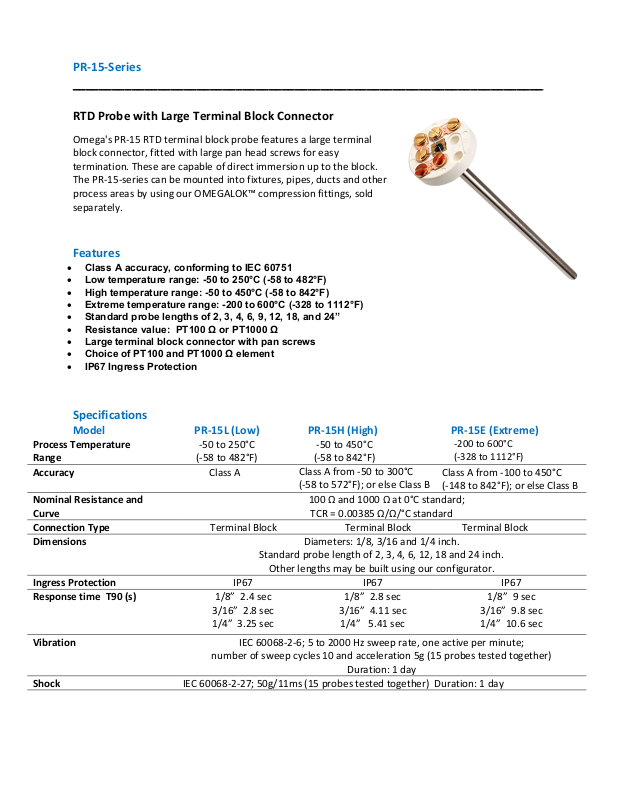

PR-15-Series
Process Temperature
Accuracy
Class A from
-
100 to 450°C
Nominal Resistance and
100 Ω a
nd 1000 Ω at
0°C standard;
Connection Type
Terminal Block
Terminal Block
Terminal Block
Dimensions
Diameters: 1/8, 3/16 and
1/4
inch.
Ingress Protection
IP67 IP67 IP67 Response time T90 (s)
1/8”
2.4 sec
1/8”
2.8 sec
1/8”
9 sec
Vibration
IEC 60068
-2-
6; 5 to 2000 Hz sweep
rate, one active per minute;
Shock
IEC 60068
-2-
27; 50g/11ms (15 probes tested together) Duration: 1 day
________________________________________________________________________

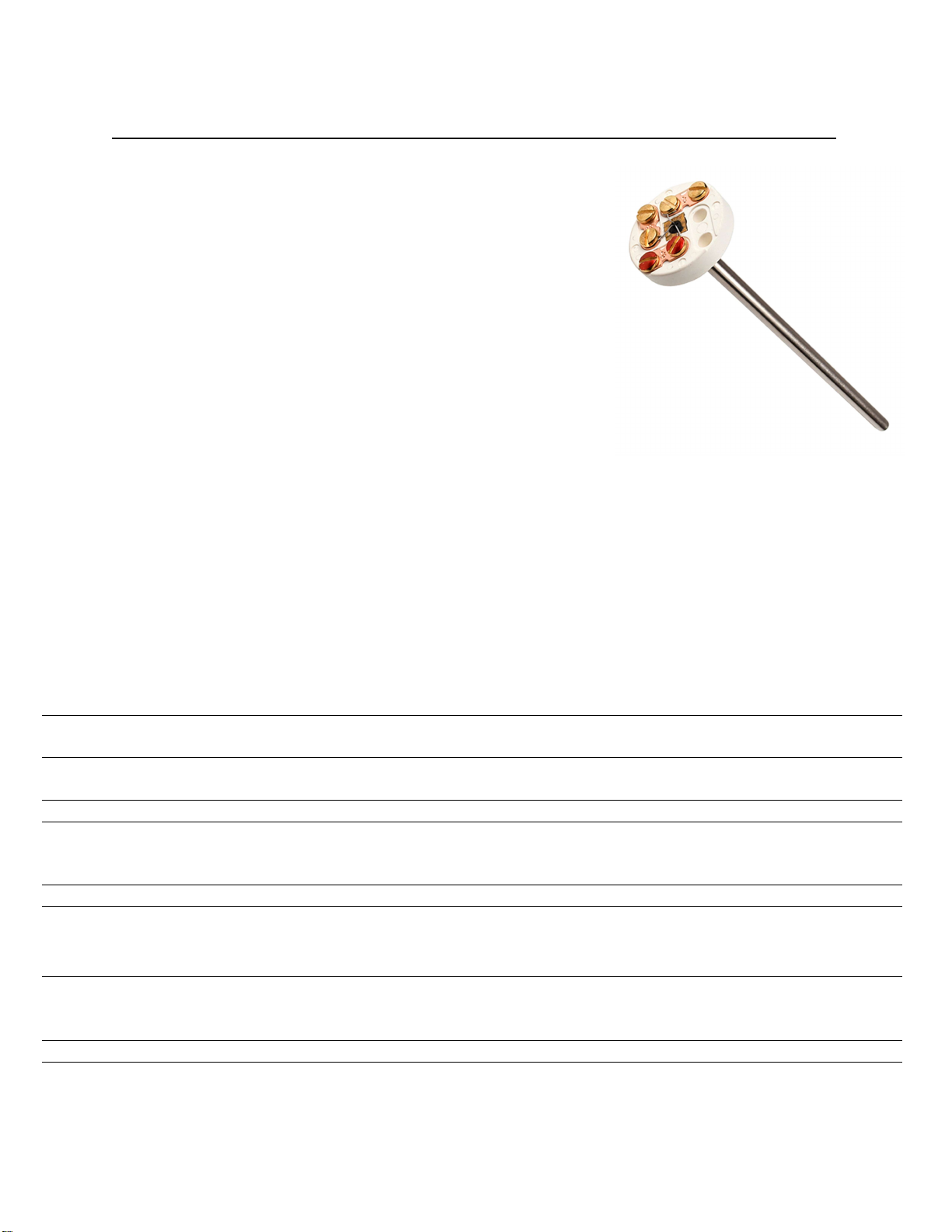

RTD Probe with Large Terminal Block Connector
Omega's PR-15 RTD terminal block probe features a large terminal
block connector, fitted with large pan head screws for easy
termination. These are capable of direct immersion up to the block.
The PR-15-series can be mounted into fixtures, pipes, ducts and other
process areas by using our OMEGALOK™ compression fittings, sold
separately.
Features
Class A accuracy, conforming to IEC 60751
Low temperature range: -50 to 250°C (-58 to 482°F)
High temperature range: -50 to 450°C (-58 to 842°F)
Extreme temperature range: -200 to 600°C (-328 to 1112°F)
Standard probe lengths of 2, 3, 4, 6, 9, 12, 18, and 24”
Resistance value: PT100 Ω or PT1000 Ω
Large terminal block connector with pan screws
Choice of PT100 and PT1000 Ω element
IP67 Ingress Protection
Range
Curve
Specifications
Model PR-15L (Low) PR-15H (High) PR-15E (Extreme)
-50 to 250°C
(-58 to 482°F)
Class A
-50 to 450°C
(-58 to 842°F)
Class A from -50 to 300°C
(-58 to 572°F); or else Class B
TCR = 0.00385 Ω/Ω/°C standard
Standard probe length of 2, 3, 4, 6, 12, 18 and 24 inch.
Other lengths may be built using our configurator.
3/16” 2.8 sec
1/4” 3.25 sec
3/16” 4.11 sec
1/4” 5.41 sec
number of sweep cycles 10 and acceleration 5g (15 probes tested together)
Duration: 1 day
-200 to 600°C
(-328 to 1112°F)
(-148 to 842°F); or else Class B
3/16” 9.8 sec
1/4” 10.6 sec
