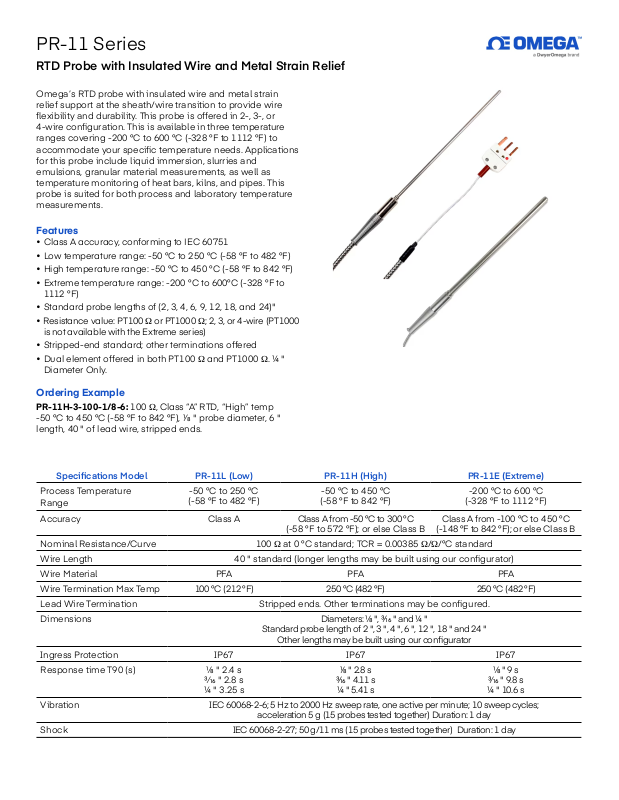

Page 1
PR-11 Series
RTD Probe with Insulated Wire and Metal Strain Relief
Omega’s RTD probe with insulated wire and metal strain
relief support at the sheath/wire transition to provide wire
Features
• Class A accuracy, conforming to IEC 60751
• Low temperature range: -50 °C to 250 °C (-58 °F to 482 °F)
• High temperature range: -50 °C to 450 °C (-58 °F to 842 °F)
• Extreme temperature range: -200 °C to 600°C (-328 °F to
1112 °F)
• Standard probe lengths of (2, 3, 4, 6, 9, 12, 18, and 24)"
• Resistance value: PT100 Ω or PT1000 Ω; 2, 3, or 4-wire (PT1000
is not available with the Extreme series)
• Stripped-end standard; other terminations offered
• Dual element offered in both PT100 Ω and PT1000 Ω. ¼ "
Diameter Only.
Ordering Example
PR-11H-3-100-1/8-6: 100 Ω, Class “A” RTD, “High” temp
length, 40 " of lead wire, stripped ends.
Specications Model PR-11L (Low) PR-11H (High) PR-11E (Extreme)
Range
ΩΩ/Ω
Wire Length
Wire Material
Lead Wire Termination
Dimensions
Vibration
Page 2
PR-11 BX and PR-11-SB Series
®
RTD Probe with Insulated Wire and BX Armored Cable
Probe shown is with -MTP
mini connector.
RTD Probe with Insulated Wire and Stainless Steel Overbraid
ΩΩ
Features
• Class A accuracy, conforming to IEC 60751
• Low temperature range: -50 °C to 250 °C (-58 °F to 482 °F)
• High temperature range: -50 °C to 450 °C (-58 °F to 842 °F)
• Extreme temperature range: -200 °C to 600°C (-328 °F to 1112 °F)
• Standard probe lengths of (2, 3, 4, 6, 9, 12, 18, and 24)"
• Resistance value: PT100 Ω or PT1000 Ω; 2, 3, or 4-wire (PT1000
is not available with the Extreme series)
• Stripped-end standard; other terminations offered
• Choice of PT100 Ω and PT1000 Ω element. ¼ " Diameter Only
Shown with MTP Connector Option
Specications Model PR-11L (Low) PR-11H (High) PR-11E (Extreme)
Range
ΩΩ/Ω
Wire Length
Wire Material
Lead Wire Termination
Dimensions
Vibration
Stainless Steel Overbraid
Stainless Steel Overbraid
Stainless Steel Overbraid
