PR-10-SB-Series
Process Temperature
Range
-200 to 600°C
(-328 to 1112°F)
Accuracy
Class A from -100 to 450°C
(-148 to 842°F); or else Class B
Nominal Resistance and
Curve
100 Ω and 1000 Ω at 0°C standard;
TCR = 0.00385 Ω/Ω/°C standard
Wire Length
40” standard (longer lengths may be built using our configurator)
Wire Material
PFA with
Stainless Steel Overbraid
PFA with
Stainless Steel Overbraid
PFA with
Stainless Steel Overbraid
Wire Termination Max Temp
100°C (212°F)
250°C (482°F)
250°C (482°F)
Lead Wire Termination
Stripped ends. Other terminations may be configured.
Dimensions
Diameters: 1/8, 3/16 and 1/4 inch.
Standard probe length of 2, 3, 4, 6, 12, 18 and 24 inch.
Other lengths may be built using our configurator.
Ingress Protection
IP67
IP67
IP67
Response time T90 (s)
1/8” 2.4 sec
3/16” 2.8 sec
1/4” 3.25 sec
1/8” 2.8 sec
3/16” 4.11 sec
1/4” 5.41 sec
1/8” 9 sec
3/16” 9.8 sec
1/4” 10.6 sec
Vibration
IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;
10 sweep cycles; acceleration 5g (15 probes tested together) Duration: 1 day
Shock
IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
________________________________________________________________________

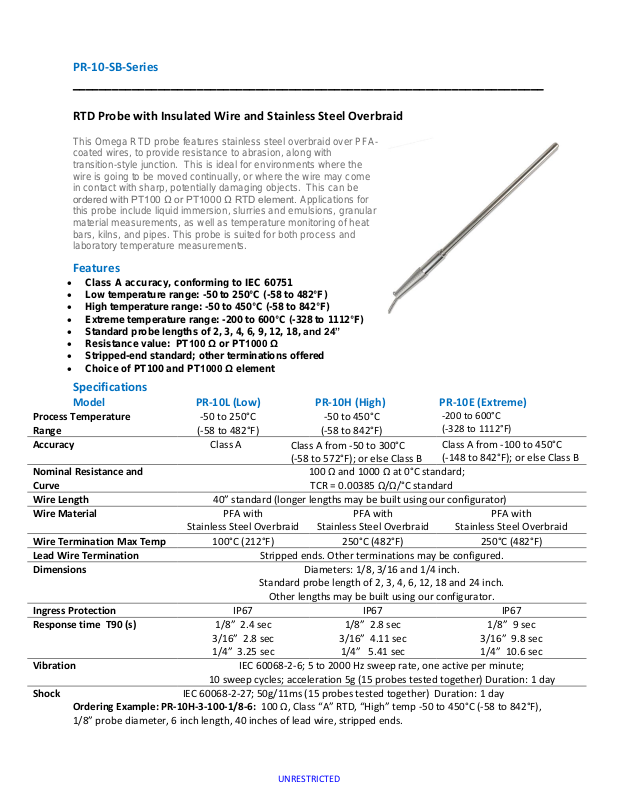

RTD Probe with Insulated Wire and Stainless Steel Overbraid
This Omega RTD probe features stainless steel overbraid over PFAcoated wires, to provide resistance to abrasion, along with
transition-style junction. This is ideal for environments where the
wire is going to be moved continually, or where the wire may come
in contact with sharp, potentially damaging objects. This can be
ordered with PT100 Ω or PT1000 Ω RTD element. Applications for
this probe include liquid immersion, slurries and emulsions, granular
material measurements, as well as temperature monitoring of heat
bars, kilns, and pipes. This probe is suited for both process and
laboratory temperature measurements.
Features
• Class A accuracy, conforming to IEC 60751
• Low temperature range: -50 to 250°C (-58 to 482°F)
• High temperature range: -50 to 450°C (-58 to 842°F)
• Extreme temperature range: -200 to 600°C (-328 to 1112°F)
• Standard probe lengths of 2, 3, 4, 6, 9, 12, 18, and 24”
• Resistance value: PT100 Ω or PT1000 Ω
• Stripped-end standard; other terminations offered
• Choice of PT100 and PT1000 Ω element
Specifications
Model PR-10L (Low) PR-10H (High) PR-10E (Extreme)
-50 to 250°C
(-58 to 482°F)
Class A
Class A from -50 to 300°C
(-58 to 572°F); or else Class B
-50 to 450°C
(-58 to 842°F)
Ordering Example: PR-10H-3-100-1/8-6: 100 Ω, Class “A” RTD, “High” temp -50 to 450°C (-58 to 842°F),
1/8” probe diameter, 6 inch length, 40 inches of lead wire, stripped ends.
