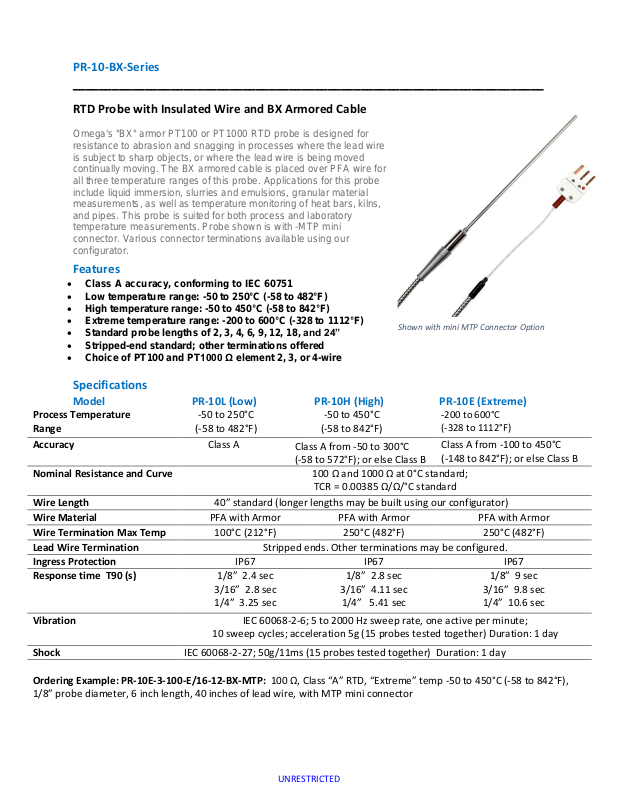

PR-10-BX-Series
Process Temperature
Range
-200 to 600°C
(-328 to 1112°F)
Accuracy
Class A from -100 to 450°C
(-148 to 842°F); or else Class B
Nominal Resistance and Curve
100 Ω and 1000 Ω at 0°C standard;
TCR = 0.00385 Ω/Ω/°C standard
Wire Length
40” standard (longer lengths may be built using our configurator)
Wire Material
PFA with Armor
PFA with Armor
PFA with Armor
Wire Termination Max Temp
100°C (212°F)
250°C (482°F)
250°C (482°F)
Lead Wire Termination
Stripped ends. Other terminations may be configured.
Ingress Protection
IP67
IP67
IP67
Response time T90 (s)
1/8” 2.4 sec
3/16” 2.8 sec
1/4” 3.25 sec
1/8” 2.8 sec
3/16” 4.11 sec
1/4” 5.41 sec
1/8” 9 sec
3/16” 9.8 sec
1/4” 10.6 sec
Vibration
IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;
10 sweep cycles; acceleration 5g (15 probes tested together) Duration: 1 day
Shock
IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
Ordering Example: PR-10E-3-100-E/16-12-BX-MTP: 100 Ω, Class “A” RTD, “Extreme” temp -50 to 450°C (-58 to 842°F),
1/8” probe diameter, 6 inch length, 40 inches of lead wire, with MTP mini connector

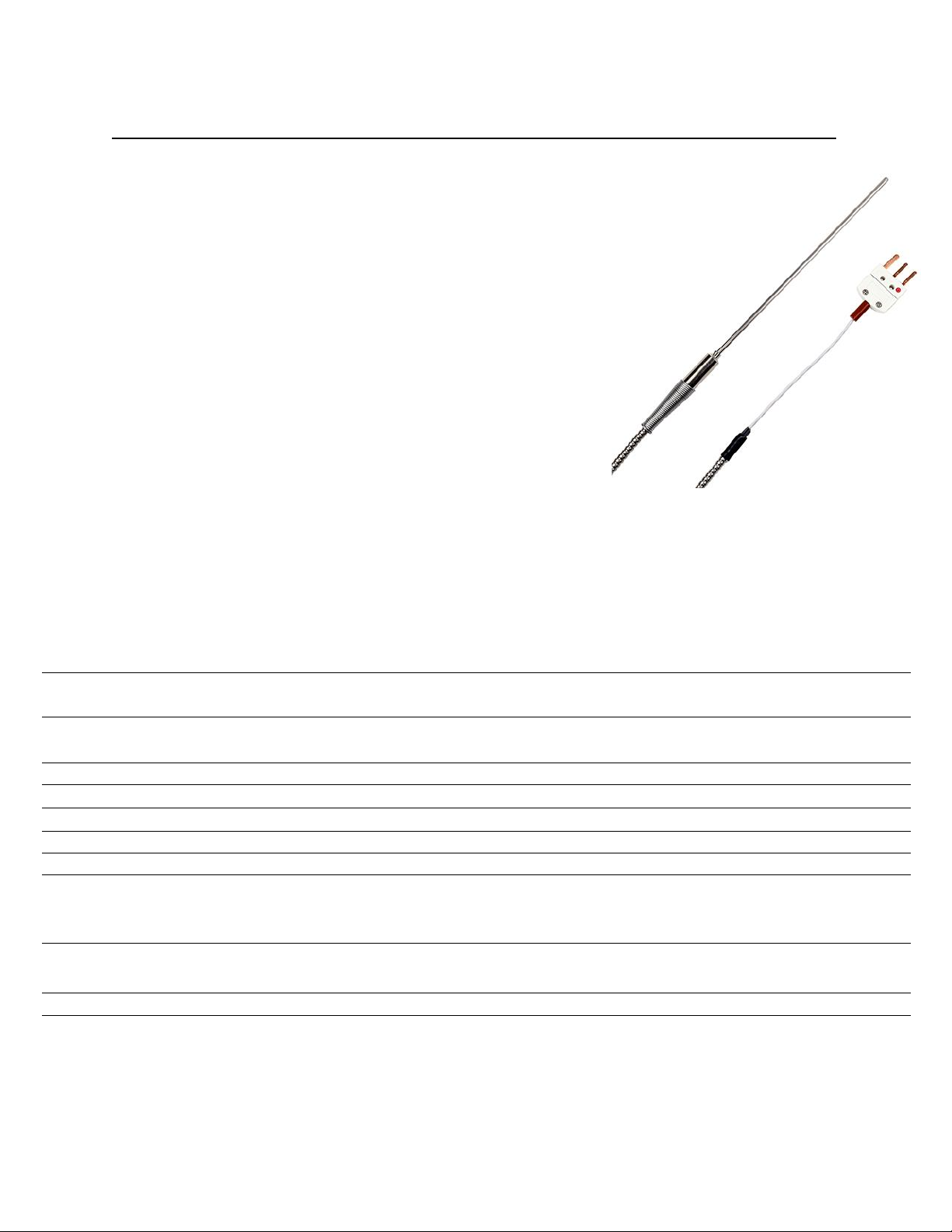

Shown with mini MTP Connector Option
________________________________________________________________________
RTD Probe with Insulated Wire and BX Armored Cable
Omega's "BX" armor PT100 or PT1000 RTD probe is designed for
resistance to abrasion and snagging in processes where the lead wire
is subject to sharp objects, or where the lead wire is being moved
continually moving. The BX armored cable is placed over PFA wire for
all three temperature ranges of this probe. Applications for this probe
include liquid immersion, slurries and emulsions, granular material
measurements, as well as temperature monitoring of heat bars, kilns,
and pipes. This probe is suited for both process and laboratory
temperature measurements. Probe shown is with -MTP mini
connector. Various connector terminations available using our
configurator.
Features
• Class A accuracy, conforming to IEC 60751
• Low temperature range: -50 to 250°C (-58 to 482°F)
• High temperature range: -50 to 450°C (-58 to 842°F)
• Extreme temperature range: -200 to 600°C (-328 to 1112°F)
• Standard probe lengths of 2, 3, 4, 6, 9, 12, 18, and 24”
• Stripped-end standard; other terminations offered
• Choice of PT100 and PT1000 Ω element 2, 3, or 4-wire
Specifications
Model PR-10L (Low) PR-10H (High) PR-10E (Extreme)
-50 to 250°C
(-58 to 482°F)
Class A
-50 to 450°C
(-58 to 842°F)
Class A from -50 to 300°C
(-58 to 572°F); or else Class B
