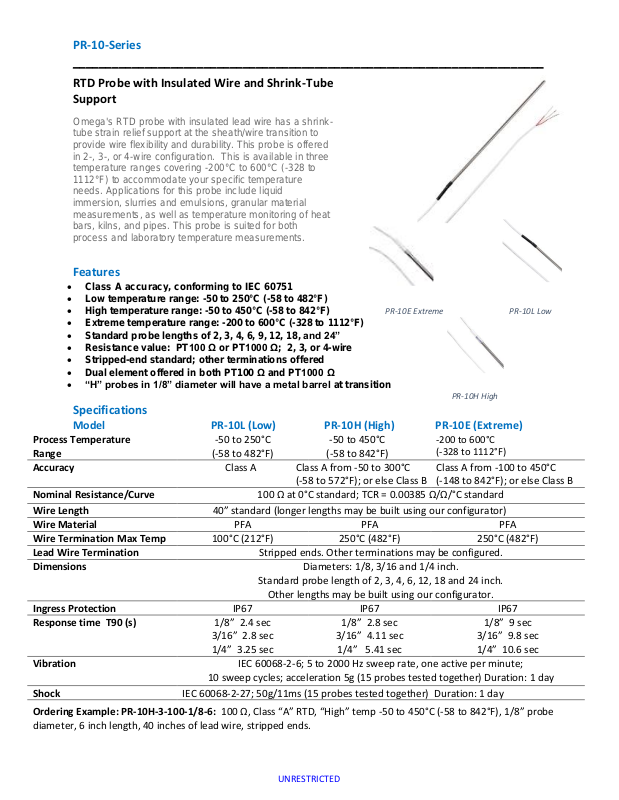

PR-10-Series
Process Temperature
Range
-50 to 250°C
(-58 to 482°F)
-200 to 600°C
(-328 to 1112°F)
Accuracy
Class A
Class A from -100 to 450°C
(-148 to 842°F); or else Class B
Nominal Resistance/Curve
100 Ω at 0°C standard; TCR = 0.00385 Ω/Ω/°C standard
Wire Length
40” standard (longer lengths may be built using our configurator)
Wire Material
PFA
PFA
PFA
Wire Termination Max Temp
100°C (212°F)
250°C (482°F)
250°C (482°F)
Lead Wire Termination
Stripped ends. Other terminations may be configured.
Dimensions
Diameters: 1/8, 3/16 and 1/4 inch.
Standard probe length of 2, 3, 4, 6, 12, 18 and 24 inch.
Other lengths may be built using our configurator.
Ingress Protection
IP67
IP67
IP67
Response time T90 (s)
1/8” 2.4 sec
3/16” 2.8 sec
1/4” 3.25 sec
1/8” 2.8 sec
3/16” 4.11 sec
1/4” 5.41 sec
1/8” 9 sec
3/16” 9.8 sec
1/4” 10.6 sec
Vibration
IEC 60068-2-6; 5 to 2000 Hz sweep rate, one active per minute;
10 sweep cycles; acceleration 5g (15 probes tested together) Duration: 1 day
Shock
IEC 60068-2-27; 50g/11ms (15 probes tested together) Duration: 1 day
Ordering Example: PR-10H-3-100-1/8-6: 100 Ω, Class “A” RTD, “High” temp -50 to 450°C (-58 to 842°F), 1/8” probe
diameter, 6 inch length, 40 inches of lead wire, stripped ends.
PR-10E Extreme
PR-10L Low
PR-10H High
________________________________________________________________________

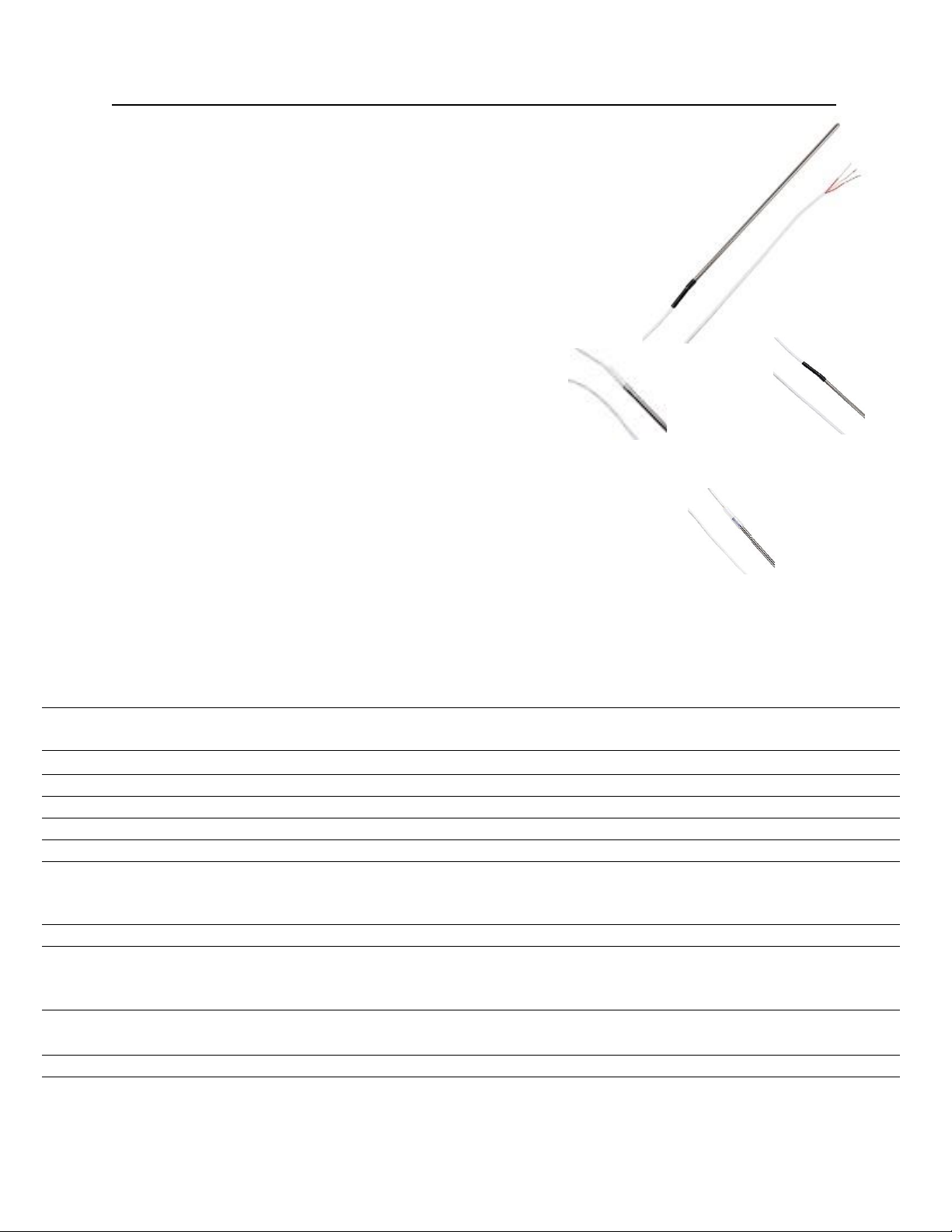

RTD Probe with Insulated Wire and Shrink-Tube
Support
Omega's RTD probe with insulated lead wire has a shrinktube strain relief support at the sheath/wire transition to
provide wire flexibility and durability. This probe is offered
in 2-, 3-, or 4-wire configuration. This is available in three
temperature ranges covering -200°C to 600°C (-328 to
1112°F) to accommodate your specific temperature
needs. Applications for this probe include liquid
immersion, slurries and emulsions, granular material
measurements, as well as temperature monitoring of heat
bars, kilns, and pipes. This probe is suited for both
process and laboratory temperature measurements.
Features
• Class A accuracy, conforming to IEC 60751
• Low temperature range: -50 to 250°C (-58 to 482°F)
• High temperature range: -50 to 450°C (-58 to 842°F)
• Extreme temperature range: -200 to 600°C (-328 to 1112°F)
• Standard probe lengths of 2, 3, 4, 6, 9, 12, 18, and 24”
• Resistance value: PT100 Ω or PT1000 Ω; 2, 3, or 4-wire
• Stripped-end standard; other terminations offered
• Dual element offered in both PT100 Ω and PT1000 Ω
• “H” probes in 1/8” diameter will have a metal barrel at transition
Specifications
Model PR-10L (Low) PR-10H (High) PR-10E (Extreme)
-50 to 450°C
(-58 to 842°F)
Class A from -50 to 300°C
(-58 to 572°F); or else Class B
