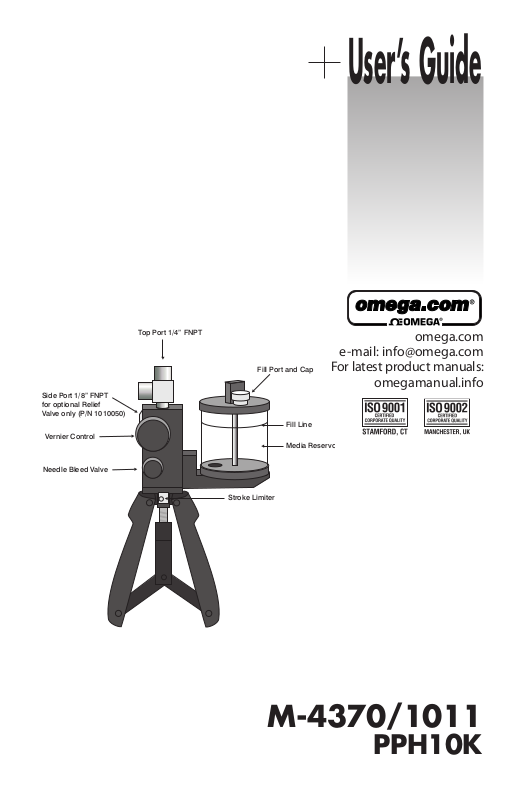

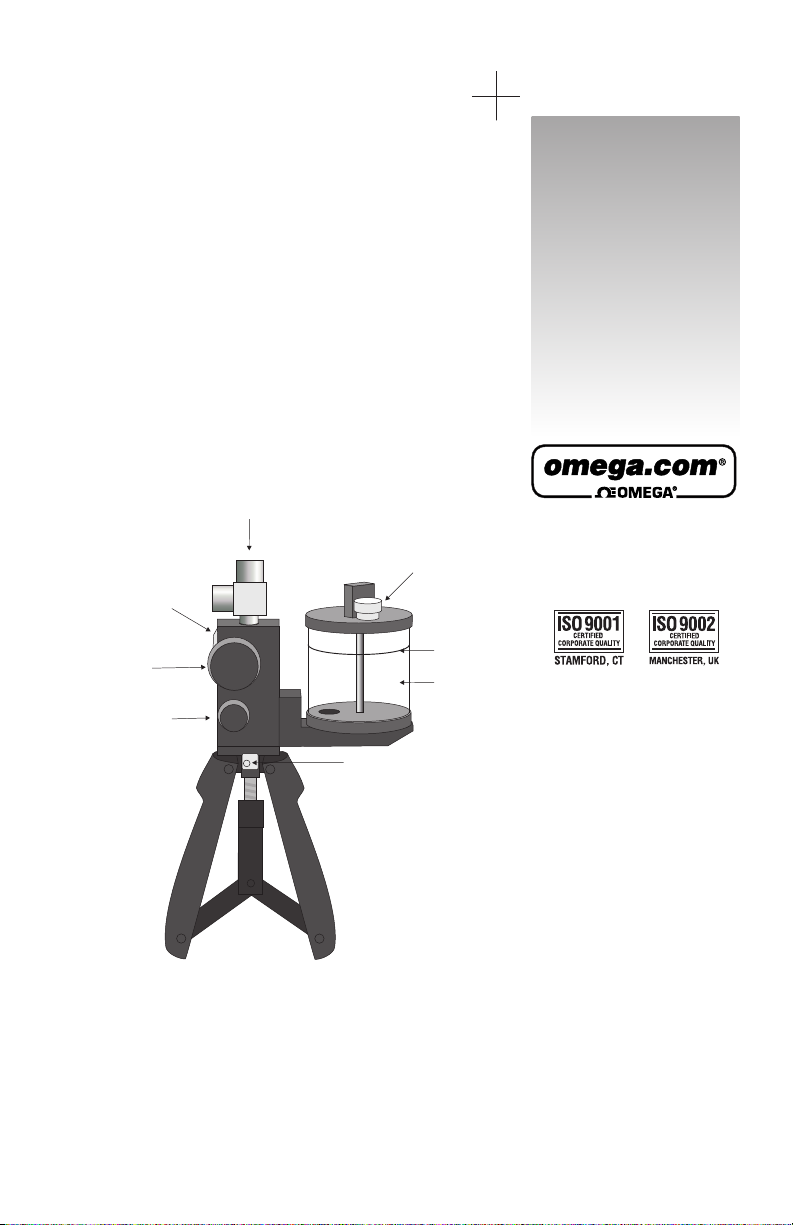

Page 1
Media Reservoir
User’s Guide
Side Port 1/8” FNPT
for optional Relief
Valve only (P/N 1010050)
Vernier Control
Needle Bleed Valve
Top Port 1/4” FNPT
Fill Port and Cap
Stroke Limiter
omega.com
e-mail: [email protected]
For latest product manuals:
omegamanual.info
Fill Line
M-4370/1011
PPH10K
Page 2
Page 3
OMEGAnet® Online Service Internet e-mail
www.omega.com [email protected]
Servicing North America:
USA: One Omega Drive, Box 4047
ISO 9001 Certified Stamford CT 06907-0047
Canada: 76 Bergar
For immediate technical or application assistance:
USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA
Mexico: En Espan˜ol: (001) 203-359-7803 e-mail: [email protected]
Benelux: Postbus 8034, 1180 LA Amstelveen, The Netherlands
Czech Republic: Frystatska 184, 733 01 Karvina´, Czech Republic
France: 11, rue Jacques Cartier, 78280 Guyancourt, France
Germany/Austria: Daimlerstrasse 26, D-75392 Deckenpfronn, Germany
United Kingdom: One Omega Drive, River Bend Technology Centre
ISO 9002 Certified Northbank, Irlam, Manchester
M44 5BD United Kingdom
Tel: (203) 359-1660 FAX: (203) 359-7700
e-mail: [email protected]
Laval (Quebec) H7L 5A1, Canada
Tel: (514) 856-6928 FAX: (514) 856-6886
e-mail: [email protected]
®
Customer Service: 1-800-622-2378 / 1-800-622-BEST
Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN
TELEX: 996404 EASYLINK: 62968934 CABLE: OMEGA
®
®
Servicing Europe:
Tel: +31 (0)20 3472121 FAX: +31 (0)20 6434643
Toll Free in Benelux: 0800 0993344
e-mail: [email protected]
Tel: +33 (0)1 61 37 2900 FAX: +33 (0)1 30 57 5427
Toll Free in France: 0800 466 342
e-mail: [email protected]
Tel: +49 (0)7056 9398-0 FAX: +49 (0)7056 9398-29
Toll Free in Germany: 0800 639 7678
e-mail: [email protected]
Tel: +44 (0)161 777 6611 FAX: +44 (0)161 777 6622
Toll Free in United Kingdom: 0800-488-488
e-mail: [email protected]
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that
apply. OMEGA is constantly pursuing certification of its products to the European New Approach
Directives. OMEGA will add the CE mark to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts
no liability for any errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
Page 4
The PPH10K Hydraulic Hand Pump provides a hydraulic pressure
source up to 10,000 PSI. A wide variety of pressure media may be used;
distilled water, mineral based hydraulic oil, or up to hydraulic oil 100 (30W).
The seals are Fluorocarbon and the only other non-metallic materials are
plastic. Viscous oils above 30W should not be used.
CAUTION: Hydrocarbon fluids should never be used in oxygen
service applications.
1. Isolate the device to be calibrated. CAUTION: Do not connect to
high pressure sources. Safe operating procedures must be
exercised to avoid personal injury and damage to the calibration
system.
2. Select a fluid compatible with the system and the PPH10K. Remove
the fill cap and fill the reservoir to the fill line. During usage do not
allow the fluid level to drop below 50% of the reservoir capacity.
(Doing so will allow air to be introduced into the test system).
3. Care should be exercised to minimize the total test system volume.
Connect the device(s) to be calibrated to the pump port(s) using
fittings or braided hose with the appropriate pressure ratings.
4. Adjust the vernier control to the mid position and close the needle
bleed valve.
5. Push the stroke limiter into the prime mode to allow the handles to
have maximum travel. With the hose to the device under test open
to air squeeze the handles to begin the priming process. (See figure
1). NOTE: This can take many strokes of the pump depending on
the volume of the system and if the pump has not been used for a
while. It is important to use the full stroke of the handles to make
sure a full charge of hydraulic fluid is pulled from the reservoir with
each stroke.
6. Once the fluid starts to exit the end of the hose connect the hose to
the device to be calibrated and continue to squeeze the handles
until the reference gauge starts to show a sharp rise in the
pressure. At this point squeeze the handles and push the stroke
limiter into the pump mode thereby limiting the stroke of handles.
NOTE: failure to use the stroke limiter will greatly reduce the
mechanical advantage the user has and will limit the maximum
pressure that can be generated with reasonable handle pressure.
7. NOTE: Air in the system should be minimized because it can
effect calibration and high pressure gases can be
dangerous. It may be necessary to "prime" the test system
to eliminate gases. Repeat until bubbles are not seen in the
reservoir.
8. Close the needle valve and squeeze the handles until the
approximate desired pressure is reached. The vernier control can
be used to "fine tune" the pressure. Systems with large volume may
Page 5
require additional bleeding. Continue until all pressure points are
calibrated.

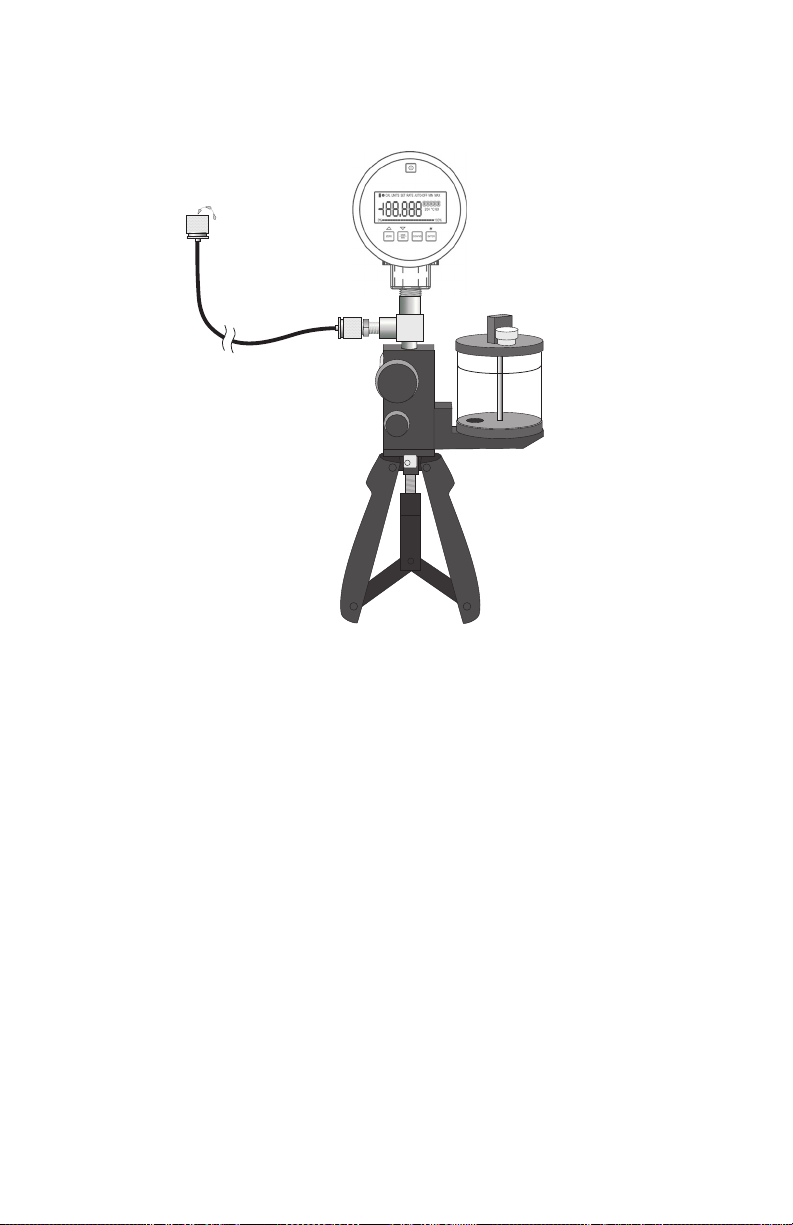

Figure 1.
9. Manipulation of the needle valve, vernier control and the handles
can produce any pressure desired within the PPH10K hand pump
operating range (0 to 10,000 PSI).
10. CAUTION: To prevent personnel injury, the pressure must
be reduced to zero before disconnecting any element of
the system. When the calibration is completed, carefully open the
needle valve to release the pressure. NOTE: Opening the needle
valve releases the pressure media into the reservoir. Do not
allow the reservoir to overfill while venting. Store the unit in a
carrying case or another safe location. The PPH10K may be stored
with the operating fluid in the reservoir. It is recommended that the
fluid being utilized be identified so that another potential operator
of the PPH10K will be advised.
WARNING:
• Never use the PPH10K to generate pressure
greater than 10,000 PSI/700 Bar
• Never connect the PPH10K to a pressure source
• The 1/8” FNPT Port should only be used with optional
Relief Valve P/N 1010050
