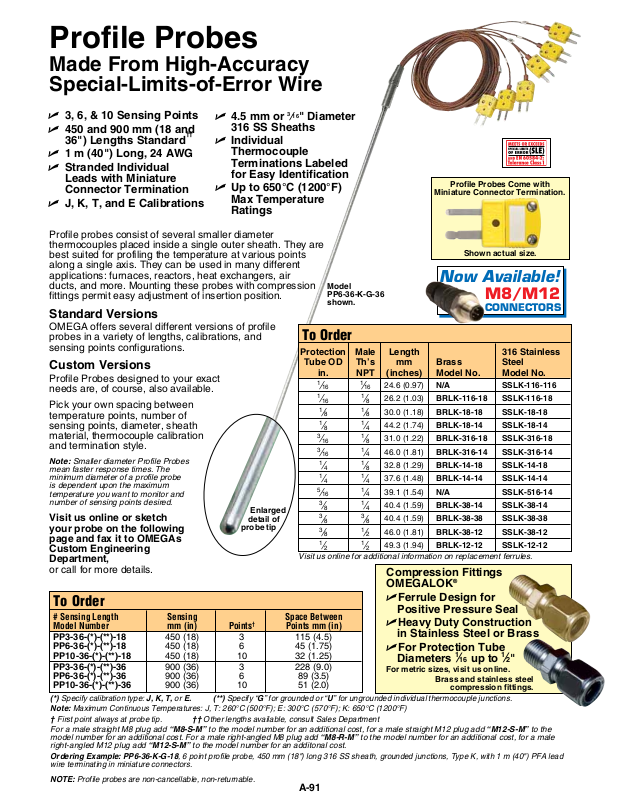

Page 1
Profile Probes
Made From High-Accuracy
Special-Limits-of-Error Wire
U 3, 6, & 10 Sensing Points
U 450 and 900 mm (18 and
36") Lengths Standard
U 1 m (40") Long, 24 AWG
U Stranded Individual
Leads with Miniature
Connector Termination
U J, K, T, and E Calibrations
U 4.5 mm or 3⁄16" Diameter
††
316 SS Sheaths
U Individual
Thermocouple
Terminations Labeled
for Easy Identification
U Up to 650°C (1200°F)
Max Temperature
Ratings

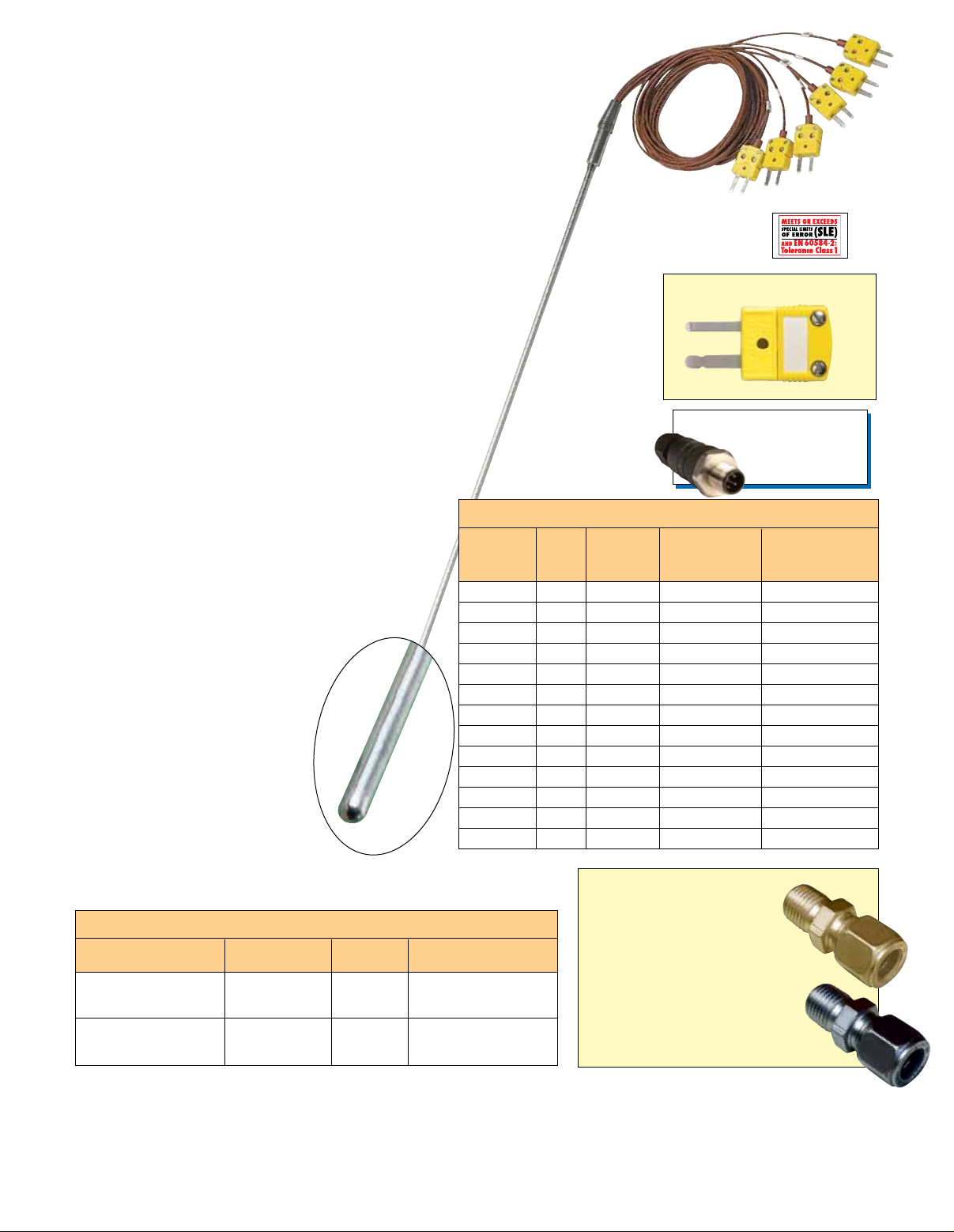

Profile Probes Come with
Miniature Connector Termination.
Profile probes consist of several smaller diameter
thermocouples placed inside a single outer sheath. They are
best suited for profiling the temperature at various points
Shown actual size.
along a single axis. They can be used in many different
applications: furnaces, reactors, heat exchangers, air
ducts, and more. Mounting these probes with compression
fittings permit easy adjustment of insertion position.
Standard Versions
Model
PP6-36-K-G-36
shown.
Now Available!
M8/M12
CONNECTORS
OMEGA offers several different versions of profile
probes in a variety of lengths, calibrations, and
sensing points configurations.
Custom Versions
Profile Probes designed to your exact
needs are, of course, also available.
Pick your own spacing between
temperature points, number of
sensing points, diameter, sheath
material, thermocouple calibration
and termination style.
Note: Smaller diameter Profile Probes
mean faster response times. The
minimum diameter of a profile probe
is dependent upon the maximum
temperature you want to monitor and
number of sensing points desired.
Visit us online or sketch
your probe on the following
Enlarged
detail of
probe tip
page and fax it to OMEGAs
Custom Engineering
Department,
or call for more details.
To Order
# Sensing Length Sensing Space Between
Model Number mm (in) Points† Points mm (in)
PP3-36-(*)-(**)-18 450 (18) 3 115 (4.5)
PP6-36-(*)-(**)-18 450 (18) 6 45 (1.75)
PP10-36-(*)-(**)-18 450 (18) 10 32 (1.25)
PP3-36-(*)-(**)-36 900 (36) 3 228 (9.0)
PP6-36-(*)-(**)-36 900 (36) 6 89 (3.5)
PP10-36-(*)-(**)-36 900 (36) 10 51 (2.0)
(*) Specify calibration type: J, K, T, or E. (**) Specify “G” for grounded or “U” for ungrounded individual thermocouple junctions.
Note: Maximum Continuous Temperatures: J, T: 260°C (500°F); E: 300°C (570°F); K: 650°C (1200°F)
† First point always at probe tip. †† Other lengths available, consult Sales Department
For a male straight M8 plug add “M8-S-M” to the model number for an additional cost, for a male straight M12 plug add “M12-S-M” to the
model number for an additional cost. For a male right-angled M8 plug add “M8-R-M” to the model number for an additional cost, for a male
right-angled M12 plug add “M12-S-M” to the model number for an additonal cost.
Ordering Example: PP6-36-K-G-18, 6 point profile probe, 450 mm (18") long 316 SS sheath, grounded junctions, Type K, with 1 m (40") PFA lead
wire terminating in miniature connectors.
NOTE: Profile probes are non-cancellable, non-returnable.
To Order
Protection Male Length 316 Stainless
Tube OD Th’s mm Brass Steel
in. NPT (inches) Model No. Model No.
1
⁄
16
1
⁄
16
1
⁄
8
1
⁄
8
3
⁄
16
3
⁄
16
1
⁄
4
1
⁄
4
5
⁄
16
3
⁄
8
3
⁄
8
3
⁄
8
1
⁄
2
Visit us online for additional information on replacement ferrules.
1
24.6 (0.97) N/A SSLK-116-116
⁄
16
1
26.2 (1.03) BRLK-116-18 SSLK-116-18
⁄
8
1
30.0 (1.18) BRLK-18-18 SSLK-18-18
⁄
8
1
44.2 (1.74) BRLK-18-14 SSLK-18-14
⁄
4
1
31.0 (1.22) BRLK-316-18 SSLK-316-18
⁄
8
1
46.0 (1.81) BRLK-316-14 SSLK-316-14
⁄
4
1
32.8 (1.29) BRLK-14-18 SSLK-14-18
⁄
8
1
37.6 (1.48) BRLK-14-14 SSLK-14-14
⁄
4
1
39.1 (1.54) N/A SSLK-516-14
⁄
4
1
40.4 (1.59) BRLK-38-14 SSLK-38-14
⁄
4
3
40.4 (1.59) BRLK-38-38 SSLK-38-38
⁄
8
1
46.0 (1.81) BRLK-38-12 SSLK-38-12
⁄
2
1
49.3 (1.94) BRLK-12-12 SSLK-12-12
⁄
2
Compression Fittings
OMEGALOK
®
U Ferrule Design for
Positive Pressure Seal
Heavy Duty Construction
U
in
Stainless Steel or Brass
U For Protection Tube
Diameters
For metric sizes, visit us online.
1
⁄16 up to 1⁄2"
Brass and stainless steel
compression fittings.
A-91
Page 2
Custom Profile Probe Quotation Form
Copy Page and Fax to OMEGA
Name: ___________________________________ Date: _________________
Company: ________________________________ RFQ #: ________________
Phone #: _________________________________ e-mail: ________________
Fax: ____________________________________
SMPW-M
A
SPECIFY DIA
LENGTH
3/8" DIA

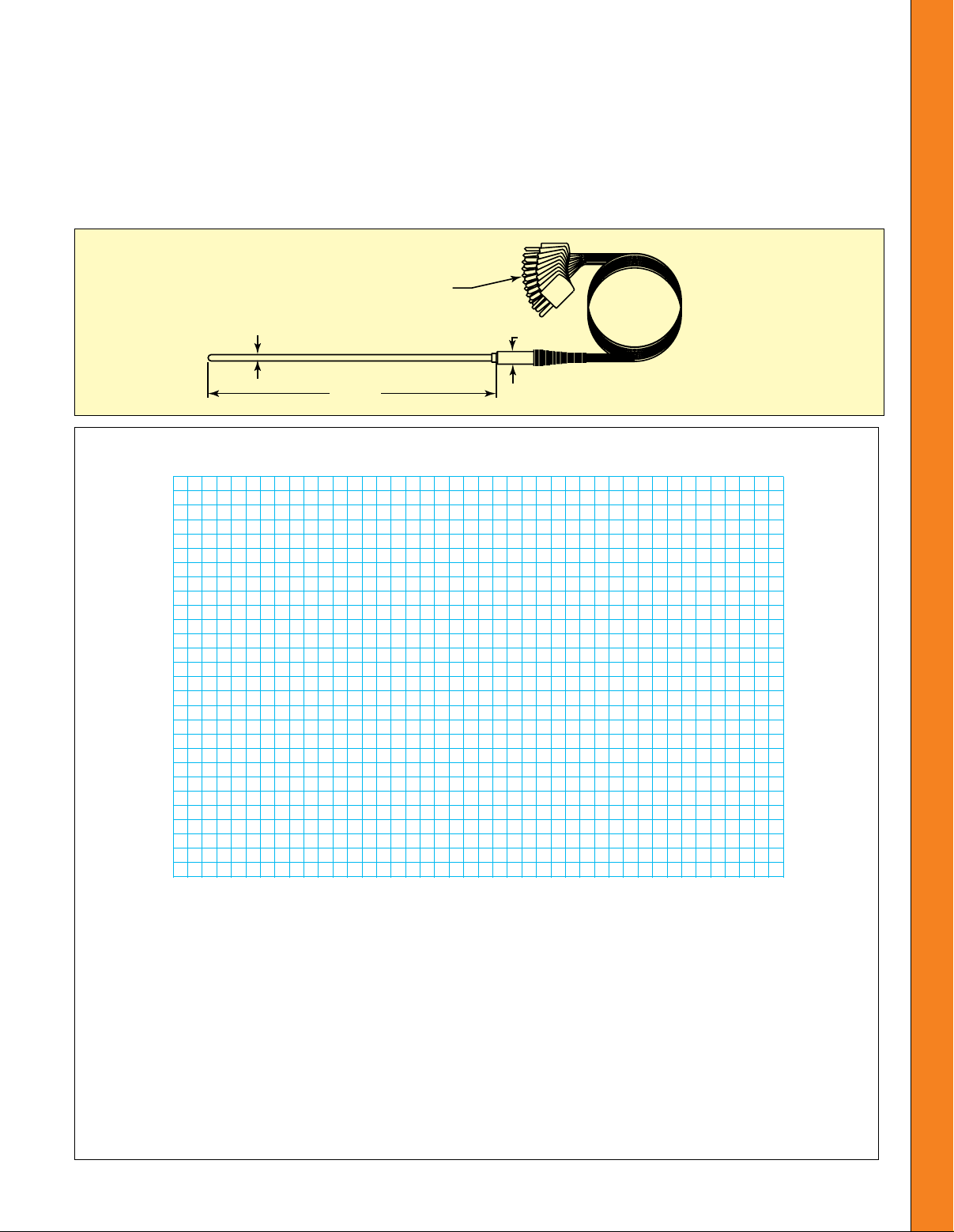

Sketch your special thermocouple, RTD, or thermistor probe:
(Visit us online in addition to this page for RTD or thermistor profile probes)
Probe Length: _________________________
____________________________________
Probe Diameter: _______ _________________
Probe Material: _________________________
____________________________________
Lead Length: ______ ____________________
Termination: _____ ______________________
Junction: Grounded or Ungrounded
Fax the completed form to OMEGA’s Custom Engineering Department
or e-mail your request. Visit us online to download this form.
Qty: ____ ______________________________
T/C Calibration: ____ ____________________
Maximum Service Temp: ____ ____________
Number of Points: _____ _________________
Evenly Spaced? ______ __________________
Additional Notes: ______ _________________
______________________________________
______________________________________
A-92
