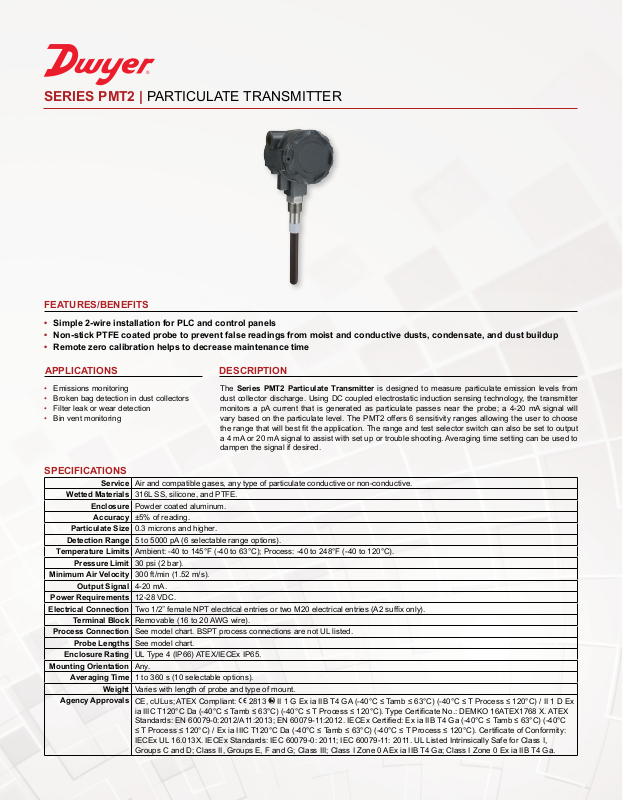

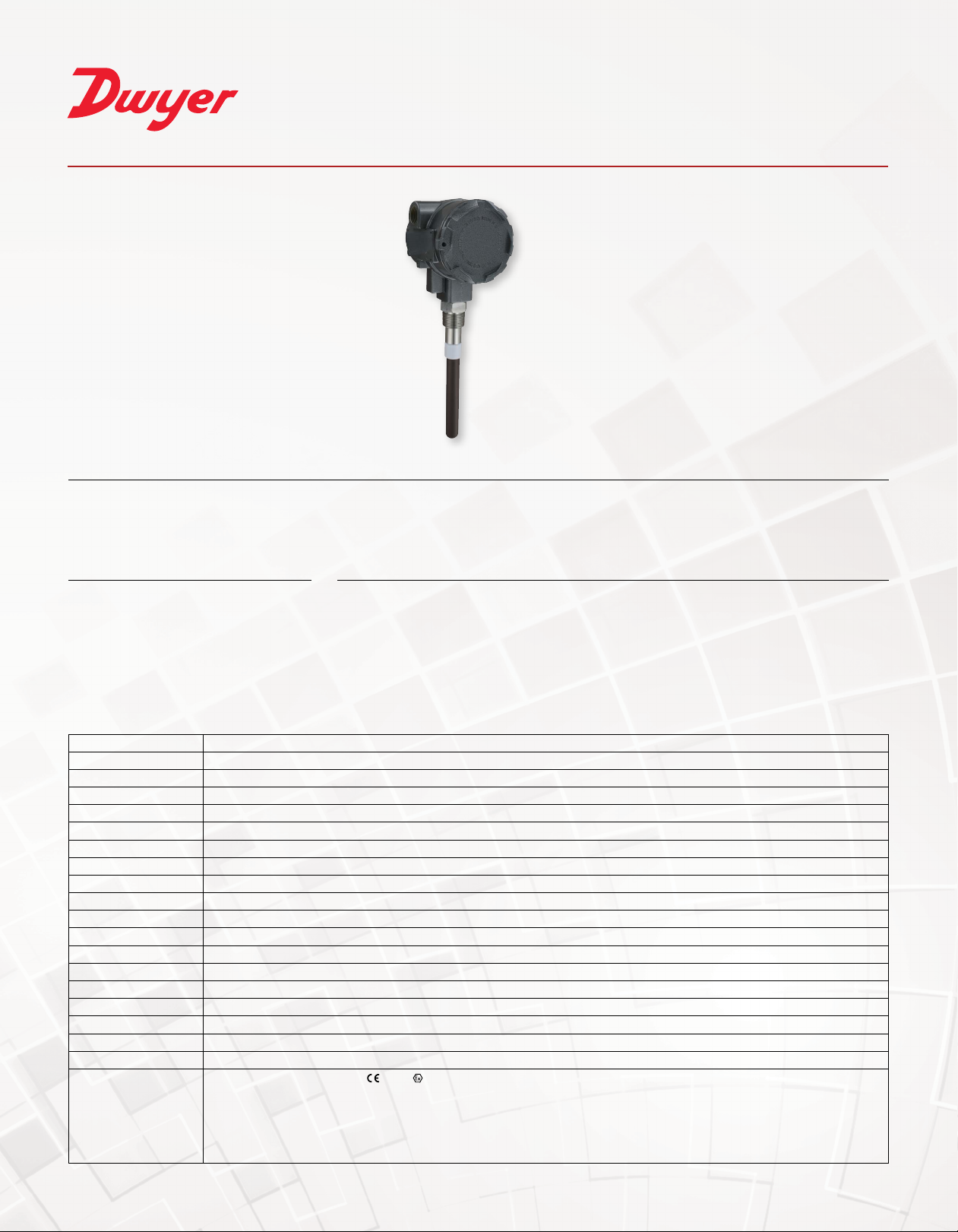

SERIES PMT2 | PARTICULATE TRANSMITTER
®
FEATURES/BENEFITS
• Simple 2-wire installation for PLC and control panels
• Non-stick PTFE coated probe to prevent false readings from moist and conductive dusts, condensate, and dust buildup
• Remote zero calibration helps to decrease maintenance time
DESCRIPTIONAPPLICATIONS
• Emissions monitoring
• Broken bag detection in dust collectors
• Filter leak or wear detection
• Bin vent monitoring
The Series PMT2 Particulate Transmitter is designed to measure particulate emission levels from
dust collector discharge. Using DC coupled electrostatic induction sensing technology, the transmitter
monitors a pA current that is generated as particulate passes near the probe; a 4-20 mA signal will
vary based on the particulate level. The PMT2 offers 6 sensitivity ranges allowing the user to choose
the range that will best t the application. The range and test selector switch can also be set to output
a 4 mA or 20 mA signal to assist with set up or trouble shooting. Averaging time setting can be used to
dampen the signal if desired.
SPECIFICATIONS
Service Air and compatible gases, any type of particulate conductive or non-conductive.
Wetted Materials 316L SS, silicone, and PTFE.
Enclosure Powder coated aluminum.
Accuracy ±5% of reading.
Particulate Size 0.3 microns and higher.
Detection Range 5 to 5000 pA (6 selectable range options).
Temperature Limits Ambient: -40 to 145°F (-40 to 63°C); Process: -40 to 248°F (-40 to 120°C).
Pressure Limit 30 psi (2 bar).
Minimum Air Velocity 300 ft/min (1.52 m/s).
Output Signal 4-20 mA.
Power Requirements 12-28 VDC.
Electrical Connection Two 1/2˝ female NPT electrical entries or two M20 electrical entries (A2 sufx only).
Terminal Block Removable (16 to 20 AWG wire).
Process Connection See model chart. BSPT process connections are not UL listed.
Probe Lengths See model chart.
Enclosure Rating UL Type 4 (IP66) ATEX/IECEx IP65.
Mounting Orientation Any.
Averaging Time 1 to 360 s (10 selectable options).
Weight Varies with length of probe and type of mount.
Agency Approvals
CE, cULus; ATEX Compliant: 2813 II 1 G Ex ia IIB T4 GA (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T Process ≤ 120°C) / II 1 D Ex
ia IIIC T120°C Da (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T Process ≤ 120°C). Type Certicate No.: DEMKO 16ATEX1768 X. ATEX
Standards: EN 60079-0:2012/A11:2013; EN 60079-11:2012. IECEx Certied: Ex ia IIB T4 Ga (-40°C ≤ Tamb ≤ 63°C) (-40°C
≤ T Process ≤ 120°C) / Ex ia IIIC T120°C Da (-40°C ≤ Tamb ≤ 63°C) (-40°C ≤ T Process ≤ 120°C). Certicate of Conformity:
IECEx UL 16.013X. IECEx Standards: IEC 60079-0: 2011; IEC 60079-11: 2011. UL Listed Intrinsically Safe for Class I,
Groups C and D; Class II, Groups E, F and G; Class III; Class I Zone 0 AEx ia IIB T4 Ga; Class I Zone 0 Ex ia IIB T4 Ga.
Page 2

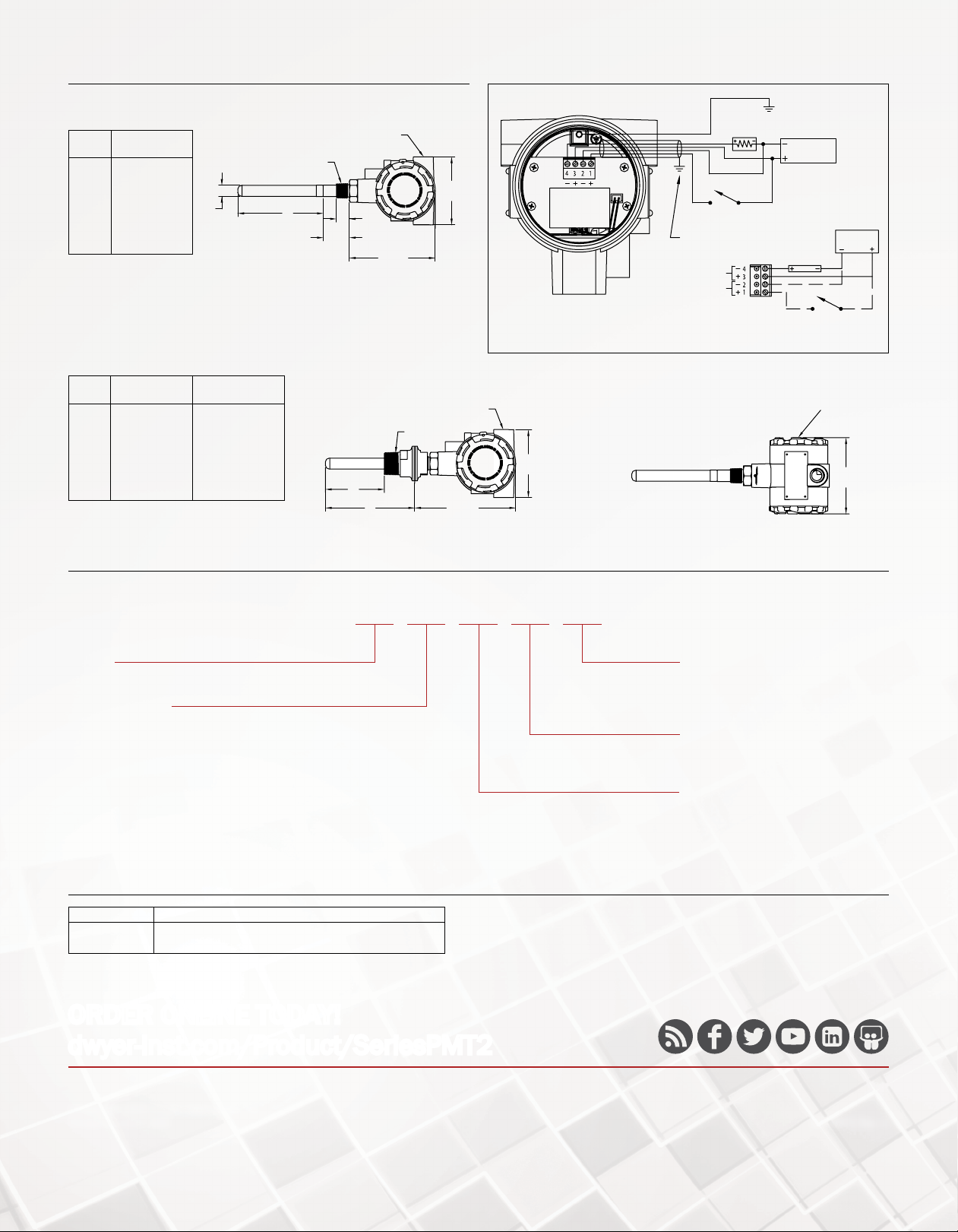

DIMENSIONS WIRING DIAGRAM
[IF USED]
2X 1/2˝ NPT OR M20 ELECTRICAL ENTRY
[125.41]
ALLOW 1-1/4˝ [32]
L
.13]
2X 1/2˝ NPT OR M20 ELECTRICAL ENTRY
[147.64]
2
3/4˝ Male NPT Mount
Probe
LengthAin [mm]
3˝
3 [76.20]
5˝
5 [127.00]
10˝
10 [254.00]
15˝
15 [381.00]
20˝
20 [508.00]
30˝
30 [762.00]
36˝
36 [914.40]
1.5˝ Tri-Clamp Option Mount
Probe
LengthAin [mm]
3˝
3-1/2 [88.90]
5˝
5-1/2 [139.70]
10˝
10-1/2 [266.70]
15˝
15-1/2 [393.70]
20˝
20-1/2 [520.70]
30˝
30-1/2 [744.70]
36˝
36-1/2 [927.10]
3/4˝ NPT or 3/4˝ BSPT
5/8
[15.88]
B
in [mm]
1-25/32 [45.24]
3-25/32 [96.04]
8-25/32 [223.04]
13-25/32 [350.04]
18-25/32 [477.04]
28-25/32 [731.04]
34-25/32 [883.44]
3-29/32
[99.22]
“A”
1-1/2
[38.10]
“B”
3/4
[19.05]
“A”
4-15/16
1˝ NPT
5-13/16
3-29/3
[99.22]
RECEIVER
REMOTE ZERO
SWITCH
IF SHIELDED CABLE IS USED
FOR 4-20 mA LOOP, GROUND
THIS SIDE OF CABLE ONLY
4-20 mA
REMOTE ZERO
4-20 mA
LOOP SUPPLY
POWER
SUPPLY
RECEIVER
REMOTE ZERO SWITCH
FOR COVER REMOVA
BOTH SIDES
4-3/8
[111
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
PMT2 -05 -A -U2 -ST
SERIES
PMT2: Particulate transmitter
PROBE LENGTH
-03: 3˝
-05: 5˝
-10: 10˝
-15: 15˝
-20: 20˝
-30: 30˝
-36: 36˝
ACCESSORIES
Model Description
A-PMT2-FLG
A-PMT2-M20
2˝ ange with 3/4˝ NPT female connection, 316 SS
1/2˝ NPT to M20 conduit adaptor
OPTIONS
-ST: Stainless steel tag
-M20: Female M20 electrical entries
(female 1/2˝ NPT standard)
ENCLOSURE RATING
-U2: UL (IS)
-A2: ATEX and IECEx (IS)
PROCESS CONNECTION
-A: 3/4˝ male NPT
-B: 1.5˝ tri-clamp kit with 1˝ male NPT
-C: 3/4˝ male BSPT
ORDER ONLINE TODAY!
dwyer-inst.com/Product/SeriesPMT2
©Copyright 2020 Dwyer Instruments, Inc.
Printed in U.S.A. 8/20 DS-PMT2 Rev. 3
