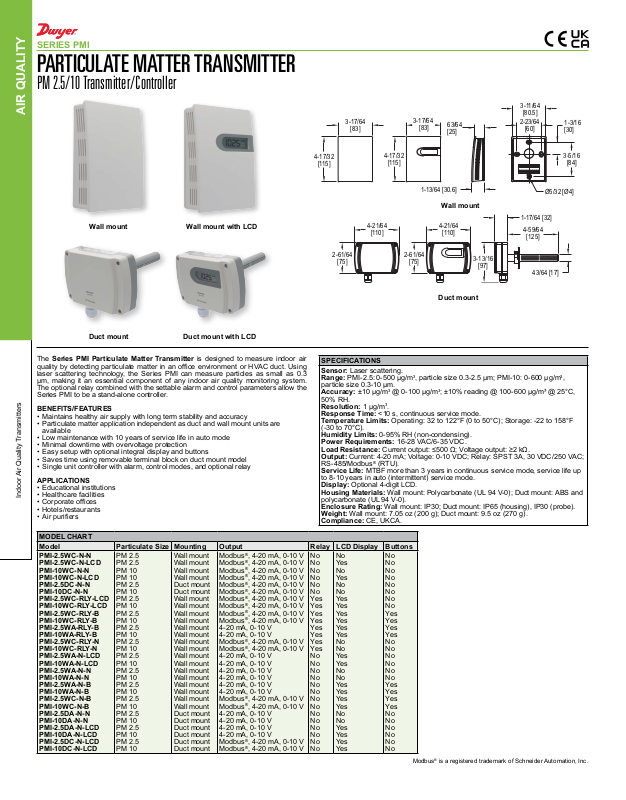

SERIES PMI

3-11/64

PARTICULATE MATTER TRANSMITTER

PM 2.5/10 Transmitter/Controller

AIR QUALITY

3-17/64

[83]

4-17/32

[115]

Wall mount

Duct mount

The Series PMI Particulate Matter Transmitter is designed to measure indoor air

quality by detecting particulate matter in an ofce environment or HVAC duct. Using

laser scattering technology, the Series PMI can measure particles as small as 0.3

μm, making it an essential component of any indoor air quality monitoring system.

The optional relay combined with the settable alarm and control parameters allow the Series PMI to be a stand-alone controller.

BENEFITS/FEATURES

• Maintains healthy air supply with long term stability and accuracy

• Particulate matter application independent as duct and wall mount units are

available

• Low maintenance with 10 years of service life in auto mode

• Minimal downtime with overvoltage protection

• Easy setup with optional integral display and buttons

• Saves time using removable terminal block on duct mount model

• Single unit controller with alarm, control modes, and optional relay

APPLICATIONS

• Educational institutions

• Healthcare facilities

Indoor Air Quality Transmitters

• Corporate ofces

• Hotels/restaurants

• Air puriers

MODEL CHART Model Particulate Size Mounting Output Relay LCD Display Buttons PMI-2.5WC-N-N

PMI-2.5WC-N-LCD PMI-10WC-N-N PMI-10WC-N-LCD PMI-2.5DC-N-N PMI-10DC-N-N PMI-2.5WC-RLY-LCD PMI-10WC-RLY-LCD PMI-2.5WC-RLY-B PMI-10WC-RLY-B PMI-2.5WA-RLY-B PMI-10WA-RLY-B PMI-2.5WC-RLY-N PMI-10WC-RLY-N PMI-2.5WA-N-LCD PMI-10WA-N-LCD PMI-2.5WA-N-N PMI-10WA-N-N PMI-2.5WA-N-B PMI-10WA-N-B PMI-2.5WC-N-B PMI-10WC-N-B PMI-2.5DA-N-N PMI-10DA-N-N PMI-2.5DA-N-LCD PMI-10DA-N-LCD PMI-2.5DC-N-LCD PMI-10DC-N-LCD

PM 2.5 PM 2.5 PM 10 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10 PM 2.5 PM 10

Wall mount with LCD

Duct mount with LCD

Wall mount Wall mount Wall mount Wall mount Duct mount Duct mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Wall mount Duct mount Duct mount Duct mount Duct mount Duct mount Duct mount

Modbus Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V Modbus®, 4-20 mA, 0-10 V

, 4-20 mA, 0-10 V

2-61/64

SPECIFICATIONS Sensor: Laser scattering.

Range: PMI-2.5: 0-500 μg/m

particle size 0.3-10 μm. Accuracy: ±10 μg/m3 @ 0-100 μg/m3; ±10% reading @ 100-600 μg/m³ @ 25°C, 50% RH.

Resolution: 1 μg/m3. Response Time: <10 s, continuous service mode. Temperature Limits: Operating: 32 to 122°F (0 to 50°C); Storage: -22 to 158°F

(-30 to 70°C).

Humidity Limits: 0-95% RH (non-condensing). Power Requirements: 16-28 VAC/6-35 VDC. Load Resistance: Current output: ≤500 Ω; Voltage output: ≥2 kΩ. Output: Current: 4-20 mA; Voltage: 0-10 VDC; Relay: SPST 3A, 30 VDC/250 VAC;

RS-485/Modbus® (RTU). Service Life: MTBF more than 3 years in continuous service mode, service life up to 8-10 years in auto (intermittent) service mode.

Display: Optional 4-digit LCD. Housing Materials: Wall mount: Polycarbonate (UL 94 V-0); Duct mount: ABS and

polycarbonate (UL 94 V-0).

Enclosure Rating: Wall mount: IP30; Duct mount: IP65 (housing), IP30 (probe). Weight: Wall mount: 7.05 oz (200 g); Duct mount: 9.5 oz (270 g). Compliance: CE, UKCA.

Yes

4-21/64

[75]

[110]

3-17/64

4-17/32

[115]

2-61/64

[75]

, particle size 0.3-2.5 μm; PMI-10: 0-600 μg/m3,

No No No No No No No No Yes Yes Yes Yes No No No No No No Yes Yes Yes Yes No No No No No No

Modbus® is a registered trademark of Schneider Automation, Inc.

[83]

1-13/64 [30.6]

Wall mount

4-21/64

Duct mount

[110]

63/64 [25]

3-13/16

[97]

[80.5]

2-23/64

1-17/64 [32]

4-59/64

[60]

[125]

43/64 [17]

1-3/16 [30]

3-5/16

Ø5/32 [Ø4]

[84]
