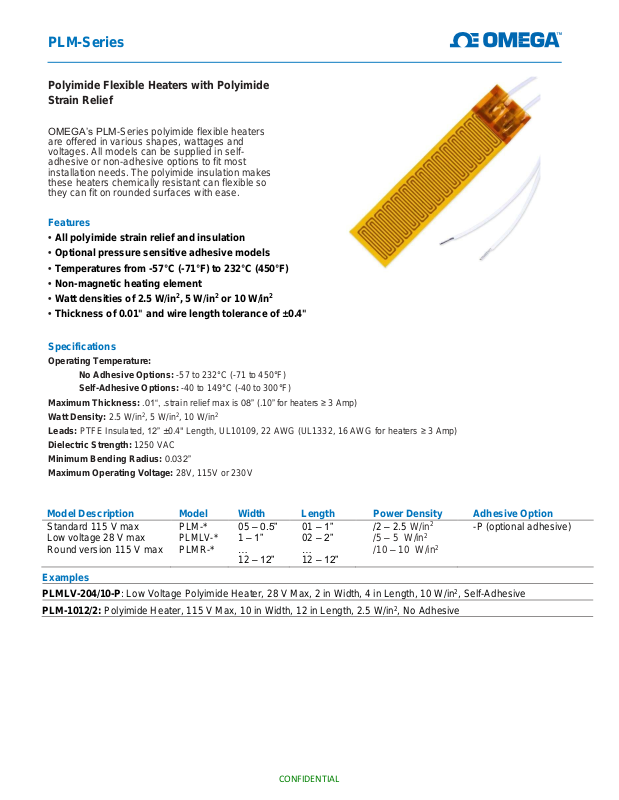

PLM-Series
Polyimide Flexible Heaters with Polyimide
Strain Relief

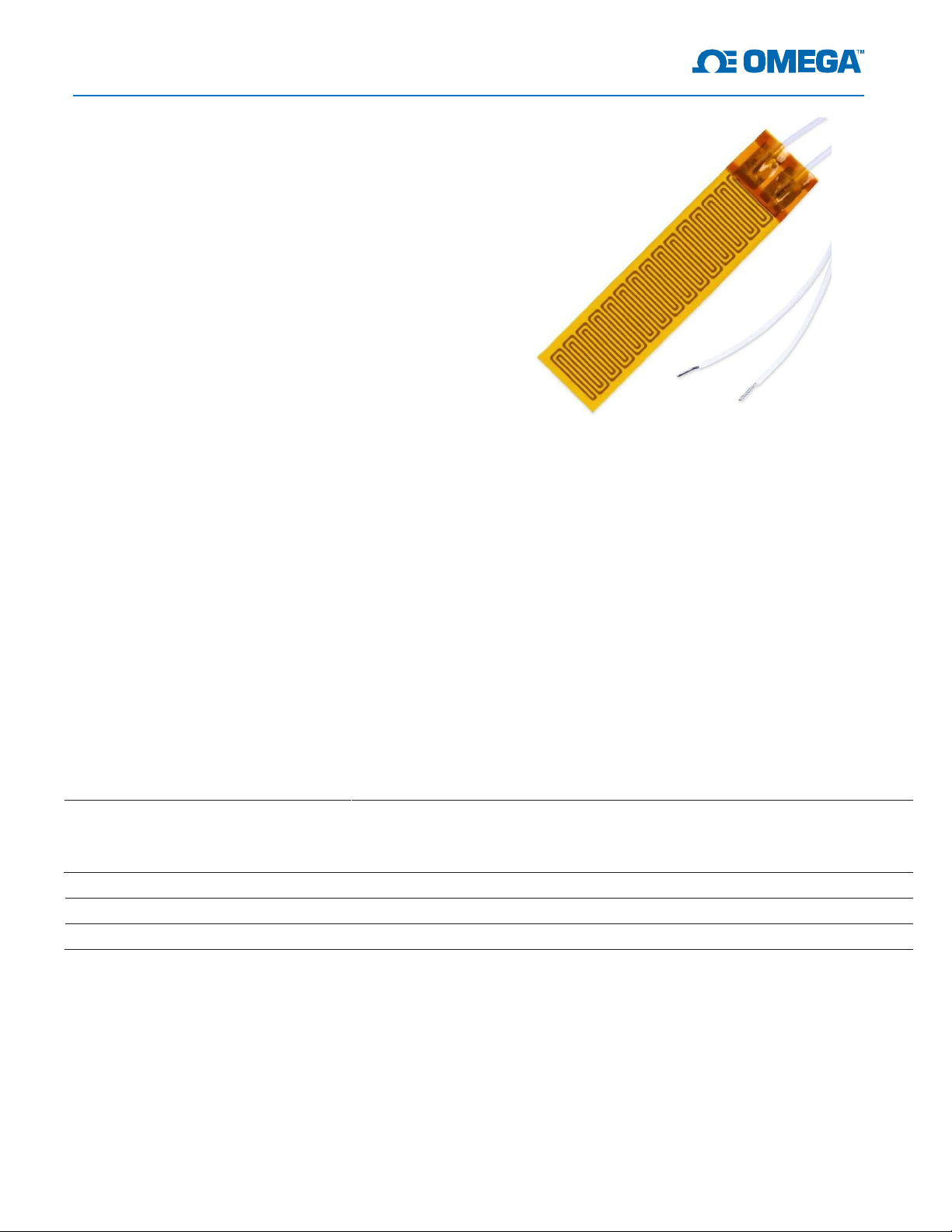

OMEGA’s PLM-Series polyimide flexible heaters
are offered in various shapes, wattages and
voltages. All models can be supplied in selfadhesive or non-adhesive options to fit most
installation needs. The polyimide insulation makes
these heaters chemically resistant can flexible so
they can fit on rounded surfaces with ease.
Features
•
All polyimide strain relief and insulation
•
Optional pressure sensitive adhesive models
•
Temperatures from -57°C (-71°F) to 232°C (450°F)
•
Non-magnetic heating element
•
Watt densities of 2.5 W/in2, 5 W/in2 or 10 W/in2
•
Thickness of 0.01" and wire length tolerance of ±0.4"
Specifications
Operating Temperature:
No Adhesive Options: -57 to 232°C (-71 to 450°F)
Self-Adhesive Options: -40 to 149°C (-40 to 300°F)
Maximum Thickness: .01“, .strain relief max is 08” (.10” for heaters ≥ 3 Amp)
Watt Density: 2.5 W/in2, 5 W/in2, 10 W/in
2
Leads: PTFE Insulated, 12” ±0.4" Length, UL10109, 22 AWG (UL1332, 16 AWG for heaters ≥ 3 Amp)
Dielectric Strength: 1250 VAC
Minimum Bending Radius: 0.032”
Maximum Operating Voltage: 28V, 115V or 230V
Model Description
Model
Width
Length
Power Density
Adhesive Option
Standard 115 V max
Low voltage 28 V max
Round version 115 V max
PLM-*
PLMLV-*
PLMR-*
05 – 0.5”
1 – 1”
…
12 – 12”
01 – 1”
02 – 2”
…
12 – 12”
/2 – 2.5 W/in
2
/5 – 5 W/in
2
/10 – 10 W/in
2
-P (optional adhesive)
Examples
PLMLV-204/10-P: Low Voltage Polyimide Heater, 28 V Max, 2 in Width, 4 in Length, 10 W/in2, Self-Adhesive
PLM-1012/2: Polyimide Heater, 115 V Max, 10 in Width, 12 in Length, 2.5 W/in2, No Adhesive
