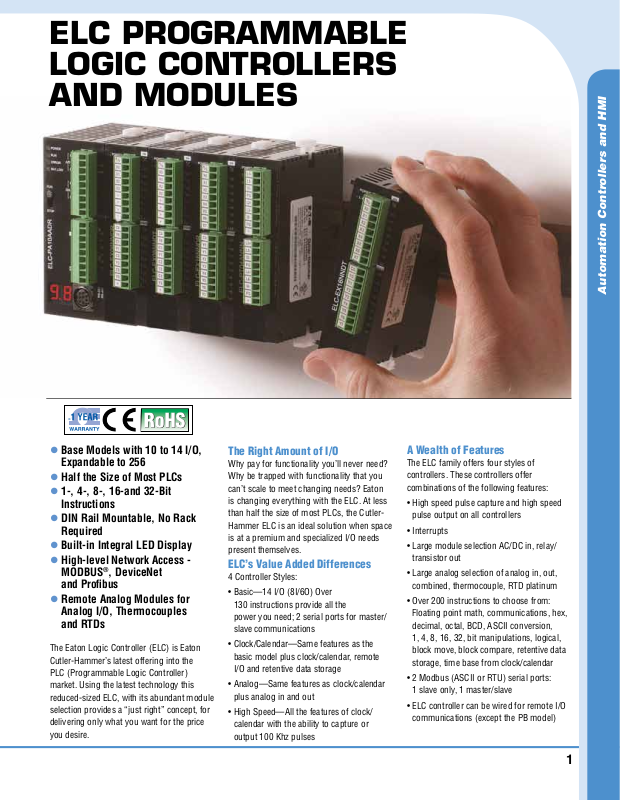

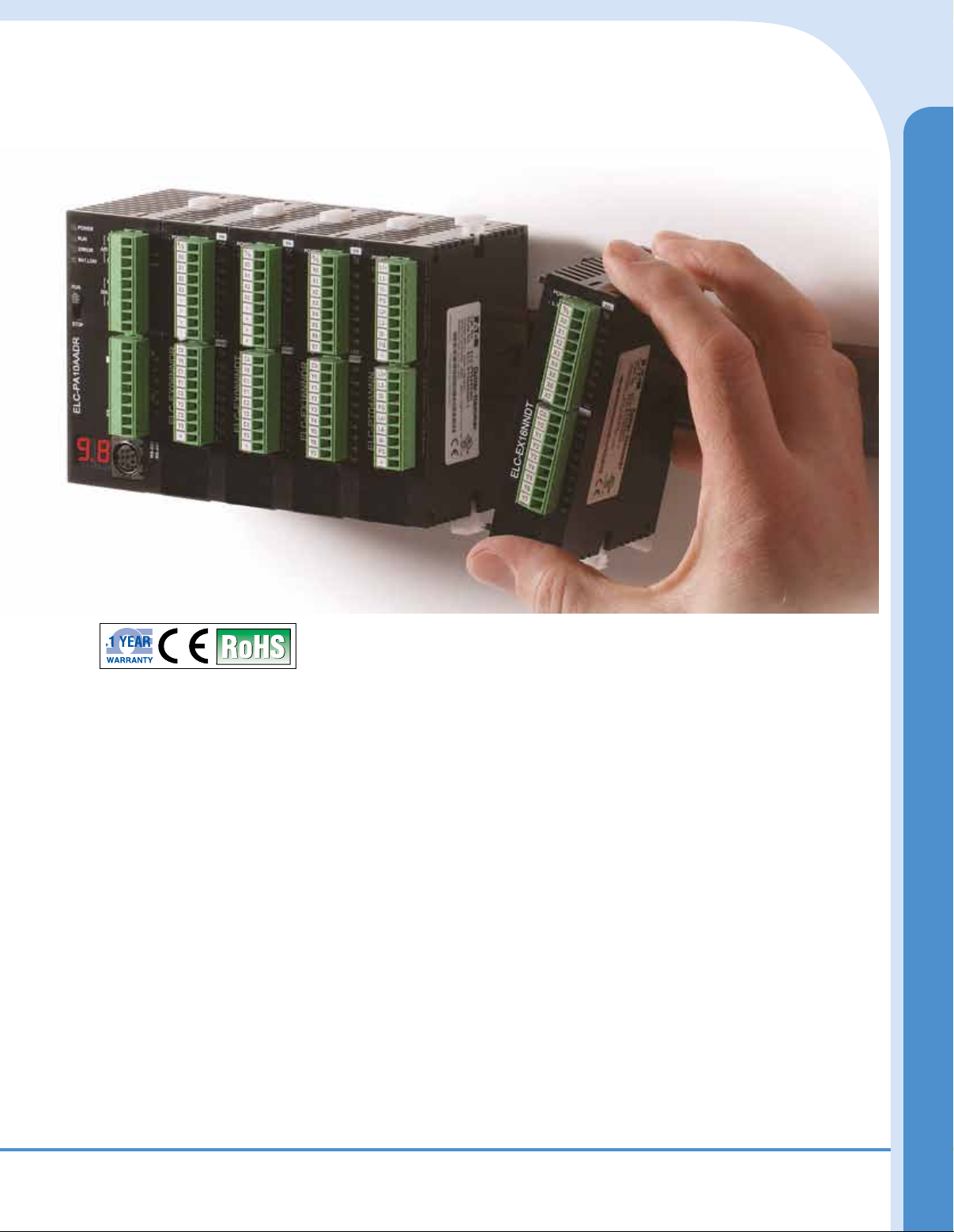

ELC ProgrammabLE
LogiC ControLLErs
and moduLEs
Automation Controllers and HMI
l Base Models with 10 to 14 I/O,
Expandable to 256
l Half the Size of Most PLCs
l 1-, 4-, 8-, 16-and 32-Bit
Instructions
l DIN Rail Mountable, No Rack
Required
l Built-in Integral LED Display
l High-level Network Access -
MODBUS
®
, DeviceNet
and Profibus
l Remote Analog Modules for
Analog I/O, Thermocouples
and RTDs
The Eaton Logic Controller (ELC) is Eaton
Cutler-Hammer’s latest offering into the
PLC (Programmable Logic Controller)
market. Using the latest technology this
reduced-sized ELC, with its abundant module
selection provides a “just right” concept, for
delivering only what you want for the price
you desire.
The Right Amount of I/O
Why pay for functionality you’ll never need?
Why be trapped with functionality that you
can’t scale to meet changing needs? Eaton
is changing everything with the ELC. At less
than half the size of most PLCs, the CutlerHammer ELC is an ideal solution when space
is at a premium and specialized I/O needs
present themselves.
ELC’s Value Added Differences
4 Controller Styles:
• Basic—14 I/O (8I/6O) Over
130 instructions provide all the
power you need; 2 serial ports for master/
slave communications
• Clock/Calendar—Same features as the
basic model plus clock/calendar, remote
I/O and retentive data storage
• Analog—Same features as clock/calendar
plus analog in and out
• High Speed—All the features of clock/
calendar with the ability to capture or
output 100 Khz pulses
A Wealth of Features
The ELC family offers four styles of
controllers. These controllers offer
combinations of the following features:
• High speed pulse capture and high speed
pulse output on all controllers
• Interrupts
• Large module selection AC/DC in, relay/
transistor out
• Large analog selection of analog in, out,
combined, thermocouple, RTD platinum
• Over 200 instructions to choose from:
Floating point math, communications, hex,
decimal, octal, BCD, ASCII conversion,
1, 4, 8, 16, 32, bit manipulations, logical,
block move, block compare, retentive data
storage, time base from clock/calendar
• 2 Modbus (ASCII or RTU) serial ports:
1 slave only, 1 master/slave
• ELC controller can be wired for remote I/O
communications (except the PB model)
1
Page 2
Space Saving, Cost Saving
This space-saving design perfectly fits at
home in small machine control stations
as well as other enclosed applications
where space is critical.
While the ELC is perfectly suited for
applications with 40 I/O and less, it can also
be expanded to 256 I/O. That means there’s
no need to change to a different controller as
I/O needs expand. Furthermore, the ELC’s
2 communication ports can provide any
networking task. In remote mode, the
ELC exchanges and shares information
with up to 16 other devices, in normal
mode, the ELC can communicate with
up to 32 other devices. Its small size
allows for reduced panel size, and saves
valuable machine space.
Capability
The ELC provides the instruction set of a
large PLC in a small package. It is capable of
1-, 4-, 8-, 16- and 32-bit instructions, block
compare, block move, communications,
interrupts, clock/calendar and logic, over
240 instructions in all (except PB).
No Racks Required
A DIN rail lets you add as many modules as
desired. Just snap on, and slide into place.
All connections are done automatically.

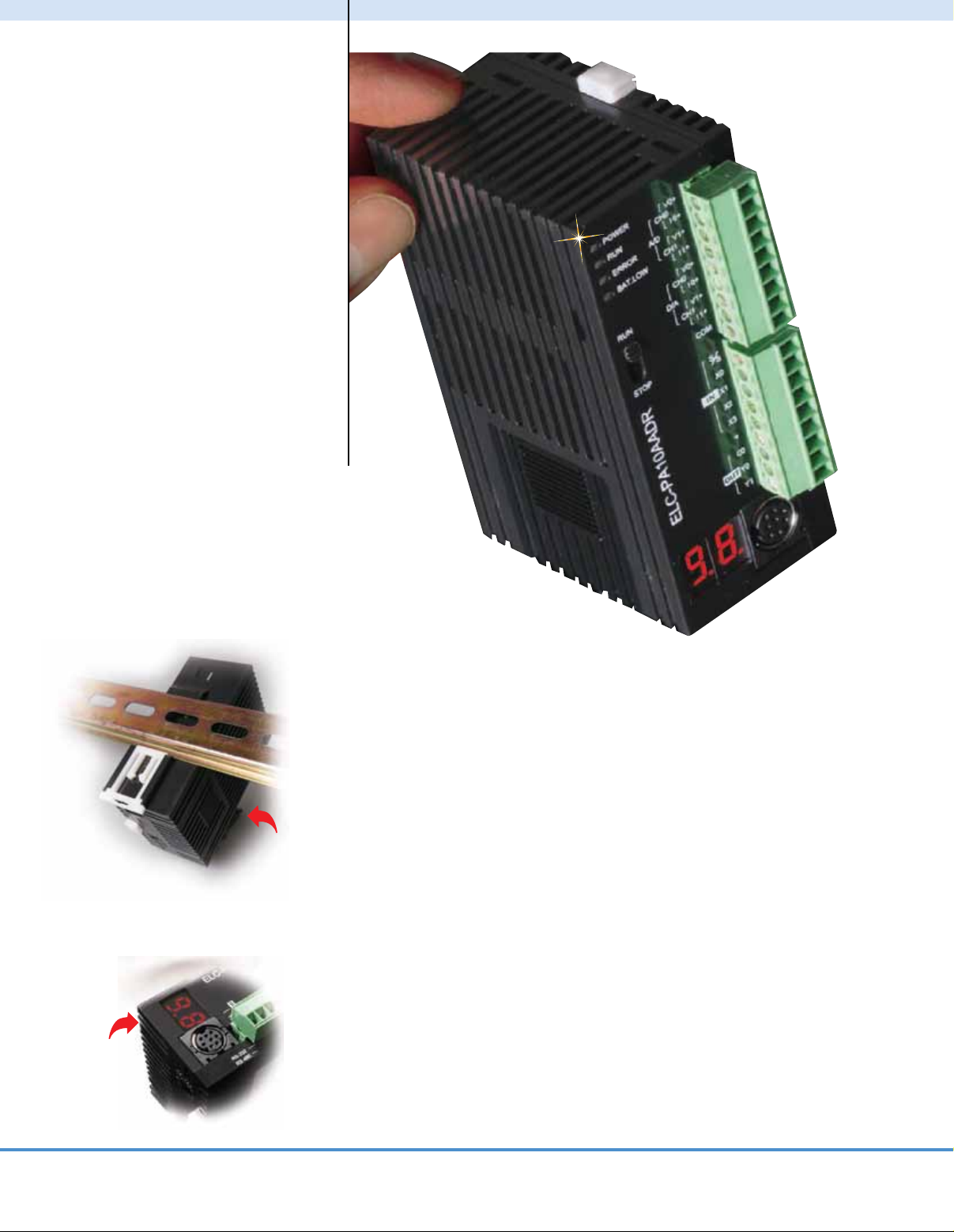

ELC-PA10AADR, shown larger
than actual size.
No racks
required.
Built-In Display
An integral LED display provides user-
assigned process monitoring, error
messages, alarms, display counts and more.
Built-in
display.
2
Large PLC Features
Multiple communication ports, remote I/O
ability, data storage, high speed counters,
high speed pulse outputs, interrupts, timer
resolution to 10 ms, PIDs, plus much more.
Easy Connectivity to Drives
ELC communicates easily to MVX drives,
eliminating the need to operate drives by
analog voltage/current or digital I/O. ELC can
access all of the parameters in the MVX by
serial communications, saving money.
Remote Communication
All ELC analog type modules are capable
of stand-alone operation. Mounted remotely,
the ELC communicates to the analog module
through its communications port. The
ELC also lets you read parameters, set
parameters, use scale, offset, and
average values.
Software
ELCSoft programs in standard ladder,
sequential function chart programming
or instruction.
ELC Modules
ELC Expansion Modules
ELC expansion modules provide the correct
amount of I/O for application solutions.
Choose 8 or 16 I/O expansion modules
added to the ELC processor 256 I/O
(128 Inputs and 128 maximum).
ELC Specialty Modules
In addition to the expansion specialty
modules like analog in, out, Platinum
temperature, thermocouple, DeviceNet,
PROFIBUS, and simulator switch module;
can be added. The ELC-485APTR easily
connects the RS485 port of MVX drive,
controllers and other devices.
Page 3

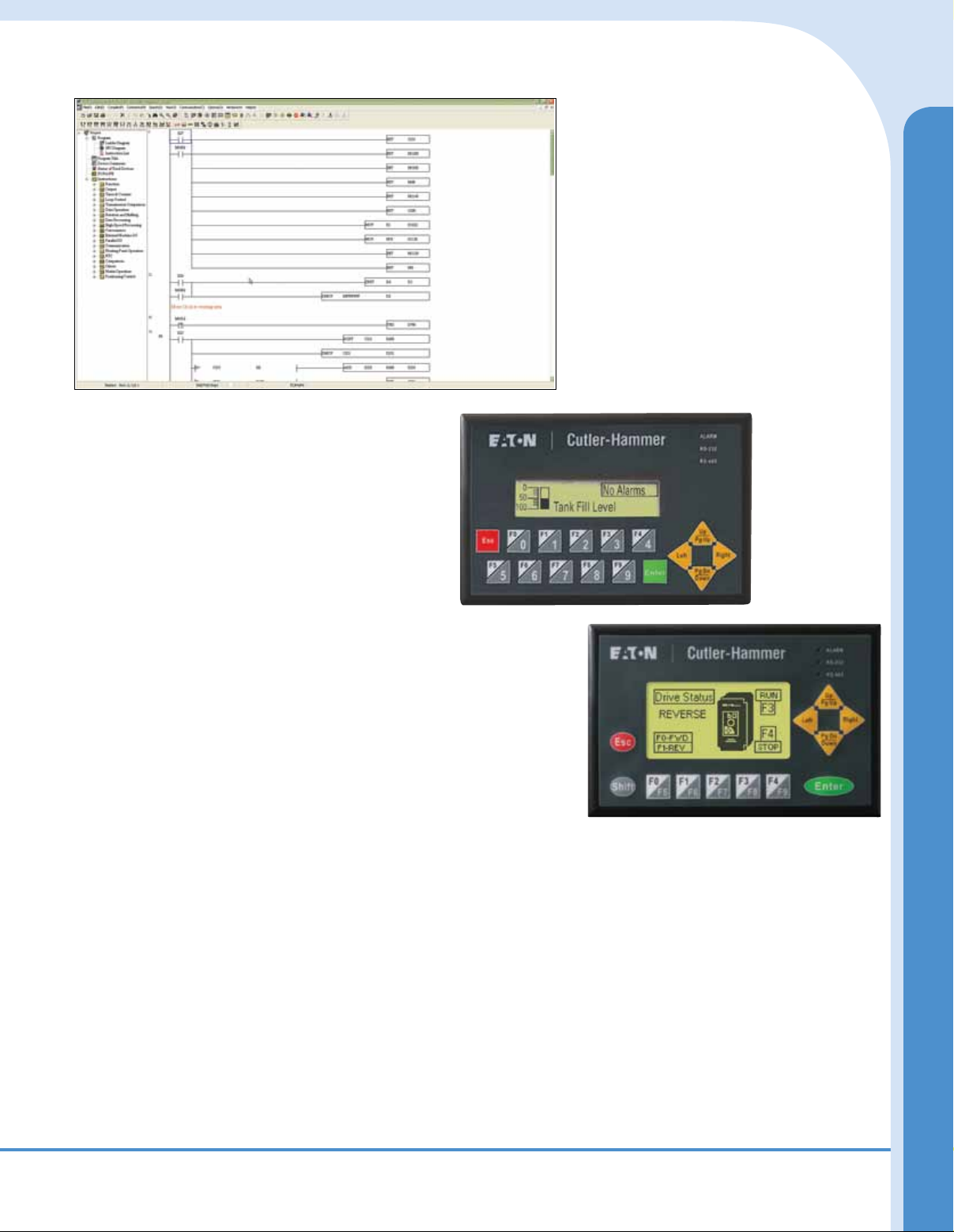

ELC SOFTWARE
• Display registers “in use” and modules attached to
the ELC
• Monitor runtime applications; force (except basic),
and enter/modify register values
• Wizards aid programming of remote I/O, standard
communications, high speed counters, pulse
outputs, ELC Link, positioning, interrupts, PIDs, and
extension module setup
ELCSoft, software
Automation Controllers and HMI
GRAPHIC PANELS
ELC Graphic Panels are simple to program and easily connect
to ELC products. ELC graphic panels make modifying an
application quick and easy. ELC graphic panels also connect
to Cutler-Hammer
many other devices. With over 30 objects that can be placed
anywhere on the display, these tough panels also communicate
with other major controllers. These graphic panels have
two serial ports which can be used simultaneously to
communicate. Transfer applications to or from these graphic
panels using the handy transfer module (ELC-GPXFERMOD).
Ten programmable functions keys provide easy to change
pages, input numeric values, enter alpha-numeric passwords,
set, reset and more. Create alarms, password protect, import
bitmaps, and use many different fonts.
®
MVX drives, IQMODBUS meters and
ENVIRONMENTAL RATINGS
TRANSPORTATION AND STORAGE
Temperature: -25 to 70°C
(-13 to 158°F)
Humidity: 5 to 95%
SPECIFICATIONS
ELECTRICAL/EMC
ESD Immunity: 8 kV air discharge
EFT Immunity:
Power Line: 2 kV
Digital I/O: 1 kV
Analog and Communication
I/O: 250 V
Damped-Oscillatory Wave:
Power Line: 1 kV
Digital I/O: 1 kV
RS Immunity: 26 MHz to 1 GHz, 10 V/m
OTHER APPROVALS
Agency Certifications: UL 508, cUL, CE,
Class 1, Div 2
OPERATING
Temperature: 32 to 131°F (0 to 55°C)
Humidity: 50 to 95%
Power Supply Voltage:
ELC: 24 Vdc (-15 to 20%) with DC
input reverse polarity protection
Expansion Unit: Supplied by the ELC
Power Consumption: 3 to 6 W
Insulation Resistance: >5 M @
500 Vdc, between all inputs/outputs
and earth
Grounding: The diameter of the
grounding wire cannot be smaller than
the wire diameter of terminals L and
N (all ELC units should be grounded
directly to the ground pole)
ELC-GP02
ELC-GP04
Vibration/Shock Resistance:
Standard: IEC1131-2, IEC 68-2-6
(TEST Fc)/IEC1131-2 and
IEC 68-2-27 (TEST Ea)
Approx. Weight: 0.158 kg (0.348 lb)
DC INPUT POINT ELECTRICAL
Input Type: DC (SINK or SOURCE)
Input Current: 24 Vdc 5 mA
Active Level:
OFF/ON: Above 16 Vdc
ON/OFF: Below 14.4 Vdc
Response Time: About 10 mS; an
adjustment range of 0 to 10,000 mS
could be selected through D1020
and D1021
3
Page 4
POWER
RUN
RUN
STOP
ERROR
BAT.LOW
POWER
0
1
RUN
RUN
STOP
ERROR
BAT.LOW
POWER
0
1
RUN
RUN
STOP
ERROR
BAT.LOW
POWER
RUN
RUN
STOP
ERROR
BAT.LOW

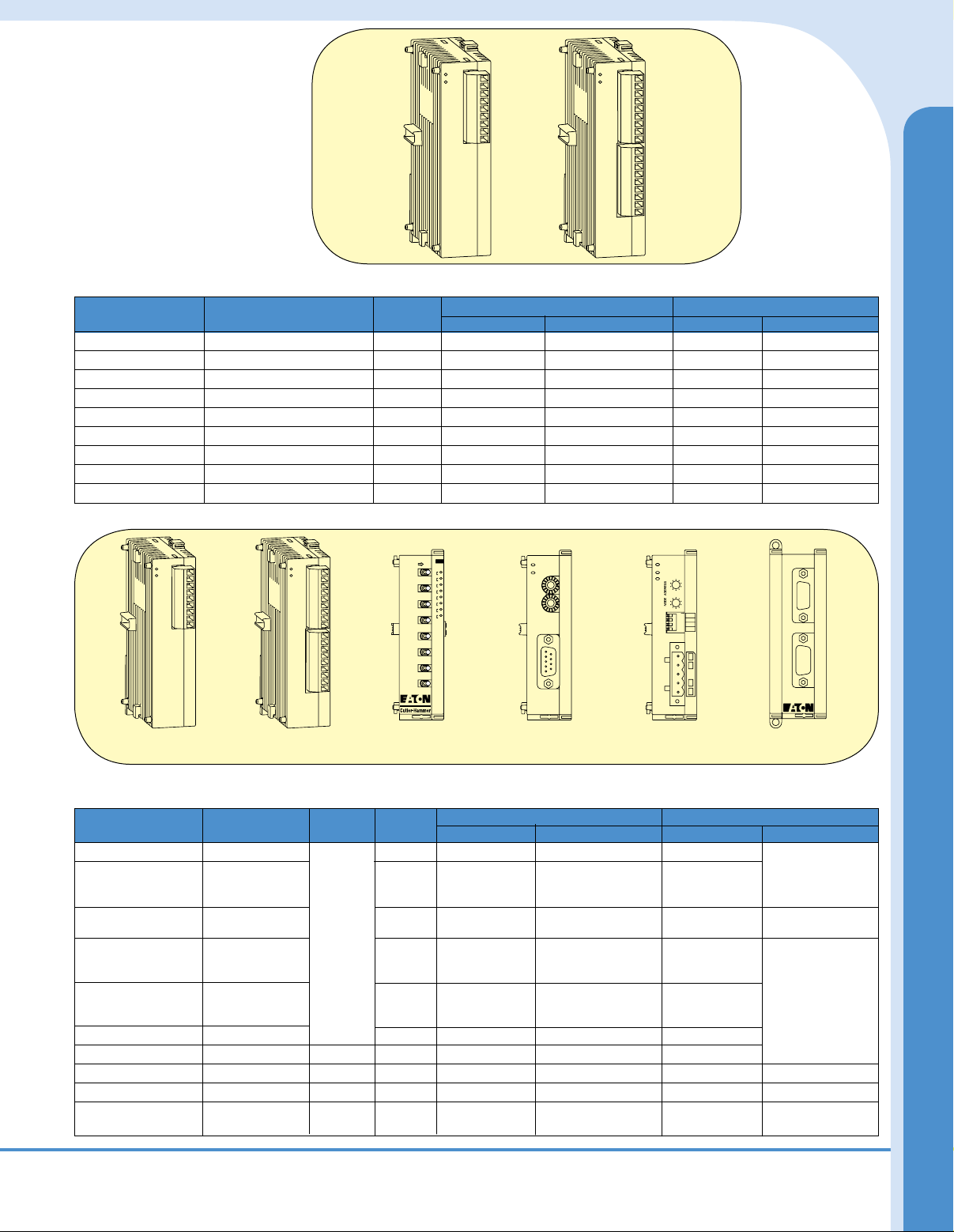

ELC-PB14 Series ELC-PC12 Series ELC-PA10 Series ELC-PH12NNDT
ELC-PB14 Series ELC-PC12 Series ELC-PA10 Series ELC-PH12NNDT
SPECIFICATIONS (CONTINUED)
Maximum I/O: 256 (128 In / 128 out);
any number of modules
I/O Type:
ELC-PB14 Series:
14 (8 in/6 out, digital)
ELC-PC12 Series:
12 (8 in/4 out, digital)
ELC-PA10 Series:
10 (4 in/2 out, digital;
2 in/2 out, analog)
ELC-PH12NNDT:
12 (8 in/4 out, digital)
DC In Sink/Source: Yes
Execution Speed: Basic commands—
2 µ seconds min
Program Language: Boolean + ladder
logic + SFC
Program Capacity:
ELC-PB14 Series: 3792 Steps
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 7920 Steps
Data Memory Capacity (bits):
ELC-PB14 Series: 1280 Bits
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 4096 Bits
Data Memory Capacity (words):
ELC-PB14 Series: 744 Words
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 5000 Words
Index Registers:
ELC-PB14 Series: 2 Words
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 8 Words
File Memory Capacity:
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT Only: 1600 Words
Commands:
ELC-PB14 Series: 32 Basic/
107 advanced
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 32 Basic/
168 advanced
Floating Point: Yes
SFC Commands:
ELC-PB14 Series: 128 Steps
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 1024 Steps
Timers:
ELC-PB14 Series: 128 (1 to 100 ms)
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 256 (1 to 100 ms)
Counters:
ELC-PB14 Series: 128 (16 bit/
32 bit/up/down)
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 250 (16 bit/
32 bit/up/down)
High Speed Counters:
ELC-PB14 Series: 1 (14 modes)
10 K maximum
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 1 (14 modes) 20 kHz
for PA/PC; 100 kHz for PH
Pulse Output:
ELC-PB14 Series: 2 channels
10 kHz maximum
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 2 channels, 40 kHz
maximum for PC/PA, 100 kHz for PH
Master Control Loop:
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT Only: 8 Loops
Subroutines:
ELC-PB14 Series: 64 subroutines
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 256 subroutines
Interrupts:
ELC-PB14 Series: 6
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT: 15 (external/time
base/HS CNTR /comm)
Real-time Clock/Calendar:
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT Only: Built-in
Specialty Expansions Modules:
8 (analog in/analog out/TC/RTD/PT);
modules do not count in total I/O
Serial Ports: 2 (one RS232, one RS485)
Remote I/O:
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT Only: With 16 other
devices
Run Time Editing:
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT Only: Yes, also
includes PB
Run/Stop Switch:
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT Only: Yes, also
includes PB
Removable Terminal Strips:
ELC-PC12 Series, ELC-PA10 Series,
ELC-PH12NNDT Only: Yes, also
includes PB
Special Features:
ELC-PC12 Series: 2 potentiometers
ELC-PA10 Series: Two 7-segment
displays
ELC-PH12NNDT: 2 potentiometers
4
Page 5
ELC-EX485APTR
COM2
COM1
ELC-CODNET
x10
x10
POWER
7
8
9
9
6
9
8
7
9
6
6
7887
3
1
4
3
2
1
2
1
2
3
1
4
2
3
44
00
0
505
55
MS
NS
1
0
DR1
DR0
IN1
IN0
1234
DIPON
NODE ADDRESS
ELC-COPBDP
POWER
NET
x16
1
x16
0
0
1
2
3
4
5
6
ELC-EX08NNSN
7
ON
X0
IN
X1
X2
X3
X4
X5
X6
X7
Style 1
Style 2
ELC EXPANSION MODULES
INPUTS OUTPUTS
MODEL TYPE STYLE POINTS TYPE POINTS TYPE
ELC-EX08NNAN AC IN 1 8 120 Vac 0 —
ELC-EX08NNDN DC IN 1 8 DC Sink or Source 0 —
ELC-EX08NNNR Relay OUT 1 0 — 8 Relay
ELC-EX08NNDT IN/OUT Combo 2 4 DC Sink or Source 4 Transistor
ELC-EX08NNNT Transistor OUT 1 0 — 8 Transistor
ELC-EX06NNNI High Current Relay OUT 2 0 — 6 Relay (6 A)
ELC-EX08NNDR IN/OUT Combo 2 4 DC Sink or Source 4 Relay
ELC-EX16NNDR IN/OUT Combo 2 8 DC Sink or Source 8 Relay
ELC-EX16NNDT IN/OUT Combo 2 8 DC Sink or Source 8 Transistor
Automation Controllers and HMI
Style 1
Style 2
Style 3
Style 4
Style 5
Style 6 with
ELC-ACCOVER
ELC SPECIALTY MODULES
INPUTS OUTPUTS
MODEL TYPE POWER STYLE POINTS TYPE POINTS TYPE
ELC-AN02NANN Analog OUT 1 0 -20 mA~20 mA 2 (12 bits)
ELC-AN04NANN Analog OUT 2 0 -10V ~ +10V 4 (12 bits)
ELC-AN06AANN Analog Combo
24 Vdc 0 to 10V
2 4 ±10V, ±20 mA 2 (12 bits)
4
ELC-AN04ANNN Analog IN 2 (V = 14 bits, ±10V, ±20 mA 0
I = 11 bits)
ELC-PT04ANNN PT100 2
(V = 14 bits PT100 0 —
I = 13 bits)
ELC-TC04ANNN Thermocouple 2 4 J, K, R, S, T 0
ELC-EX08NNSN Switch Input 24 Vdc 3 8 Switch 0
ELC-COPBDP PROFIBUS DP 24 Vdc 4 32 Digital 32 Digital
ELC-CODNET DeviceNet 24 Vdc 5 32 Digital 32 Digital
ELC-485APTR
Easy Connect
RS485
N/A 6 0 — 0 —
4
0 to 20 mA,
4 to 20 mA
0 to 10V,
2 to 10V
0 to 20 mA,
5

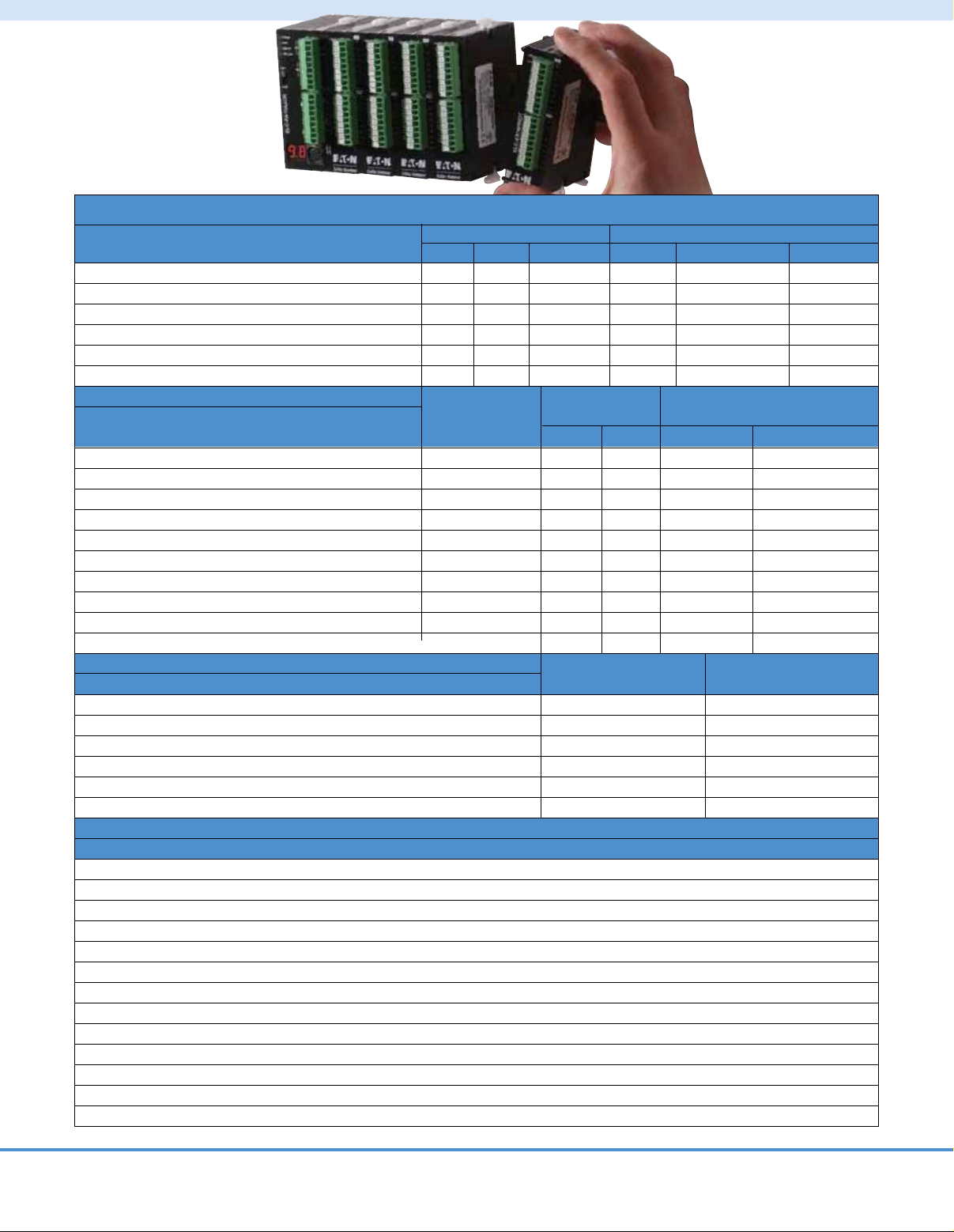

Page 6
To Order Visit omega.com/elc_plc for Pricing and Details
INPUT OUTPUT
MODEL NO. DESCRIPTION AC DC ANALOG RELAY TRANSISTOR ANALOG
ELC-PB14NNDR 14 I/O PB Series 8 6
ELC-PB14NNDT 14 I/O PB Series 8 6
ELC-PC12NNAR 12 I/O PC Series 8 4
ELC-PC12NNDR 12 I/O PC Series 8 4
ELC-PH12NNDT 12 I/O PH Series 8 4
ELC-PA10AADR 10 I/O PA Series 4 2 2 2
DIGITAL I/O EXPANSION MODULES
INPUT OUTPUT
MODEL NO. DESCRIPTION TYPE AC DC RELAY TRANSISTOR
ELC-EX06NNNI 6 I/O expansion 6 A outputs 6
ELC-EX08NNAN 8 I/O expansion AC in 8
ELC-EX08NNDN 8 I/O expansion DC in 8
ELC-EX08NNNR 8 I/O expansion Relay out 8
ELC-EX08NNDR 8 I/O expansion in/out combo 4 4
ELC-EX16NNDR 16 I/O expansion in/out combo 8 8
ELC-EX08NNDT 8 I/O expansion in/out combo 4 4
ELC-EX08NNNT 8 I/O expansion Transistor out 8
ELC-EX16NNDT 16 I/O expansion in/out combo 8 8
ELC-EX08NNSN 8 I/O expansion Switch in 8
ANALOG I/O MODULES
MODEL NO. DESCRIPTION ANALOG IN ANALOG OUT
ELC-AN04ANNN 4 I/O analog in 4
ELC-AN02NANN 2 I/O analog out 2
ELC-AN04NANN 4 I/O analog out 4
ELC-AN06AANN 6 I/O analog in/out 4 2
ELC-TC04ANNN 4 I/O thermocouple J, K, R, S, T 4
ELC-PT04ANNN 4 I/O platinum RTD, PT100 4
ACCESSORIES
MODEL NO. DESCRIPTION
ELC-CODNET ELC expansion module for DeviceNet e
ELC-COPBDP ELC expansion module for ProfibusDP slave
ELC-MC01 ELC motion control for 1 axis, use with ELC-PHNNDT
ELC-ACPGMXFR Program transfer module for ELC controllers
ELC-GP02 ELC graphics panel, monochrome, 160x32 pixels, 10 keys
ELC-GP04 ELC graphics panel, monochrome, 128x64 pixels, 10 keys
ELC-GPXFERMOD ELC graphics panel transfer module
ELC-PS01 ELC power supply, 24 W, 1 A
ELC-PS02 ELC power supply, 48 W, 2 A
ELCSOFT ELC programming software for ELC controllers
ELCSOFTGP ELC programming software for ELC graphics panels
ELC-CBPCELC1 Cable to connect a PC or a GP unit to ELC, 1 m (3.3’) (DB9 pin female to 8 pin DIN)
ELC-CBPCELC3 Cable to connect a PC or a GP unit to ELC, 3 m (9.8’) (DB9 pin female to 8 pin DIN)
Ordering Example: ELC-PB14NNDR, ELCSOFT.
6
Loading...
