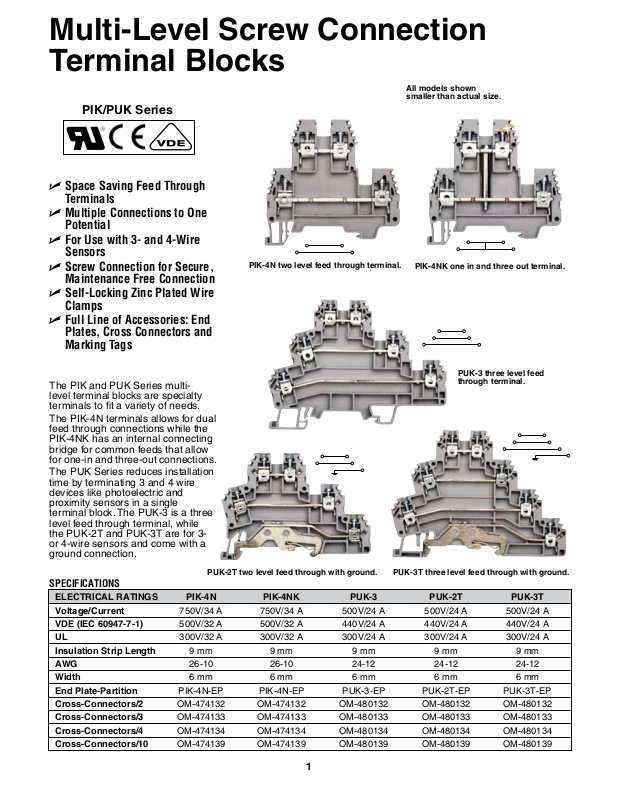

Multi-Level Screw Connection
Terminal Blocks
All models shown
smaller than actual size.
PIK/PUK Series
U Space Saving Feed Through
Terminals
U Multiple Connections to One
Potential
U For Use with 3- and 4-Wire
Sensors
U Screw Connection for Secure,
Maintenance Free Connection
U Self-Locking Zinc Plated Wire
Clamps
U Full Line of Accessories: End
Plates, Cross Connectors and
Marking Tags

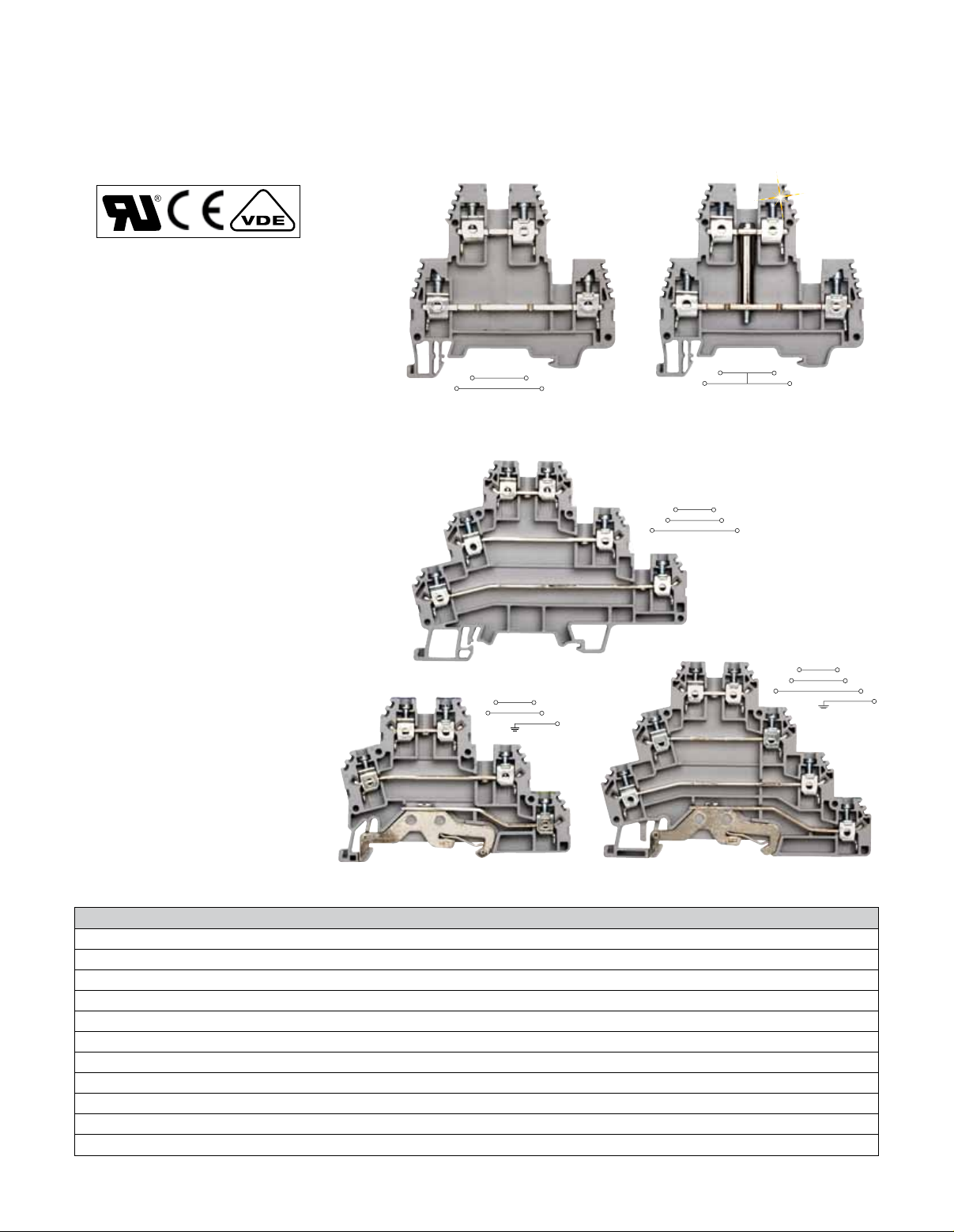

PIK-4N two level feed through terminal.
PIK-4NK one in and three out terminal.
PUK-3 three level feed
The PIK and PUK Series multilevel terminal blocks are specialty
terminals to fit a variety of needs.
The PIK-4N terminals allows for dual
feed through connections while the
PIK-4NK has an internal connecting
bridge for common feeds that allow
for one-in and three-out connections.
The PUK Series reduces installation
time by terminating 3 and 4 wire
devices like photoelectric and
proximity sensors in a single
terminal block. The PUK-3 is a three
level feed through terminal, while
the PUK-2T and PUK-3T are for 3or 4-wire sensors and come with a
ground connection.
PUK-2T two level feed through with ground.
SPECIFICATIONS
ELECTRICAL RATINGS PIK-4N PIK-4NK PUK-3 PUK-2T PUK-3T
Voltage/Current 750V/34 A 750V/34 A 500V/24 A 500V/24 A 500V/24 A
VDE (IEC 60947-7-1) 500V/32 A 500V/32 A 440V/24 A 440V/24 A 440V/24 A
UL 300V/32 A 300V/32 A 300V/24 A 300V/24 A 300V/24 A
Insulation Strip Length 9 mm 9 mm 9 mm 9 mm 9 mm
AWG 26-10 26-10 24-12 24-12 24-12
Width 6 mm 6 mm 6 mm 6 mm 6 mm
End Plate-Partition PIK-4N-EP PIK-4N-EP PUK-3-EP PUK-2T-EP PUK-3T-EP
Cross-Connectors/2 OM-474132 OM-474132 OM-480132 OM-480132 OM-480132
Cross-Connectors/3 OM-474133 OM-474133 OM-480133 OM-480133 OM-480133
Cross-Connectors/4 OM-474134 OM-474134 OM-480134 OM-480134 OM-480134
Cross-Connectors/10 OM-474139 OM-474139 OM-480139 OM-480139 OM-480139
PUK-3T three level feed through with ground.
through terminal.
1
Page 2
FEED THROUGH TERMINAL BLOCKS
MODEL NO. AMPS AWG DESCRIPTION
PIK-4N 32 26-10 Two level feed through terminal block
PIK-4N 32 26-10 Two level feed through terminal block
PIK-4NK 32 26-10 One-in, 3-out multi-connection terminal block
PUK-3 24 24-12 Three level feed through terminal block
PUK-3 24 24-12 Three level feed through terminal block
PUK-2T 24 24-12
PUK-2T 24 24-12
PUK-3T 24 24-12
PUK-3T 24 24-12
Two level feed through or 3-wire sensor therminal block with ground
Two level feed through or 3-wire sensor therminal block with ground
Three level feed through or 4-wire sensor therminal block with ground
Three level feed through or 4-wire sensor therminal block with ground

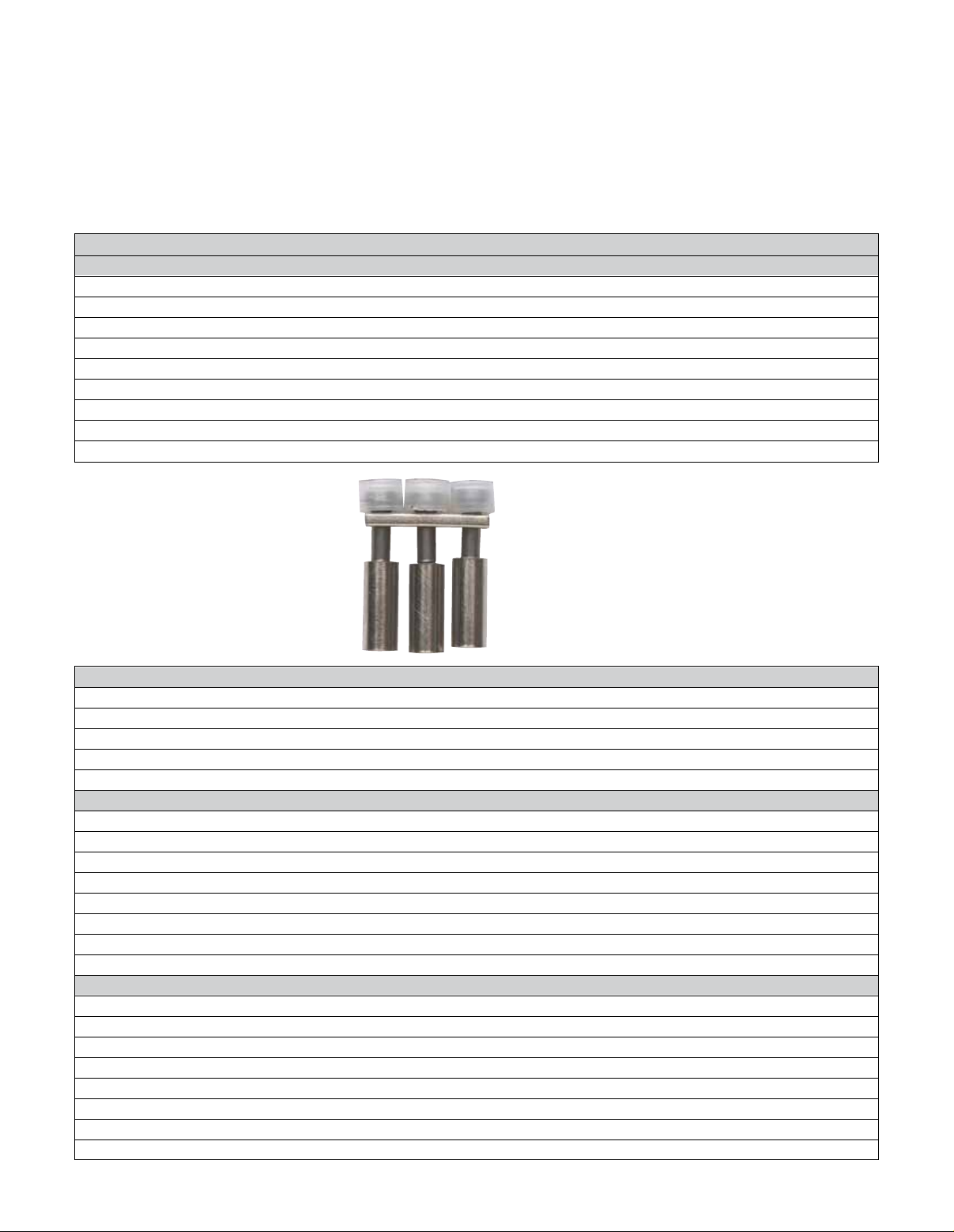

OM-474133, shown larger
than actual size.
ACCESSORIES
MODEL NO. DESCRIPTION
PIK-4N-EP End plate-partition for PIK terminals
PUK-3-EP End plate-partition for PUK 3 terminals
PUK-2T-EP End plate-partition for PUK 2T terminals
PUK-3T-EP End plate-partition for PUK 3T terminals
T-BLK-EB DIN rail end bracket 10 pcs per pack
CROSS-CONNECTORS
OM-474132 2 position screw connection jumper for PIK terminals
OM-474133 3 position screw connection jumper for PIK terminals
OM-474134 4 position screw connection jumper for PIK terminals
OM-474139 10 position screw connection jumper for PIK terminals
OM-480132 2 position screw connection jumper for PUK terminals
OM-480133 3 position screw connection jumper for PUK terminals
OM-480134 4 position screw connection jumper for PUK terminals
OM-480139 10 position screw connection jumper for PUK terminals
MARKING TAGS
MKR-NO-PRINT 50/per card Marking tag without print
MKR-1-10 50/per card Marking tag 1 to 10
MKR-11-20 50/per card Marking tag 11 to 20
MKR-1-50 50/per card Marking tag 1 to 50
MKR-51-100 50/per card Marking tag 51 to 100
MKR-101-150 50/per card Marking tag 101 to 150
MKR-151-200 50/per card Marking tag 151 to 200
MKR-201-250 50/per card Marking tag 201 to 250
2
