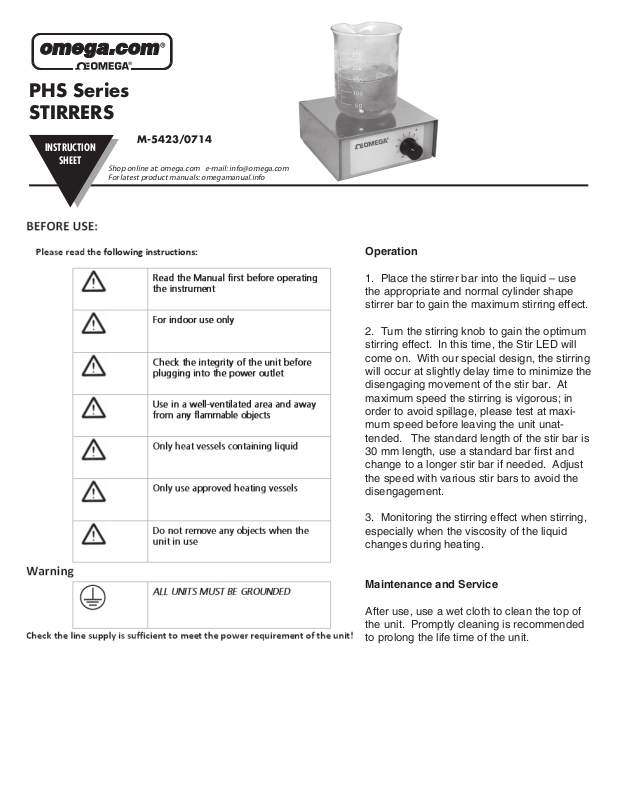

Omega PHS-25 User guide

PHS Series
STIRRERS

INSTRUCTION

SHEET

M-5423/0714

Shop online at: omega.com e-mail: [email protected]
For latest product manuals: omegamanual.info

Operation

1. Place the stirrer bar into the liquid – use
the appropriate and normal cylinder shape
stirrer bar to gain the maximum stirring effect.

2. Turn the stirring knob to gain the optimum
stirring effect. In this time, the Stir LED will
come on. With our special design, the stirring
will occur at slightly delay time to minimize the
disengaging movement of the stir bar. At
maximum speed the stirring is vigorous; in
order to avoid spillage, please test at maxi­mum speed before leaving the unit unat­tended. The standard length of the stir bar is
30 mm length, use a standard bar first and
change to a longer stir bar if needed. Adjust
the speed with various stir bars to avoid the
disengagement.

3. Monitoring the stirring effect when stirring,
especially when the viscosity of the liquid
changes during heating.

Maintenance and Service

After use, use a wet cloth to clean the top of
the unit. Promptly cleaning is recommended
to prolong the life time of the unit.
