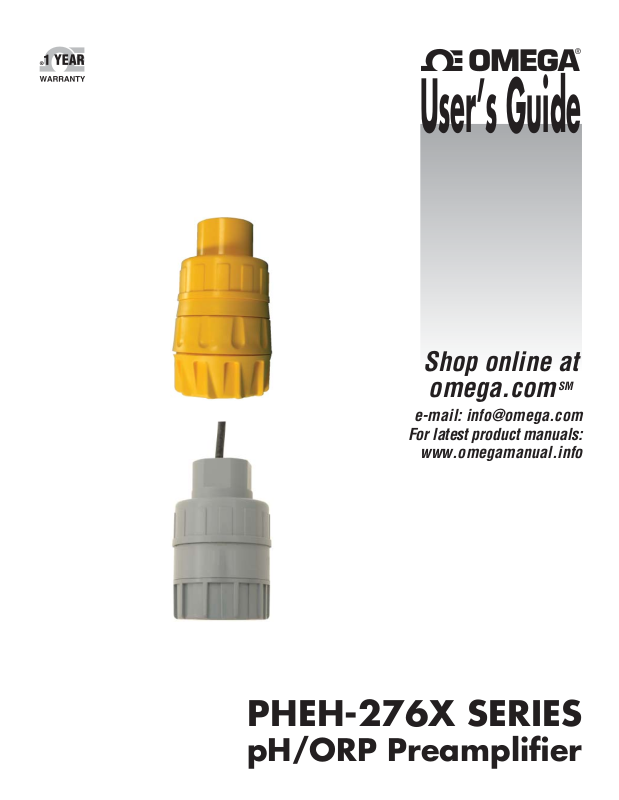

Page 1
User’s Guide
Shop online at
omega.com
e-mail: [email protected]
For latest product manuals:
www.omegamanual.info
SM
PHEH-276X SERIES
pH/ORP Preamplifi er
Page 2
omega.com [email protected]
Servicing North America:
U.S.A. Omega Engineering, Inc.
Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only)
Customer Service: 1-800-622-2378 (USA & Canada only)
Engineering Service: 1-800-872-9436 (USA & Canada only)
Tel: (203) 359-1660 Fax: (203) 359-7700
e-mail: [email protected]
For Other Locations Visit omega.com/worldwide
The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves
the right to alter specifications without notice.
Page 3
Contents
1. Description .............................................3 5. Submersible Assembly and Installation ...........5
2. Specifi cations ........................................3 6. Wiring to Omega Instruments ............................ 6
3. Dimensions ............................................4 7. Wiring to other Manufacturer's Equipment....... 7
4. In-Line Assembly and Installation .......4 8. Ordering Information ..........................................8
Safety Instructions
1. Depressurize and vent system prior to installation or removal.
2. Confi rm chemical compatibility before use.
3. Do not exceed maximum temperature/pressure specifi cations.
4. Wear safety goggles or faceshield during installation/service.
5. Do not alter product construction.
6. When using chemicals or solvents care should be taken and appropriate eye,
face, hand, body, and/or respiratory protection should be used.
1. Description
The Omega PHE/ORE series pH/ORP Preamplifi ers are part of Omega's growing line of sensors for industrial fl uid measurement and control.
There are two styles of Preampliers, and each is available with NPT or ISO threads at the cable outlet.
They all connect to four different families of pH and ORP electrodes to supply an amplifi ed mV (analog) signal to Omega instruments.
2. Specifi cations
General
Compatible Electrodes .................... PHE-2724, PHE-2726,
ORE-2725 series
Compatible Instruments:
Preamplifi er models PHEH-276Y (ISO) and PHEH-276G (ISO)
to Omega PHTX-271 series transmitters
Response Time (includes response time of electrodes):
pH ................................................... < 6 sec. for 95% of change
ORP ................................................. application dependent
Temperature, τ ................................ 20 sec.
Electrical
Maximum Offset ..............................± 7 mV
Input Impedance, Z.......................... > 10
Supply Voltage (V+ to V–) ............... 6 to 12 VDC
Current consumption ....................... < 1 mA
11
Ω
Environmental
Enclosure Rating:
PHEH-276Y (ISO) ...................... NEMA 6P/IP68
PHEH-276G (ISO) ..................... NEMA 4
Materials:
Submersible versions ...................... CPVC (Gray)
In-Line versions ............................... PBT (Yellow)
Cable ............................................... 4.6 m (15 ft) 6-conductor
with shield, 22 AWG
Maximum cable ...............................122 m (400 ft)
Shipping Weight ..............................0.64 kg (1.41 lb)
Operating Temperature .................... 0 °C to 85 °C
(32 °F to 185 °F)
Storage Temperature ....................... –20 °C to 85 °C
(–4 °F to 185 °F)
Relative Humidity:............................ 0 to 95%, non-condensing
(without electrode connected)
®
PHEH-276X pH/ORP Submersible Preamplifi er
3
Page 4

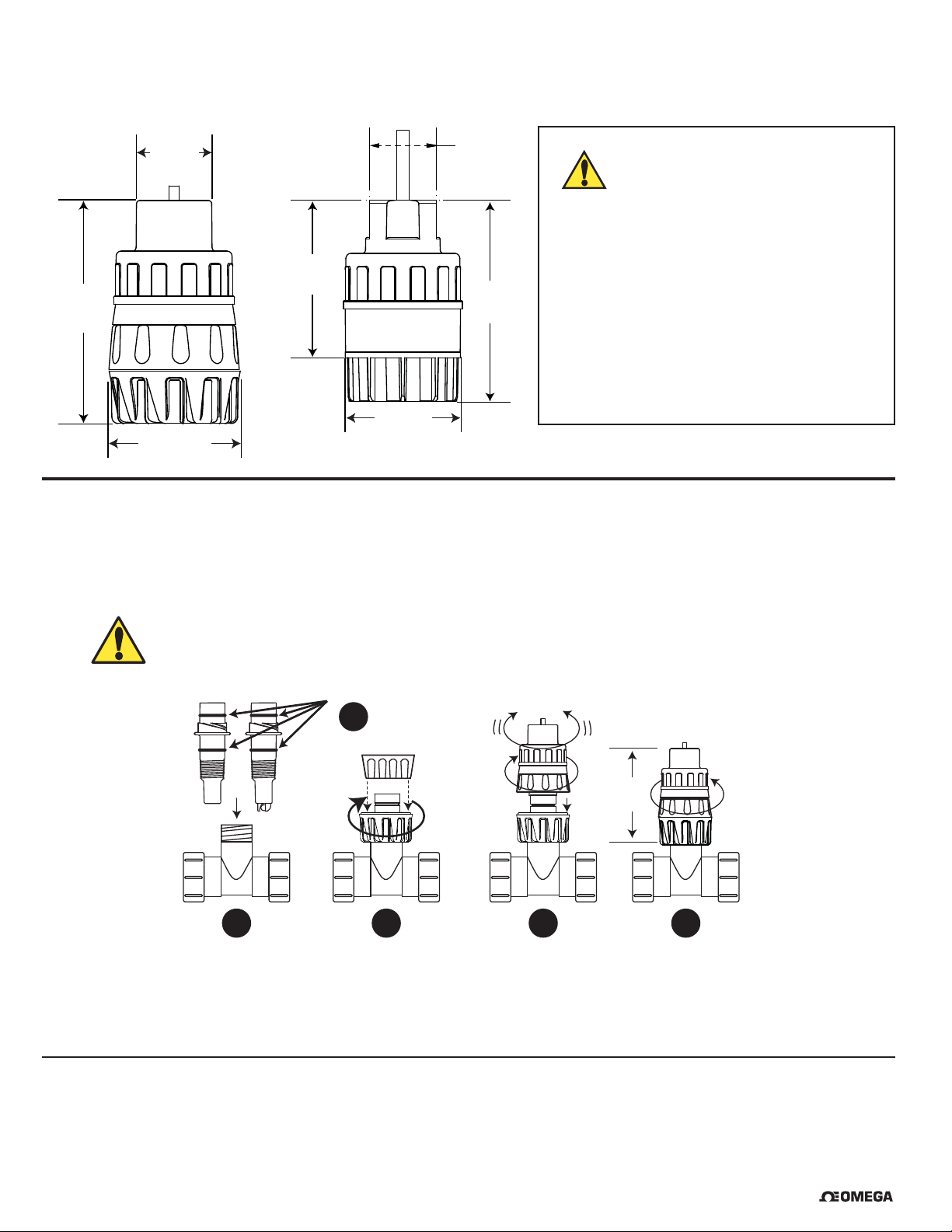

3. Dimensions
PHEH-276G
PHEH-276G-ISO
35.0 mm
(1.38 in.)
PHEH-276Y
PHEH-276Y-ISO
31.75 mm
(1.25 in.)
CHEMICAL COMPATIBILITY WARNING
The retaining nuts of certain pH and ORP sensors
and preamplifi ers are not designed for prolonged
contact with aggressive substances.
101 mm
(4.0 in.)
70.1 mm
(2.76 in.)
89.4 mm
(3.52 in.)
Strong acids, caustic substances and solvents
or their vapor may lead to failure of the retaining
nut, ejection of the sensor and loss of the process
fl uid with possibly serious consequences, such as
damage to equipment and serious personal injury.
Retaining nuts that may have been in contact with
such substances, e.g. due to leakage or spilling,
must be replaced.
56.6 mm
61.0 mm
(2.40 in.)
(2.23 in.)
4. PHEH-276G (ISO) In-line Assembly and Installation
PHEH-276G (ISO) In-Line models used with PHE-2724, PHE-2726, ORE-2725 series electrodes:
1. The PHE-2724 and PHE-2726 can use a Omega installation fi tting.
Electrodes are sealed by the O-ring when it is installed into an Omega installation fi tting.
2. The lower threaded nut is required to attach the electrode to the installation fi tting when using a Omega fi tting.
HAND-TIGHTEN THE THREADED NUT ONTO THE INSTALLATION FITTING. DO NOT USE TOOLS!
DO NOT USE THREAD SEALANT OR LUBRICANTS ON THE FITTING THREADS OR THE SENSOR CAP.
Lubricate O-rings
3
Unlock
1 2
3. Lubricate O-rings with a non-petroleum based, viscous lubricant (grease) compatible with the system.
4. Seat the PHEH-276G (ISO) connector onto the top of the electrode.
Open the connector by turning the upper locking ring ¼-turn clockwise.
5. Turn the locking ring ¼-turn counter-clockwise to lock the preamplifi er in place. The mechanism will “click” when it is locked.
When fully assembled the PHEH-276G (ISO) will stand about 100 mm (4 in.) above the installation fi tting.
• The signal from the PHEH-276X Preamplifi er series can be routed to the Omega PHTX-271 pH Transmitter.
• If the preamplifi er cable must be extended beyond the standard 15 ft that is supplied with the PHEH-276X, use a junction box to
terminate the wires.
Note: Do not extend the PHEH-276X cable more than 120 m (400 ft).
4 5
100 mm
(4 in.)
Lock
4 PHEH-276X pH/ORP Submersible Preamplifi er
®
Page 5

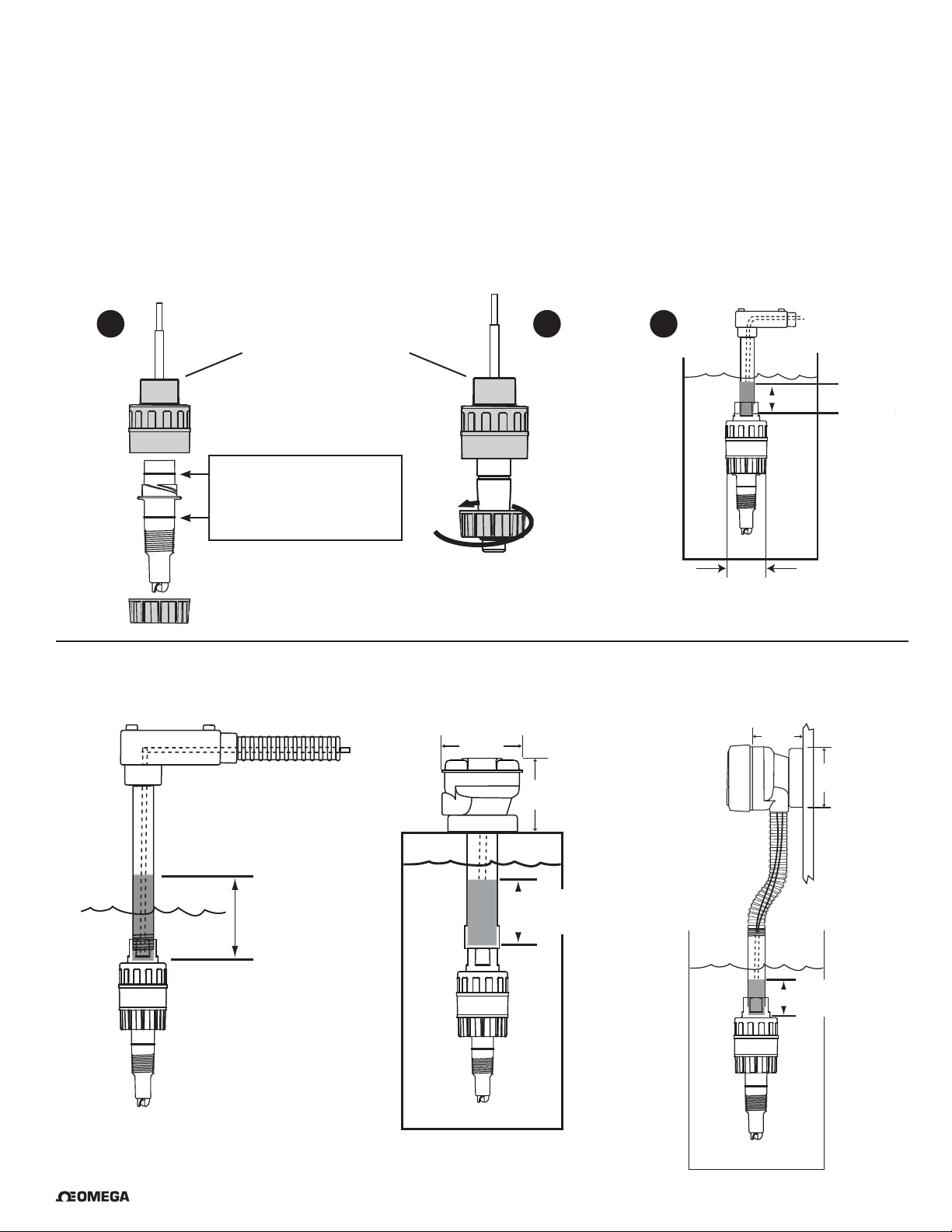

5. PHEH-276Y (ISO) Submersible Assembly and Installation
55 mm/
2.16 in.
Fill with
75-100 mm
(3 to 4 in.)
of sealant
Fill with
3 to 4 in.
of sealant
Fill with 3 in. to 4 in.
of sealant
94 mm
(3.7 in.)
64 mm
(2.5 in.)
The submersible PHEH-276Y (ISO) can be installed in a tank or vessel if conditions are within pressure and temperature specifi cations.
The PHEH-276Y (ISO) is able to withstand fl uid temperatures up to 85 °C, but the electrode tolerances vary.
Check the specifi cations of each component before installation.
1. Insert a PHE-2724, PHE-2726, ORE-2725 series electrode into base of the PHEH-276Y (ISO).
Lubricate O-rings with a non-petroleum based, viscous lubricant (grease) compatible with the system.
2. Thread retaining cap over electrode and hand-tighten onto PHEH-276Y (ISO).
• Keep the electrical interconnection between electrode and preamplifi er dry and clean at all times.
3. Attach 3/4 in. watertight pipe to the top of the PHEH-276Y (ISO). Secure the threaded connection to prevent any leakage.
• Fill the lower 75-100 mm (3 to 4 in.) of conduit or extension pipe with a fl exible sealant such as silicone to prevent liquid
accumulation on the back seal of the PHEH-276Y (ISO).
1
PHEH-276Y: 3/4 in. NPT threads
PHEH-276Y-ISO: ISO 7-1/R3/4 threads
Lubricate O-rings with a
non-petroleum based,
viscous lubricant (grease)
compatible with the system.
Use standard installation hardware to
connect the submersible PHEH-276Y (ISO)
directly to external equipment.
OR
2
3
The PHTX-27G Universal Mount junction box mounts fl at onto a wall or
can be strapped to a post or pipe.
94 mm
(3.7 in.)
®
106 mm
(4.2 in.)
½ in. NPT threads
Fill with 3 in. to 4 in.
of sealant
PHEH-276X pH/ORP Submersible Preamplifi er
5
Page 6
Standard output, Omega installation fittings
PHE-2724 (ISO)
ORE-2725 (ISO)
PHE-2726 (ISO)
PHE-2726-HF (ISO)
PHE-2726-LC (ISO)
PHEH-276Y
PHEH-276Y-ISO
PHEH-276G
PHEH-276G-ISO
PHEH-276Y
PHEH-276Y-ISO
PHEH-276G
PHEH-276G-ISO
PHCN-5700 pH/ORP Monitor
V +
Red Wire
V -
Black wire
-
+
T -
White wire
T +
Green wire
Iso. Gnd
Blue wire
Blue Iso. Gnd
mV Input
Brown wire
Brown mV
4-20
mA
Red V+
Black V-
White T-
Green T+
Connect this terminal to Earth GND to reduce electrical interference.
12
11
10
9
8
7
6
5
White (Temp)
Green (Temp)
Blue (Iso. Gnd)
Brown (mV input)
Shield
Black (V-)
Red (V+)
18
17
16
15
14
13
12
11
PHTX-271-1PHTX-271-2
pH/ORP Transmitter

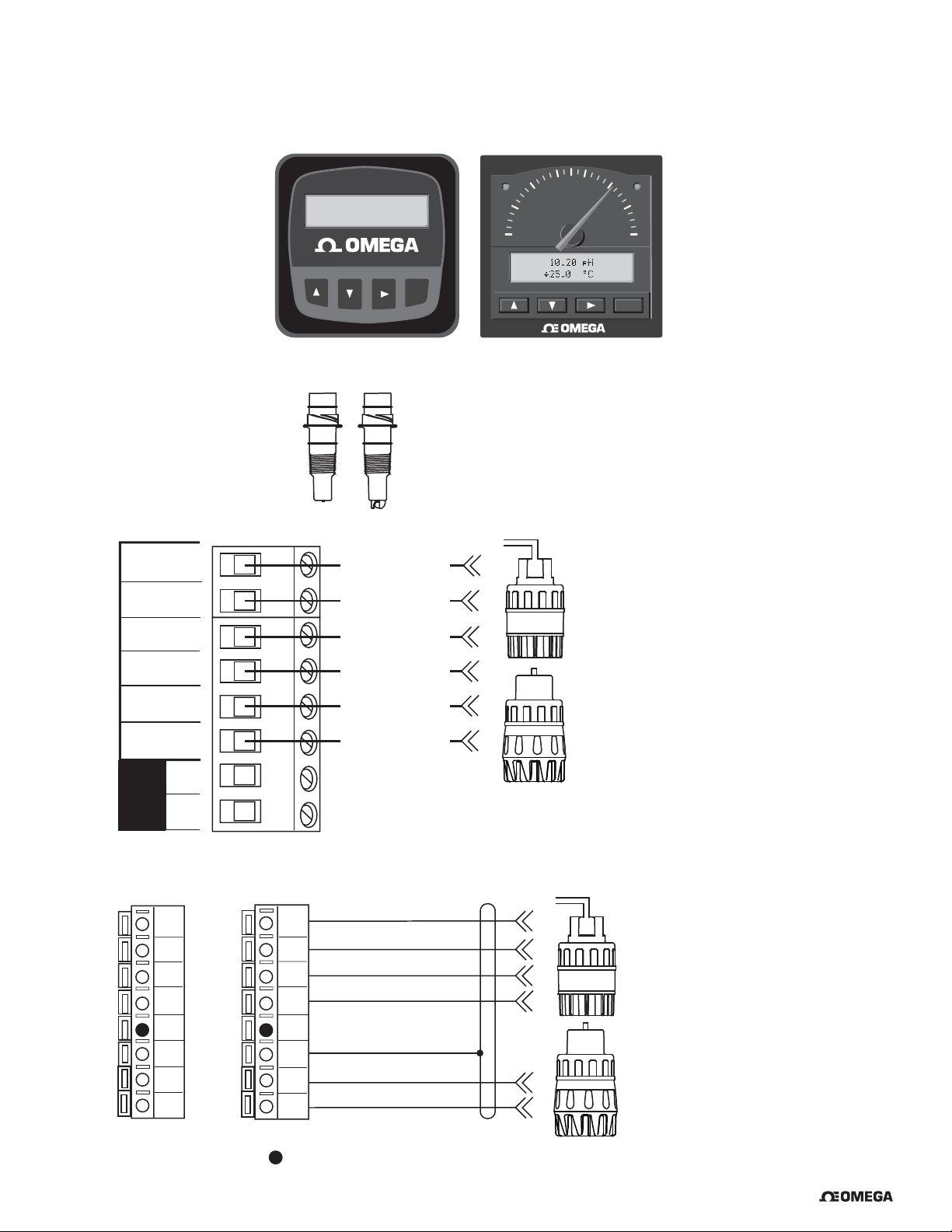

6. Wiring to Omega Instruments
Any of these electrodes can be connected to the Omega PHCN-5700 and PHTX-271 pH/ORP instruments using the
PHEH-276G (ISO) and PHEH-276Y (ISO) Preamplifi ers.
The following wiring diagrams illustrate how to properly connect the preamplifi er to the instrument terminals:
7
6
pH
10
REAY 2
12
1
Omega PHCN-5700
pH/ORP Monitor
Omega PHTX-271
pH/ORP Transmitter
pH/ORP
10.20 pH
25.0C
REAY 1
2
0
ENTER
NTR
6 PHEH-276X pH/ORP Submersible Preamplifi er
®
Page 7

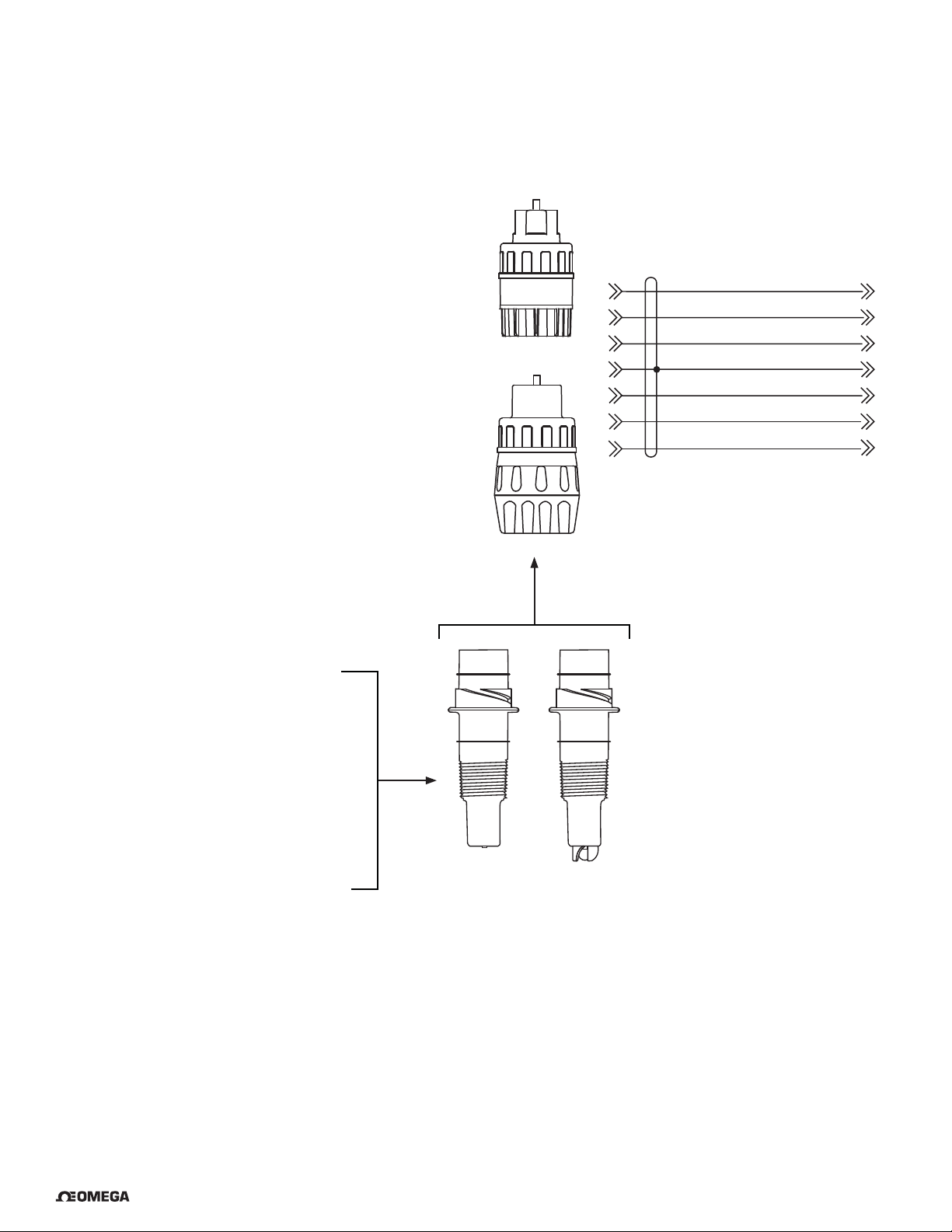

7. Wiring from PHEH-276 Preamplifi er to Other Manufacturer's Equipment
Submersible Preamplifier
PHEH-276Y
PHEH-276Y-ISO
In-Line Preamplifier
PHEH-276G
PHEH-276G-ISO
White
(
Temperature
)
Green
(
Temperature
)
Blue
(
mV Reference
)
Shield
(
Earth Ground
)
Black
(V-)
Red
(V+)
Brown
(
Active mV, pH/ORP
)
The PHEH-276Y (ISO) and PHEH-276G (ISO) Preamplifi er and electrode options may be used with third party equipment if the
equipment can process the AMPLIFIED mV signal for pH and is compatible with the temperature compensation element (3 K).
Refer to the manufacturer's manual for wiring details. Other products may use different terms to identify the function of each conductor.
Omega Combination pH Electrodes
PHE-2724 (3 KΩ, NPT)
PHE-2724-ISO (3 KΩ, ISO)
PHE-2726 (3 KΩ, NPT)
PHE-2726-ISO (3 KΩ, ISO)
PHE-2726-HF (HF Resist, 3 KΩ, NPT)
PHE-2726-HF-ISO (HF Resist, 3 KΩ, ISO)
PHE-2726-LC (Low Cond, 3 KΩ, NPT)
PHE-2726-LC-ISO (Low Cond, 3 KΩ, ISO)
Combination ORP (Redox) Electrodes
ORE-2725 (10 KΩ ID, NPT)
ORE-2725-ISO (10 KΩ ID, ISO)
®
PHEH-276X pH/ORP Submersible Preamplifi er
7
Page 8
8. Ordering Information
PHEH-276X Series pH/ORP Preamplifi er
Mfr. Part No. Description
PHEH-276Y Submersible Preamplifi er with ¾ in. NPT threads and 4.6 m (15 ft) cable
PHEH-276Y-ISO Submersible Preamplifi er with ISO 7/1 R¾ threads and 4.6 m (15 ft) cable
PHEH-276G In-line Preamplifi er with ¾ in. NPT threads and 4.6 m (15 ft) cable
PHEH-276G-ISO In-line Preamplifi er with ISO 7/1 R¾ threads and 4.6 m (15 ft) cable
pH Electrodes
PHE-2724 Flat pH Electrode, 3 KΩ RTD, ¾ in. NPT or Omega fi ttings
PHE-2724-ISO Flat pH Electrode, 3 KΩ RTD, ISO 7/1 R¾ or Omega fi ttings
PHE-2726 Bulb pH Electrode, 3 KΩ RTD, ¾ in. NPT or Omega fi ttings
PHE-2726-ISO Bulb pH Electrode, 3 KΩ RTD, ISO 7/1 R¾ or Omega fi ttings
PHE-2726-HF Bulb pH Electrode, 3 KΩ RTD, HF resistant, ¾ in. NPT or Omega fi ttings
PHE-2726-HF-ISO Bulb pH Electrode, 3 KΩ RTD, HF resistant, ISO 7/1 R¾ or Omega fi ttings
PHE-2726-LC Bulb pH Electrode, 3 KΩ RTD, Low conductivity, ¾ in. NPT or Omega fi ttings
PHE-2726-LC-ISO Bulb pH Electrode, 3 KΩ RTD, Low conduct., ISO 7/1 R¾ or Omega fi ttings
ORP (Redox) Electrodes
ORE-2725 Flat ORP Electrode, 10KΩ ID, ¾ in. NPT or Omega installation fi ttings
ORE-2725-ISO Flat ORP Electrode, 10KΩ ID, ISO 7/1 R¾ or Omega installation fi ttings
Accessories and Replacement Parts
PHE-2700-DLA 2759 Adapter Cable for use with PHEH-276X Dry lock Preamplifi er
8 PHEH-276X pH/ORP Submersible Preamplifi er
®
Page 9
®
PHEH-276X pH/ORP Submersible Preamplifi er
9
Page 10
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a
period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month
grace period to the normal one (1) year product warranty to cover handling and shipping time. This
ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modification. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specification; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components in which wear is not warranted, include but are not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However,
OMEGA neither assumes responsibility for any omissions or errors nor assumes liability for
any damages that result from the use of its products in accordance with information provided
by OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specified and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESSED OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability of
OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnification, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for
consequential, incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED
RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the
following information available BEFORE contacting
OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specific problems
relative to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords
our customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2016 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS,
OMEGA for current repair charges. Have
the following information available BEFORE
contacting OMEGA:
1. Purchase Order number to cover the COST
of the repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specific problems
relative to the product.
consult
Page 11
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
TEMPERATURE
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
Wire: Thermocouple, RTD & Thermistor
Calibrators & Ice Point References
Recorders, Controllers & Process Monitors
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
Transducers & Strain Gages
Load Cells & Pressure Gages
Displacement Transducers
Instrumentation & Accessories
FLOW/LEVEL
Rotameters, Gas Mass Flowmeters & Flow Computers
Air Velocity Indicators
Turbine/Paddlewheel Systems
Totalizers & Batch Controllers
SM
pH/CONDUCTIVITY
pH Electrodes, Testers & Accessories
Benchtop/Laboratory Meters
Controllers, Calibrators, Simulators & Pumps
Industrial pH & Conductivity Equipment
DATA ACQUISITION
Communications-Based Acquisition Systems
Data Logging Systems
Wireless Sensors, Transmitters, & Receivers
Signal Conditioners
Data Acquisition Software
HEATERS
Heating Cable
Cartridge & Strip Heaters
Immersion & Band Heaters
Flexible Heaters
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
Metering & Control Instrumentation
Refractometers
Pumps & Tubing
Air, Soil & Water Monitors
Industrial Water & Wastewater Treatment
pH, Conductivity & Dissolved Oxygen Instruments
M-5408/0816
Loading...
