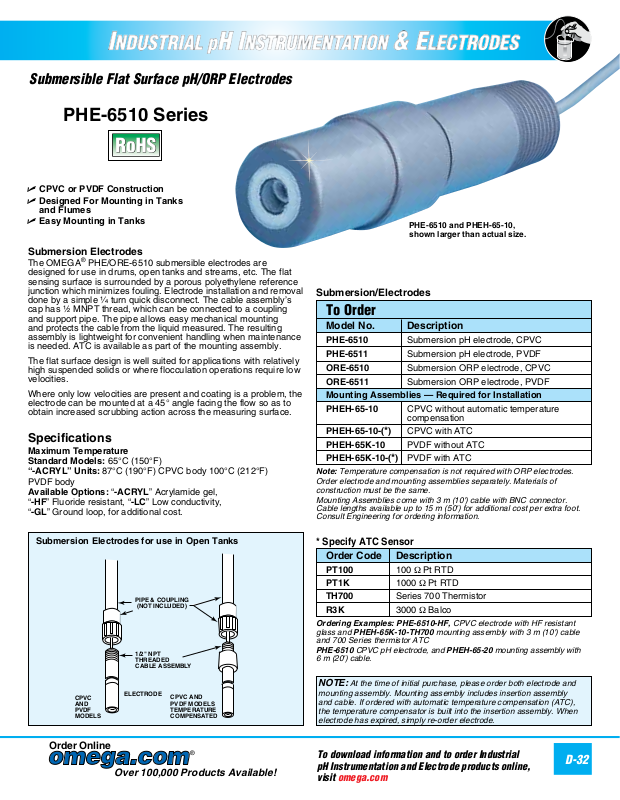

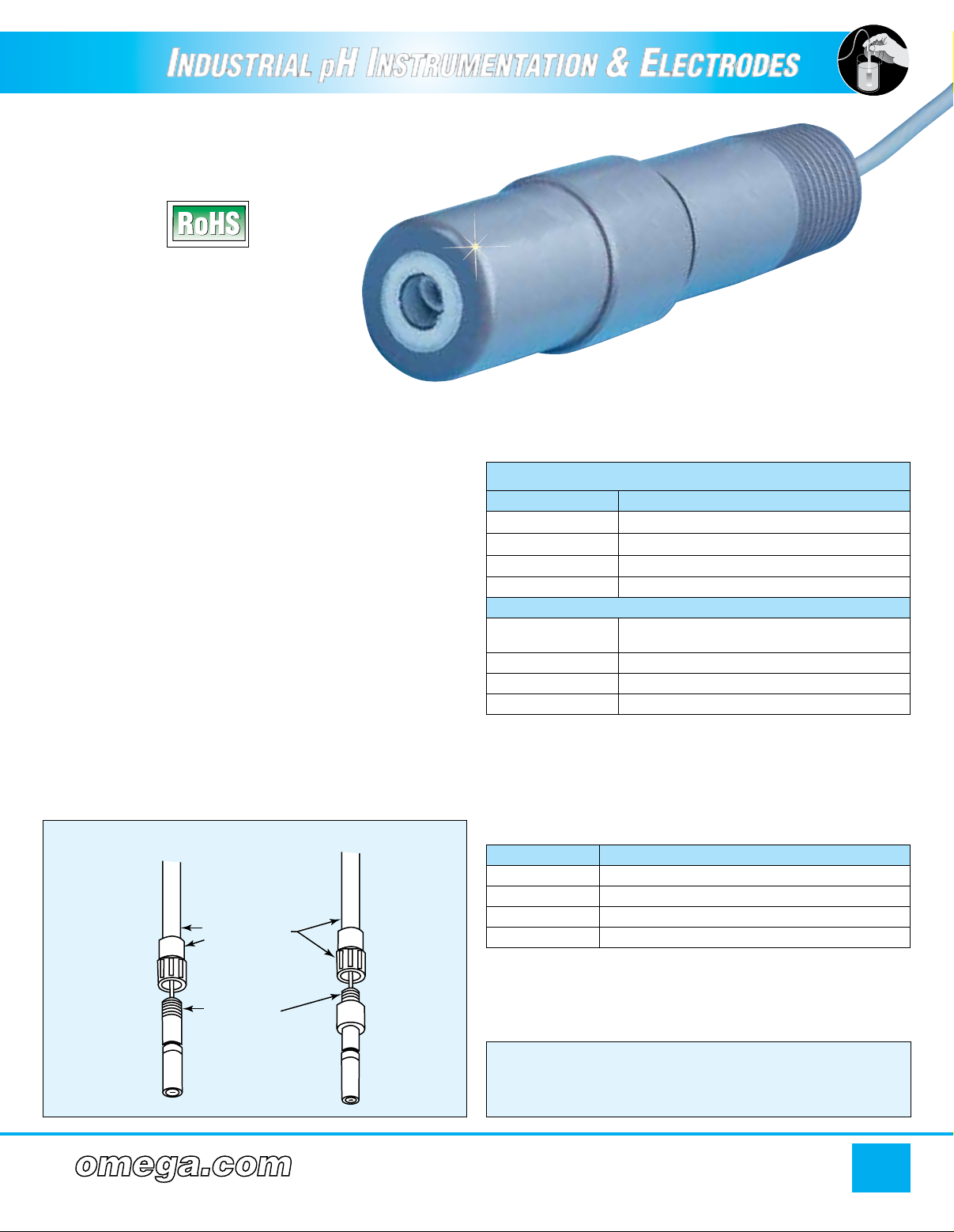

Submersible Flat Surface pH/ORP Electrodes
CABLE ASSEMB L Y
MOUNTING GLAND
WITH 3/4 NPT MALE
PIPE THREADS
TEE (N O T INCLUDED )
OPTIONAL ATC ELEMENT
P O TTED IN 1/4 NPT NIPPL E
(INCLUDES 3/4" PVC TEE)
PHE-6510 Series
U CPVC or PVDF Construction
U Designed For Mounting in Tanks
and Flumes
U Easy Mounting in Tanks
Submersion Electrodes
The OMEGA® PHE/ORE-6510 submersible electrodes are
designed for use in drums, open tanks and streams, etc. The flat
sensing surface is surrounded by a porous polyethylene reference
junction which minimizes fouling. Electrode installation and removal
done by a simple ¹⁄₄ turn quick disconnect. The cable assembly’s
cap has ¹⁄₂ MNPT thread, which can be connected to a coupling
and support pipe. The pipe allows easy mechanical mounting
and protects the cable from the liquid measured. The resulting
assembly is lightweight for convenient handling when maintenance
is needed. ATC is available as part of the mounting assembly.
The flat surface design is well suited for applications with relatively
high suspended solids or where flocculation operations require low
velocities.
Where only low velocities are present and coating is a problem, the
electrode can be mounted at a 45° angle facing the flow so as to
obtain increased scrubbing action across the measuring surface.
Specifications
M aximum Temperature
Standard Models: 65°C (150°F)
“-ACRYL” Units: 87°C (190°F) CPVC body 100°C (212°F)
PVDF body
Available Options: “-ACRYL” Acrylamide gel,
“-HF” Fluoride resistant, “-LC” Low conductivity,
“-GL” Ground loop, for additional cost.
PHE-6510 and PHEH-65-10,
shown larger than actual size.
Submersion/Electrodes
To Order
Model No. Description
PHE-6510 Submersion pH electrode, CPVC
PHE-6511 Submersion pH electrode, PVDF
ORE-6510 Submersion ORP electrode, CPVC
ORE-6511 Submersion ORP electrode, PVDF
Mounting Assemblies — Required for Installation
PHEH-65-10 CPVC without automatic temperature
PHEH-65-10-(
PHEH-65K-10 PVDF without ATC
PHEH-65K-10-(*) PVDF with ATC
Note: Temperature compensation is not required with ORP electrodes.
Order electrode and mounting assemblies separately. Materials of
construction must be the same.
Mounting Assemblies come with 3 m (10') cable with BNC connector.
Cable lengths available up to 15 m (50') for additional cost per extra foot.
Consult Engineering for ordering information.
compensation
*) CPVC with ATC
Submersion Electrodes for use in Open Tanks
PIPE & COUPLING
(N O T INCLUDED )
1/2" NPT
THREADED
CABLE ASSEMB L Y
CPVC
AND
PVDF
MODELS
ELECT R OD E
Order Online
Over 100,000 Products Available!
CPVC AND
PVDF MODELS
TEMPER A TUR E
COMPENS A TE D
®
* Specify ATC Sensor
Order Code Description
PT100 100 Ω Pt RTD
PT1K 1000 Ω Pt RTD
TH700 Series 700 Thermistor
R3K 3000 Ω Balco
Ordering Examples: PHE-6510-HF, CPVC electrode with HF resistant
glass and PHEH-65K-10-TH700 mounting assembly with 3 m (10') cable
and 700 Series thermistor ATC
PHE-6510 CPVC pH electrode, and PHEH-65-20 mounting assembly with
6 m (20') cable.
NOTE: At the time of initial purchase, please order both electrode and
mounting assembly. Mounting assembly includes insertion assembly
and cable. If ordered with automatic temperature compensation (ATC),
the temperature compensator is built into the insertion assembly. When
electrode has expired, simply re-order electrode.
