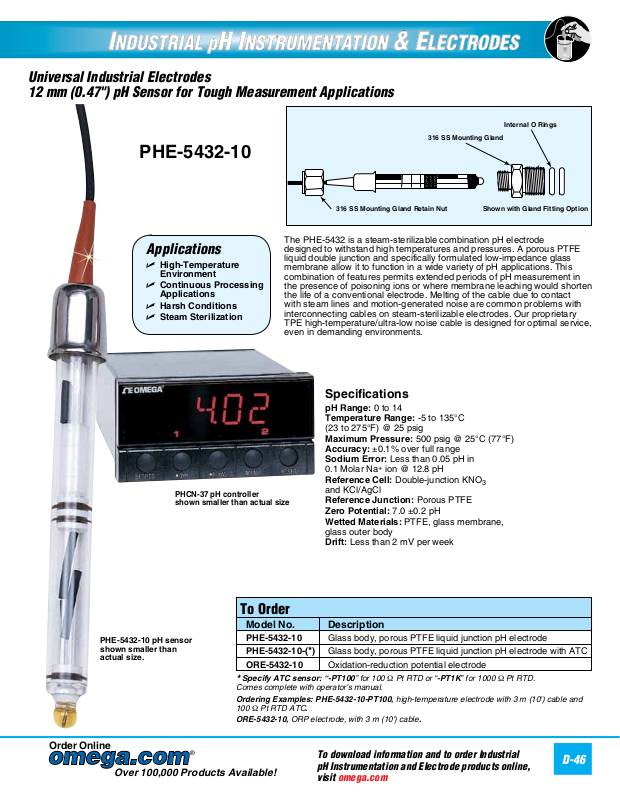

Universal Industrial Electrodes
12 mm (0.47") pH Sensor for Tough Measurement Applications
PHE-5432-10
Internal O Rings
316 SS Mounting Gland
Applications
U High-Temperature
Environment
U Continuous Processing
Applications
U Harsh Conditions
U Steam Sterilization
PHCN-37 pH controller
shown smaller than actual size
316 SS Mounting Gland Retain Nut
The PHE-5432 is a steam-sterilizable combination pH electrode
designed to withstand high temperatures and pressures. A porous PTFE
liquid double junction and specifically formulated low-impedance glass
membrane allow it to function in a wide variety of pH applications. This
combination of features permits extended periods of pH measurement in
the presence of poisoning ions or where membrane leaching would shorten
the life of a conventional electrode. Melting of the cable due to contact
with steam lines and motion-generated noise are common problems with
interconnecting cables on steam-sterilizable electrodes. Our proprietary
TPE high-temperature/ultra-low noise cable is designed for optimal service,
even in demanding environments.
Shown with Gland Fitting Option
Specifications
pH Range: 0 to 14
Temperature Range: -5 to 135°C
(23 to 275°F) @ 25 psig
Maximum Pressure: 500 psig @ 25°C (77°F)
Accuracy: ±0.1% over full range
Sodium Error: Less than 0.05 pH in
0.1 Molar Na
Reference Cell: Double-junction KNO
and KCl/AgCl
Reference Junction: Porous PTFE
Zero Potential: 7.0 ±0.2 pH
Wetted Materials: PTFE, glass membrane,
glass outer body
Drift: Less than 2 mV per week
+
ion @ 12.8 pH
3
PHE-5432-10 pH sensor
shown smaller than
actual size.
Order Online
Over 100,000 Products Available!
To Order
Model No. Description
PHE-5432-10 Glass body, porous PTFE liquid junction pH electrode
PHE-5432-10-(
ORE-5432-10 Oxidation-reduction potential electrode
Specify ATC sensor: “-PT100” for 100 Ω Pt RTD or “-PT1K” for 1000 Ω Pt RTD.
*
Comes complete with operator’s manual.
Ordering Examples: PHE-5432-10-PT100, high-temperature electrode with 3 m (10') cable and
100 Ω Pt RTD ATC.
ORE-5432-10, ORP electrode, with 3 m (10') cable.
®
*) Glass body, porous PTFE liquid junction pH electrode with ATC
