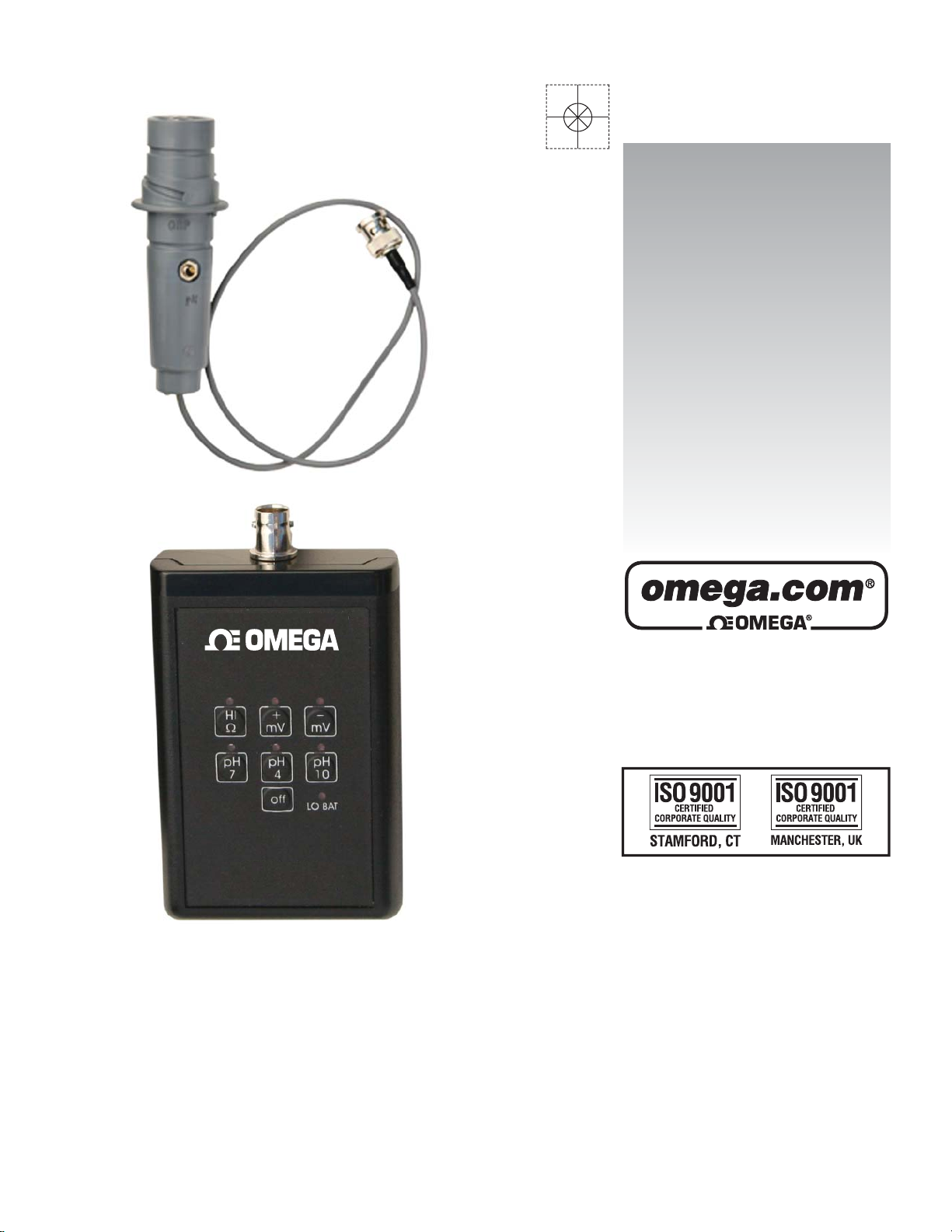

User’s Guide
Shop online at
®
MODEL PHE-2700-DLA
pH/ORP SIMULATOR
pH/ORP Simulator and
omega.com
e-mail: [email protected]
For latest product manuals:
omegamanual.info
PHE-2700-DLA
System Tester
Page 2
omega.com
®
TM
OMEGAnet® Online Service
omega.com
Internet e-mail
Servicing North America:
U.S.A.: Omega Engineering, Inc., One Omega Drive, P.O. Box 4047
ISO 9001 Certifi ed Stamford, CT 06907-0047 USA
Toll-Free: 1-800-826-6342 TEL: (203) 359-1660
FAX: (203) 359-7700 e-mail: [email protected]
Canada: 976 Bergar
Laval (Quebec), Canada H7L 5A1
Toll-Free: 1-800-826-6342 TEL: (514) 856-6928
FAX: (514) 856-6886 e-mail: [email protected]
For immediate technical or application assistance:
U.S.A. and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA
Customer Service: 1-800-622-2378 / 1-800-622-BEST
Engineering Service: 1-800-872-9436 / 1-800-USA-WHEN
Mexico: En Español: (001) 203-359-7803 FAX: (001) 203-359-7807
[email protected] e-mail: [email protected]
®
®
®
Servicing Europe:
Benelux: Managed by the United Kingdom Offi ce
Czech Republic: Frystatska 184
733 01 Karviná, Czech Republic
France: Managed by the United Kingdom Offi ce
Toll-Free: 0800 466 342 TEL: +33 (0) 161 37 29 00
FAX: +33 (0) 130 57 54 27 e-mail: [email protected]
Germany/Austria: Daimlerstrasse 26
D-75392 Deckenpfronn, Germany
Toll-Free: 0 800 6397678 TEL: +49 (0) 7059 9398-0
FAX: +49 (0) 7056 9398-29 e-mail: [email protected]
United Kingdom: OMEGA Engineering Ltd.
ISO 9001 Certifi ed One Omega Drive, River Bend Technology Centre, Northbank
Irlam, Manchester M44 5BD England
Toll-Free: 0800-488-488 TEL: +44 (0)161 777-6611
It is the policy of OMEGA Engineering Inc. to comply with all worldwide safety and EMC/EMI regulations that apply.
OMEGA is constantly pursuing certifi cation of its products to the European New Approach Directives.
OMEGA will add the CE mark to every appropriate device upon certifi cation.
The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it
contains, and reserves the right to alter specifi cations without notice.
WARNING: These products are not designed for use in, and should not be used for, human applications.
Page 3
Contents
+177 mV
0 mV
-177 mV
-700 mV
+700 mV
1. Description ..............................3 4. Troubleshooting .....................4
2. Features ..................................3 5. System Response Chart ........4
3. Specifi cations .........................3 6. Ordering Information ............. 10
1. Description
The Omega PHE-2700-DLA pH/ORP Simulator is a battery-powered millivolt generator that simulates pH values of 4, 7 and 10,
plus ORP values of ± 700 mV. This device is useful as a troubleshooting aid and for general verifi cation of system operation.
It is not a substitute for periodic system calibration with pH buffers or test solutions. Accessory adapter cables enable the PHE2700-DLA to connect directly to PHTX-275Y, PHEH-275G(ISO), PHEH-275Y(ISO) pH/ORP Sensor Electronics or PHEH-276Y(ISO),
PHEH-276G(ISO) pH/ORP Preamplifi er. The adapters include a selector switch for pH or ORP simulation.
The switch triggers automatic sensor-recognition software in Omega pH/ORP instrumentation.

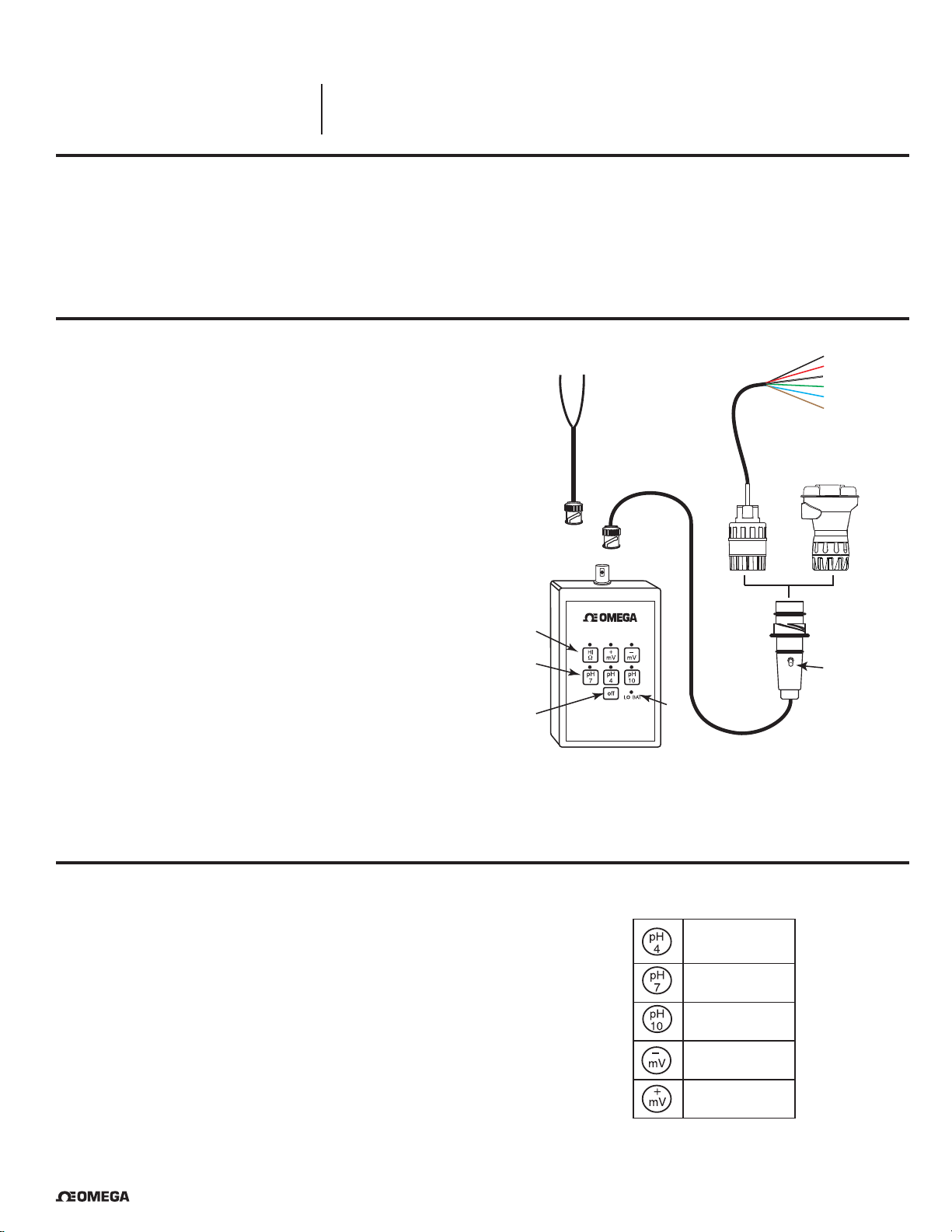

2. Features
A) Power OFF Button.
B) Output simulation buttons and indicators.
Simulate pH and ORP output at fi ve fi xed values:
pH 4, pH 7, pH 10, –700 mV and +700 mV.
Pressing one of these buttons turns the PHE-2700-DLA on.
C) Low battery indicator.
D) High switch:
• Adds 1000 M resistance in series with output.
• Simulates high impedance of pH electrodes.
• Used to verify proper preamplifi er operation.
E) Adapter cable:
For use with the PHTX-275Y, PHEH-275G(ISO),
PHEH-275Y(ISO), PHEH-276Y(ISO), or PHEH-276G(ISO).
F) Bypass adapter cable.
G) Mode selector switch:
D
B
Trigger automatic sensor recognition software in
Omega pH/ORP instrumentation.
A
• Top = 1K for a Omega DPU-90 or DPU-90P instrument
needing PT1000 temperature compensation input.
• Middle = 10K for ORP simulation.
• Bottom = 3K for PHEH-276Y(ISO) or PHEH-276G(ISO) 3K temperature compensation input.
H) PHTX-275Y, PHEH-275G(ISO), or PHEH-275Y(ISO) Sensor Electronics.
I) PHEH-276Y(ISO) or PHEH-276G(ISO) Preamplifi er.
F
®
MODEL PHE-2700-DLA
pH/ORP SIMULATOR
V - (Black)
V + (Red)
T - (White)
T + (Green)
Iso. Gnd (Blue)
mV Input (Brown)
E
IH
1K
10K
ORP
3K
G
C
3. Specifi cations
mV output accuracy .............. ± 0.6 mV (± 0.01 pH)
pH system temperature simulation:
w/PHTX-275Y(ISO), PHEH-276G (ISO) adapter.....1.1 K = 25 ºC (± 4 ºC)
w/PHEH-276Y(ISO) adapter .......................................3 K = 25 ºC (± 4 ºC)
High resistor value ............ 1000 M
Battery .................................. 9V alkaline
Life: 400 hours
Dimensions ........................... 100 x 75 x 23 mm
(3.94 x 2.95 x 0.91 in.)
Weight .................................. 120 grams (5 oz.)
®
OMEGA PHE-2700-DLA pH/ORP Simulator and System Tester
mV Value
3
Page 4
4. Troubleshooting PHEH-276Y(ISO) and
PHEH-276G(ISO) Preamplifi er
A
(mV input)
Brown
Blue
Silver (earth ground)

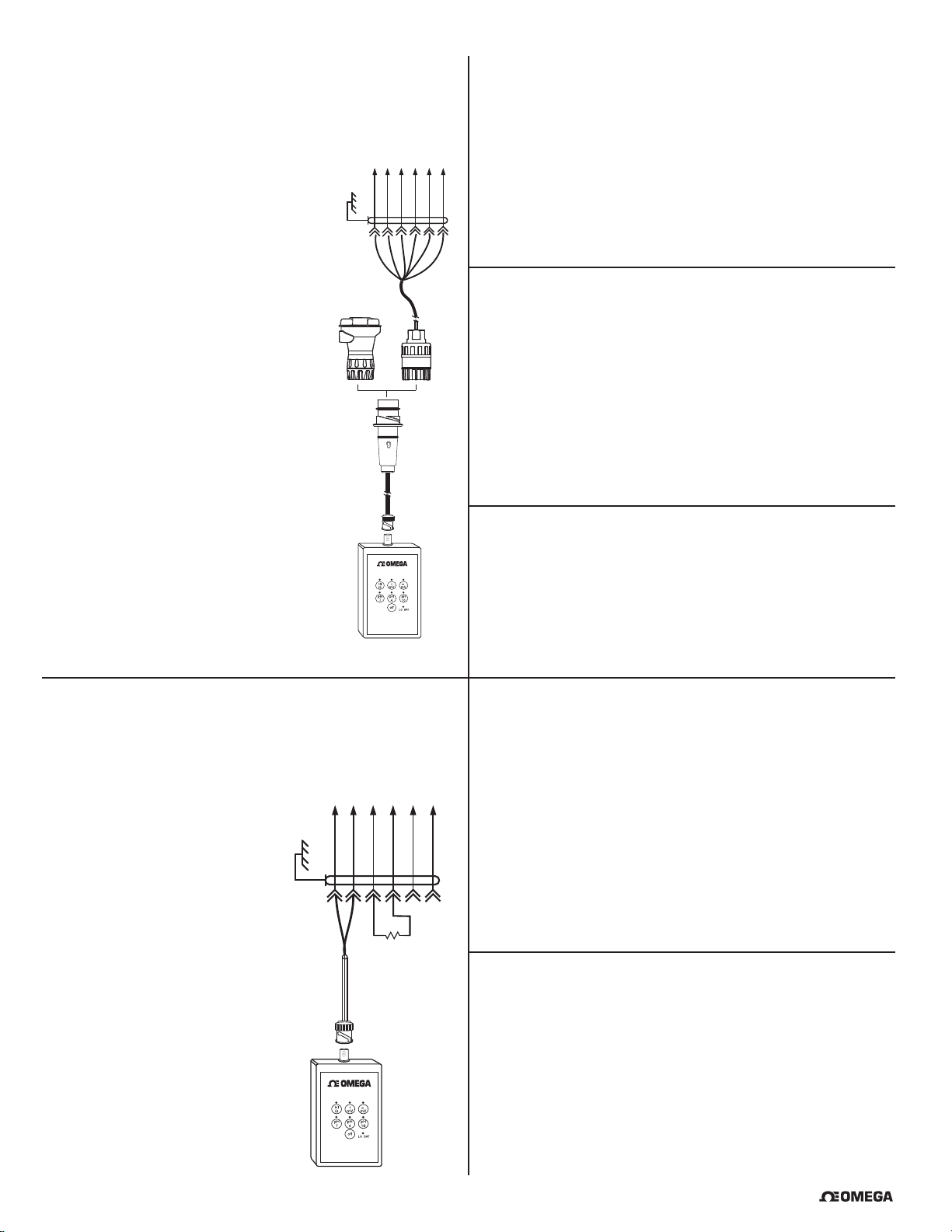

Connecting the PHE-2700-DLA output to
the adapter cable then connecting to the
PHEH-276Y(ISO) and PHEH-276G(ISO)
Preamplifi er simulates the output of the
pH/ORP electrode.
This confi guration is used to verify general
system operation. Every element of the
system is tested except the electrode.
1K
ORP
3K
(iso. ground)
(T+)
Green
White
10K
Step 1: Routine maintenance and calibration using buffers
• The most common problem in pH or ORP systems are related
to electrode depletion or physical obstruction and fouling.
• Perform routine electrode maintenance, including cleaning
and inspection of the electrode, then calibrate the system
(V-)
(V+)
(T-)
using buffer solutions. See the electrode and
PHEH-276Y(ISO) and PHEH-276G(ISO) Preamplifi er
manuals for more information.
Red
Black
Does the meter respond to buffers correctly?
Yes: Problem resolved by cleaning/calibration.
No: Go to next step.
Step 2: Electrode: Connect PHE-2700-DLA as in "A"
This step requires the adapter cable.
• Connect the PHE-2700-DLA to the appropriate adapter cable,
then insert adapter into PHEH-276Y(ISO) and
PHEH-276G(ISO) preamplifi er.
• Slide the Mode selector switch to the proper position.
• Press output simulation buttons and then HI button.
(The HI button must be pressed after each output button.)
• See Section 5: Response Chart for proper display
Does the meter read valid temp and pH/ORP?
Yes: The electrode is at fault. Replace the electrode.
No: Go to next step.
• Press any output simulation button to
®
turn the PHE-2700-DLA on.
• Press OFF button to turn the
PHE-2700-DLA off.
MODEL PHE-2700-DLA
pH/ORP SIMULATOR
Connecting the PHE-2700-DLA directly to the meter with the
Bypass cable simulates the output of the PHEH-276Y(ISO) and
PHEH-276G(ISO) preamplifi er.
(mV input)
(Iso. Gnd)
(T+)
(V-)
(V+)
(T-)
B
Brown
Blue
Green
White
Red
Black
Silver (earth ground)
&HQWHU
• Press any output simulation button
to turn the PHE-2700-DLA on.
• Press OFF button to turn the
PHE-2700-DLA off.
conductor
(clear)
MODEL PHE-2700-DLA
pH/ORP SIMULATOR
3 Kȍ#&
Shield
®
Step 3: Verify meter calibration
• Recalibrate the temperature, standard and slope in meter,
using PHE-2700-DLA as input.
• Press output simulation buttons.
See Section 5: Response chart for proper display
Does the meter display valid pH or ORP?
Yes: Problem resolved by meter calibration.
No: Go to next step.
Step 4: Check the meter and preamplifi er:
Connect PHE-2700-DLA as in "B"
• Connect the PHE-2700-DLA directly into the meter using the
bypass adapter cable.
• Connect a 3 K resistor (not supplied) to the temp input of
the meter.
• Press output simulation buttons.
Does the meter display a valid temperature (20 ºC to 30 ºC)
and pH/ORP?
Yes: If there are no cable junctions from the preamplifi er to the
meter, replace the preamplifi er. If there are junctions, go to
next step.
No: Problem is in meter. Repair or replace the meter.
Step 5: Check interconnecting cable and junctions
• Connect PHE-2700-DLA and bypass cable at any J-Box or
cable splice between the preamplifi er and the meter.
• Press output simulation buttons.
See Section 5: Response chart for proper display
Does the meter read valid temp and pH/ORP?
Yes: Problem is preamplifi er or cable from preamplifi er to
junction.
No: Problem is in cable. Check all terminals and splices.
Replace cable if necessary.
4
OMEGA PHE-2700-DLA pH/ORP Simulator and System Tester
®
Page 5

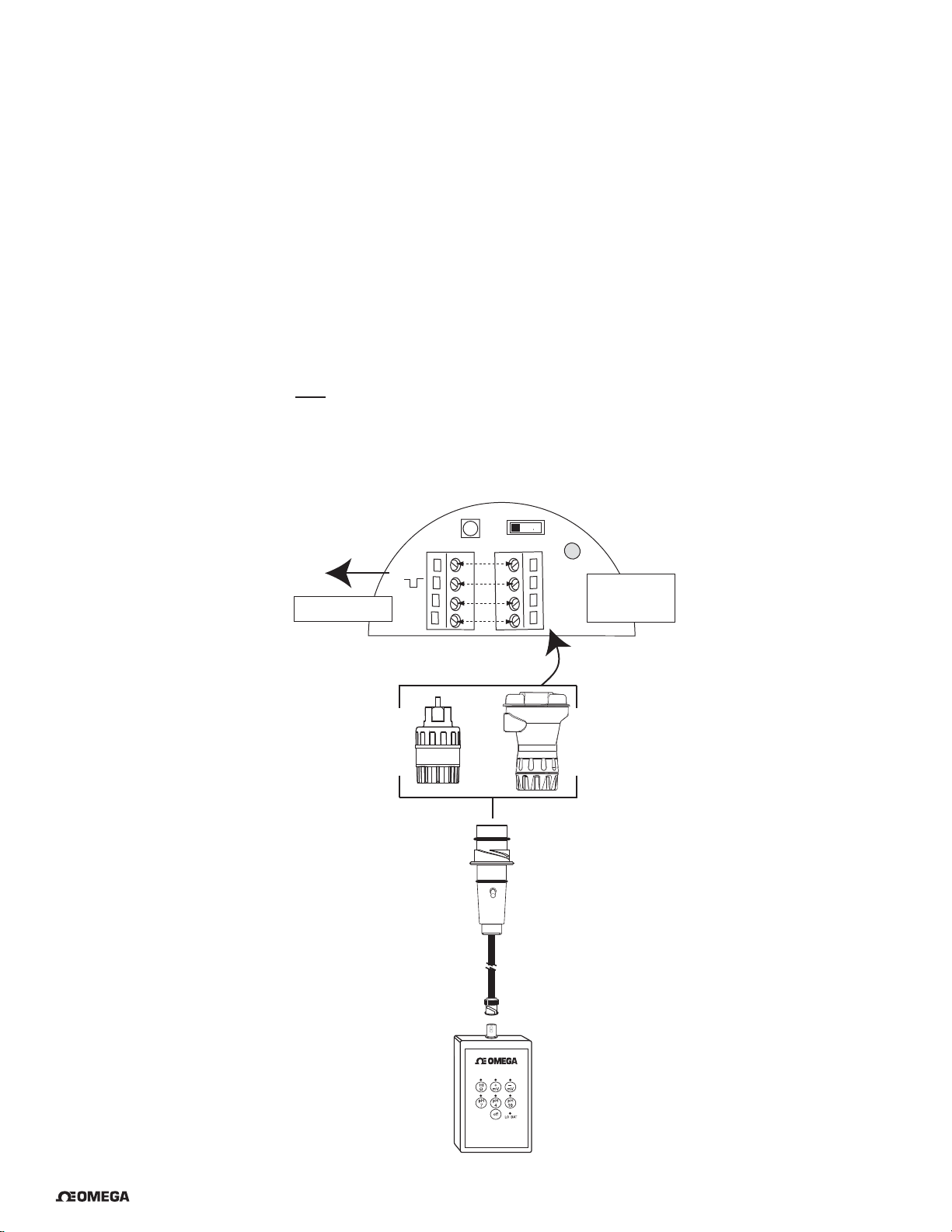

4. Troubleshooting PHTX-275Y, PHEH-275G(ISO), PHEH-275Y(ISO) pH/ORP Sensor Electronics
SW2
Run
Cal
SW1
D1
+
S
-
BLK
RED
WHT
SHLD
Input from
PHTX-275Y,
PHEH-275G(ISO),
PHEH-275Y(ISO)
Output to
external equipment
Before using the PHE-2700-DLA:
• The most common cause of pH/ORP system problems is electrode depletion.
• Perform routine electrode maintenance, including cleaning and inspection of the electrode, then calibrate the system.
• See the electrode and PHTX-275Y, PHEH-275G(ISO), PHEH-275Y(ISO) Sensor manuals for detailed information.
If the problem persists, or to verify general system operation:
This test procedure requires the adapter cable.
Connecting the PHE-2700-DLA output to the adapter cable then connecting the adapter into the PHTX-275Y, PHEH-275G(ISO),
PHEH-275Y(ISO) sensor electronics simulates the output of the pH/ORP electrode.
• Always use the HI button with the adapter cable.
• Connect the PHE-2700-DLA to the adapter cable, then insert adapter into PHTX-275Y, PHEH-275G(ISO), PHEH-275Y(ISO)
electronics.
• Monitor the PHTX-275Y, PHEH-275G(ISO), PHEH-275Y(ISO) output using current monitoring device.
• Slide the PHE-2700-DLA Mode selector switch to the proper position (pH or ORP).
• Press output simulation buttons and then HI button.
(The HI button must be pressed after each output button.)
See Section 5: Response Chart for proper display.
Does the meter read a valid temp and pH/ORP?
Yes: The system is working fi ne or there is a problem with the electrode. Replace the electrode if necessary.
No: Problem is in PHTX-275Y, PHEH-275G(ISO), PHEH-275Y(ISO) Sensor Electronics. Replace the Sensor Electronics.
• Press any output simulation button to turn the
PHE-2700-DLA on.
• Press OFF button to turn the PHE-2700-DLA off.
®
OMEGA PHE-2700-DLA pH/ORP Simulator and System Tester
1K
ORP
10K
3K
MODEL PHE-2700-DLA
pH/ORP SIMULATOR
®
5
Page 6
5. pH and ORP System Response Chart
Current output for PHTX-275Y, PHEH-275G(ISO), PHEH-275Y(ISO)
PHE-2700-DLA Button pH System Response ORP System Response*
–700 mV Current output: 20 mA (max. output)
10 pH (–177 mV)
7 pH (0 mV)
4 pH (+177 mV)
+700 mV Current output: 4 mA (min. output)
* 4 to 20 mA output values assume factory full span settings: pH: 0 to 14 (+414 mv to –414 mV)
ORP: –1000 to +2000 mV
Current output: 15.4 mA
All pH displays: 10 pH
Current output: 12 mA
All pH displays: 7 pH
Current output: 8.6 mA
All pH displays: 4 pH
Current output: 5.6 mA
All ORP displays: –700 mV
Current output: 8.4 mA
All ORP displays: –177 mV
Current output: 9.3 mA
All ORP displays: 0 mV
Current output: 10.3 mA
All ORP displays: +177 mV
Current output: 13.1 mA
All ORP displays: +700 mV
6. Ordering Information
Mfr. Part No. Description
PHE-2700-DLA pH/ORP Simulator/System Tester (includes bypass adapter cable)
6
OMEGA PHE-2700-DLA pH/ORP Simulator and System Tester
®
Page 7
WARRANTY/DISCLAIMER
OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship
for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one
(1) month grace period to the normal one (1) year product warranty to cover handling and
shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
If the unit malfunctions, it must be returned to the factory for evaluation. OMEGA’s Customer Service
Department will issue an Authorized Return (AR) number immediately upon phone or written request.
Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no
charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser,
including but not limited to mishandling, improper interfacing, operation outside of design limits,
improper repair, or unauthorized modifi cation. This WARRANTY is VOID if the unit shows evidence of
having been tampered with or shows evidence of having been damaged as a result of excessive corrosion;
or current, heat, moisture or vibration; improper specifi cation; misapplication; misuse or other operating
conditions outside of OMEGA’s control. Components which wear are not warranted, including but not
limited to contact points, fuses, and triacs.
OMEGA is pleased to offer suggestions on the use of its various products. However, OMEGA
neither assumes responsibility for any omissions or errors nor assumes liability for any
damages that result from the use of its products in accordance with information provided by
OMEGA, either verbal or written. OMEGA warrants only that the parts manufactured by the
company will be as specifi ed and free of defects. OMEGA MAKES NO OTHER WARRANTIES OR
REPRESENTATIONS OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, EXCEPT THAT OF
TITLE, AND ALL IMPLIED WARRANTIES INCLUDING ANY WARRANTY OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIMITATION OF
LIABILITY: The remedies of purchaser set forth herein are exclusive, and the total liability
of OMEGA with respect to this order, whether based on contract, warranty, negligence,
indemnifi cation, strict liability or otherwise, shall not exceed the purchase price of the
component upon which liability is based. In no event shall OMEGA be liable for consequential,
incidental or special damages.
CONDITIONS: Equipment sold by OMEGA is not intended to be used, nor shall it be used: (1) as a “Basic
Component” under 10 CFR 21 (NRC), used in or with any nuclear installation or activity; or (2) in medical
applications or used on humans. Should any Product(s) be used in or with any nuclear installation or
activity, medical application, used on humans, or misused in any way, OMEGA assumes no responsibility
as set forth in our basic WARRANTY/DISCLAIMER language, and, additionally, purchaser will indemnify
OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the
Product(s) in such a manner.
RETURN REQUESTS/INQUIRIES
Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
BEFORE RETURNING ANY PRODUCT(S) TO OMEGA, PURCHASER MUST OBTAIN AN AUTHORIZED
RETURN (AR) NUMBER FROM OMEGA’S CUSTOMER SERVICE DEPARTMENT (IN ORDER TO AVOID
PROCESSING DELAYS). The assigned AR number should then be marked on the outside of the return
package and on any correspondence.
The purchaser is responsible for shipping charges, freight, insurance and proper packaging to prevent
breakage in transit.
FOR WARRANTY RETURNS, please have the following
information available BEFORE contacting OMEGA:
1. Purchase Order number under which the product
was PURCHASED,
2. Model and serial number of the product under
warranty, and
3. Repair instructions and/or specifi c problems relative
to the product.
OMEGA’s policy is to make running changes, not model changes, whenever an improvement is possible. This affords our
customers the latest in technology and engineering.
OMEGA is a registered trademark of OMEGA ENGINEERING, INC.
© Copyright 2012 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied,
reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the
prior written consent of OMEGA ENGINEERING, INC.
FOR NON-WARRANTY REPAIRS, consult OMEGA for
current repair charges. Have the following information
available BEFORE contacting OMEGA:
1. Purchase Order number to cover the COST of the
repair,
2. Model and serial number of the product, and
3. Repair instructions and/or specifi c problems relative
to the product.
Page 8
Where Do I Find Everything I Need for
Process Measurement and Control?
OMEGA…Of Course!
Shop online at omega.com
SM
TEMPERATURE
Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies
Wire: Thermocouple, RTD & Thermistor
Calibrators & Ice Point References
Recorders, Controllers & Process Monitors
Infrared Pyrometers
PRESSURE, STRAIN AND FORCE
Transducers & Strain Gages
Load Cells & Pressure Gages
Displacement Transducers
Instrumentation & Accessories
FLOW/LEVEL
Rotameters, Gas Mass Flowmeters & Flow Computers
Air Velocity Indicators
Turbine/Paddlewheel Systems
Totalizers & Batch Controllers
pH/CONDUCTIVITY
pH Electrodes, Testers & Accessories
Benchtop/Laboratory Meters
Controllers, Calibrators, Simulators & Pumps
Industrial pH & Conductivity Equipment
DATA ACQUISITION
Data Acquisition & Engineering Software
Communications-Based Acquisition Systems
Plug-in Cards for Apple, IBM & Compatibles
Datalogging Systems
Recorders, Printers & Plotters
HEATERS
Heating Cable
Cartridge & Strip Heaters
Immersion & Band Heaters
Flexible Heaters
Laboratory Heaters
ENVIRONMENTAL
MONITORING AND CONTROL
Metering & Control Instrumentation
Refractometers
Pumps & Tubing
Air, Soil & Water Monitors
Industrial Water & Wastewater Treatment
pH, Conductivity & Dissolved Oxygen Instruments
6-2759.090-OM (A-08/14) M-5429/0814
Loading...
