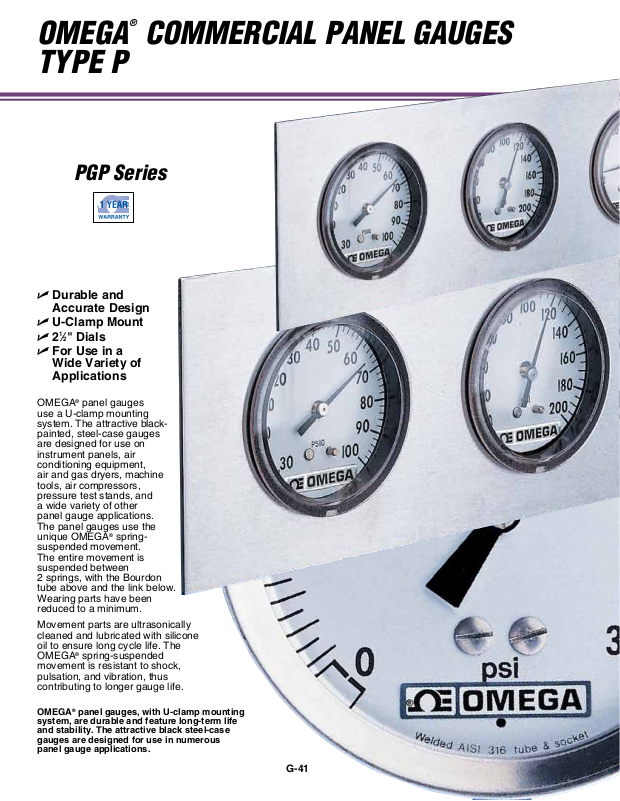

OMEGA® COMMERCIAL PANEL GAUGES
TYPE P
PGP Series
U Durable and
Accurate Design
U U-Clamp Mount
1
⁄2" Dials
U 2
U For Use in a
Wide Variety of
Applications

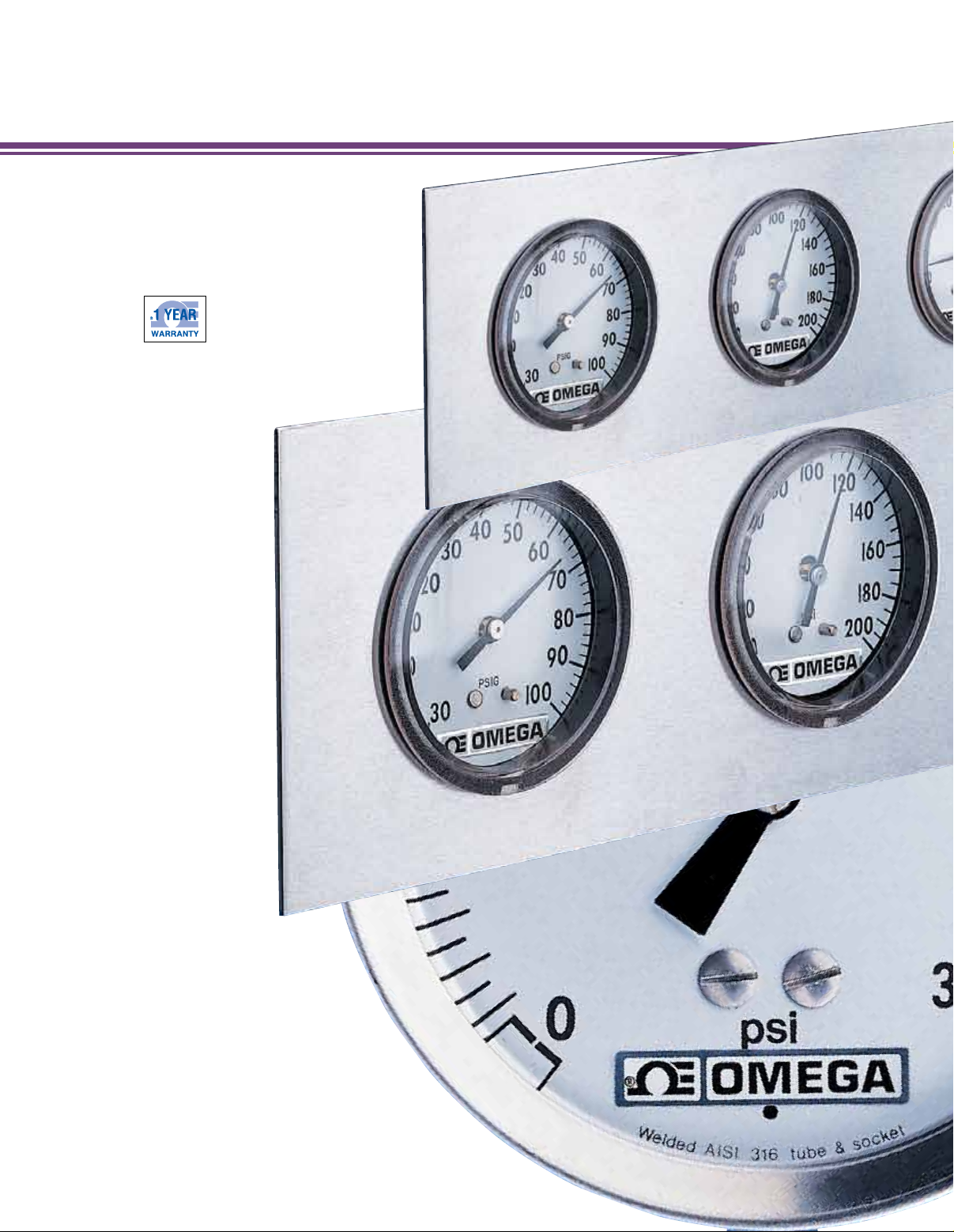

OMEGA® panel gauges
use a U-clamp mounting
system. The attractive blackpainted, steel-case gauges
are designed for use on
instrument panels, air
conditioning equipment,
air and gas dryers, machine
tools, air compressors,
pressure test stands, and
a wide variety of other
panel gauge applications.
The panel gauges use the
unique OMEGA® springsuspended movement.
The entire movement is
suspended between
2 springs, with the Bourdon
tube above and the link below.
Wearing parts have been
reduced to a minimum.
Movement parts are ultrasonically
cleaned and lubricated with silicone
oil to ensure long cycle life. The
OMEGA® spring-suspended
movement is resistant to shock,
pulsation, and vibration, thus
contributing to longer gauge life.
OMEGA® panel gauges, with U-clamp mounting
system, are durable and feature long-term life
and stability. The attractive black steel-case
gauges are designed for use in numerous
panel gauge applications.
G-41
Page 2

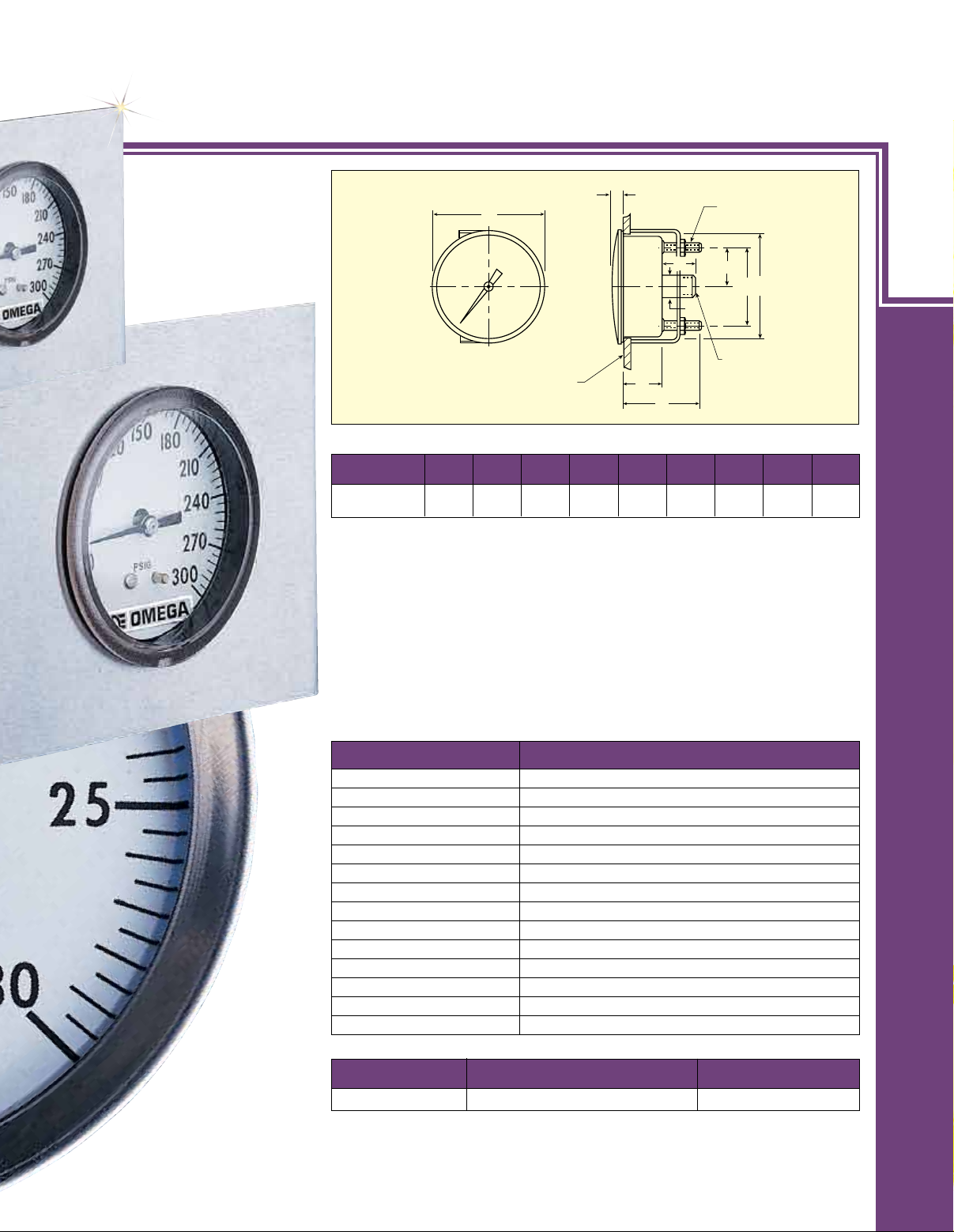

P-PGP Fig. 1
HOW TO ORDER PANEL-MOUNT GAUGES
A
PRESSURE
GAUGES
E
10-32 STUDS
H
F
CG
J
G
PGP Panel
Mount
CUSTOMER'S PANEL
B
D
1/4 NPT
Dimensions: mm (inch)
DIAL SIZE A B C D E F G H J
63.5 73 25 68 51 7 25 51 22 14 sq
1
(2
SPECIFICATIONS
Case: Painted steel
Window: Polycarbonate plastic
Bourdon Tube: Bronze
Connection: Back
Fitting:
Dial Size: 2
Mounting: “U” bracket
⁄2) (27⁄8) (1) (211⁄16) (2) (7⁄32) (1) (2) (7⁄8) (9⁄16 ) sq
Warning: To prevent misapplication,
all gauge components should be
chosen with an eye to the media
and ambient operating conditions
to which they will be subjected.
1
⁄4 NPT brass
1
⁄2" Dia.
Improper application can be
detrimental to the gauge, causing
failure and possible personal injury
and property damage.
Ranges: Vacuum through 400 psi
Accuracy: 3-2-3%
3% first 10%, 2% middle 80%, 3% last 10%
Temperature: 66°C (150°F) maximum
RANGE CODE RANGE
30V 30/0 inHg vac
30V/15 30 inHg vac to 15 psi
30V/30 30 inHg vac to 30 psi
30V/60 30 inHg vac to 60 psi
30V/100 30 inHg vac to 100 psi
30V/300 30 inHg vac to 300 psi
15 0 to 15 psi
30 0 to 30 psi
60 0 to 60 psi
100 0 to 100 psi
160 0 to 160 psi
200 0 to 200 psi
300 0 to 300 psi
400 0 to 400 psi
DIAL SIZE MODEL NO. CONNECTION
1
⁄2" PGP-25B-[*] Back
2
Insert range code from table above.
*
Ordering Example: PGP-25B-100, pressure gauge, commercial panel type, U-clamp mount,
1
2
" dial, back connection, 0 to 100 psi range.
⁄
2
G-42
