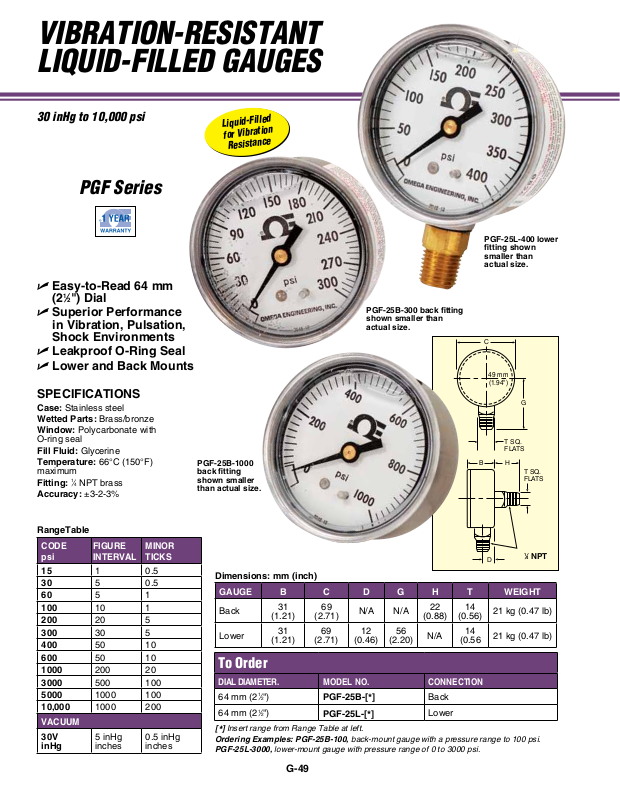

VIBRATION-RESISTANT
P-PGF Fig.1
LIQUID-FILLED GAUGES
30 inHg to 10,000 psi
PGF Series
U Easy-to-Read 64 mm
(21⁄2") Dial
U Superior Performance
in Vibration, Pulsation,
Shock Environments
U Leakproof O-Ring Seal
U Lower and Back Mounts
SPECIFICATIONS
Case: Stainless steel
Wetted Parts: Brass/bronze
Window: Polycarbonate with
O-ring seal
Fill Fluid: Glycerine
Temperature: 66°C (150°F)
maximum
Fitting:
Accuracy: ±3-2-3%
1
⁄4 NPT brass
Liquid-Filled
for Vibration
Resistance
PGF-25B-1000
back fitting
shown smaller
than actual size.
PGF-25B-300 back fitting
shown smaller than
actual size.
PGF-25L-400 lower
fitting shown
smaller than
actual size.
C
49 mm
(1.94")
G
T SQ.
FLATS
B
H
T SQ.
FLATS
RangeTable
CODE
psi
15
30
60
100
200
300
400
600
1000
3000
5000
10,000
VACUUM
30V
inHg
FIGURE
INTERVAL
1 0.5
5 0.5
5 1
10 1
20 5
30 5
50 10
50 10
200 20
500 100
1000 100
1000 200
5 inHg
inches
MINOR
TICKS
0.5 inHg
inches
1
⁄4 NPT
Dimensions: mm (inch)
GAUGE
Back
Lower
B C D G H T WEIGHT
31
(1.21)
31
(1.21)
69
(2.71)
69
(2.71)
N/A N/A
12
(0.46)
(2.20)
56
22
(0.88)
N/A
14
(0.56)
14
(0.56
D
21 kg (0.47 lb)
21 kg (0.47 lb)
To Order
DIAL DIAMETER. MODEL NO. CONNECTION
64 mm (21⁄2")
1
64 mm (2
[*] Insert range from Range Table at left.
Ordering Examples: PGF-25B-100, back-mount gauge with a pressure range to 100 psi.
PGF-25L-3000, lower-mount gauge with pressure range of 0 to 3000 psi.
⁄2")
PGF-25B-[
PGF-25L-[
]
*
]
*
G-49
