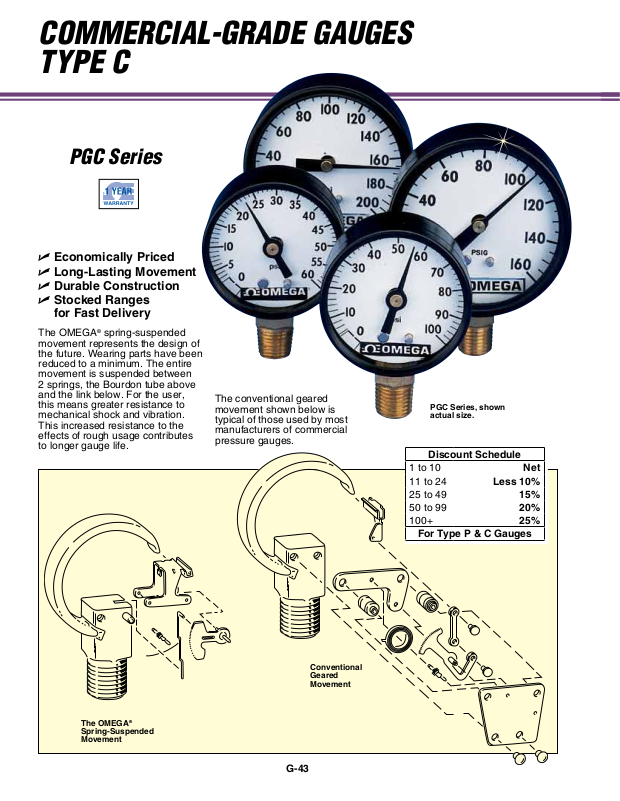

P-PGC Movement Fig. 1
COMMERCIAL-GRADE GAUGES
TYPE C
PGC Series
U Economically Priced
U Long-Lasting Movement
U Durable Construction
U Stocked Ranges
for Fast Delivery

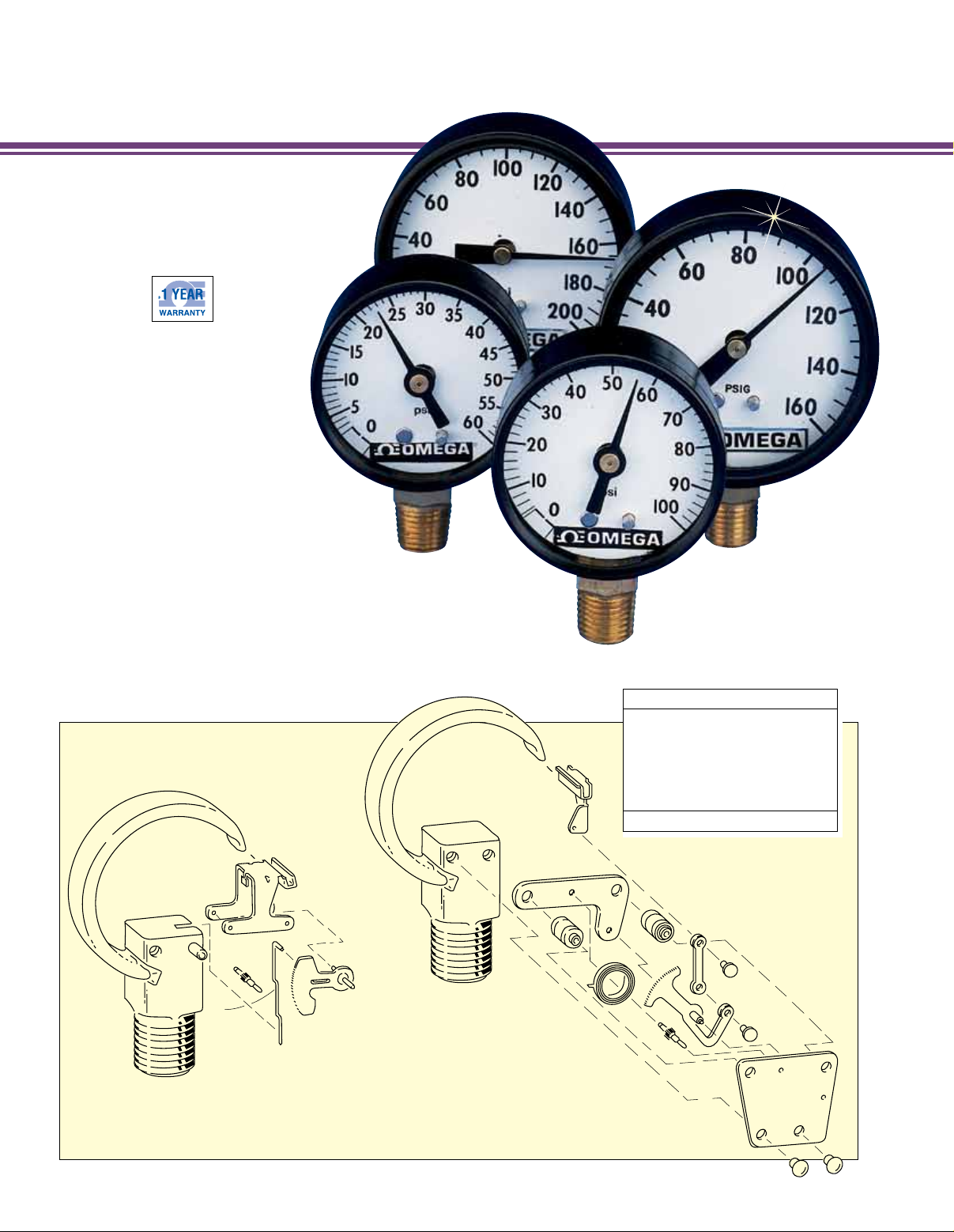

The OMEGA
movement represents the design of
the future. Wearing parts have been
reduced to a minimum. The entire
movement is suspended between
2 springs, the Bourdon tube above
and the link below. For the user,
this means greater resistance to
mechanical shock and vibration.
This increased resistance to the
effects of rough usage contributes
to longer gauge life.
®
spring-suspended
The conventional geared
movement shown below is
typical of those used by most
manufacturers of commercial
pressure gauges.
1 to 10
11 to 24
25 to 49
50 to 99
100+
For Type P & C Gauges
PGC Series, shown
actual size.
Discount Schedule
Net
Less 10%
15%
20%
25%
The OMEGA®
Spring-Suspended
Movement
Conventional
Geared
Movement
G-43
Page 2
HOW TO ORDER COMMERCIAL

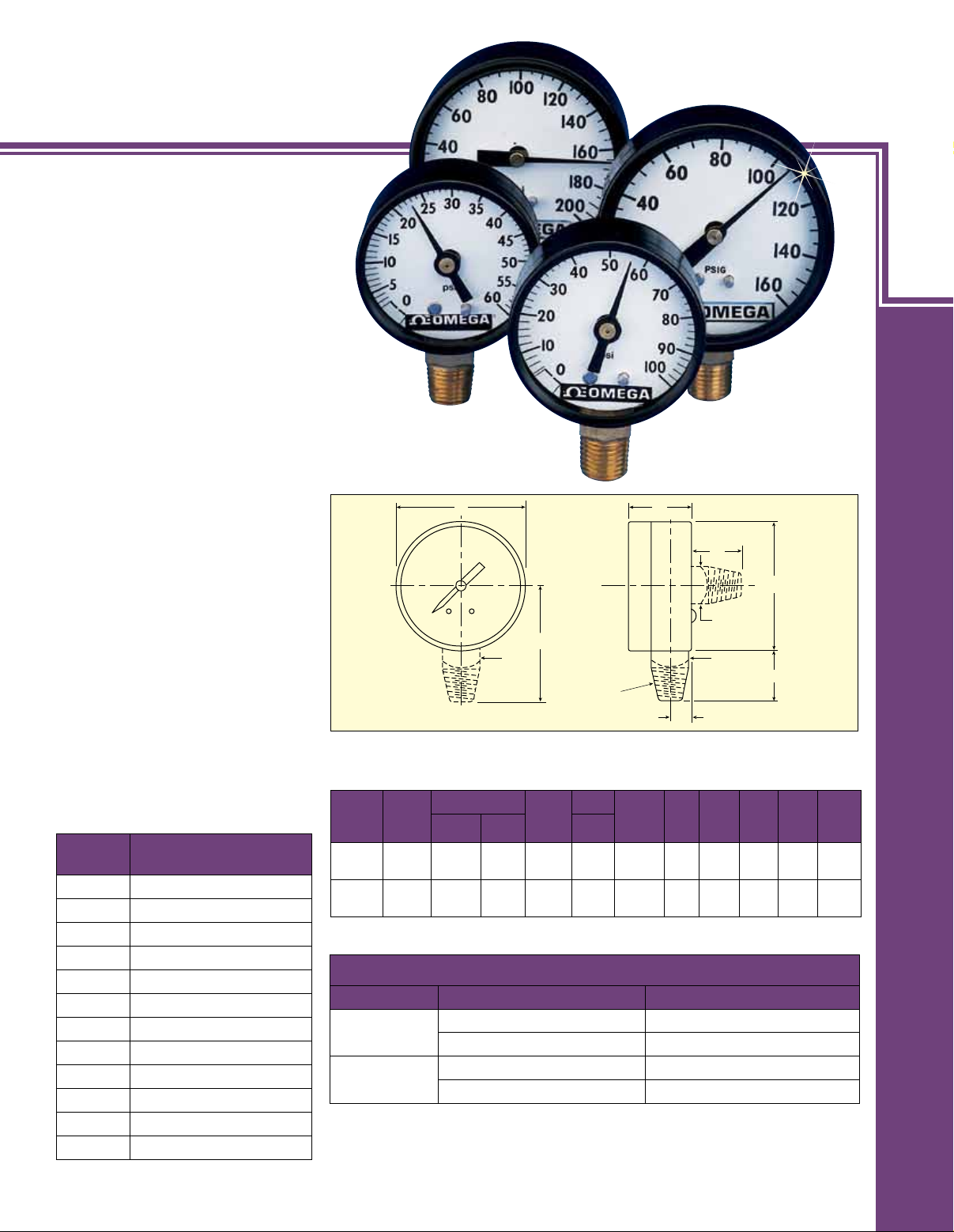

P-PGC Series Fig. 1
GRADE GAUGES
Standard Case
PRESSURE
GAUGES
The high reliability of the OMEGA®
commercial gauge line is chiefly
attributable to the unique OMEGA®
spring-suspended movement. The
entire movement is suspended
between 2 springs, the Bourdon
tube above and the link below.
Wearing parts have been reduced
to a minimum. Movement parts
are ultrasonically cleaned and
lubricated with silicone oil to ensure
long cycle life. The OMEGA® springsuspended movement is largely
resistant to shock, pulsation, and
vibration. The result is longer gauge
life. The numerous applications for
OMEGA® commercial gauges
include installation on pumps,
portable compressors, industrial
machinery, hydraulic and pneumatic
systems, instrumentation, and
pressurized vessels.
SPECIFICATIONS
Temperature: 66°C (150°F) maximum
Case: Painted steel
Window: Polycarbonate plastic
Bourdon Tube: Bronze
Connection: Brass
Ranges: Vacuum to 600 psi
Accuracy: 3-2-3% (3% over first and
last 10% of range, 2% over remainder)
STANDARD RANGES
RANGE
CODE
30V
30V/15
30V/30
30V/100
15
30
60
100
160
300
400
600
RANGE
30/0 inHg vac
30 inHg vac to 15 psi
30 inHg vac to 30 psi
30 inHg vac to 100 psi
0 to 15 psi
0 to 30 psi
0 to 60 psi
0 to 100 psi
0 to 160 psi
0 to 300 psi
0 to 400 psi
0 to 600 psi
1
⁄4 NPT
PGC Series, shown
smaller than actual size.
AB
K
C
W
Style L
Dimensions: mm (inch)
DIAL
SIZE
50.8
(2)
63.5
1
(2
⁄2)
A
53
7
(2
⁄64)
69
(223⁄32)
B
LOWER BACK
27
(13⁄64)
29
(11⁄8)
W
26
(11⁄32)
29
(11⁄8)
G
C
54
(27⁄64)
68
(211⁄16)
F
NPT
¼
¼
NPT
F
G
47
27
(1
⁄32)
55
5
(2
⁄32)
H
H
10
(3⁄8)
10
(3⁄8)
SQ. FLATS
W
K
22
(7⁄8)
22
(7⁄8)
M
20
(25⁄32)
20
(25⁄32)
M
Style B
W
14
(9⁄16)
14
(9⁄16)
WT
(OZ)
4½
To Order Visit omega.com/pgc for Pricing and Details
DIAL SIZE MODEL NO. CONNECTION
PGC-20L-[*]
2"
2½"
[*] Insert range code from Standard Ranges table. Other standard ranges available;
visit omega.com
Ordering Example: PGC-20B-30, commercial pressure gauge with 2" dial, back connection
and 0/30 psi range.
PGC-20B-[*]
PGC-25L-[*]
PGC-25B-[*]
Lower
Back
Lower
Back
G
6
