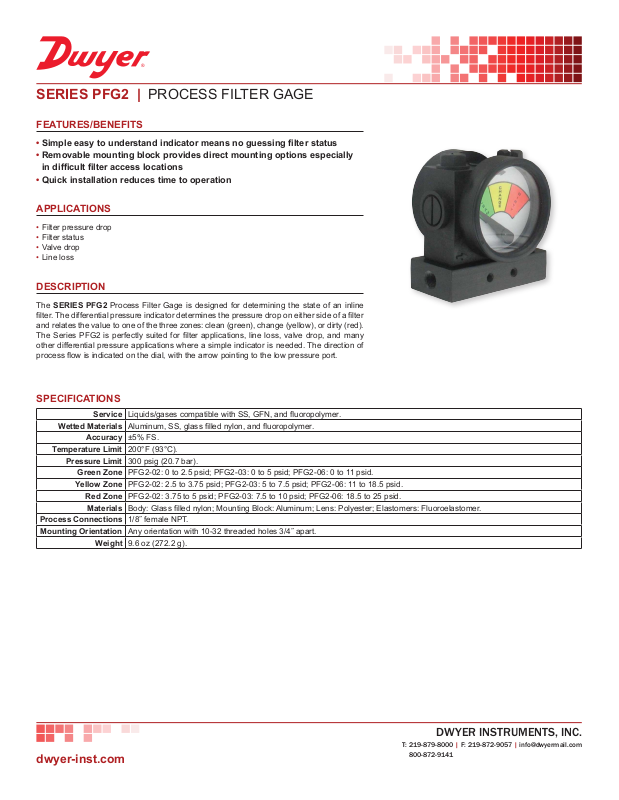

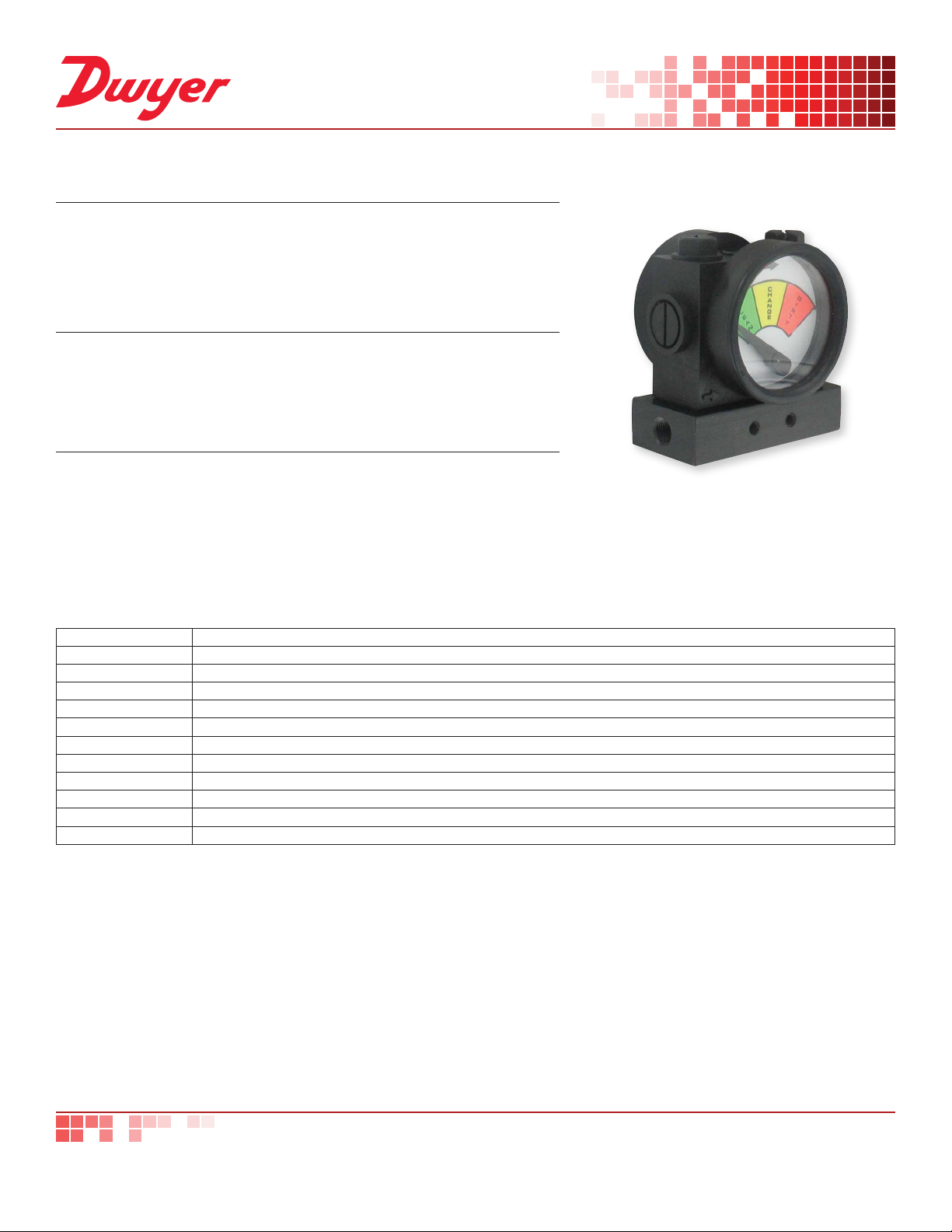

Page 1
®
SERIES PFG2 | PROCESS FILTER GAGE
FEATURES/BENEFITS
•Simpleeasytounderstandindicatormeansnoguessinglterstatus
• Removable mounting block provides direct mounting options especially
indifcultlteraccesslocations
• Quick installation reduces time to operation
APPLICATIONS
• Filter pressure drop
• Filter status
• Valve drop
• Line loss
DESCRIPTION
The SERIES PFG2 Process Filter Gage is designed for determining the state of an inline
lter. The differential pressure indicator determines the pressure drop on either side of a lter
and relates the value to one of the three zones: clean (green), change (yellow), or dirty (red).
The Series PFG2 is perfectly suited for lter applications, line loss, valve drop, and many
other differential pressure applications where a simple indicator is needed. The direction of
process ow is indicated on the dial, with the arrow pointing to the low pressure port.
SPECIFICATIONS
Service Liquids/gases compatible with SS, GFN, and uoropolymer.
Wetted Materials Aluminum, SS, glass lled nylon, and uoropolymer.
Accuracy ±5% FS.
Temperature Limit 200°F (93°C).
Pressure Limit 300 psig (20.7 bar).
Green Zone PFG2-02: 0 to 2.5 psid; PFG2-03: 0 to 5 psid; PFG2-06: 0 to 11 psid.
Yellow Zone PFG2-02: 2.5 to 3.75 psid; PFG2-03: 5 to 7.5 psid; PFG2-06: 11 to 18.5 psid.
Red Zone PFG2-02: 3.75 to 5 psid; PFG2-03: 7.5 to 10 psid; PFG2-06: 18.5 to 25 psid.
Materials Body: Glass lled nylon; Mounting Block: Aluminum; Lens: Polyester; Elastomers: Fluoroelastomer.
Process Connections 1/8˝ female NPT.
Mounting Orientation Any orientation with 10-32 threaded holes 3/4˝ apart.
Weight 9.6 oz (272.2 g).
dwyer-inst.com
DWYER INSTRUMENTS, INC.
T: 219-879-8000 | F: 219-872-9057 | [email protected]
800-872-9141

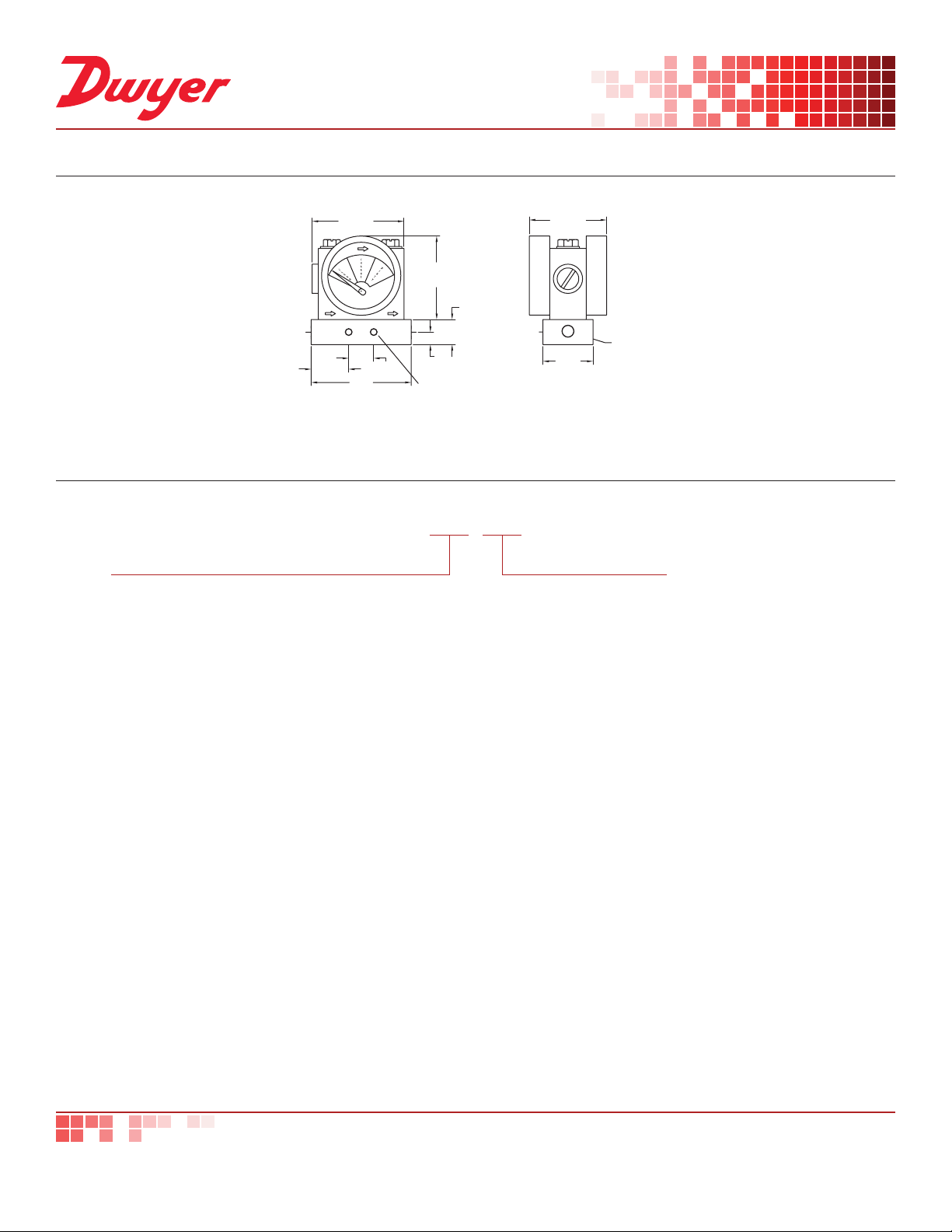

Page 2
®
DIMENSIONS
2-3/4
2-5/16
[69.85]
2-1/2
[63.50]
HIGH
PORT
1-1/8
[28.58]
3
[76.20]
3/4
[19.05]
3/8
[9.37]
2X #10-32 UNF
MOUNTING HOLES
HOW TO ORDER
Use the bold characters from the chart below to construct a product code.
PFG2 -02
SERIES
PFG - Process lter gage
3/4
[19.08]
LOW
PORT
[58.74]
1-1/2
[38.10]
2X 1/8 NPT
CONNECTION
RANGE
-02 - 0 to 5 psid
-03 - 0 to 10 psid
-06 - 0 to 25 psid
Important Notice: Dwyer Instruments, Inc. reserves the right to make changes to or discontinue any product or service identied in this publication without notice. Dwyer advises its customers to obtain the
latest version of the relevant information to verify, before placing any orders, that the information being relied upon is current.
DWYER INSTRUMENTS, INC.
T: 219-879-8000 | F: 219-872-9057 | [email protected]
dwyer-inst.com
800-872-9141
DS-PFG2 | 6/18 Rev. 2
