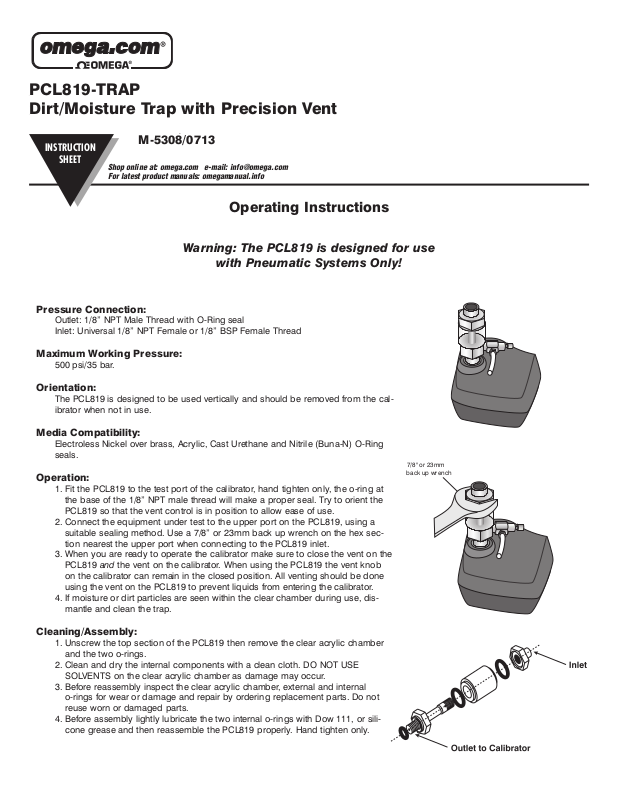

Omega PCL819-TRAP User guide

PCL819-TRAP

XXX

Dirt/Moisture Trap with Precision Vent

Xxxxx

M0000/0009

INSTRUCTION

SHEET

Shop online at: omega.com e-mail: [email protected]
For latest product manuals: omegamanual.info

M-5308/0713

Operating Instructions

Warning: The PCL819 is designed for use

with Pneumatic Systems Only!

Pressure Connection:

Outlet: 1/8” NPT Male Thread with O-Ring seal
Inlet: Universal 1/8” NPT Female or 1/8” BSP Female Thread

Maximum Working Pressure:

500 psi/35 bar.

Orientation:

The PCL819 is designed to be used vertically and should be removed from the cal-

ibrator when not in use.

Media Compatibility:

Electroless Nickel over brass, Acrylic, Cast Urethane and Nitrile (Buna-N) O-Ring

seals.

Operation:

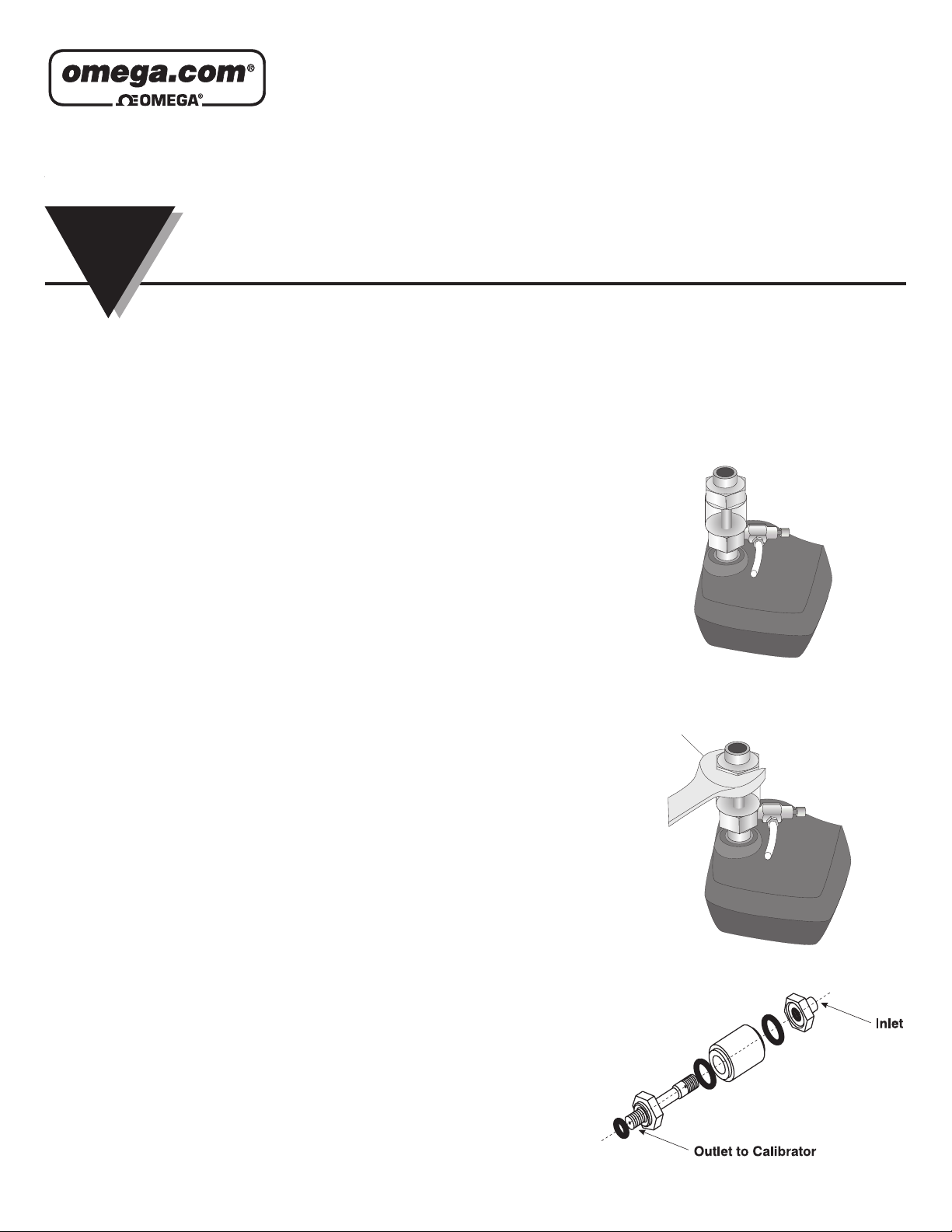

1. Fit the PCL819 to the test port of the calibrator, hand tighten only, the o-ring at
the base of the 1/8” NPT male thread will make a proper seal. Try to orient the
PCL819 so that the vent control is in position to allow ease of use.

2. Connect the equipment under test to the upper port on the PCL819, using a
suitable sealing method. Use a 7/8” or 23mm back up wrench on the hex sec­tion nearest the upper port when connecting to the PCL819 inlet.

3. When you are ready to operate the calibrator make sure to close the vent on the
PCL819 and the vent on the calibrator. When using the PCL819 the vent knob
on the calibrator can remain in the closed position. All venting should be done
using the vent on the PCL819 to prevent liquids from entering the calibrator.

4. If moisture or dirt particles are seen within the clear chamber during use, dis­mantle and clean the trap.

Cleaning/Assembly:

1. Unscrew the top section of the PCL819 then remove the clear acrylic chamber
and the two o-rings.

2. Clean and dry the internal components with a clean cloth. DO NOT USE
SOLVENTS on the clear acrylic chamber as damage may occur.

3. Before reassembly inspect the clear acrylic chamber, external and internal
o-rings for wear or damage and repair by ordering replacement parts. Do not
reuse worn or damaged parts.

4. Before assembly lightly lubricate the two internal o-rings with Dow 111, or sili­cone grease and then reassemble the PCL819 properly. Hand tighten only.

7/8" or 23mm
back up wrench
