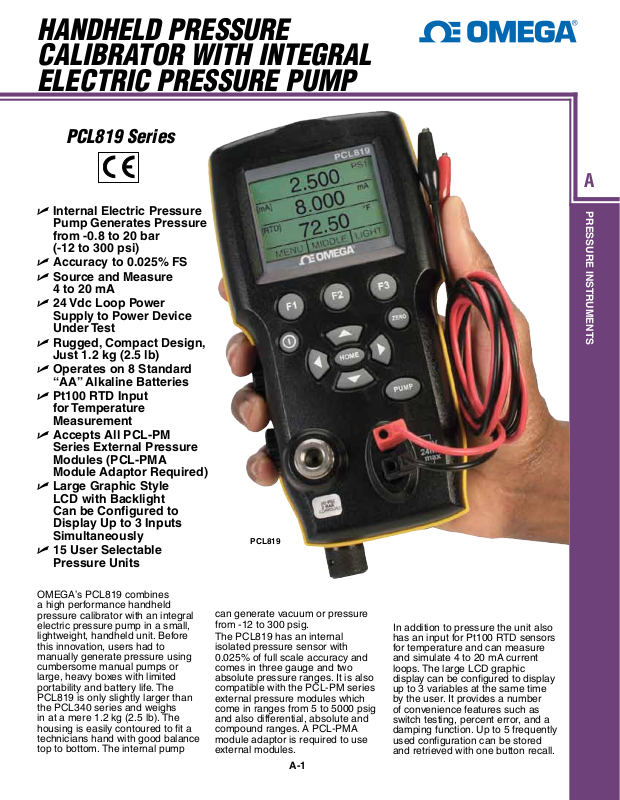

Page 1
HANDHELD PRESSURE
CALIBRATOR WITH INTEGRAL
ELECTRIC PRESSURE PUMP
PCL819 Series
A
U Internal Electric Pressure
Pump Generates Pressure
from -0.8 to 20 bar
(-12 to 300 psi)
U Accuracy to 0.025% FS
U Source and Measure
4 to 20 mA
U 24 Vdc Loop Power
Supply to Power Device
Under Test
U Rugged, Compact Design,
Just 1.2 kg (2.5 lb)
U Operates on 8 Standard
“AA” Alkaline Batteries
U Pt100 RTD Input
for Temperature
Measurement
U Accepts All PCL-PM
Series External Pressure
Modules (PCL-PMA
Module Adaptor Required)
U Large Graphic Style
LCD with Backlight
Can be Configured to
Display Up to 3 Inputs
Simultaneously
U 15 User Selectable
Pressure Units
PRESSURE INSTRUMENTS
PCL819

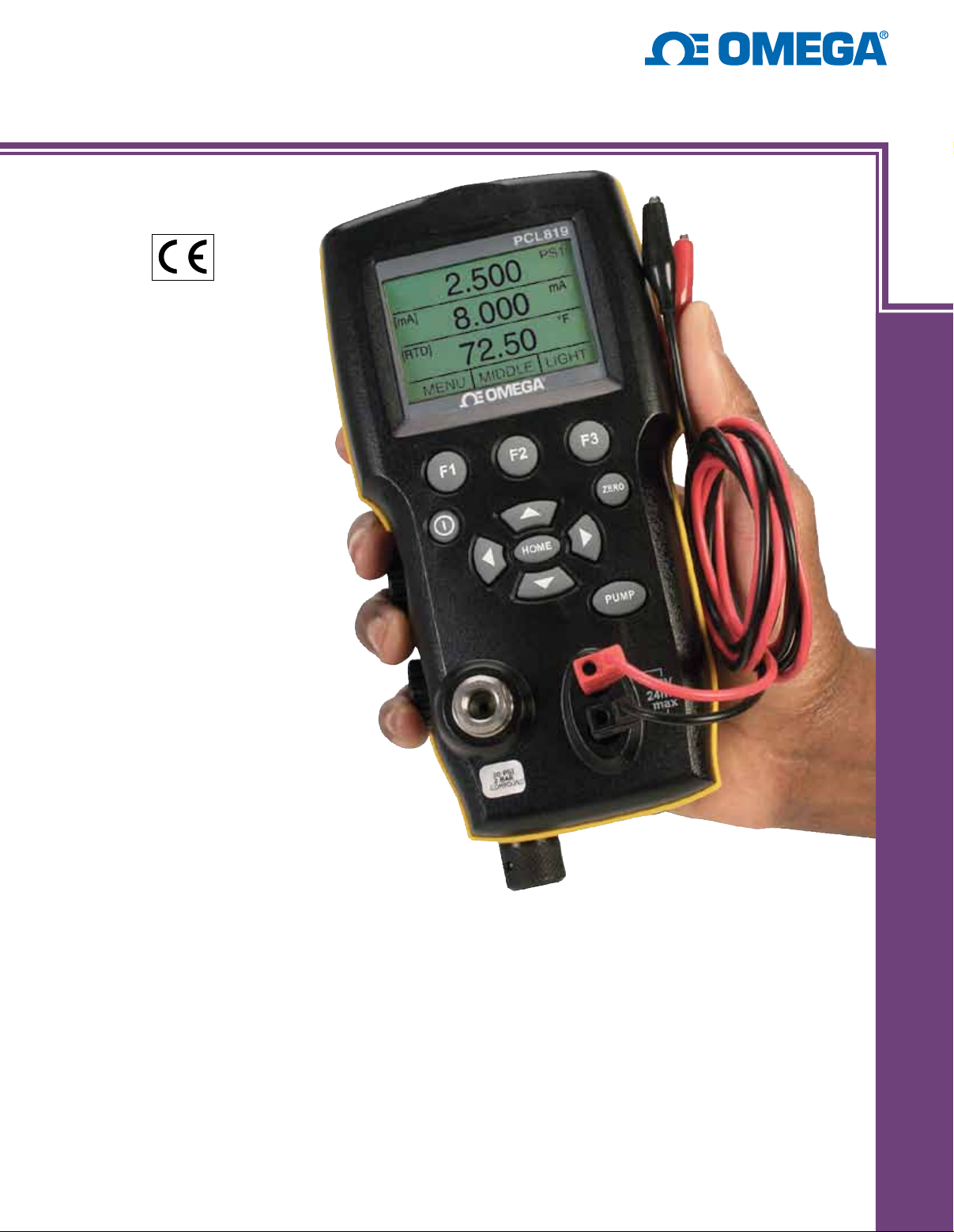

OMEGA’s PCL819 combines
a high performance handheld
pressure calibrator with an integral
electric pressure pump in a small,
lightweight, handheld unit. Before
this innovation, users had to
manually generate pressure using
cumbersome manual pumps or
large, heavy boxes with limited
portability and battery life. The
PCL819 is only slightly larger than
the PCL340 series and weighs
in at a mere 1.2 kg (2.5 lb). The
housing is easily contoured to fit a
technicians hand with good balance
top to bottom. The internal pump
can generate vacuum or pressure
from -12 to 300 psig.
The PCL819 has an internal
isolated pressure sensor with
0.025% of full scale accuracy and
comes in three gauge and two
absolute pressure ranges. It is also
compatible with the PCL-PM series
external pressure modules which
come in ranges from 5 to 5000 psig
and also differential, absolute and
compound ranges. A PCL-PMA
module adaptor is required to use
external modules.
A-1
In addition to pressure the unit also
has an input for Pt100 RTD sensors
for temperature and can measure
and simulate 4 to 20 mA current
loops. The large LCD graphic
display can be configured to display
up to 3 variables at the same time
by the user. It provides a number
of convenience features such as
switch testing, percent error, and a
damping function. Up to 5 frequently
used configuration can be stored
and retrieved with one button recall.
Page 2
SPECIFICATIONS
Accuracy:
Pressure: ±0.025% FS from 15 to
35°C (59 to 95°F) (add 0.002%/°C
outside of 15 to 35°C)
mA: ±0.015% of reading ±2
counts (simulation and measurement)
Volts: ±0.015% of reading ±2
counts (measurement only)
Temperature: ±0.1°C (0.2°C)
(measurement only)
Operating Temperature:
-10 to 50°C (14 to 122°F)
Storage Temperature:
-20 to 60°C (-4 to 160°F)
Internal Pump: Electrically operated
pneumatic pump generates
-0.8 to 20 bar (-12 to 300 psi)
Batteries: 8 “AA” Alkaline batteries
(included)
Battery Life: 100 pump cycles
to 300 psi or 1000 cycles to
30 psi minimum
Pressure Connection:
Electrical Connection: Standard
banana jacks
RTD Connection: 4 pin LEMO style
External Module: 6 pin LEMO style
Dimensions: 200 H x 100 W x 60 mm D
(8 x 4 x 2
3
⁄
8")
Weight: 1.2 kg (2.5 lb)
1
⁄
8 NPT female
PCL-PM1KG,
pressure module,
shown smaller
than actual size.

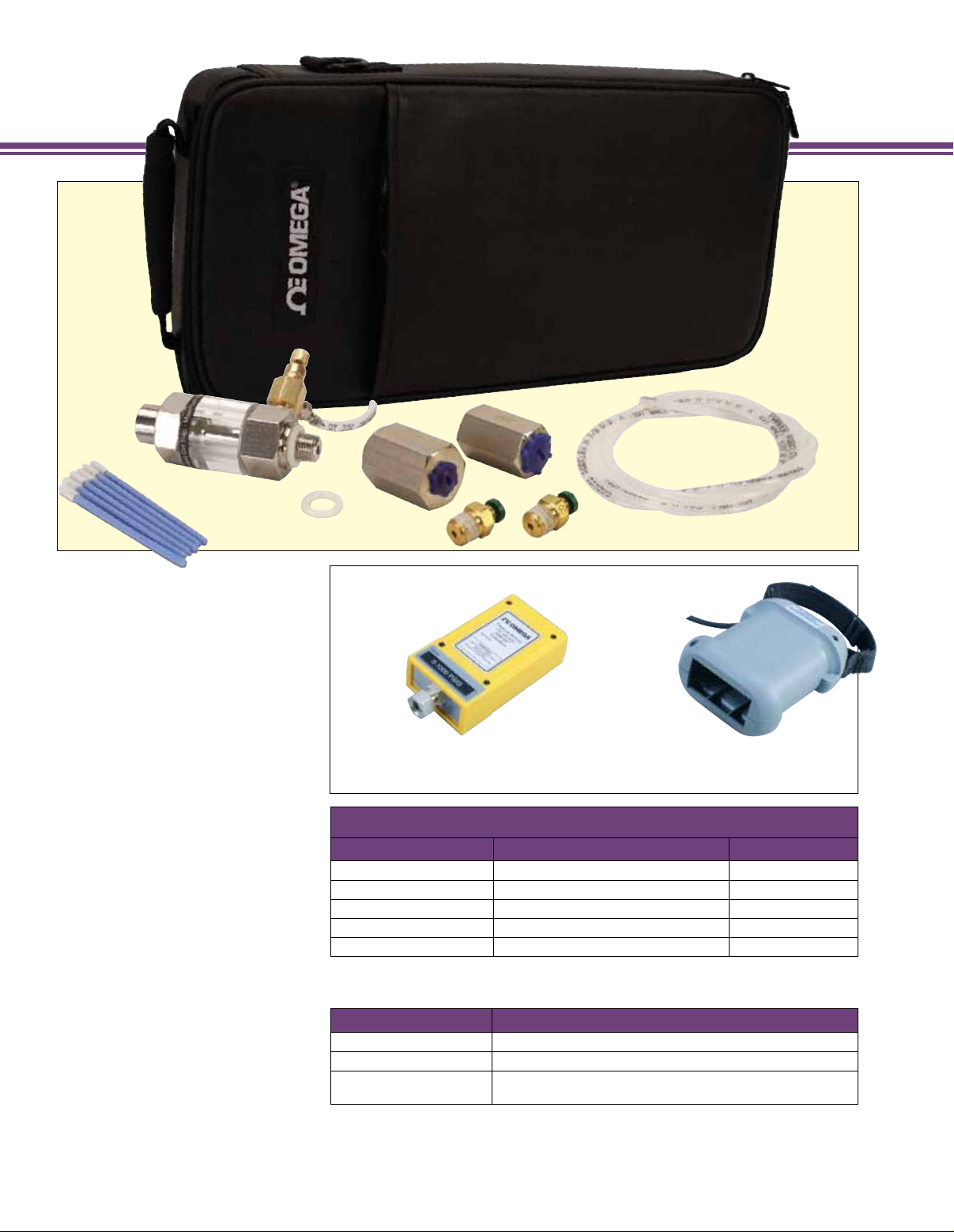

PCL-PMA, pressure module adaptor, shown with PCL-PM1KG, 0 to 1000
psi external pressure module, sold separately. See OMEGA for more
information and complete listing of available modules.
PCL-PMA,
pressure module
adaptor, shown
smaller than
actual size.
To Order
MODEL NO. RANGE TYPE
PCL819-30
PCL819-150
PCL819-300
PCL819-30A
PCL819-150A
Comes complete with operator’s manual, 8 “AA” batteries, test leads, test hose, dirt trap,
fittings, calibration certificate, and carrying case.
ACCESSORIES
MODEL NO. DESCRIPTION
PCL819-TRAP
PCL819-BATT-KIT
PCL-PMA
Ordering Examples: PCL819-150, -12 to 150 psig portable calibrator with built-in
electric pump.
PCL819-30A, 0 to 30 psia portable calibrator with built-in electric pump, PCL-PMA, pressure
module adaptor and PCL-PM100G, 0 to 100 psig external pressure module.
A-2
-0.8 to 2 bar (-12 to 30 psi) Gage
-0.8 to 10 bar (-12 to 150 psi) Gage
-0.8 to 20 bar (-12 to 300 psi) Gage
0 to 2 bar (0 to 30 psi) Absolute
0 to 10 bar (0 to 150 psi) Absolute
Spare liquid and dirt trap
Rechargeable battery kit
Pressure module adaptor (required to use PCL-PM
series external pressure modules)
