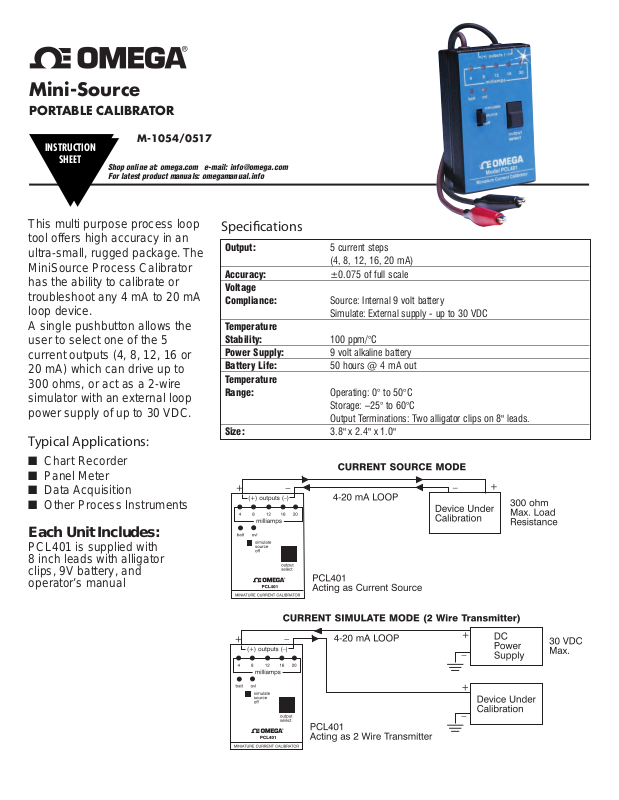

Omega PCL401 User guide

Mini-Source

PORTABLE CALIBRATOR

INSTRUCTION

SHEET

M-1054/0517

Shop online at: omega.com e-mail: [email protected]
For latest product manuals: omegamanual.info

This multi purpose process loop
tool offers high accuracy in an
ultra-small, rugged package.The
MiniSource Process Calibrator
has the ability to calibrate or
troubleshoot any 4 mA to 20 mA
loop device.

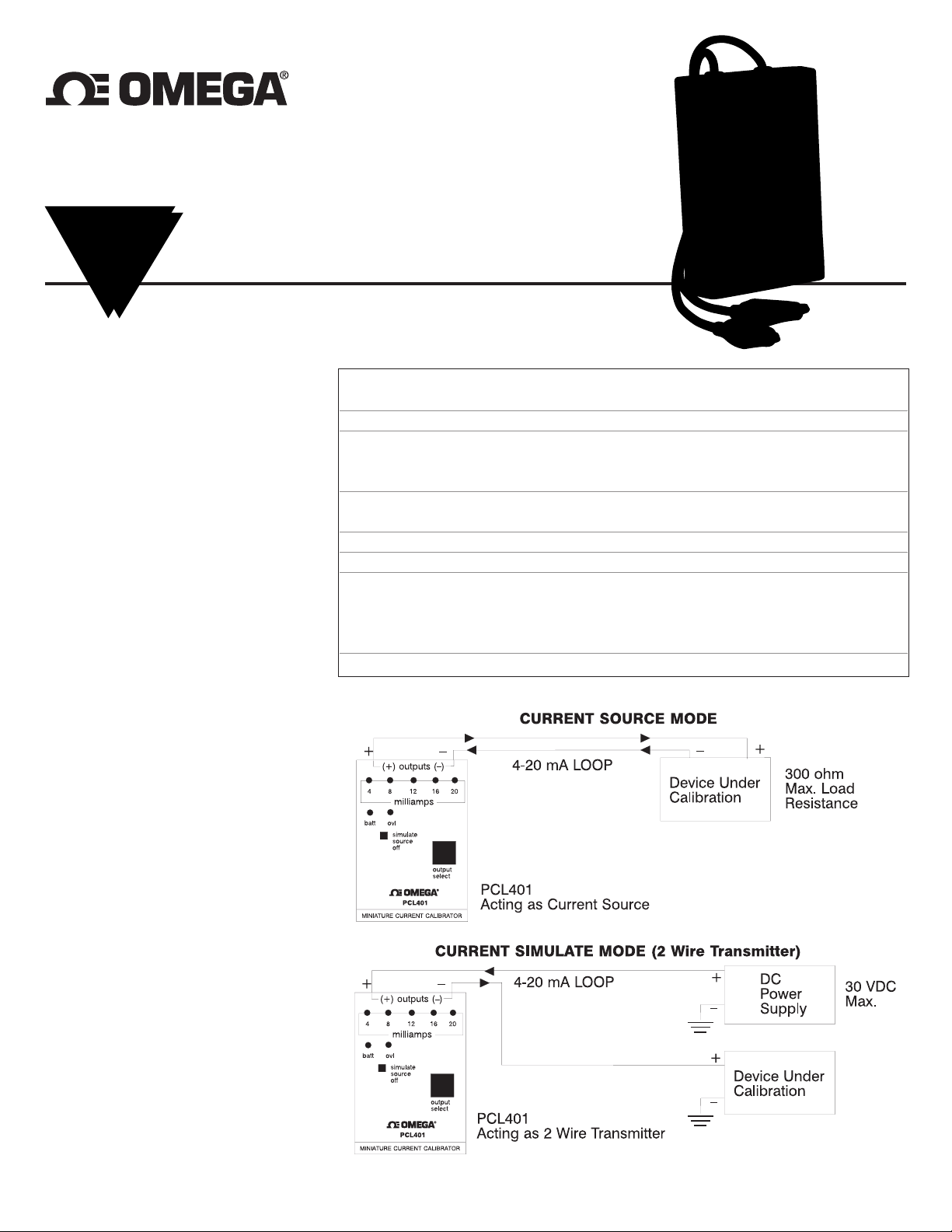

A single pushbutton allows the
user to select one of the 5
current outputs (4, 8, 12, 16 or
20 mA) which can drive up to
300 ohms, or act as a 2-wire
simulator with an external loop
power supply of up to 30 VDC.

Typical Applications:

Specications

Output: 5 current steps

(4, 8, 12, 16, 20 mA)

Accuracy: ±0.075 of full scale
Voltage
Compliance: Source: Internal 9 volt battery

Simulate: External supply - up to 30 VDC

Temperature
Stability: 100 ppm/°C
Power Supply: 9 volt alkaline battery
Battery Life: 50 hours @ 4 mA out
Temperature
Range: Operating: 0° to 50°C

Storage: –25° to 60°C
Output Terminations: Two alligator clips on 8" leads.

Size: 3.8" x 2.4" x 1.0"

■ Chart Recorder

■ Panel Meter

■ Data Acquisition

■ Other Process Instruments

Each Unit Includes:

PCL401 is supplied with
8 inch leads with alligator
clips, 9V battery, and
operator’s manual
