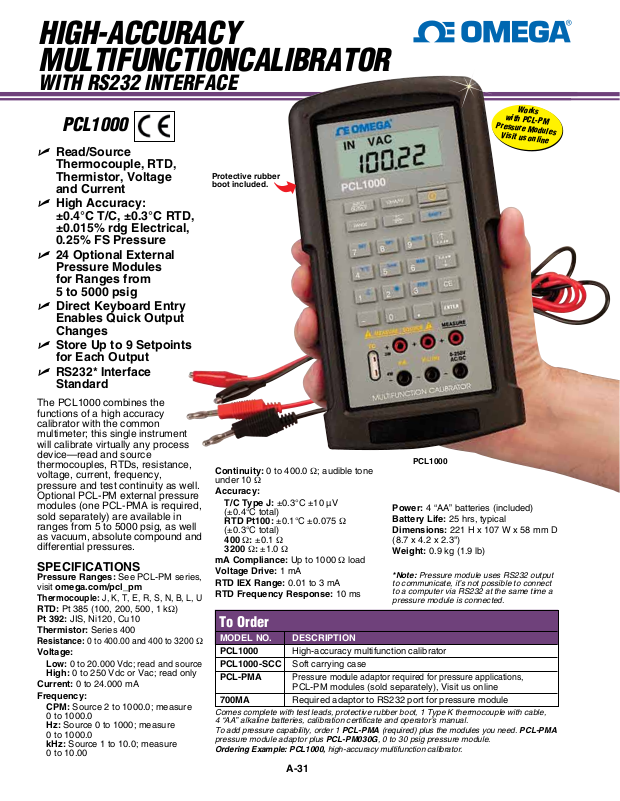

HIGH-ACCURACY
MULTIFUNCTIONCALIBRATOR
WITH RS232 INTERFACE
PCL1000
U Read/Source
Thermocouple, RTD,
Thermistor, Voltage
and Current
U High Accuracy:
±0.4°C T/C, ±0.3°C RTD,
±0.015% rdg Electrical,
0.25% FS Pressure
U 24 Optional External
Pressure Modules
for Ranges from
5 to 5000 psig
U Direct Keyboard Entry
Enables Quick Output
Changes
U Store Up to 9 Setpoints
for Each Output
RS232* Interface
U
Standard
Protective rubber
boot included.
Works
with PCL-PM
Pressure Modules
Visit us online

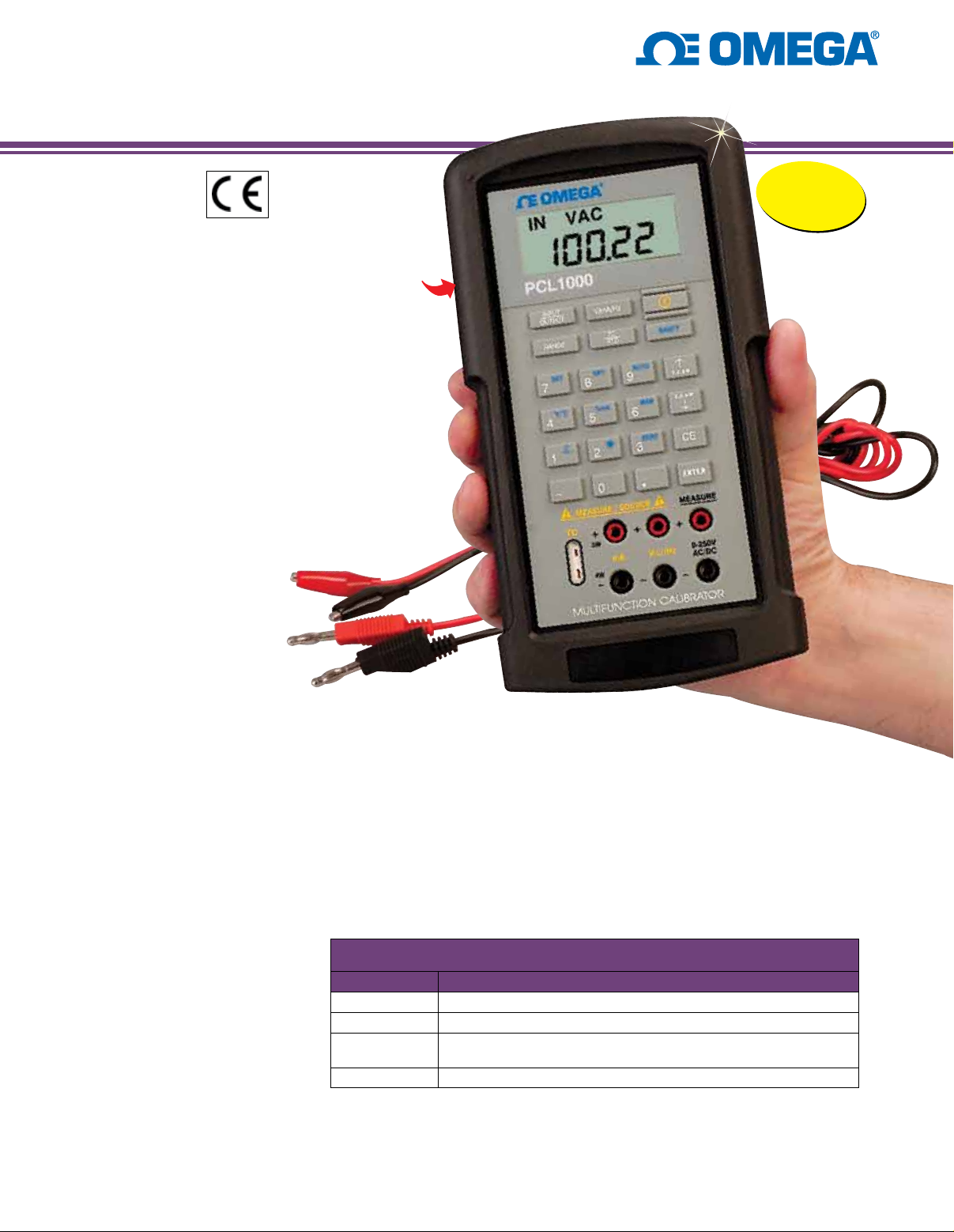

The PCL1000 combines the
functions of a high accuracy
calibrator with the common
multimeter; this single instrument
will calibrate virtually any process
device—read and source
thermocouples, RTDs, resistance,
voltage, current, frequency,
pressure and test continuity as well.
Optional PCL-PM external pressure
modules (one PCL-PMA is required,
sold separately) are available in
ranges from 5 to 5000 psig, as well
as vacuum, absolute compound and
differential pressures.
SPECIFICATIONS
Pressure Ranges: See PCL-PM series,
visit omega.com/pcl_pm
Thermocouple: J, K, T, E, R, S, N, B, L, U
RTD: Pt 385 (100, 200, 500, 1 kΩ)
Pt 392: JIS, Ni120, Cu10
Thermistor: Series 400
Resistance: 0 to 400.00 and 400 to 3200
Voltage:
Low: 0 to 20.000 Vdc; read and source
High: 0 to 250 Vdc or Vac; read only
Current: 0 to 24.000 mA
Frequency:
CPM: Source 2 to 1000.0; measure
0 to 1000.0
Hz: Source 0 to 1000; measure
0 to 1000.0
kHz: Source 1 to 10.0; measure
0 to 10.00
Ω
Continuity: 0 to 400.0 Ω; audible tone
under 10 Ω
Accuracy:
T/C Type J: ±0.3°C ±10 µV
(±0.4°C total)
RTD Pt100: ±0.1°C ±0.075 Ω
(±0.3°C total)
400 Ω: ±0.1 Ω
3200 Ω: ±1.0 Ω
mA Compliance: Up to 1000 Ω load
Voltage Drive: 1 mA
RTD IEX Range: 0.01 to 3 mA
RTD Frequency Response: 10 ms
PCL1000
Power: 4 “AA” batteries (included)
Battery Life: 25 hrs, typical
Dimensions: 221 H x 107 W x 58 mm D
(8.7 x 4.2 x 2.3")
Weight: 0.9 kg (1.9 lb)
*Note: Pressure module uses RS232 output
to communicate, it’s not possible to connect
to a computer via RS232 at the same time a
pressure module is connected.
To Order
MODEL NO. DESCRIPTION
PCL1000 High-accuracy multifunction calibrator
PCL1000-SCC Soft carrying case
PCL-PMA
PCL-PM modules (sold separately), Visit us online
700MA Required adaptor to RS232 port for pressure module
Comes complete with test leads, protective rubber boot, 1 Type K thermocouple with cable,
4 “AA” alkaline batteries, calibration certificate and operator’s manual.
To add pressure capability, order 1 PCL-PMA (required) plus the modules you need. PCL-PMA
pressure module adaptor plus PCL-PM030G, 0 to 30 psig pressure module.
Ordering Example: PCL1000, high-accuracy multifunction calibrator.
Pressure module adaptor required for pressure applications,
