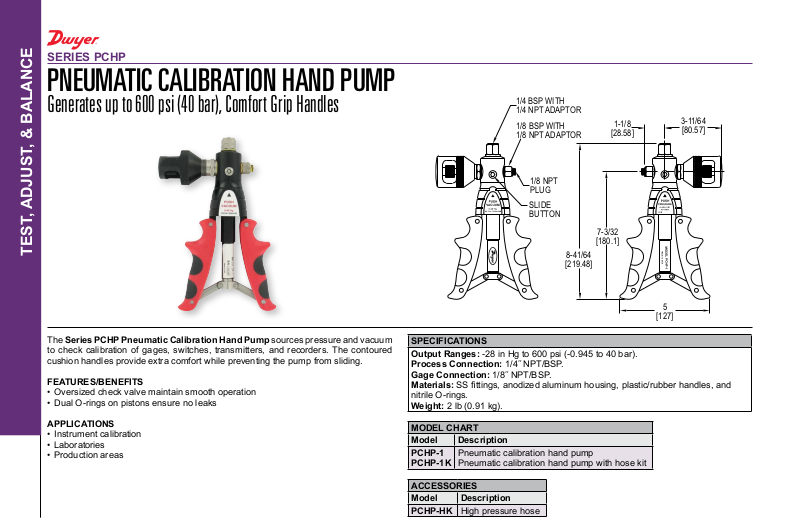

1/4 BSP WITH
SERIES PCHP
PNEUMATIC CALIBRATION HAND PUMP
Generates up to 600 psi (40 bar), Comfort Grip Handles
TEST, ADJUST, & BALANCE
1/4 NPT ADAPTOR
1/8 BSP WITH
1/8 NPT ADAPTOR
1/8 NPT
PLUG
SLIDE
BUTTON
8-41/64
[219.48]
7-3/32
[180.1]
1-1/8
[28.58]
3-11/64
[80.57]

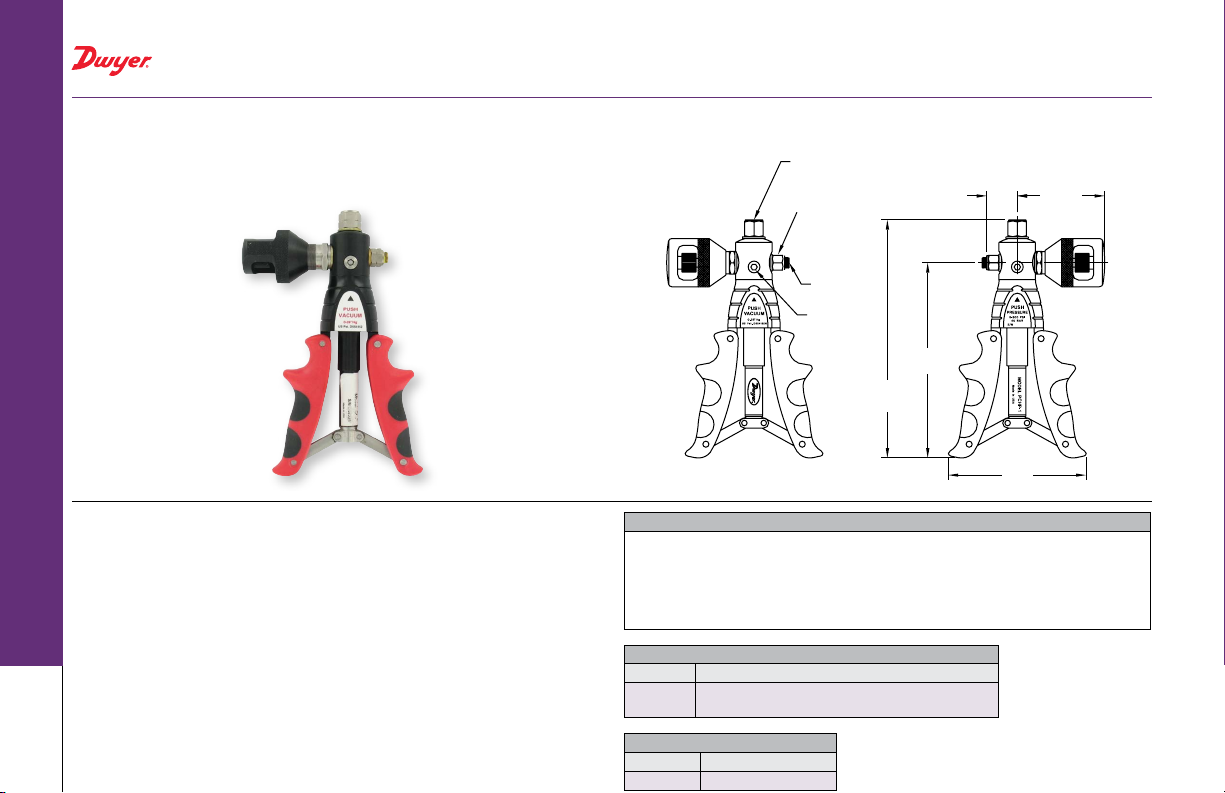

The Series PCHP Pneumatic Calibration Hand Pump sources pressure and vacuum
to check calibration of gages, switches, transmitters, and recorders. The contoured
cushion handles provide extra comfort while preventing the pump from sliding.
FEATURES/BENEFITS
• Oversized check valve maintain smooth operation
• Dual O-rings on pistons ensure no leaks
APPLICATIONS
• Instrument calibration
• Laboratories
• Production areas
5
SPECIFICATIONS
Output Ranges: -28 in Hg to 600 psi (-0.945 to 40 bar).
Process Connection: 1/4˝ NPT/BSP.
Gage Connection: 1/8˝ NPT/BSP.
Materials: SS ttings, anodized aluminum housing, plastic/rubber handles, and
nitrile O-rings.
Weight: 2 lb (0.91 kg).
MODEL CHART
Model Description
PCHP-1
PCHP-1K
ACCESSORIES
Model Description
PCHP-HK High pressure hose
Pneumatic calibration hand pump
Pneumatic calibration hand pump with hose kit
