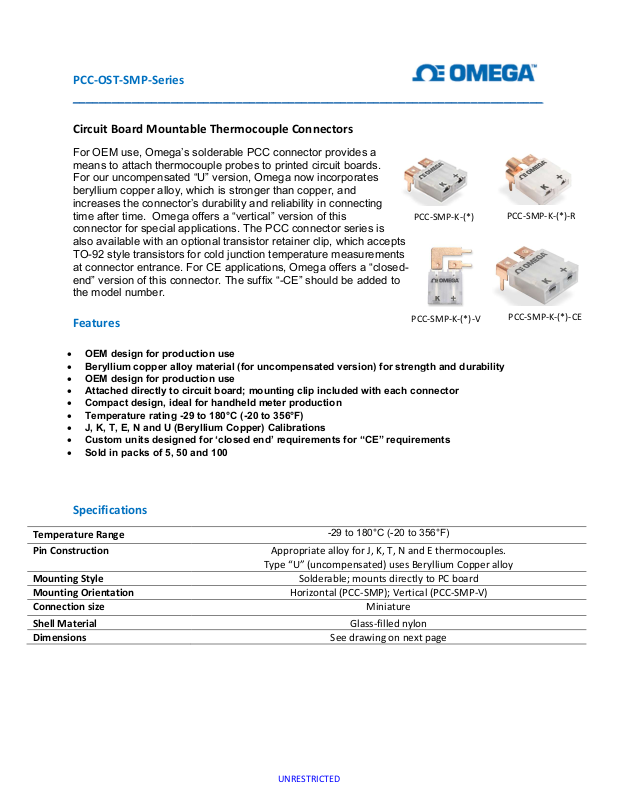

Page 1
PCC-OST-SMP-Series
Temperature
Range
Pin Construction
Appropriate alloy for J, K, T
, N
and E thermocouples.
Mounting
St
yle Solderable;
m
ounts
d
irectly to PC
b
oard
Mounting Orientation
Horizontal (PCC
-
SMP); Vertical (PCC
-
SMP
-V)
Connection size
Miniature
Shell Material
Glass
-
filled nylon
Dimensions
See
drawing on
next
page
PCC-SMP-K-(*) PCC-SMP-K-(*)-R
PCC-SMP-K-(*)-V PCC-SMP-K-(*)-CE
________________________________________________________________________
Circuit Board Mountable Thermocouple Connectors
For OEM use, Omega’s solderable PCC connector provides a
means to attach thermocouple probes to printed circuit boards.
For our uncompensated “U” version, Omega now incorporates
beryllium copper alloy, which is stronger than copper, and
increases the connector’s durability and reliability in connecting
time after time. Omega offers a “vertical” version of this
connector for special applications. The PCC connector series is
also available with an optional transistor retainer clip, which accepts
TO-92 style transistors for cold junction temperature measurements
at connector entrance. For CE applications, Omega offers a “closedend” version of this connector. The suffix “-CE” should be added to
the model number.
Features
OEM design for production use
Beryllium copper alloy material (for uncompensated version) for strength and durability
OEM design for production use
Attached directly to circuit board; mounting clip included with each connector
Compact design, ideal for handheld meter production
Temperature rating -29 to 180°C (-20 to 356°F)
J, K, T, E, N and U (Beryllium Copper) Calibrations
Custom units designed for ‘closed end’ requirements for “CE” requirements
Sold in packs of 5, 50 and 100
Specifications
-29 to 180°C (-20 to 356°F)
Type “U” (uncompensated) uses Beryllium Copper alloy
UNRESTRICTED
Page 2
________________________________________________________________________
Model Number

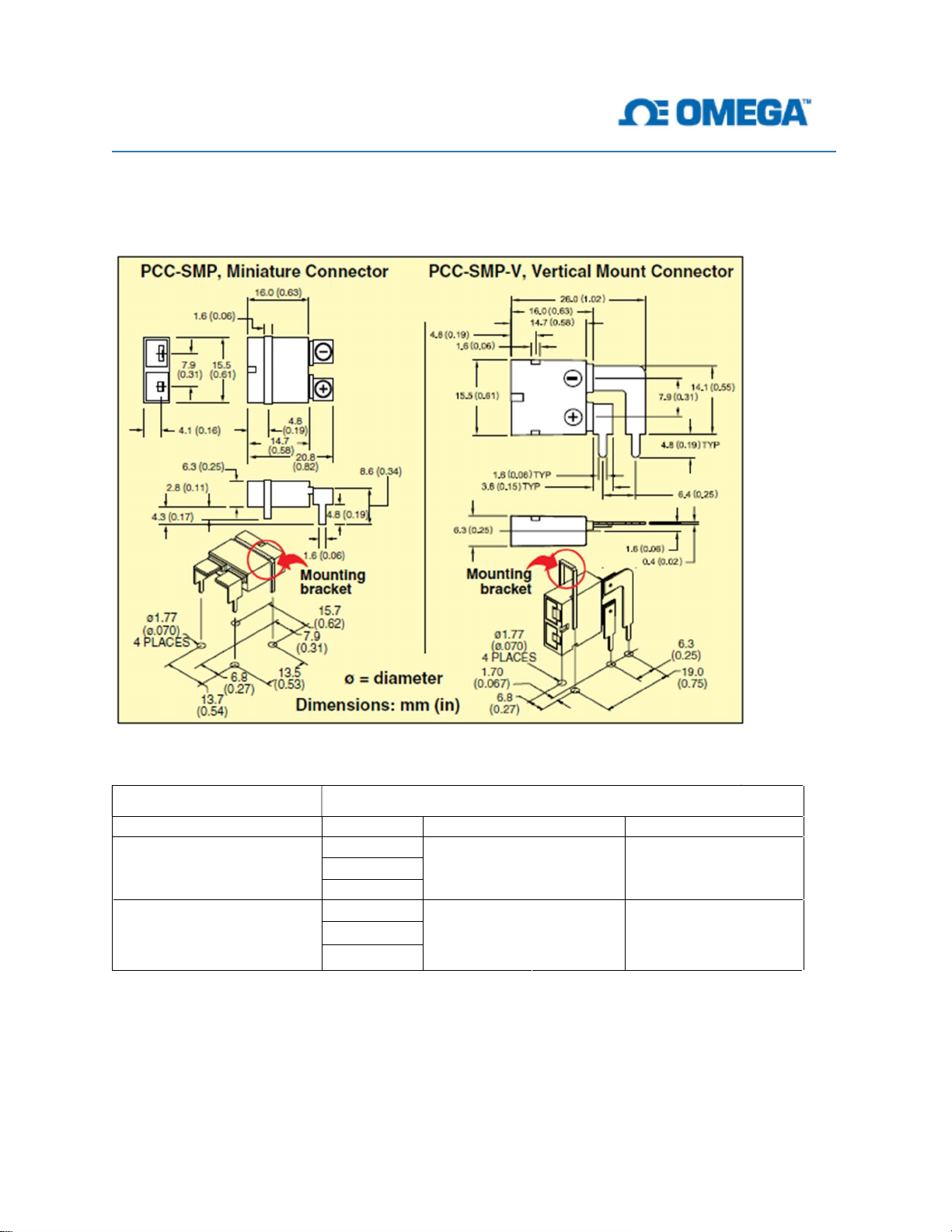

PCC-SMP Drawing
To Order
Pack size
PCC-SMP-(*)-5-(**)
PCC-SMP-(*)-50-(**)
PCC-SMP-(*)-100-(**)
PCC-SMP-V-(*)-5
PCC-SMP-V-(*)-50
PCC-SMP-V-(*)-100
*Specify calibration: Choices: type J, K, T, E, N, and U (specify “UCB” for Beryllium Copper)
**For optional transistor retainer clip, add suffix “-R” to model number.
This feature is not offered on “V” (vertical mount) connectors.
For custom ‘closed-end’ connector, add “-CE” to model number.
Ordering Example:
size, uncompensated, with beryllium copper pins, with transistor retaining clip,
package of 100.
PCC-SMP-UCB-100-R:
5
50
100
5
50
100
Connector Style
Regular mount
Vertical mount
circuit board connector, miniature
UNRESTRICTED
Mating Connector
SMPW series
SMPW series
