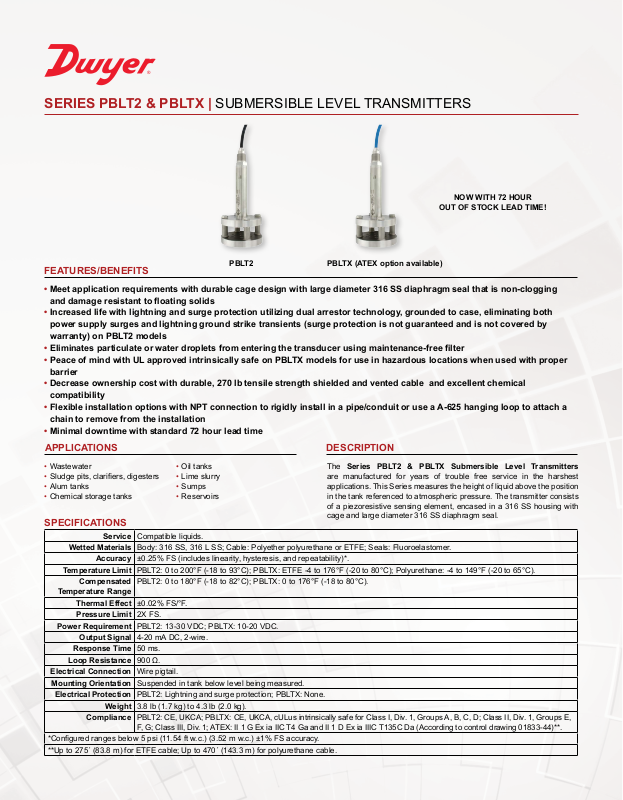

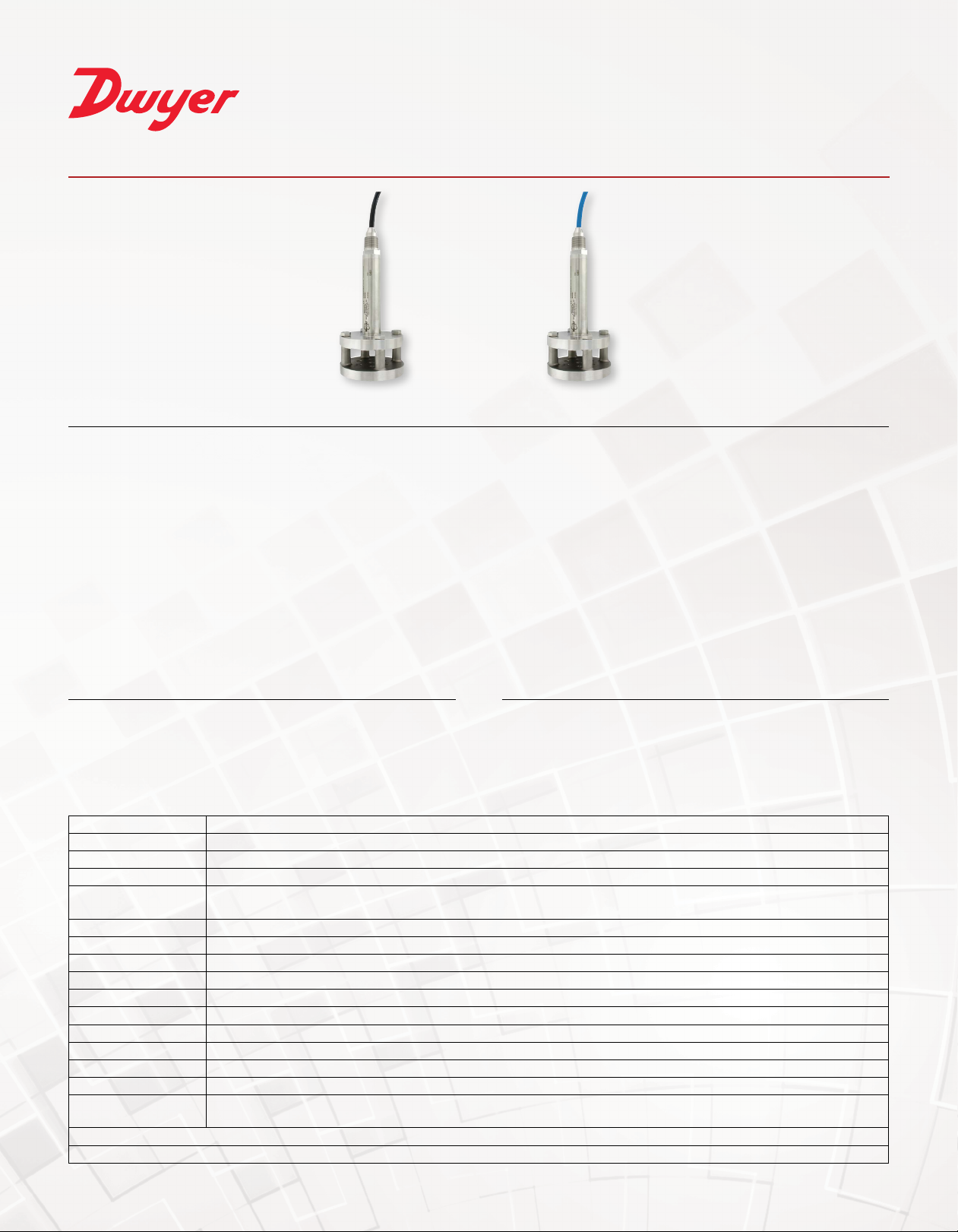

SERIES PBLT2 & PBLTX | SUBMERSIBLE LEVEL TRANSMITTERS

NOW WITH 72 HOUR

OUT OF STOCK LEAD TIME!

FEATURES/BENEFITS

PBLTX (ATEX option available)PBLT2

• Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging

 anddamageresistanttooatingsolids

• Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both

power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models

•Eliminatesparticulateorwaterdropletsfromenteringthetransducerusingmaintenance-freelter

• Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper

barrier

• Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical

compatibility

• Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a

chain to remove from the installation

• Minimal downtime with standard 72 hour lead time

DESCRIPTIONAPPLICATIONS

• Wastewater

•Sludgepits,clariers,digesters

• Alum tanks

• Chemical storage tanks

• Oil tanks

• Lime slurry

• Sumps

• Reservoirs

The Series PBLT2 & PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. This Series measures the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing with cage and large diameter 316 SS diaphragm seal.

SPECIFICATIONS

Service Compatible liquids.

Wetted Materials Body: 316 SS, 316 L SS; Cable: Polyether polyurethane or ETFE; Seals: Fluoroelastomer.

Accuracy ±0.25% FS (includes linearity, hysteresis, and repeatability)*.

Temperature Limit PBLT2: 0 to 200°F (-18 to 93°C); PBLTX: ETFE -4 to 176°F (-20 to 80°C); Polyurethane: -4 to 149°F (-20 to 65°C).

Compensated

Temperature Range

Thermal Effect ±0.02% FS/°F. Pressure Limit 2X FS.

Power Requirement PBLT2: 13-30 VDC; PBLTX: 10-20 VDC.

Output Signal 4-20 mA DC, 2-wire.

Response Time 50 ms.

Loop Resistance 900Ω.

Electrical Connection Wire pigtail.

Mounting Orientation Suspended in tank below level being measured.

Electrical Protection PBLT2: Lightning and surge protection; PBLTX: None.

Weight 3.8 lb (1.7 kg) to 4.3 lb (2.0 kg).

Compliance PBLT2: CE, UKCA; PBLTX: CE, UKCA, cULus intrinsically safe for Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E,

*Conguredrangesbelow5psi(11.54ftw.c.)(3.52mw.c.)±1%FSaccuracy.

**Up to 275´ (83.8 m) for ETFE cable; Up to 470´ (143.3 m) for polyurethane cable.

PBLT2: 0 to 180°F (-18 to 82°C); PBLTX: 0 to 176°F (-18 to 80°C).

F, G; Class III, Div. 1; ATEX: II 1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da (According to control drawing 01833-44)**.

Page 2

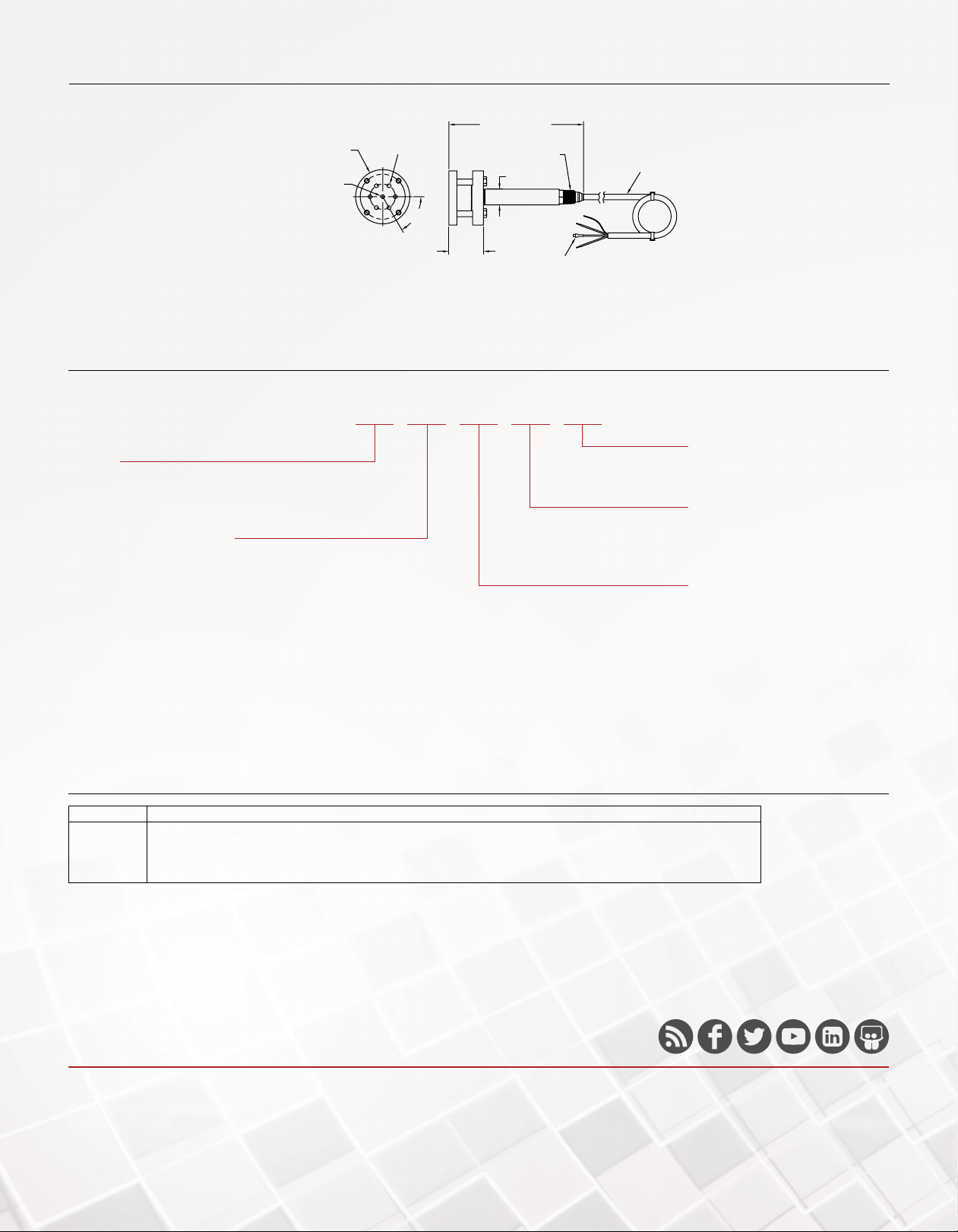

DIMENSIONS

[Ø6.35 X

6 X Ø1/4 [Ø6.35]

TO 2 [50.80]

X THRU ON A

Ø3-7/16 [Ø87.31]

Ø1/4 X THRU

THRU]

Ø1-30/64

[Ø40.88] B.C.

60˚ TYP

1-13/16 [46.04]

PBLT2/PBLTX

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

PBLT2 -5 -40 -PU -ATEX

SERIES

PBLT2: Submersible level transmitter PBLTX: Submersible level transmitter (intrinsically safe)

*RANGE psi (ft w.c.) [m w.c.]

-5: 5 (11.54) [3.52]

-10: 10 (23.09) [7.04]

-15: 15 (34.63) [10.56]

-20: 20 (46.18) [14.08]

-3.5M: 4.97 (11.48) [3.5]

-5M: 7.11 (16.40) [5]

-10M: 14.21 (32.81) [10]

*Additional pressure ranges available, consult factory

7-27/32 [199.23]

TO 7-29/32 [200.81]

1/2 NPT

Ø1 [25.40]

BREATHER TUBE

SUBMERSIBLE

CABLE

OPTIONS

-ATEX: ATEX intrinsically safe

CABLE TYPE

BLANK: ETFE

-PU: Polyurethane

**CABLE LENGTH ft (m)

-40: 40 (12.2)

-60: 60 (18.3)

-5M: 16.40 (5)

-10M: 32.81 (10)

-18M: 59.06 (18)

**Conguredcablelengthsavailable

from 10 to 2000 ft (3 to 610 m)

ACCESSORIES

Model Description A-297 A-625 MTL5041 MTL7706

Dessicantlterforventtube.Removeshumidityforprotectionofthesensor.Changescolortoshowsaturation

316 SS cable hanger for attaching chain for easy pulling out of application Intrinsically safe galvanic isolator Intrinsically safe zener barrier
