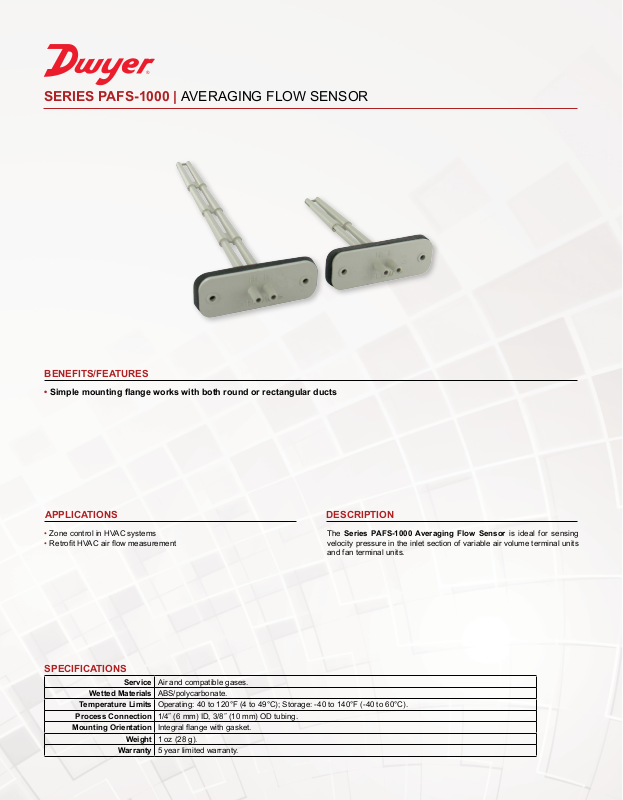

SERIES PAFS-1000 | AVERAGING FLOW SENSOR

®

BENEFITS/FEATURES

• Simple mounting ange works with both round or rectangular ducts

DESCRIPTIONAPPLICATIONS

• Zone control in HVAC systems

• Retrot HVAC air ow measurement

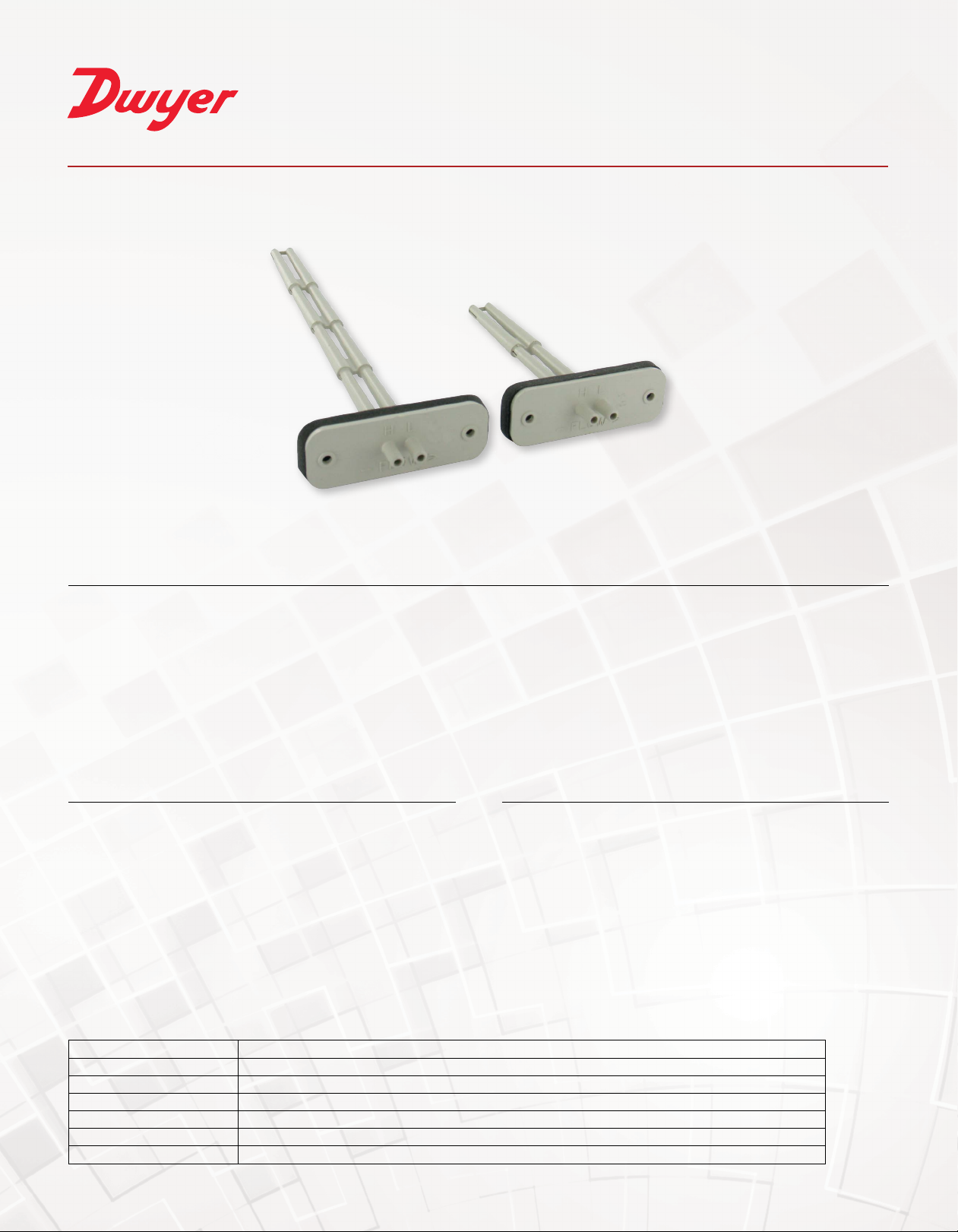

The Series PAFS-1000 Averaging Flow Sensor is ideal for sensing
velocity pressure in the inlet section of variable air volume terminal units
and fan terminal units.

SPECIFICATIONS

Service Air and compatible gases.

Wetted Materials ABS/polycarbonate.

Temperature Limits Operating: 40 to 120°F (4 to 49°C); Storage: -40 to 140°F (-40 to 60°C).

Process Connection 1/4˝ (6 mm) ID, 3/8˝ (10 mm) OD tubing.

Mounting Orientation Integral ange with gasket.

Weight 1 oz (28 g).

Warranty 5 year limited warranty.

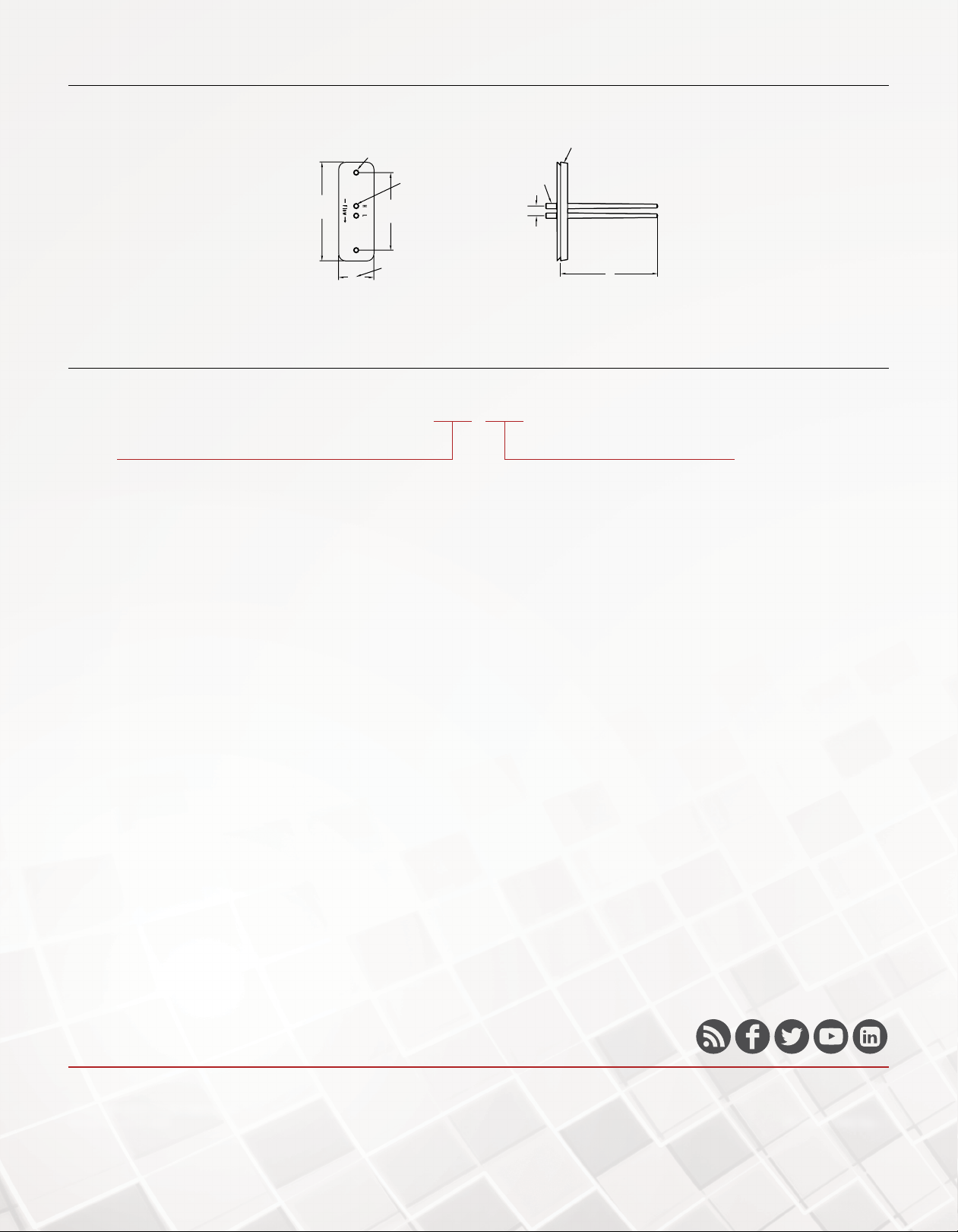

DIMENSIONS

[88.90]

[31.75]

FOAM GASKET

MOUNTING HOLES

2XØ3/16 [Ø4.76]

PUSH-ON CONNECTIONS

FOR 3/8 POLY TUBING [9.53 OD]

3-1/2

2-3/4

[69.85]

1-1/4

HOW TO ORDER

Use the bold characters from the chart below to construct a product code.

PAFS -1002

SERIES

PAFS: Averaging ow sensor

7/16

[11.11]

1/8 THK [6.35 THK]

A

LENGTH (DIM. A) IN (CM)

-1002: 3-5/32 (8.02)

-1003: 5-13/32 (13.73)

-1004: 7-21/32 (19.55)

-1005: 9-29/32 (25.26)

-1006: 12-1/2 (31.75)

-1007: 14-3/4 (37.47)

-1008: 17-1/8 (43.50)

-1009: 19-13/32 (49.29)

-1010: 21-21/32 (55.01)

-1011: 23-29/32 (60.72)
